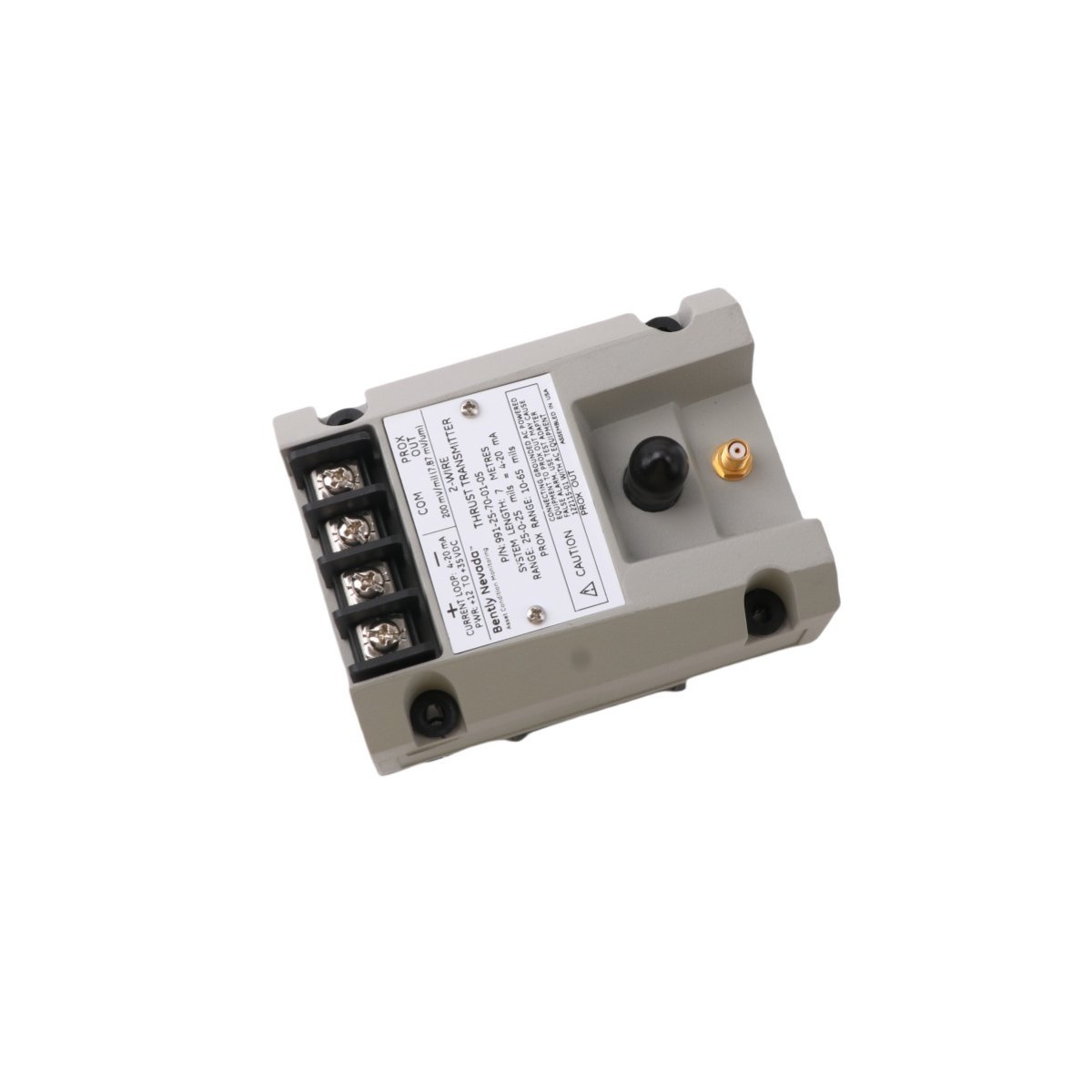

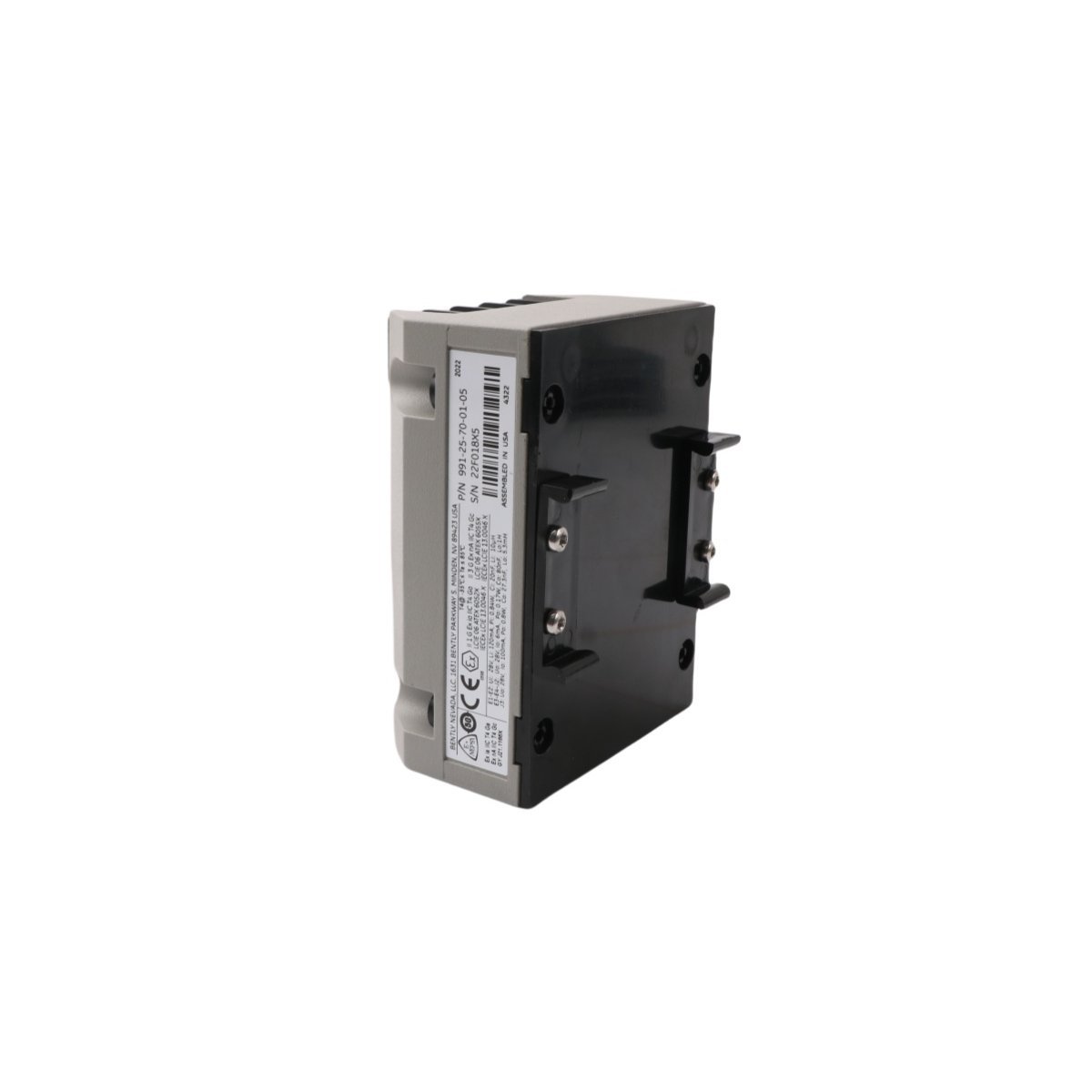

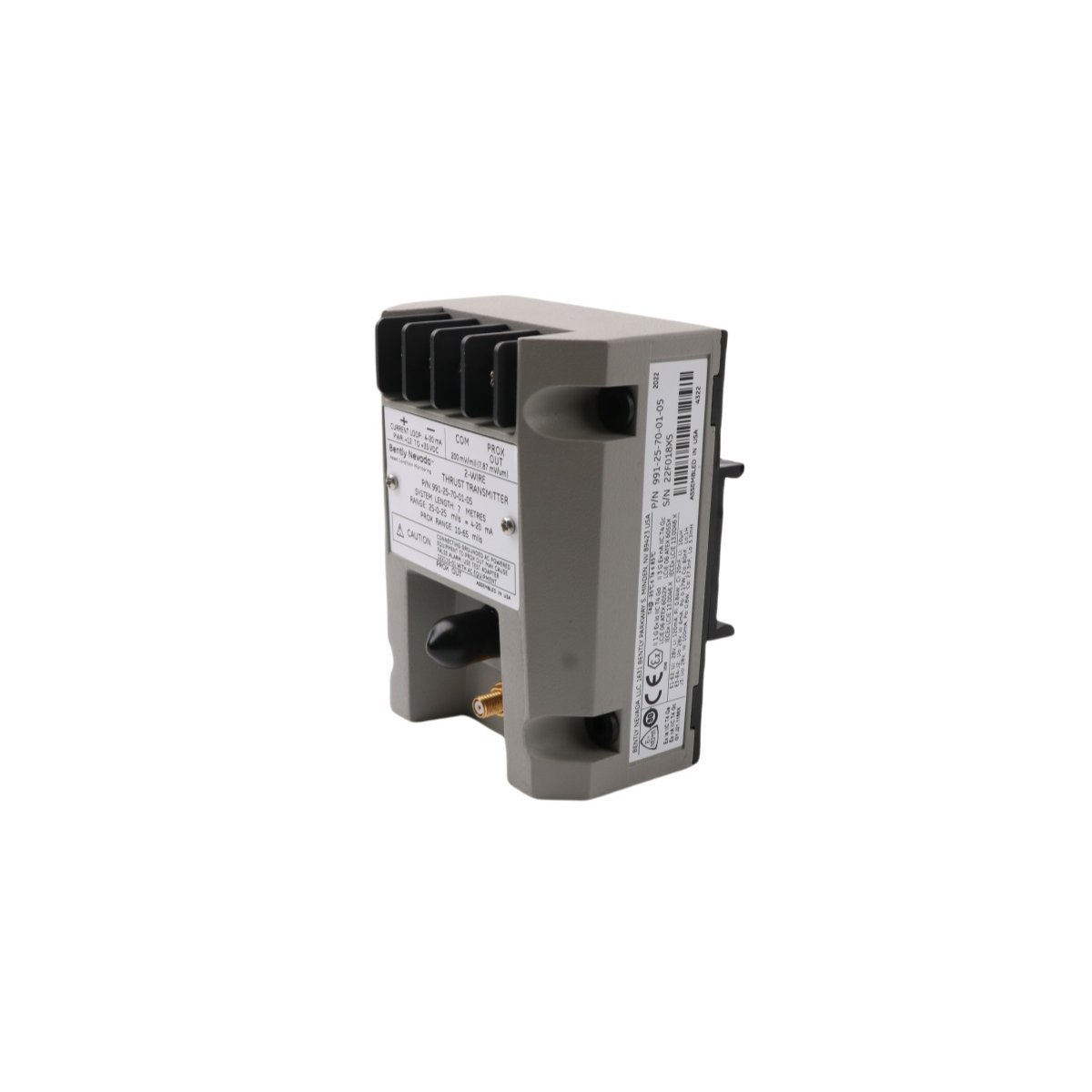

The Bently Nevada 991-25-70-03-05 Thrust Transmitter is a high-precision, industrial-grade monitoring solution engineered for continuous, real-time measurement and transmission of axial thrust position and displacement in rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in condition monitoring and predictive maintenance technologies), this transmitter serves as a critical component within integrated machinery protection systems (MPS) for turbomachinery, compressors, steam and gas turbines, and large electric motors. Designed to interface seamlessly with Bently Nevada 3500/40 Series Monitoring Systems and compatible 3300 XL proximity probe systems, the 991-25-70-03-05 converts raw proximity sensor signals into standardized 4–20 mA analog outputs—enabling accurate, noise-immune transmission over long distances to DCS, PLC, or SCADA platforms. Its robust construction adheres to stringent IEC 61508 SIL 2 functional safety requirements and meets API RP 670 (4th Edition) specifications for machinery protection system performance, ensuring compliance in mission-critical oil & gas, power generation, petrochemical, and marine propulsion applications. The unit operates with exceptional linearity (<±0.25% FS), thermal stability (±0.01% FS/°C), and long-term drift resistance (<0.1% FS/year), making it ideal for environments demanding sustained reliability under extreme temperature fluctuations, electromagnetic interference (EMI), and mechanical vibration. Each unit undergoes factory calibration traceable to NIST standards and is supplied with full documentation including calibration certificates, installation manuals, and configuration worksheets.

Detailed Specifications

Key Features

• Dual-Channel Differential Thrust Measurement: Simultaneously processes two proximity probe inputs to compute net axial displacement—eliminating common-mode errors from thermal growth and bearing wear.
• High-Fidelity Signal Conditioning: Incorporates precision low-noise amplifiers, 24-bit ADC resolution, and digital filtering to suppress harmonics, RFI, and ground-loop interference.
• Configurable Output Scaling: Adjustable zero (thrust position at rest) and span (full-scale range: 0.5–10.0 mm or 20–400 mils) via front-panel DIP switches or PC-based configuration tools.
• Integrated Diagnostic Capabilities: Real-time status LED indicators for power, input OK, output valid, and fault conditions (e.g., probe short/open, signal out-of-range).
• Robust Industrial Housing: Aluminum die-cast enclosure with corrosion-resistant coating ensures longevity in harsh refinery, offshore, and substation environments.
• Plug-and-Play Integration: Backward-compatible with legacy 3300 series infrastructure; supports hot-swap capability without system shutdown.
• Traceable Calibration & Documentation: Supplied with NIST-traceable calibration certificate, test reports, and comprehensive compliance documentation for audit readiness.
• Extended Service Life: Solid-state design with no moving parts; MTBF > 250,000 hours per MIL-HDBK-217F predictions.

Applications

• Steam Turbines: Continuous monitoring of thrust collar position to prevent catastrophic failure due to excessive axial movement or bearing seizure in power plants and combined-cycle facilities.
• Gas Compressors: Critical protection in pipeline transmission stations and LNG liquefaction trains where thrust imbalance can trigger uncontrolled shutdowns or mechanical damage.
• Centrifugal Pumps & Blowers: Early detection of coupling misalignment, impeller wear, or hydraulic imbalance in water treatment, chemical processing, and HVAC systems.
• Large Electric Motors (≥500 HP): Axial position verification for sleeve-bearing motors used in mining conveyors, marine propulsion drives, and steel mill rolling stands.
• API 617 & API 612 Machinery Trains: Compliance-ready integration for turbocompressor and turbine-generator packages requiring API RP 670-compliant thrust monitoring.
• Offshore Oil & Gas Platforms: Certified for Zone 1 hazardous areas (ATEX/IECEx) with intrinsic safety barriers, enabling deployment in topside compression modules and FPSO engine rooms.
• Renewable Energy Infrastructure: Monitoring of variable-speed drive train thrust dynamics in concentrated solar power (CSP) steam turbines and geothermal binary cycle systems.
