Description

Brief Product Description

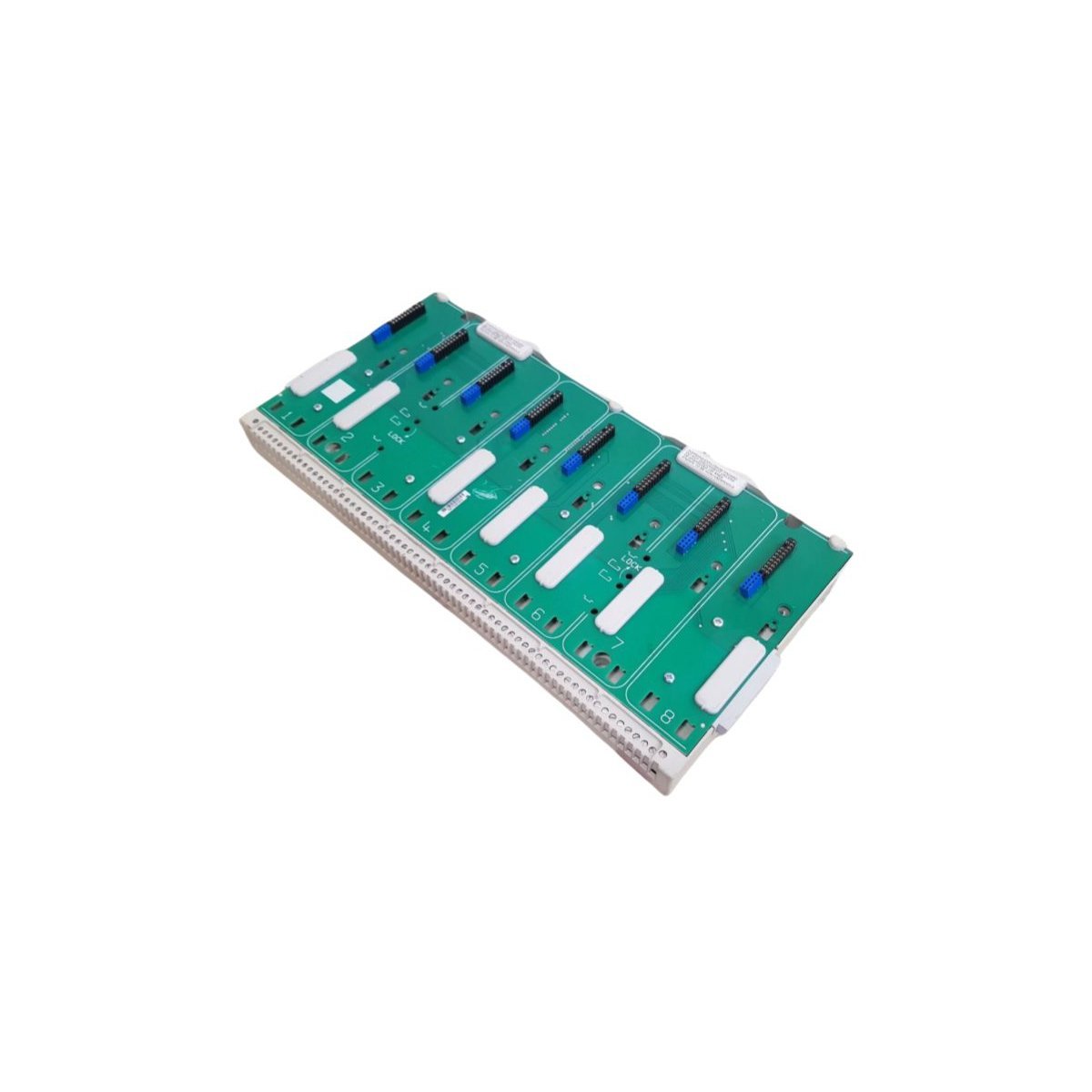

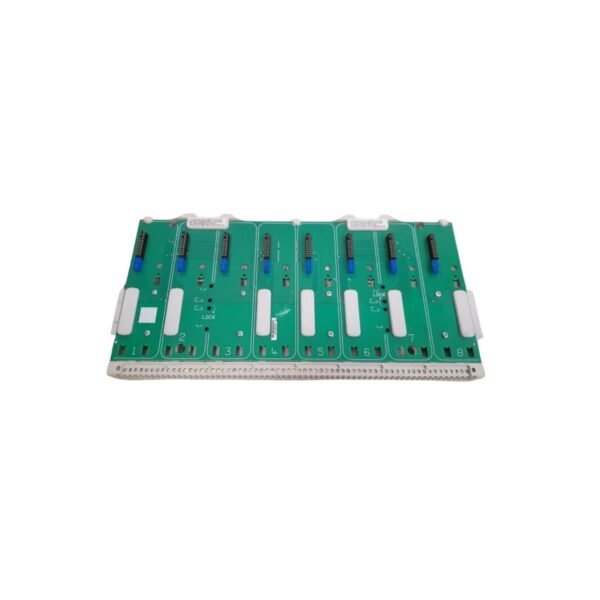

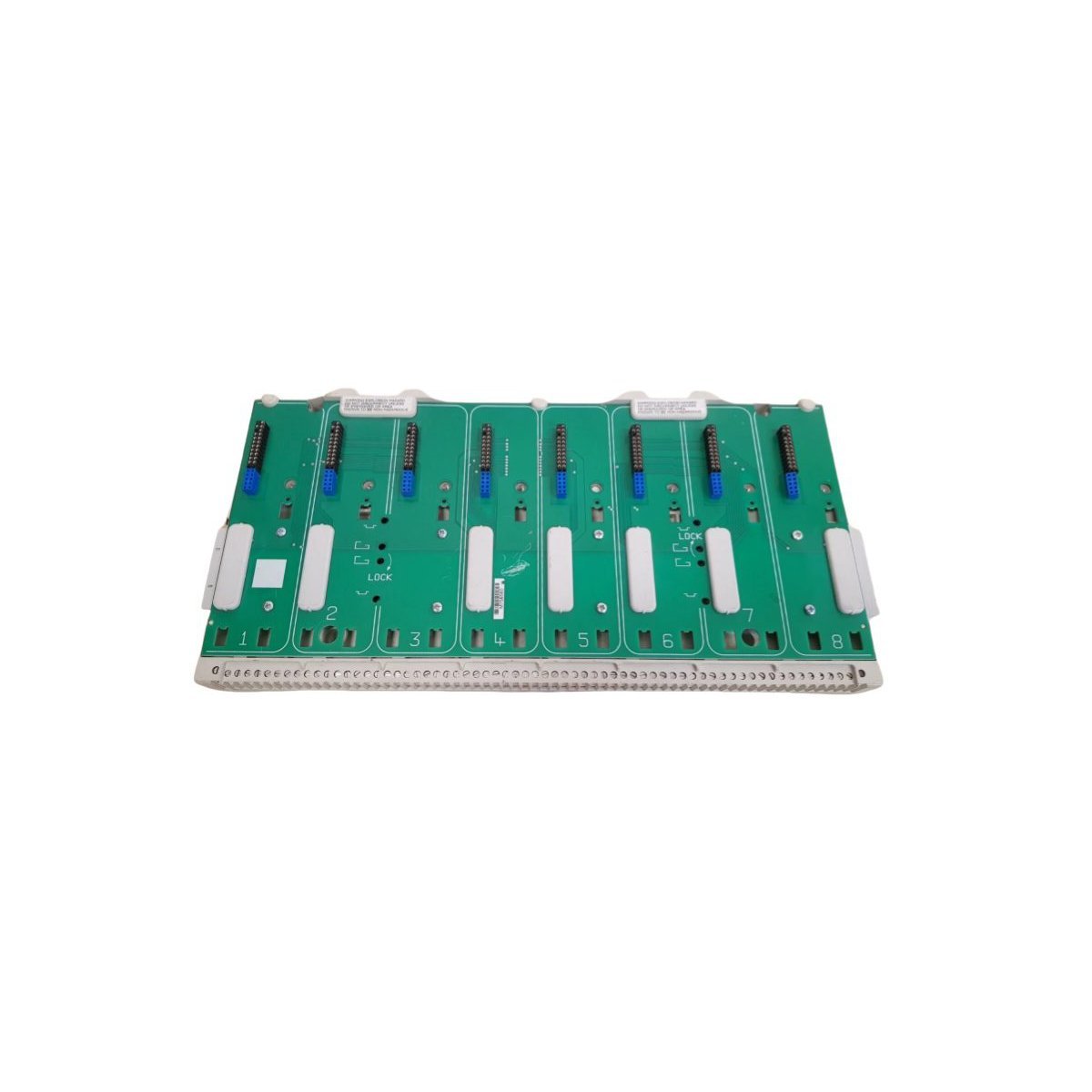

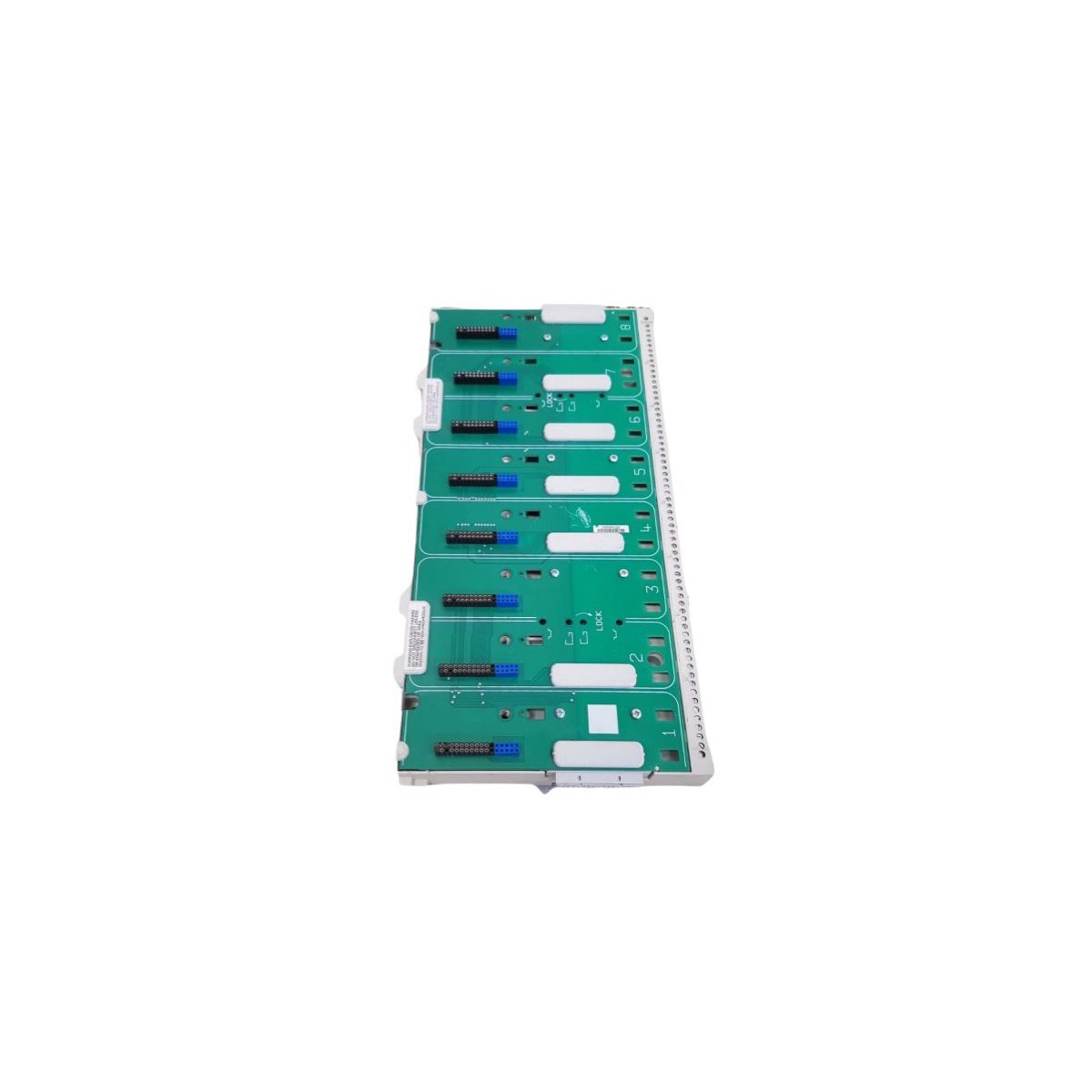

The General Electric 8709-CA-08 is a specialized backplane carrier designed for the SafetyNet and PAC Systems architectures. It provides the essential physical and electrical infrastructure for mounting I/O modules, facilitating high-speed Railbus communication and field power distribution.

Product Description

Integrated Architecture for Industrial Safety

The GE 8709-CA-08 serves as a primary structural component within the MTL8000 and SafetyNet control platforms. This carrier establishes a reliable communication path via the integrated Railbus, allowing for the seamless transfer of control signals and system data between the controller and I/O modules. While the system supports various addressing modes, the 8709-CA-08 is specifically required for 64-module addressing configurations. To maintain system integrity, engineers must use these carriers exclusively in 64-slot environments rather than mixing them with standard 32-slot versions.

Power Distribution and Signal Integrity

The 8709-CA-08 features a sophisticated Bussed Field Power (BFP) system that simplifies cabinet wiring. Each BFP connection efficiently delivers power to two adjacent module slots, requiring users to pair modules with shared power requirements for optimal performance. Furthermore, the carrier includes dedicated earthing bars. These bars provide isolated termination points for cable screens and shields, which effectively mitigates electromagnetic interference and ensures stable signal transmission in noisy industrial settings.

Versatile Installation and Mechanical Security

Flexibility defines the installation process for the 8709-CA-08. The unit supports mounting on both T-section and G-section DIN rails, though it also accommodates direct mounting to flat surfaces for custom panel designs. For larger I/O requirements, the carriers connect end-to-end to expand the installation footprint easily. Field terminals click directly into the carrier frame and remain locked once the I/O modules are fastened with primary screws. Because the carrier contains no active electronic components, it offers an exceptionally high Mean Time Between Failures (MTBF), ensuring long-term reliability for critical DCS and safety applications.
