Description

Product Overview

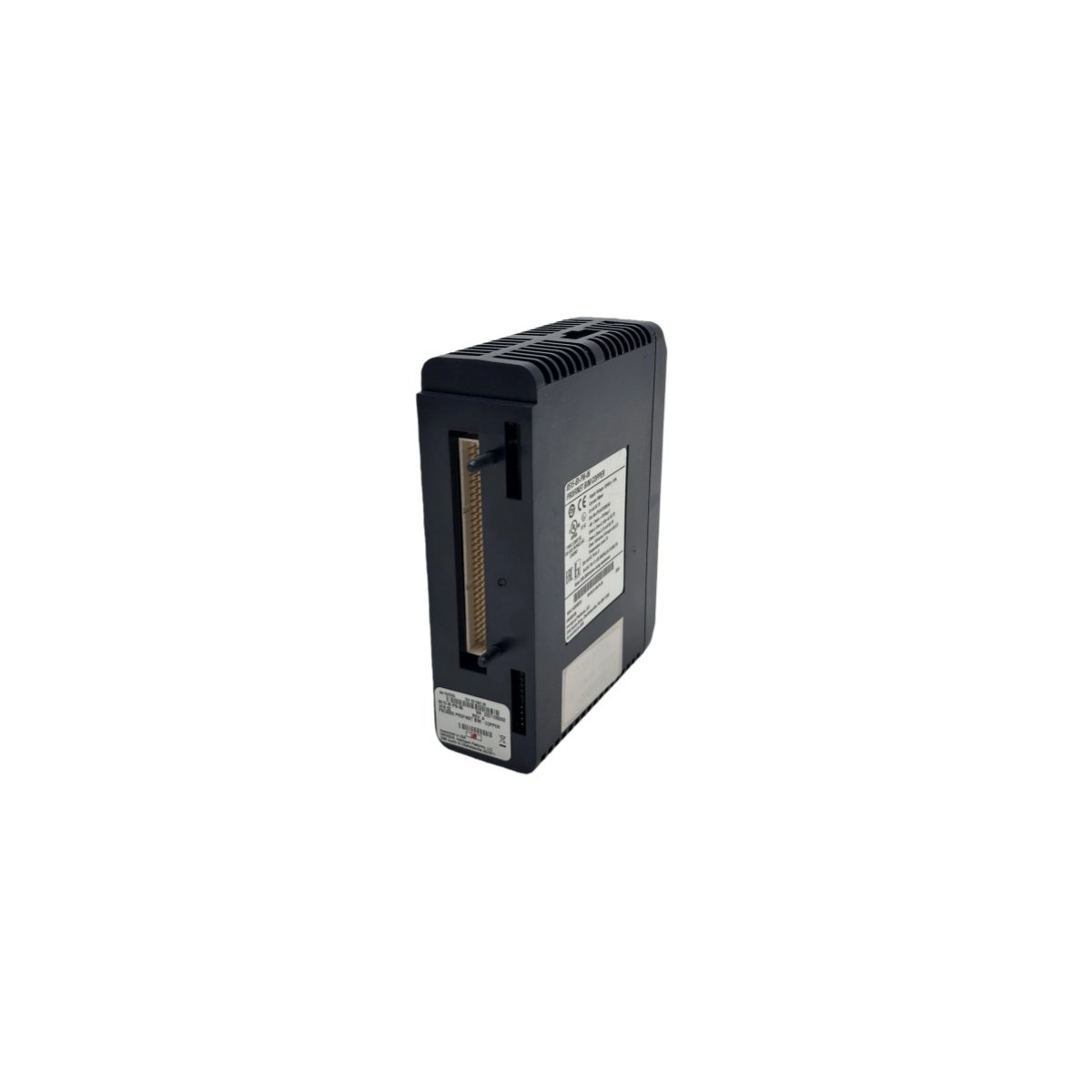

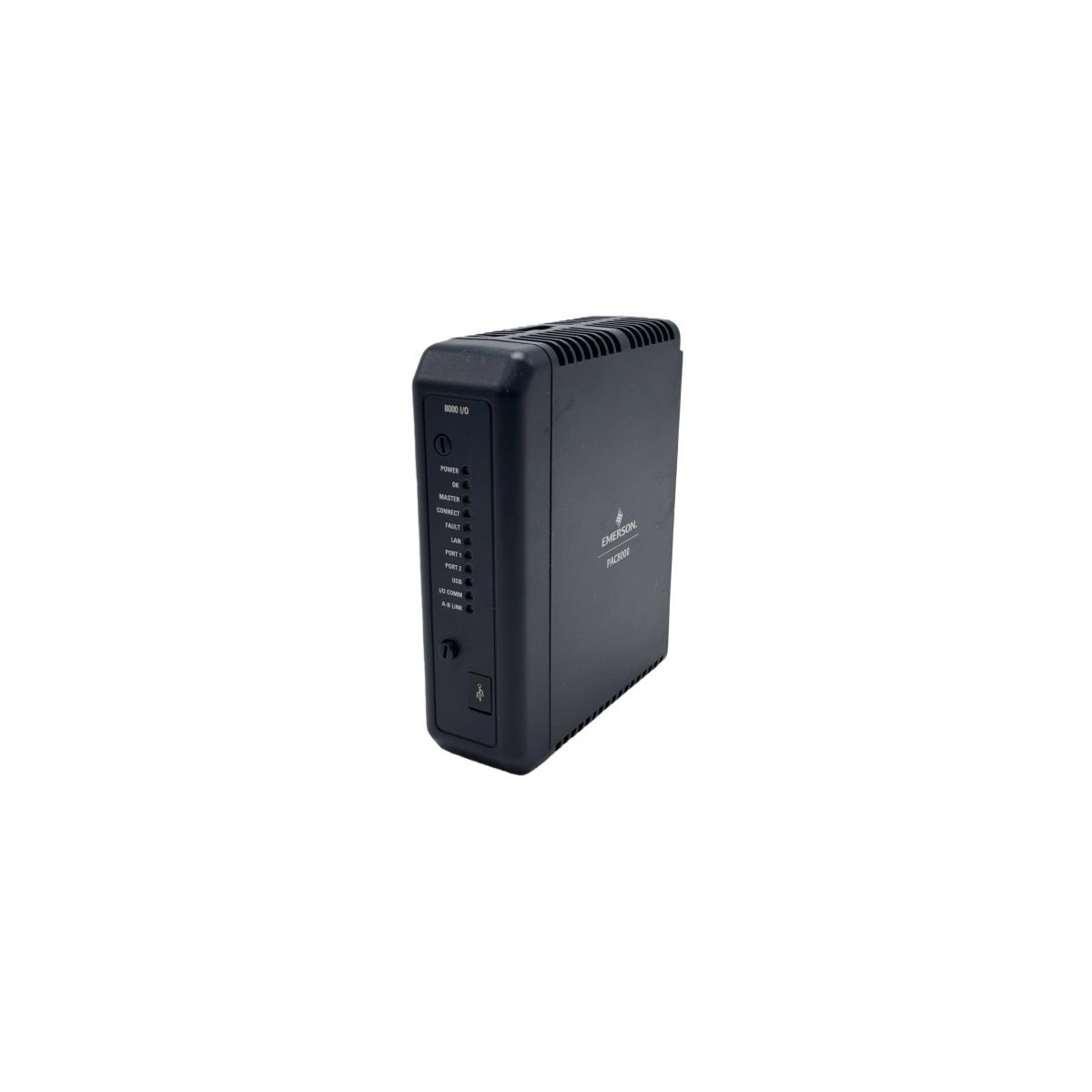

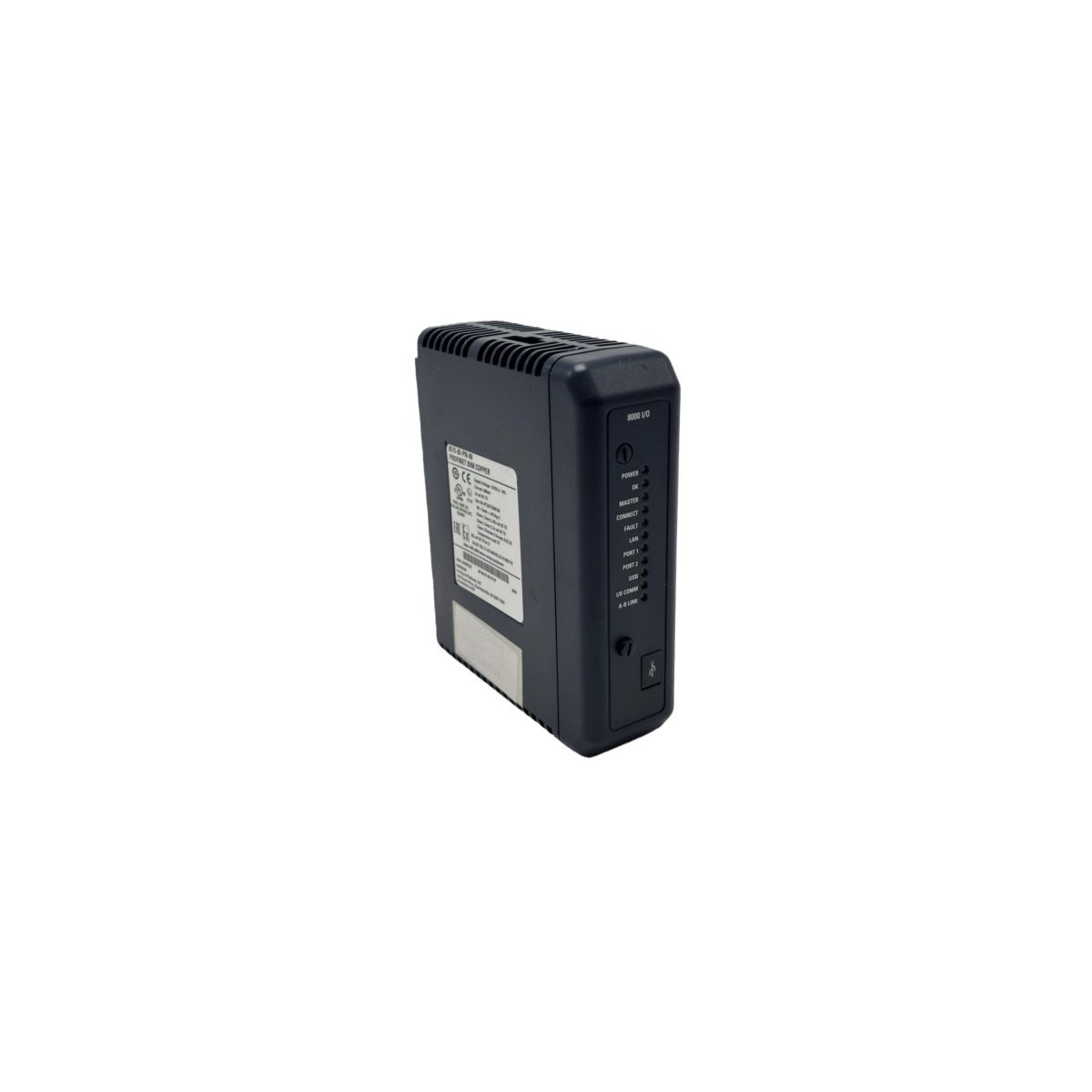

The Emerson 8515-BI-PN-07 is a high-performance PROFINET bus interface module engineered for the PAC8000 remote I/O platform. It acts as a rugged communication gateway, connecting field-level I/O modules to a central PROFINET controller while maintaining operation in extreme industrial environments.

Robust Network Connectivity and Protocol Support

The 8515-BI-PN-07 serves as the primary communication link for PAC8000 nodes, offering high-speed data exchange via dual 100Mbps copper interfaces. This module implements the PROFINET industrial Ethernet standard, which allows for real-time deterministic control and seamless integration with PACSystems RX3i or other third-party controllers. Beyond standard data transport, the module supports HART pass-through functionality. This feature enables engineers to remotely configure and diagnose intelligent field instruments without disrupting the primary process signal. Consequently, the scanner enhances both the transparency and the maintainability of the entire control loop.

High Availability and Redundancy Mechanisms

System uptime is a critical priority for the 8515-BI-PN-07, especially in process automation. To prevent communication loss, the module supports Media Redundancy Protocol (MRP), which allows the network to recover nearly instantaneously in the event of a ring topology break. Furthermore, its dual LAN capabilities provide physical layer redundancy, ensuring that a single cable failure does not isolate the remote I/O station. These fail-safe measures make the scanner an essential component for critical infrastructure where unscheduled downtime results in significant operational costs.

Hardened Design for Hazardous Environments

Emerson specifically designed the PAC8000 series, including the 8515-BI-PN-07, to function where traditional electronics fail. The module operates reliably across an extended temperature range and possesses high resistance to corrosive gases, mechanical shock, and intense vibration. Because it carries certifications for ATEX Zone 2 and Division 2 hazardous locations, technicians can deploy it in close proximity to the process. Additionally, the hardware supports “hot-swapping” and live maintenance, which permits module replacement under power. This capability is vital for manufacturing and oil and gas facilities that require continuous 24/7 operation.

Technical Specifications
