Description

Brief Product Description

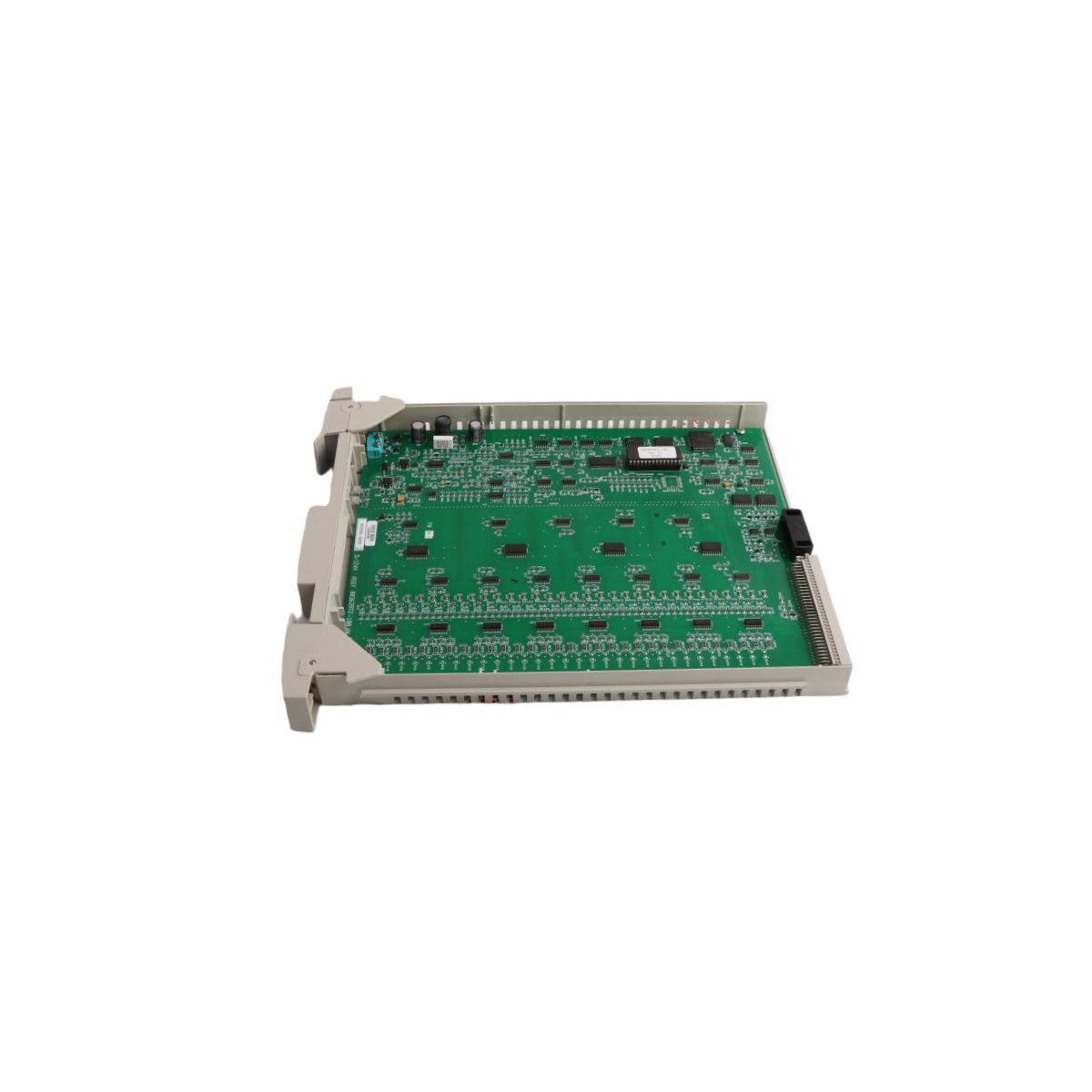

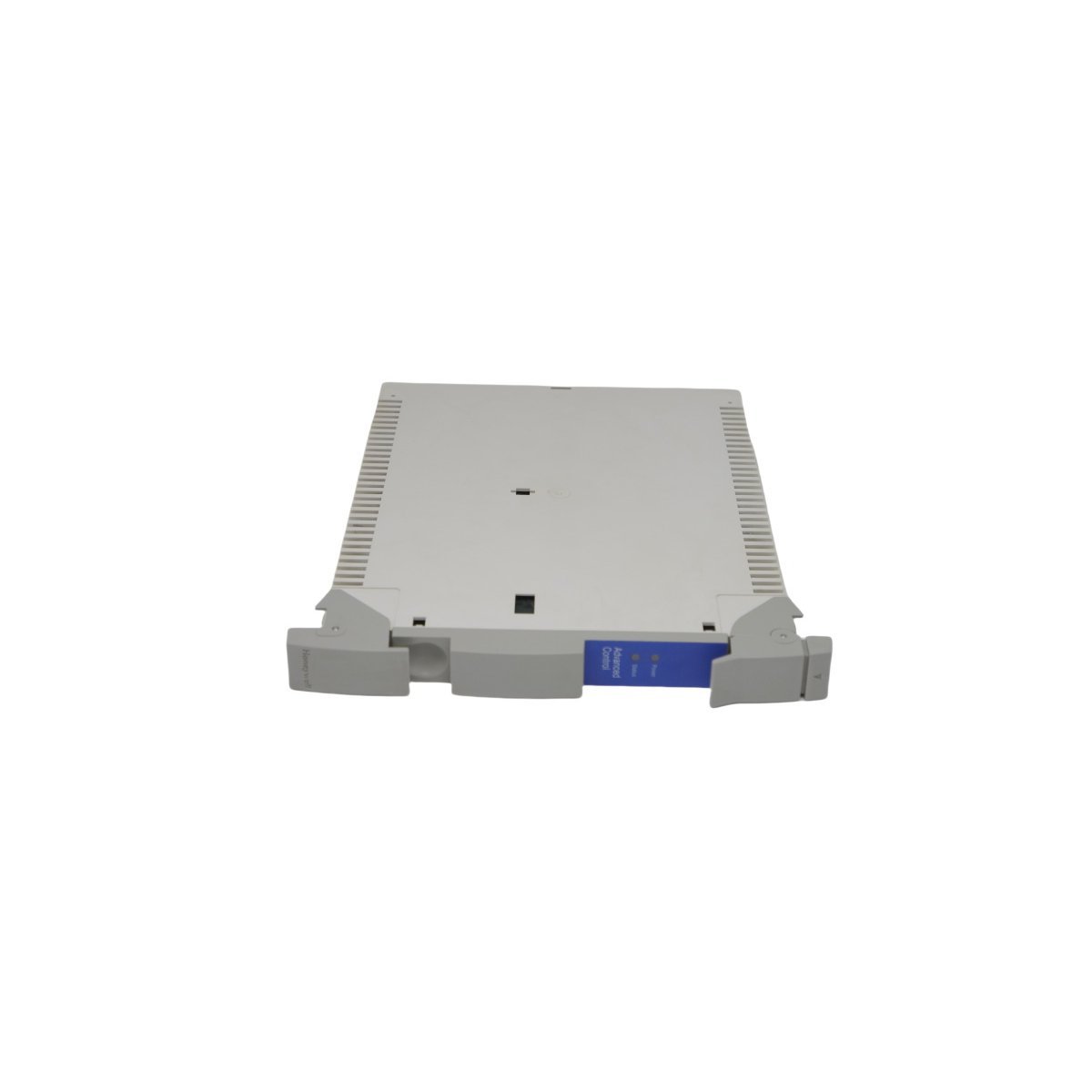

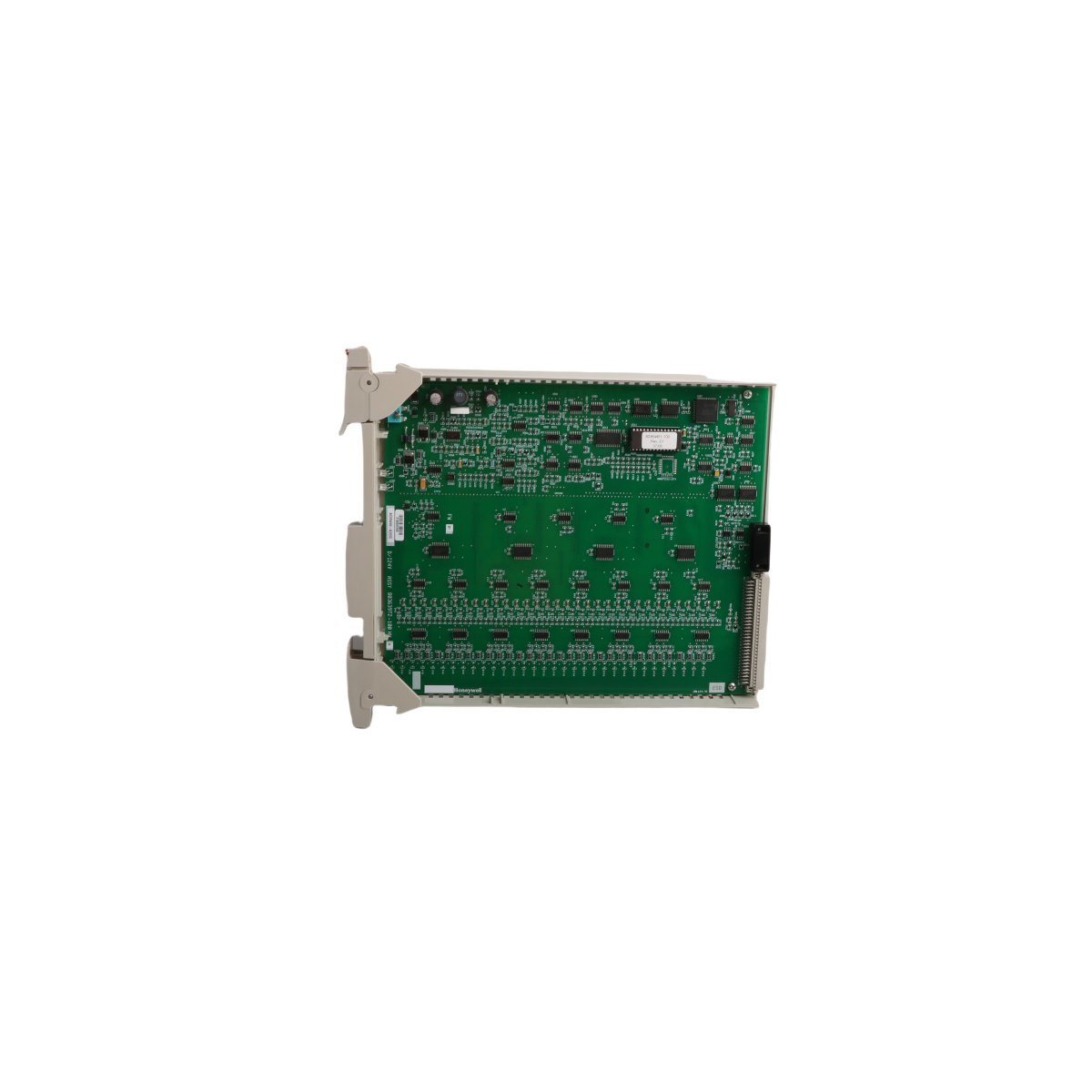

The Honeywell MC-PDOY22 (80363975-150) is a high-reliability digital output module specifically engineered for the TDC 3000 Distributed Control System (DCS).¹ It serves as the primary interface for executing discrete control commands, effectively driving field devices like solenoids, indicators, and interposing relays.

Product Description

Integrated Process Command Execution

The Honeywell MC-PDOY22 functions as a high-performance command interface within the legacy TDC 3000 architecture.² This module converts digital control logic into physical switching actions, allowing the DCS to manage a variety of field-mounted hardware. Because it supports multiple output channels on a single board, it enables facilities to consolidate their control footprint while maintaining rigorous execution of automated sequences. This capability is essential for industrial operations—such as oil refining and power generation—where synchronized switching of valves and motors is critical to process safety and efficiency.

Industrial Resilience and Protection

Honeywell designed the 80363975-150 assembly to withstand the demanding electrical environments characteristic of heavy industry.³ The module incorporates built-in galvanic isolation, which shields the central controller from field-side voltage spikes and electrical noise. Furthermore, integrated overcurrent protection safeguards the internal circuitry against external faults or short circuits. These protective measures ensure that a failure at the device level does not compromise the integrity of the broader control network, thereby maximizing the Mean Time Between Failures (MTBF) for the entire system.

Advanced Diagnostics and Maintenance

The MC-PDOY22 module actively improves plant uptime through its comprehensive diagnostic suite.⁴ The system continuously monitors the health of each output channel, reporting anomalies or hardware discrepancies directly to the operator console. By providing this real-time visibility, the module facilitates proactive troubleshooting and allows maintenance teams to address potential issues before they escalate into process interruptions. Its hot-pluggable design further streamlines service, as technicians can install or replace units in standard I/O racks without requiring a complete system shutdown, ensuring continuous operation for critical industrial workflows.⁵
