Description

Product Overview

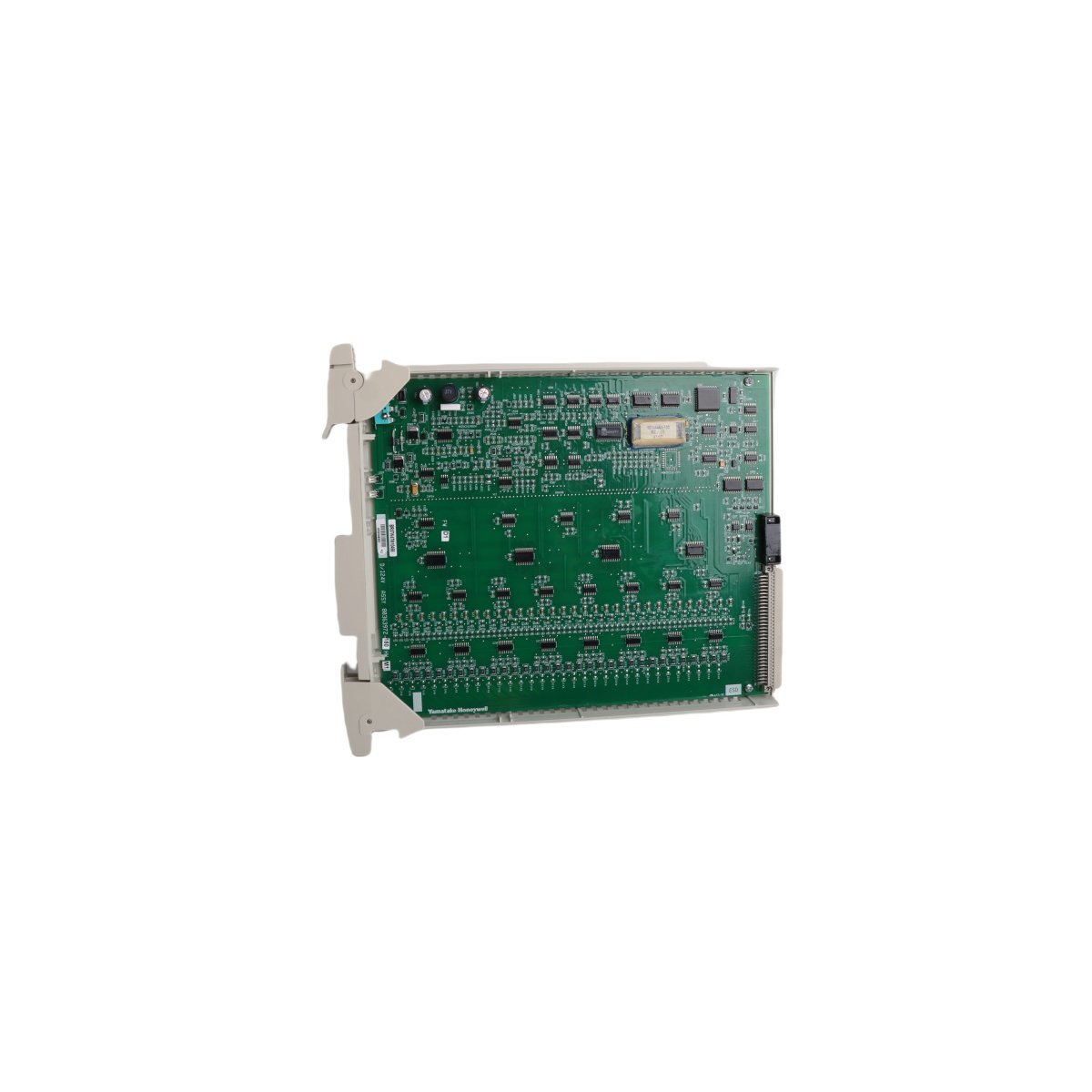

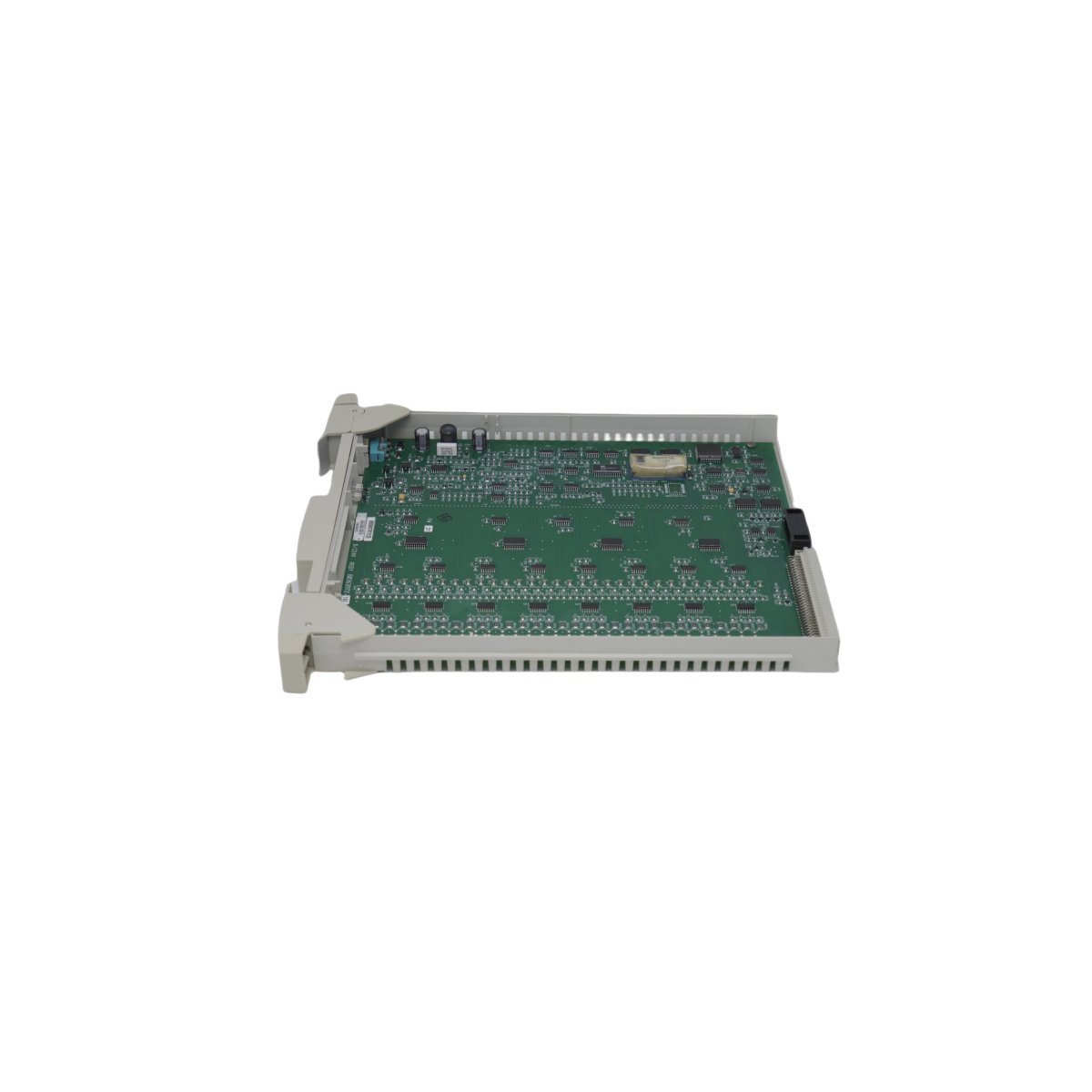

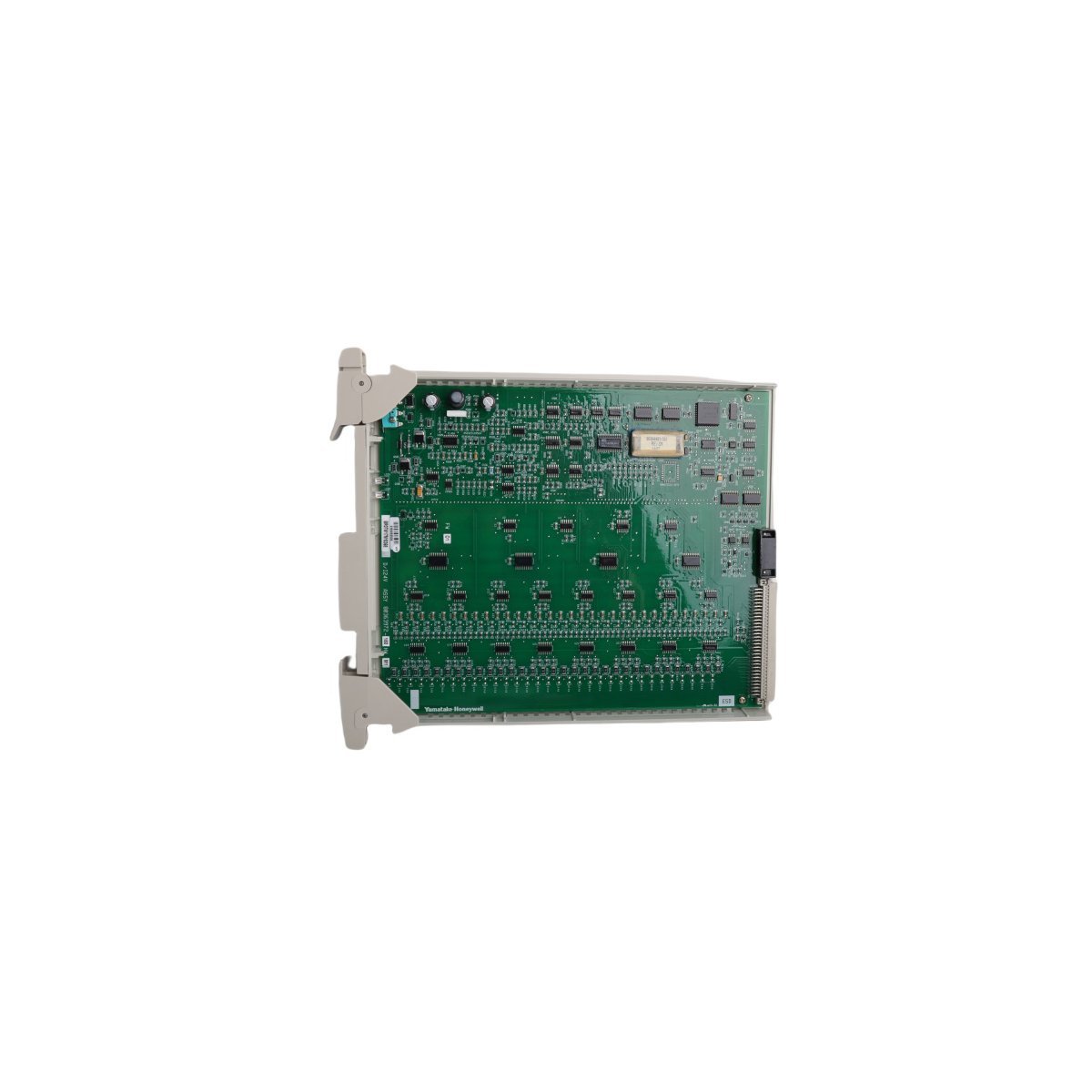

The Honeywell MC-PDIY22 (80363972-100) is a high-performance digital input processor designed for the TDC 3000 Distributed Control System (DCS). This module serves as the primary interface for capturing discrete field signals, allowing the control system to monitor real-time equipment status and sensor data.

Precision Discrete Signal Processing

The MC-PDIY22 functions as a critical bridge between field-level hardware and the central control logic. By converting binary signals from devices like limit switches, proximity sensors, and pushbuttons, the module enables the DCS to execute automated logic based on current plant conditions. High-speed signal scanning ensures that state changes are captured almost instantaneously, which is vital for maintaining the safety and efficiency of high-speed industrial processes. Furthermore, the module utilizes advanced opto-isolation to protect the internal system bus from electrical surges and field-side noise.

Enhanced Diagnostics and System Availability

Operational reliability remains a priority for the 80363972-100, which features comprehensive onboard diagnostics. The module continuously monitors the integrity of each input channel and the health of the internal circuitry. If a fault occurs, the processor immediately reports the status to the operator console, allowing for rapid troubleshooting and minimizing potential process interruptions. Because the module supports high-density wiring configurations, it effectively reduces the physical footprint required in the control cabinet while streamlining the overall installation process.

Application and Industrial Durability

Honeywell engineered the MC-PDIY22 to withstand the rigorous demands of heavy industry, including petrochemical refining, power generation, and large-scale manufacturing. The robust circuit design operates reliably in environments with significant electromagnetic interference and fluctuating temperatures. This durability ensures a long service life and consistent performance in mission-critical applications where data accuracy is non-negotiable. Additionally, the module integrates seamlessly into existing TDC 3000 architectures, providing a reliable solution for both system expansions and legacy hardware replacements.

Technical Characteristics
