Description

Brief Product Description

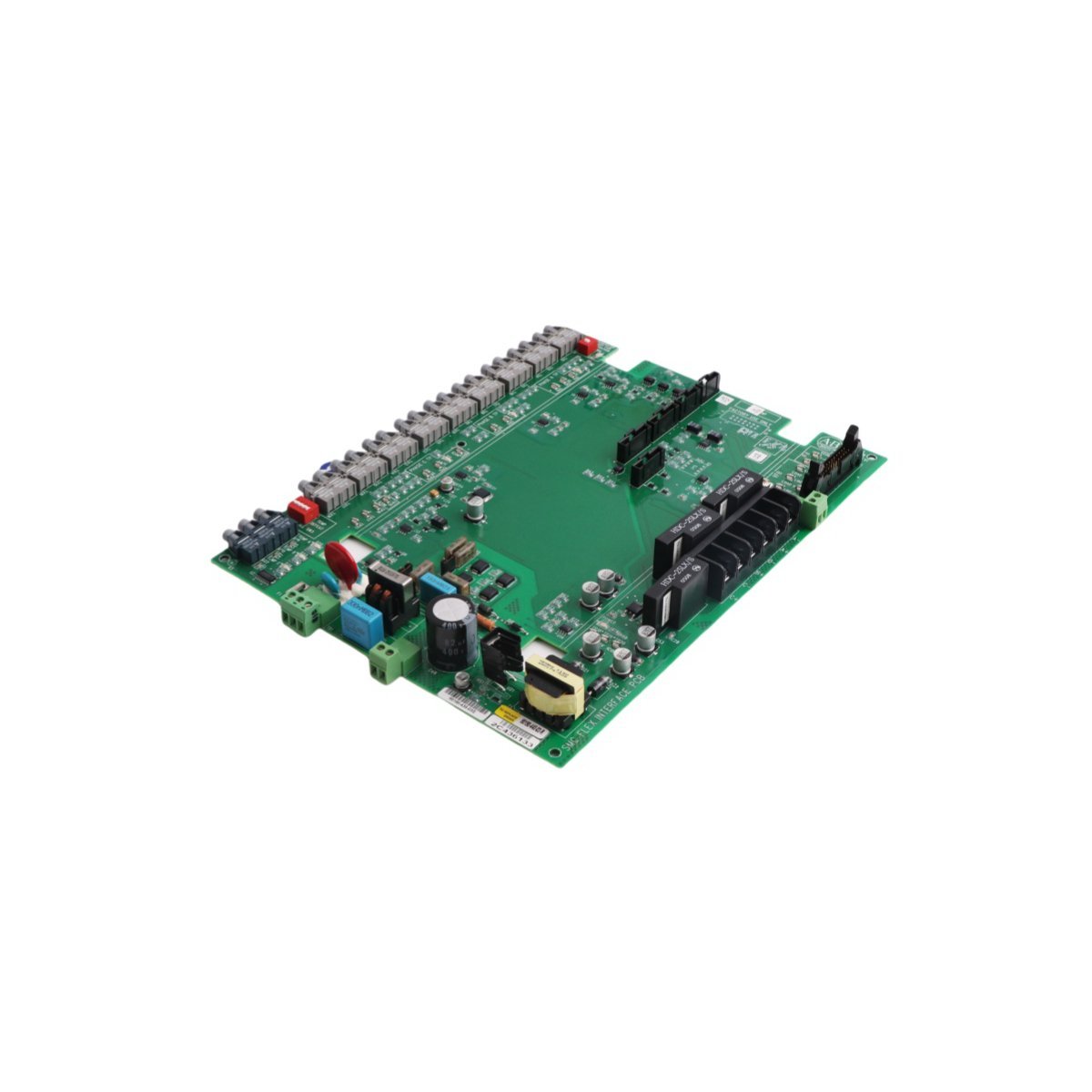

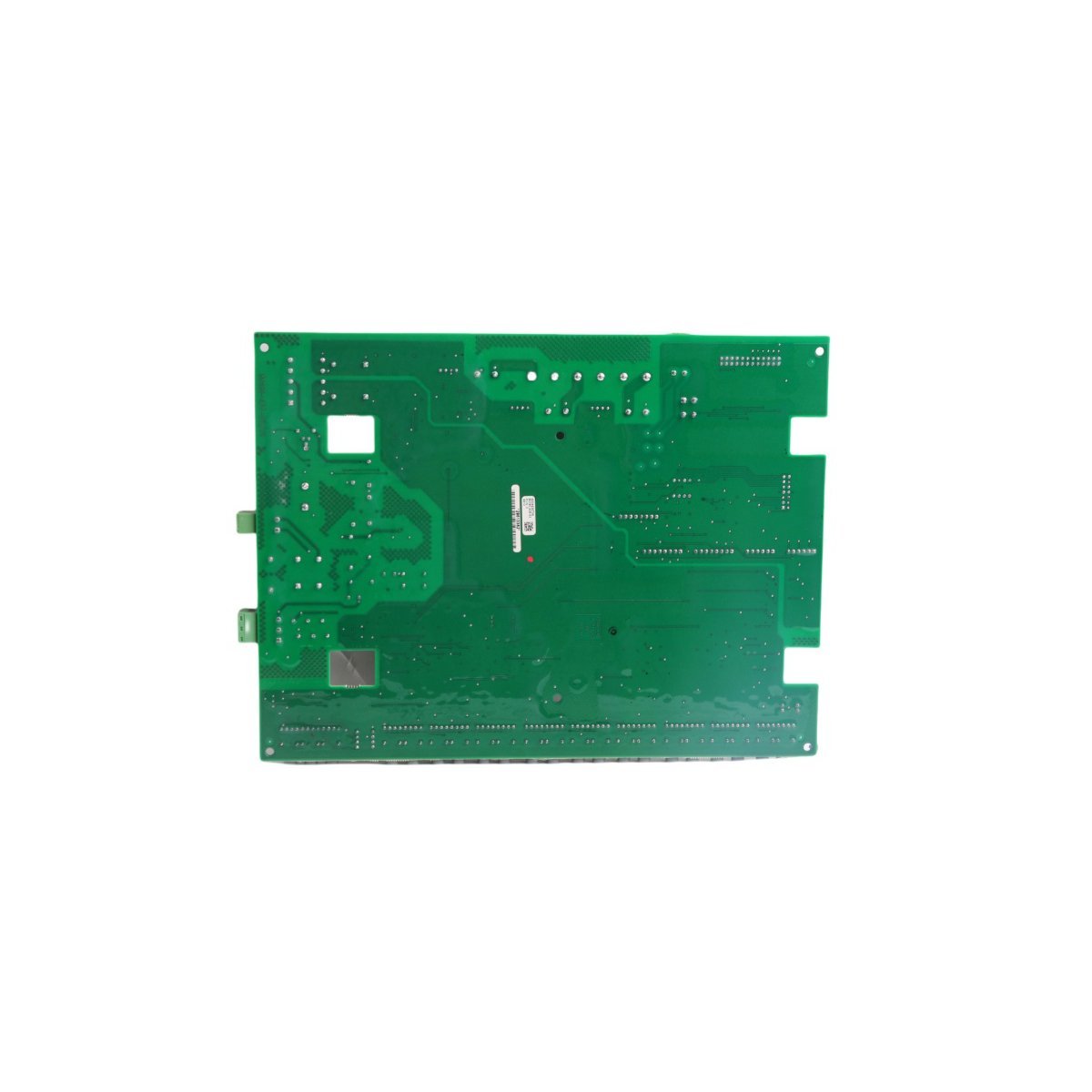

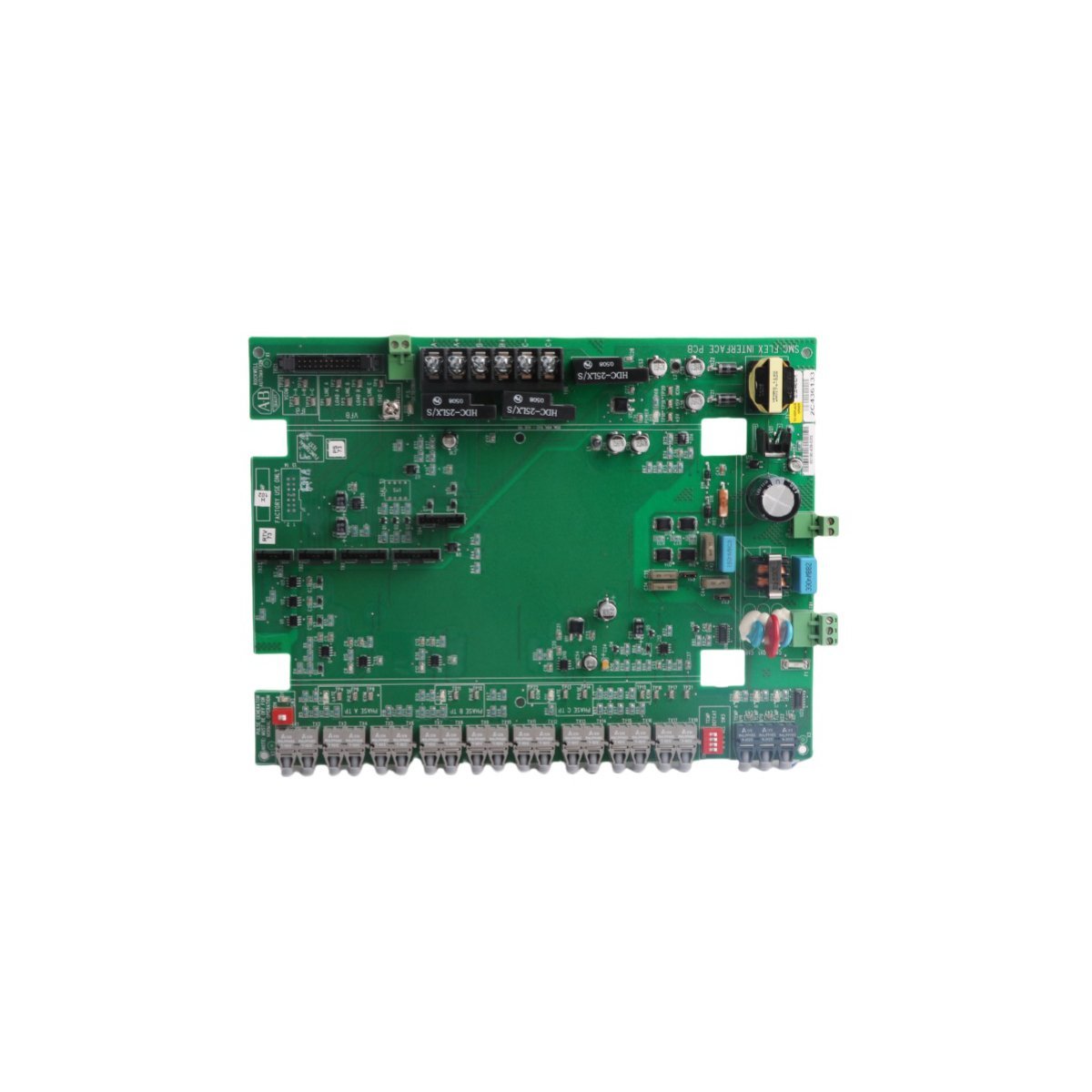

The Allen Bradley 80190-440-03-R is a critical main control interface board specifically engineered for the SMC Flex series of solid-state soft starters.¹ This PCB manages the essential logic signals and communication protocols required to regulate motor acceleration and deceleration while protecting internal circuitry from mechanical stress.

Essential Control Logic for Soft Start Systems

The Allen Bradley 80190-440-03-R serves as the primary intelligence hub for the SMC Flex motor control system. This interface board bridges the gap between the power section and the user-defined control parameters, ensuring that voltage ramping occurs precisely according to programmed curves. By managing the firing pulses for the silicon-controlled rectifiers (SCRs), the board facilitates a smooth start-up sequence that significantly reduces inrush current. Consequently, this controlled approach prevents the abrupt torque spikes that often damage belts, gears, and couplings in heavy-duty industrial machinery.

Robust Integration and System Protection

Reliability defines the architecture of the 80190-440-03-R interface PCB. It monitors real-time feedback from the motor to adjust performance dynamically and prevent stall conditions or overheating. The board incorporates dedicated communication pathways that allow the soft starter to interact with broader PLC networks and human-machine interfaces (HMIs). Because it handles sensitive logic signals in high-power environments, the board features enhanced shielding to resist electromagnetic interference. This design ensures that the soft starter maintains consistent operation even in facilities with significant electrical noise, such as mining or water treatment plants.

Maintenance and Legacy System Support

As an essential internal component, the 80190-440-03-R allows facilities to extend the service life of their existing SMC Flex installations without necessitating a full system replacement. The board’s modular layout simplifies the repair process, as technicians can swap the interface unit to restore full functionality to a soft starter unit. Furthermore, the 80190-440-03-R remains a vital asset for maintenance teams who prioritize minimizing operational downtime. Replacing a faulty control board rather than the entire motor controller unit offers a cost-effective strategy for sustaining precision motor control in mission-critical applications.

Key Technical Characteristics

• Precision Signal Processing: Orchestrates accurate voltage ramping and torque control for motor starting.
• Optimized Thermal Management: Designed to operate reliably within the heat profile of industrial soft starters.
• Native SMC Flex Compatibility: Ensures perfect electrical and physical fitment for Rockwell Automation’s flex series.
• Advanced Diagnostic Support: Facilitates error detection and status reporting back to the main controller.
• Industrial Grade Durability: Built to withstand the vibrations and environmental demands of motor control centers.
• Reduced Mechanical Wear: Minimizes system-wide stress by smoothing out the initial power-on phase.
