Description

Brief Product Description

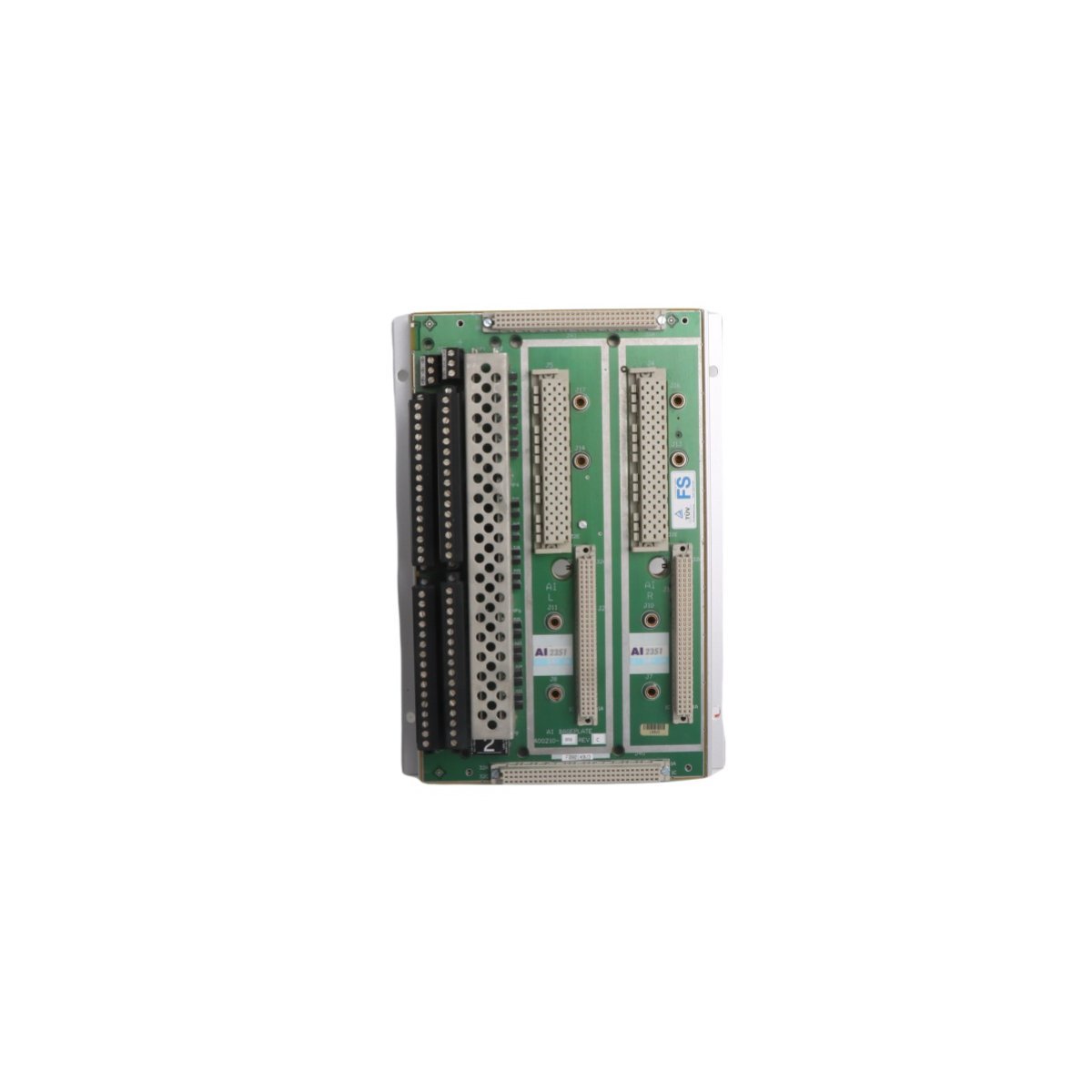

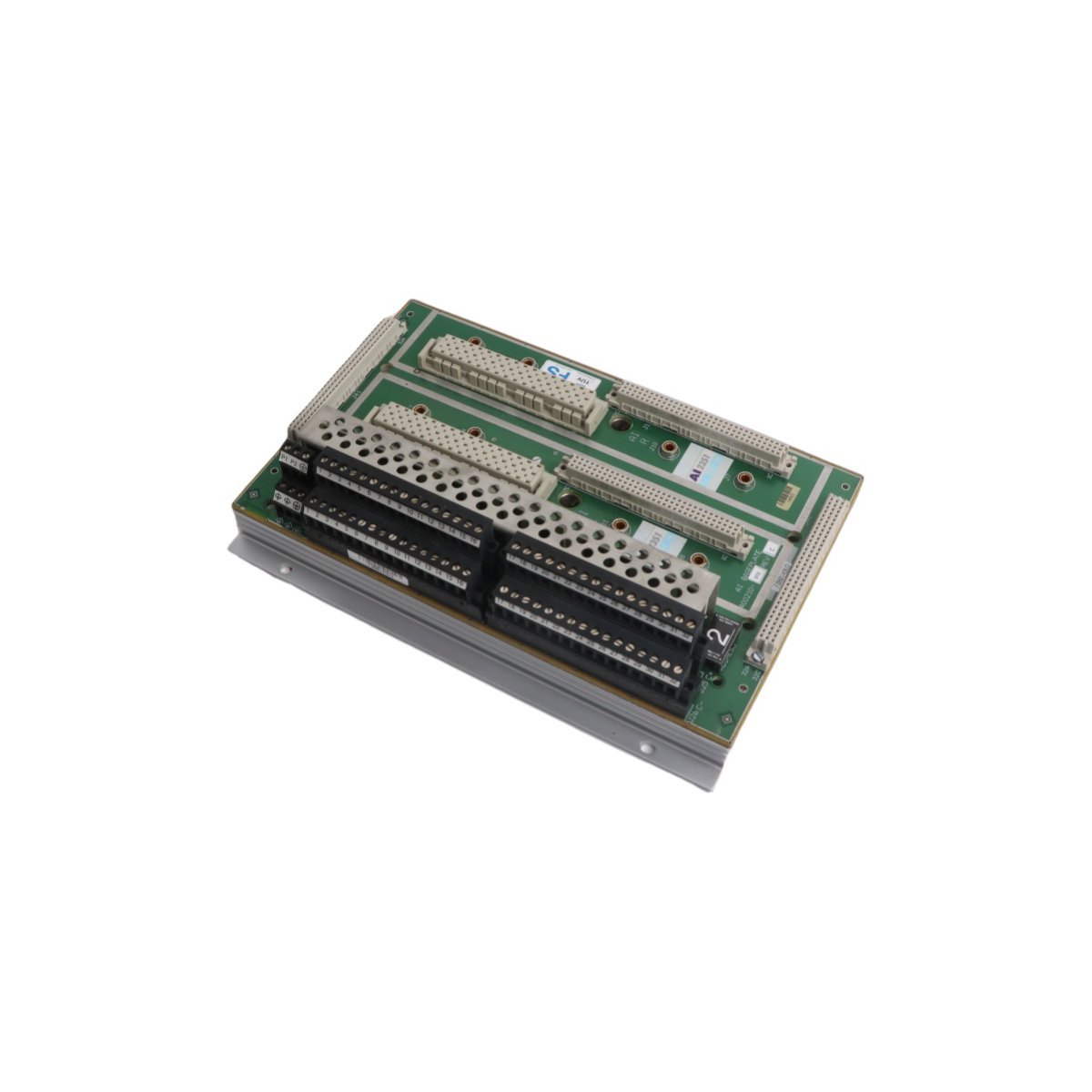

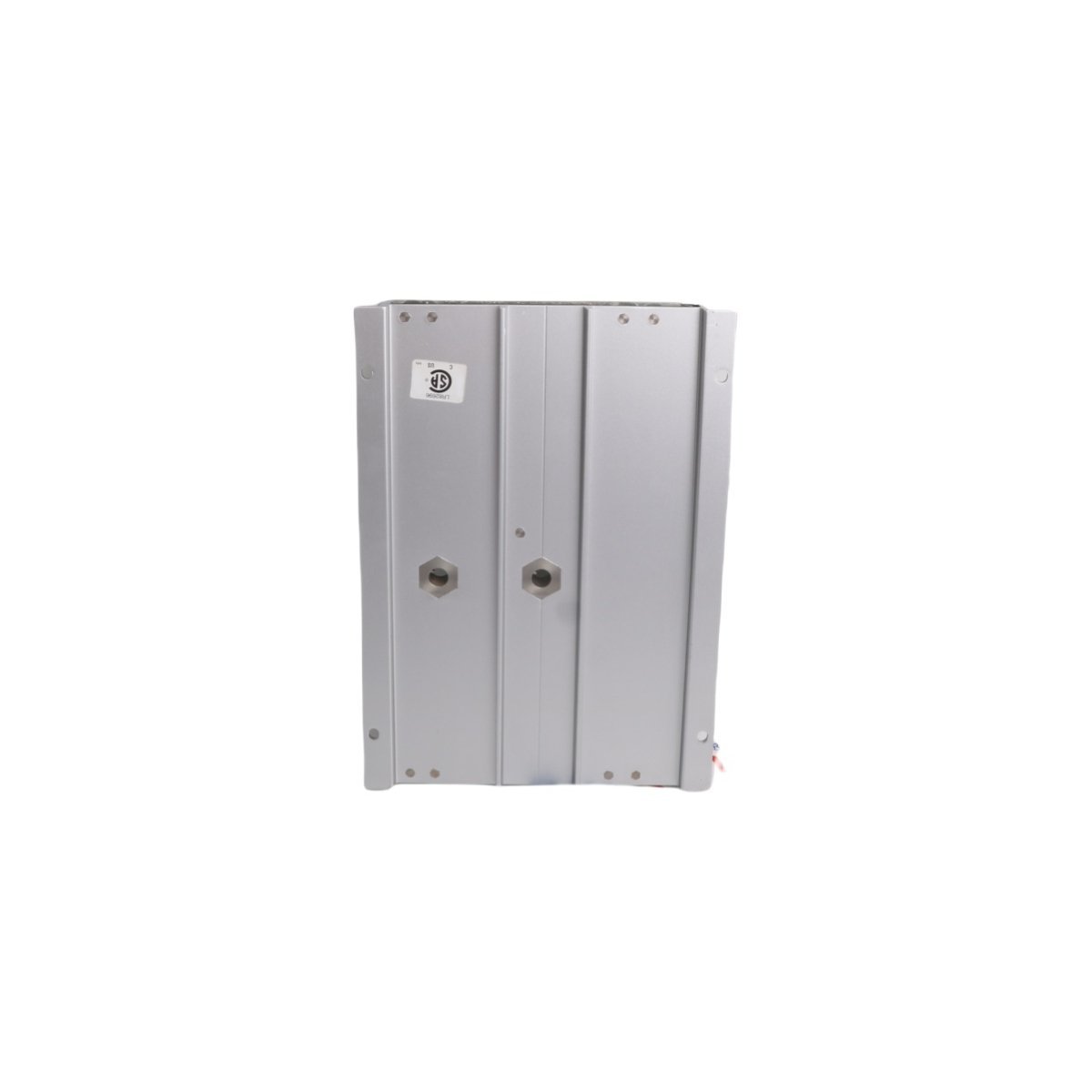

The Triconex 7400210-010 AI2351 is a high-integrity analog input baseplate designed for Tricon safety systems, providing a secure interface for 16-channel signal acquisition.³ This baseplate supports HART communication and offers SIL 3 certified performance for mission-critical industrial monitoring.⁴

Product Description

High-Fidelity Signal Processing for Safety Systems

The Triconex 7400210-010 AI2351 serves as a specialized analog input interface within the Tricon v9 through v11 safety architectures. By providing 16-bit resolution and a remarkable ±0.1% accuracy rating, this baseplate ensures that the safety controller receives precise data from field transmitters. It accommodates both current-based signals (4-20mA/0-20mA) and voltage-based inputs (0-10V/±10V), offering the flexibility required for diverse industrial sensing needs.⁵ Furthermore, the unit features 1500V AC/DC channel-to-channel isolation, which effectively shields the internal logic from external electrical surges and ground loops.

Robust HART Integration and Diagnostics

Modern industrial facilities utilize the AI2351 baseplate to leverage advanced HART communication capabilities. This integration allows engineers to perform remote device configuration and extract detailed diagnostic data from “smart” field instruments without additional hardware. Because the module supports hot-swapping, maintenance teams can replace components during live operations without triggering a process trip or compromising the safety loop. Additionally, the fault-tolerant design manages up to 200mA of fault current, protecting the broader system while maintaining measurement continuity in hazardous refinery or chemical processing environments.

Industrial Resilience and System Engineering

The Triconex 7400210-010 demonstrates superior durability through its vibration-resistant construction and corrosion-protected circuitry. Designed to operate in extreme conditions, it maintains performance across a temperature range of -40°C to +70°C.⁶ Furthermore, the baseplate integrates seamlessly with the TRISTATION 1131 software suite, simplifying the commissioning and documentation of safety-instrumented systems (SIS). This combination of low power consumption and high channel density makes it a preferred choice for space-constrained installations where reliability and energy efficiency are paramount.

Technical Specifications
