Description

Brief Product Description

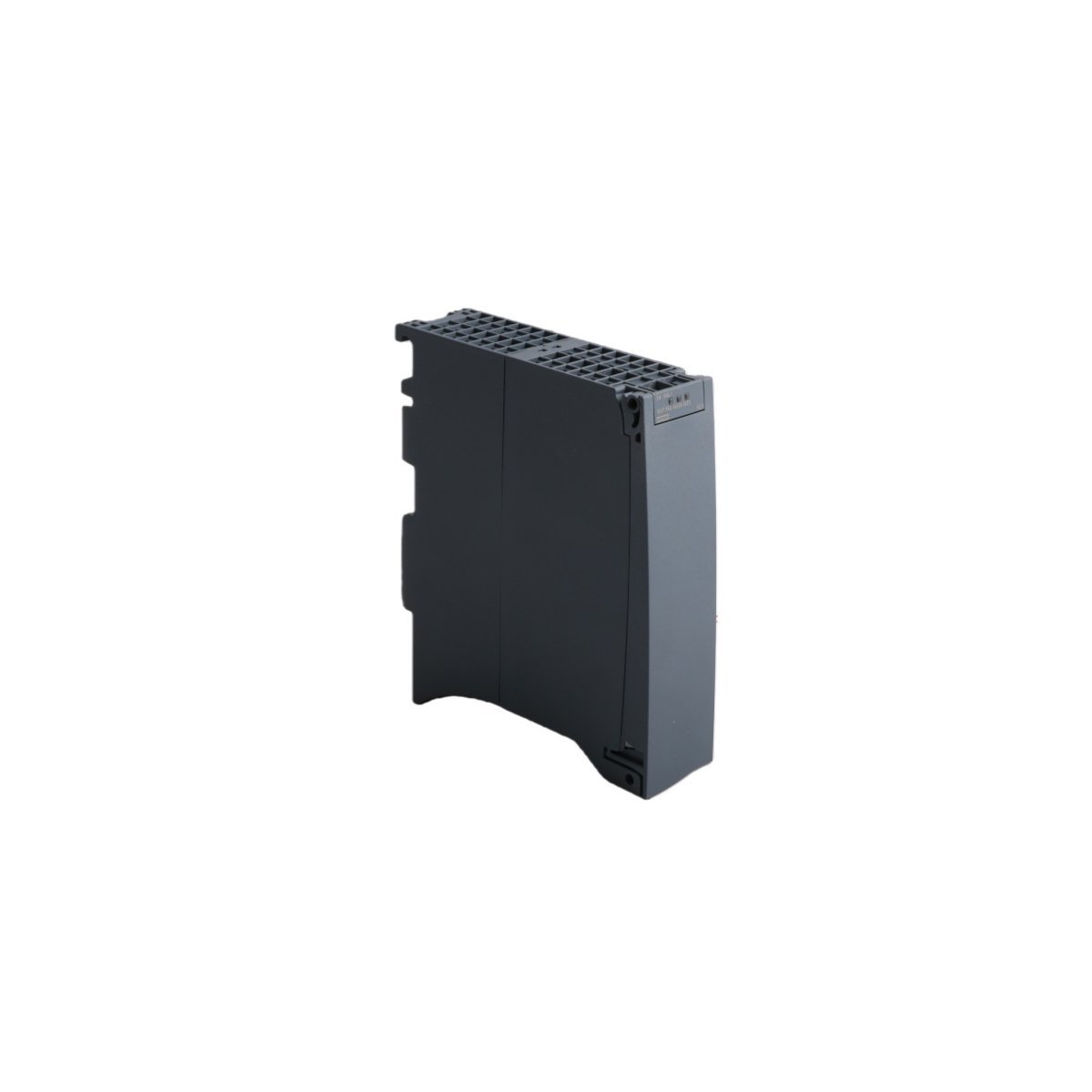

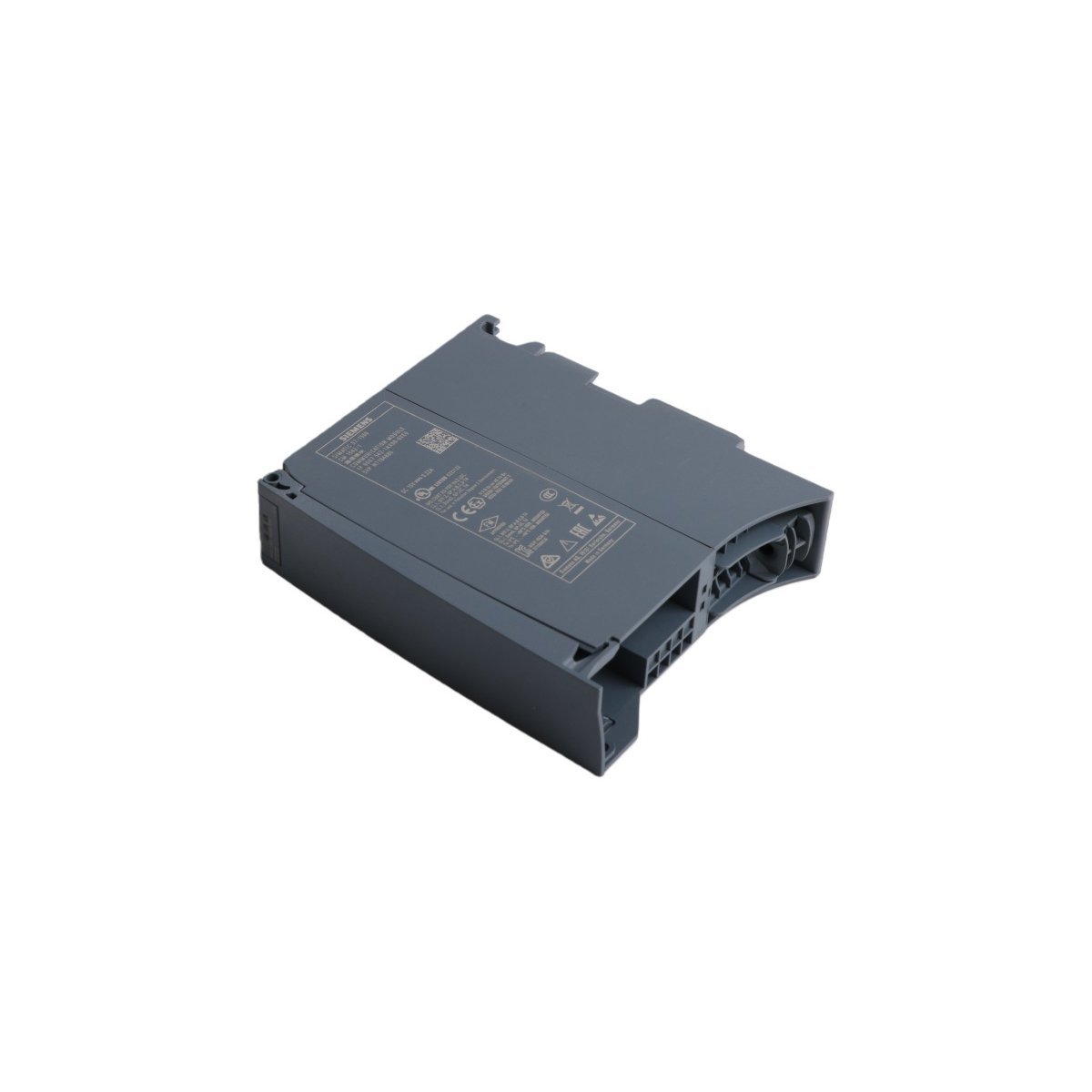

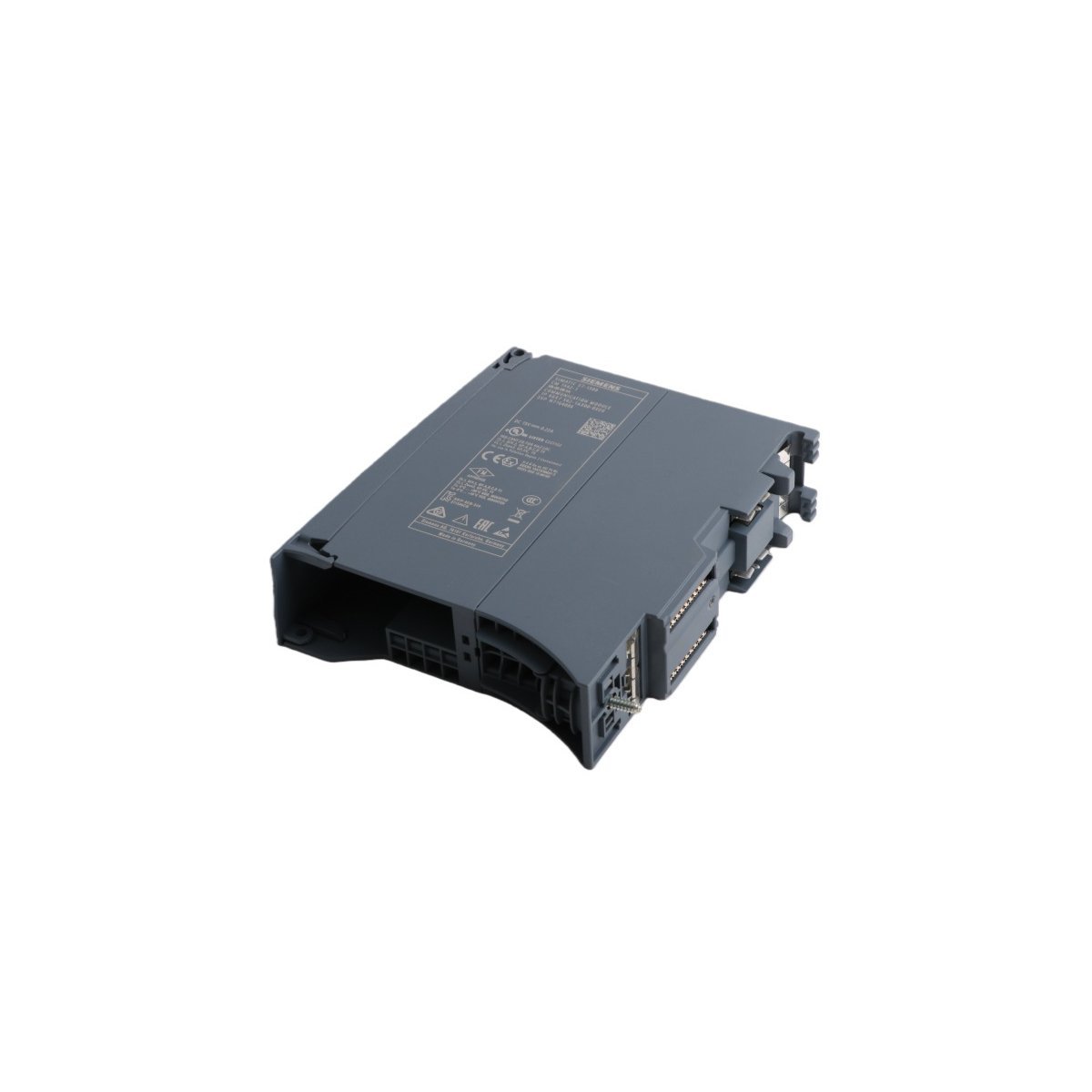

The Siemens 6GK7542-1AX00-0XE0 is a high-performance SIMATIC S7-1500 communication module that enables robust PROFINET connectivity for industrial automation systems. This module expands the networking capabilities of S7-1500 controllers by facilitating secure data exchange via Ethernet-based protocols and integrated network management tools.

Product Description

Versatile Industrial Networking

The Siemens 6GK7542-1AX00-0XE0 (CM 1542-1) significantly enhances the communication range of the SIMATIC S7-1500 PLC family. This module operates efficiently as both a PROFINET IO Controller and an IO Device, allowing engineers to design flexible, decentralized automation architectures. By supporting essential protocols such as TCP/IP, ISO-on-TCP, and UDP, the unit ensures seamless interoperability between various industrial hardware and software platforms.

Advanced Synchronization and Management

Beyond standard data transfer, this communication processor integrates advanced system coordination features. It utilizes NTP (Network Time Protocol) to provide precise time-of-day synchronization across the entire network, which is critical for sequence-of-event recording and time-stamped logging. Furthermore, the module supports SNMP V1 for proactive network management, enabling administrators to monitor device health and traffic performance directly through standard network management systems.

Robust Hardware Configuration

Siemens designed the 6GK7542-1AX00-0XE0 for long-term reliability in demanding environments. The hardware features dual RJ45 ports that support 10/100 Mbit/s transmission speeds through an integrated 2-port switch, facilitating linear or ring network topologies. Its narrow, space-saving design permits high-density installation within control cabinets. Additionally, the module handles IP broadcast and multicast communication, which optimizes bandwidth when sending data to multiple recipients simultaneously.

Technical Specifications
