Description

Brief Product Description

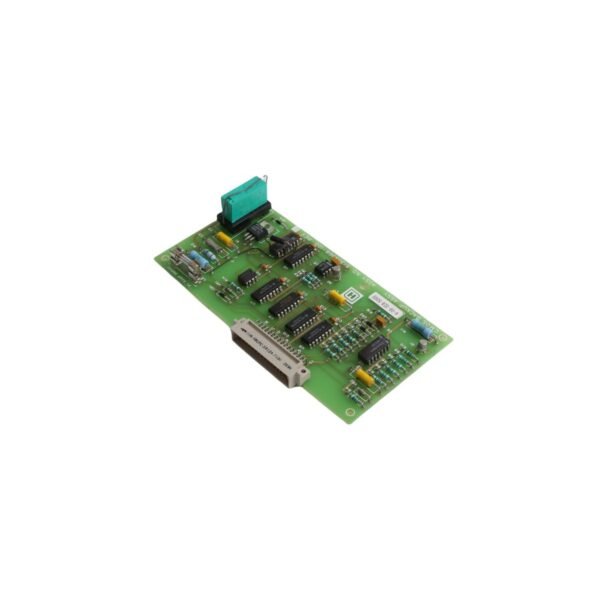

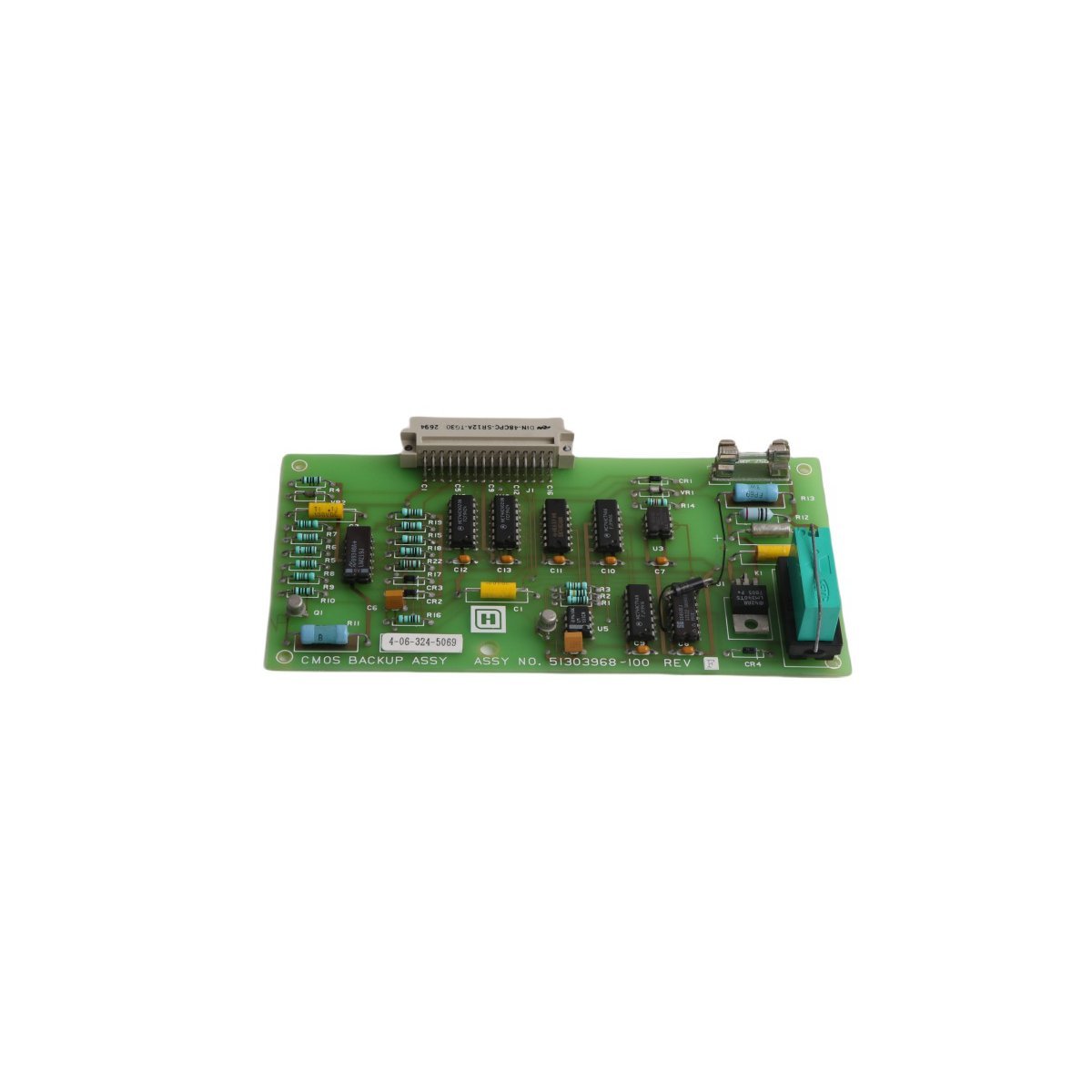

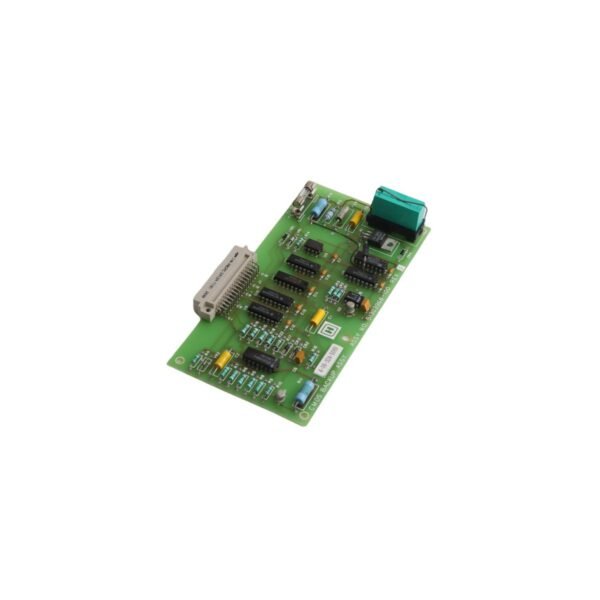

The Honeywell 51303968-100 is a specialized CMOS Backup Assembly designed to preserve critical system memory and configuration data within Process Manager (PM) and Advanced Process Manager (APM) controllers. This unit ensures that volatile memory remains intact during primary power loss, preventing costly re-initialization and process data corruption.

Product Description

Critical Data Retention and System Continuity

The Honeywell 51303968-100 functions as a high-reliability energy reservoir for industrial control systems. It specifically targets the CMOS (Complementary Metal-Oxide-Semiconductor) memory within the controller, which stores vital configuration settings, real-time clock data, and volatile process variables. By maintaining a constant voltage supply during main power interruptions, this assembly prevents the controller from losing its operational state. This capability proves indispensable in continuous process industries—such as chemical refining and power generation—where a loss of memory would necessitate a full manual system cold-start and result in significant production delays.

Advanced Power Management and Recovery

Efficiency drives the design of the 51303968-100 backup assembly. The unit incorporates a high-performance energy storage architecture that provides extended support for system memory during prolonged outages. Once primary power returns, the assembly utilizes an integrated rapid-charging circuit to restore the backup energy levels quickly. This active management minimizes the “window of vulnerability” between successive power events. Furthermore, the internal power regulation circuitry ensures a stable output voltage, protecting sensitive CMOS chips from the electrical noise or voltage spikes often associated with power restoration.

Seamless Industrial Integration

Honeywell engineered the 51303968-100 module for effortless deployment within existing Distributed Control System (DCS) cabinets. Its compact physical footprint allows for direct installation into standard PM and APM chassis without requiring mechanical modifications or complex wiring. The module’s robust housing is designed for longevity in industrial environments, resisting the effects of vibration and thermal cycling. By integrating this backup solution, facilities significantly improve their system’s Mean Time Between Failures (MTBF) and ensure that their automation infrastructure remains resilient against unpredictable electrical grid fluctuations.

Technical Specifications
