Description

Brief Product Description

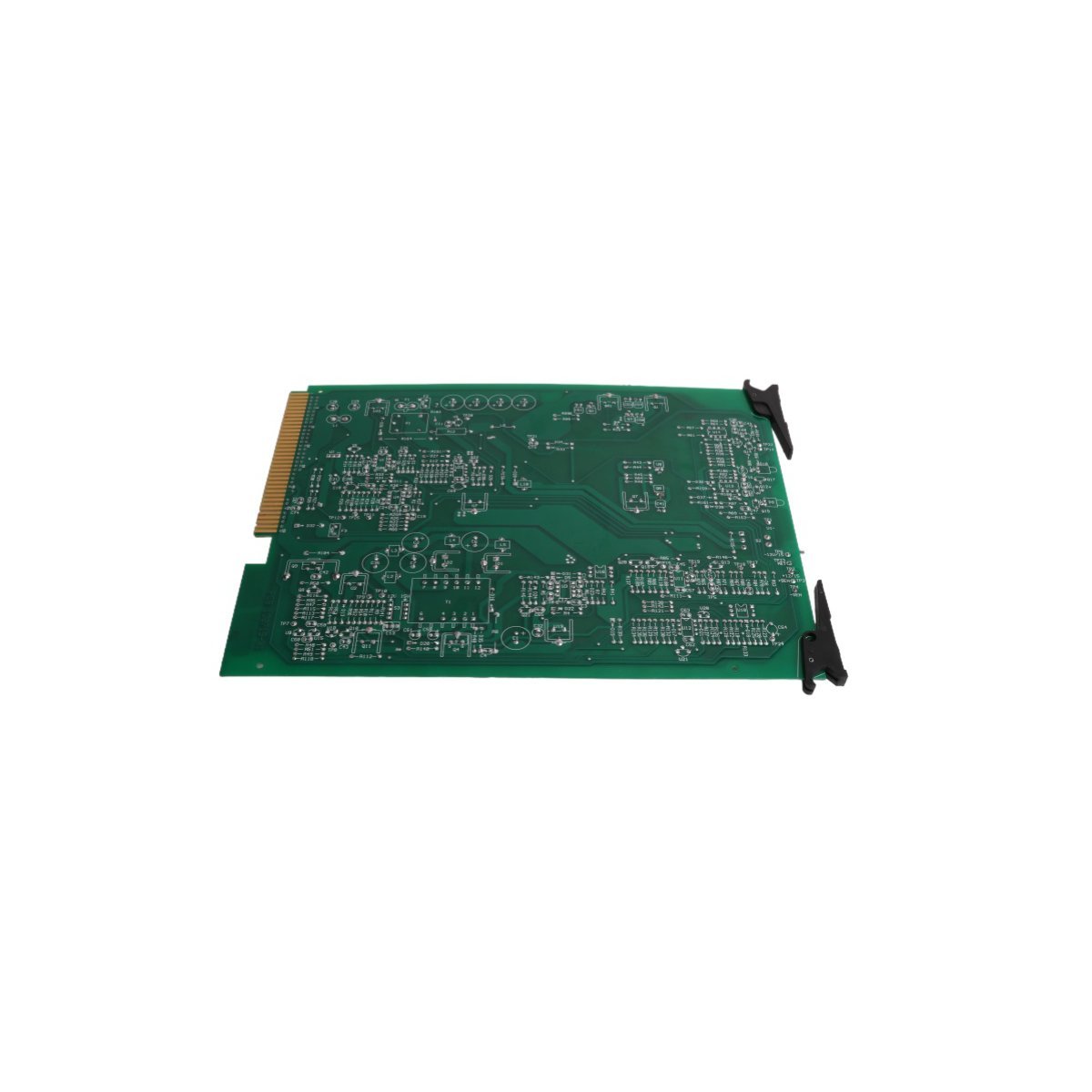

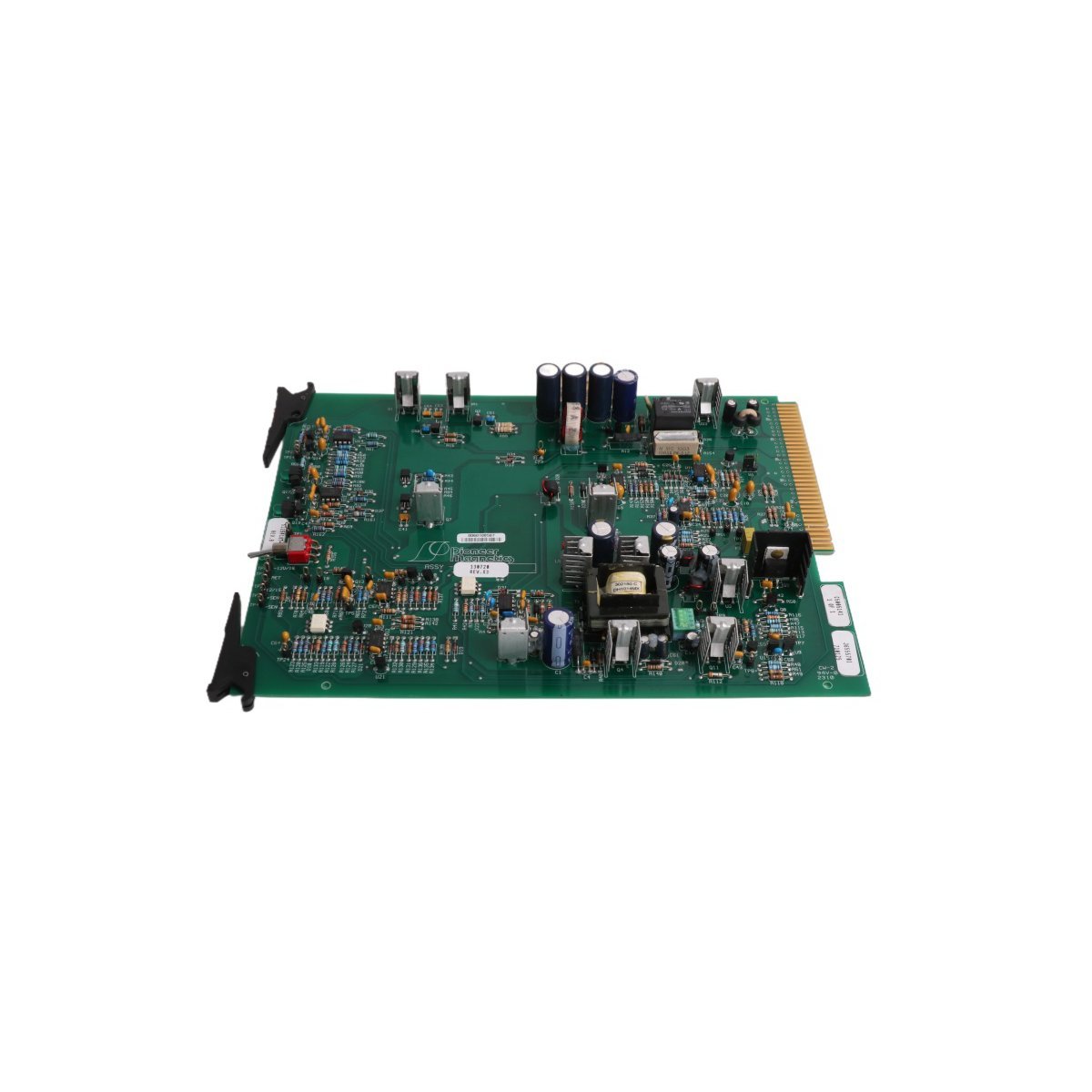

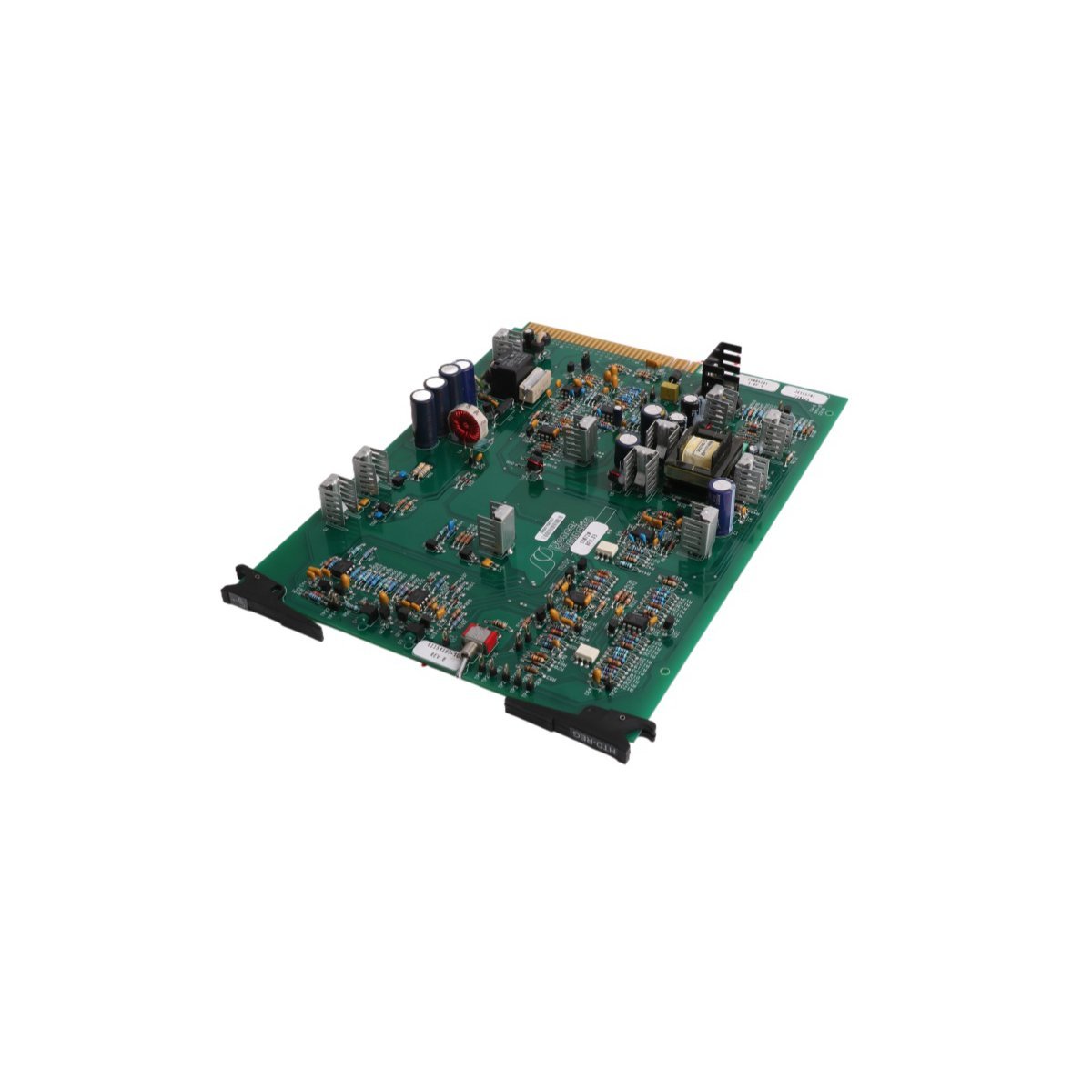

The Honeywell 51155506-105 is a high-capacity relay interface module designed for Experion PKS systems, facilitating the control of heavy-duty industrial loads like motors and solenoids. This module features SPDT contacts and includes a 5-meter DO source cable assembly for immediate system integration.

​Product Description

High-Power Load Switching and Control

The Honeywell 51155506-105 functions as a robust interface between low-level control logic and high-power field equipment. Engineered for the Experion PKS series, this universal 120/240V relay module manages demanding loads including contactors, large solenoids, and industrial motors. The hardware utilizes Single Pole Double Throw (SPDT) relay logic, providing both Form A (Normally Open) and Form B (Normally Closed) contact configurations. This flexibility allows engineers to design fail-safe circuits and complex interlocking logic within the DCS environment.

Industrial-Grade Isolation and Reliability

Safety and signal integrity remain paramount in the design of the 51155506-105. The module incorporates optical isolation between the input control signals and the output switching stages, effectively shielding the PLC backplane from electromagnetic interference and voltage spikes. Furthermore, the unit provides a significant 1500V AC channel-to-channel isolation barrier. To assist with real-time maintenance and troubleshooting, integrated LED status indicators provide immediate visual confirmation of relay activation. With a mechanical life rated for 100,000 switching operations, this module delivers consistent performance in high-cycle process control applications.

Seamless System Integration

The 51155506-105 package includes a dedicated 5-meter DO (Source) Relay Cable Assembly, which simplifies the wiring process between the controller and the field termination rack. This pre-assembled cabling solution reduces installation errors and ensures impedance matching for reliable signal transmission. Despite its 10A continuous current capacity, the module maintains a compact 0.15 kg footprint, allowing for high-density mounting within standard industrial cabinets. Whether deployed in HVAC, security, or heavy process automation, this module provides the durable switching foundation required for modern industrial infrastructure.

Technical Specification Overview
