Product Overview

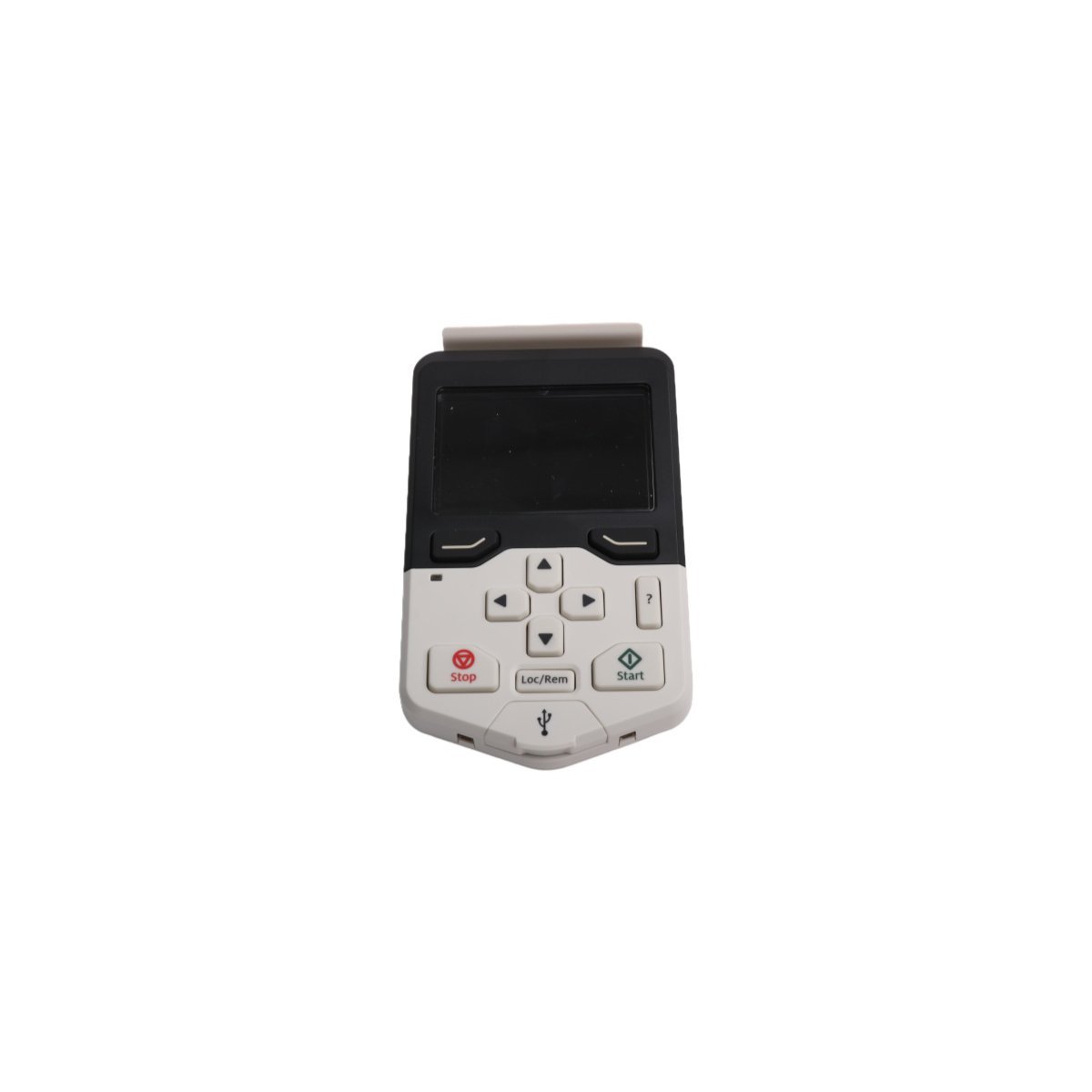

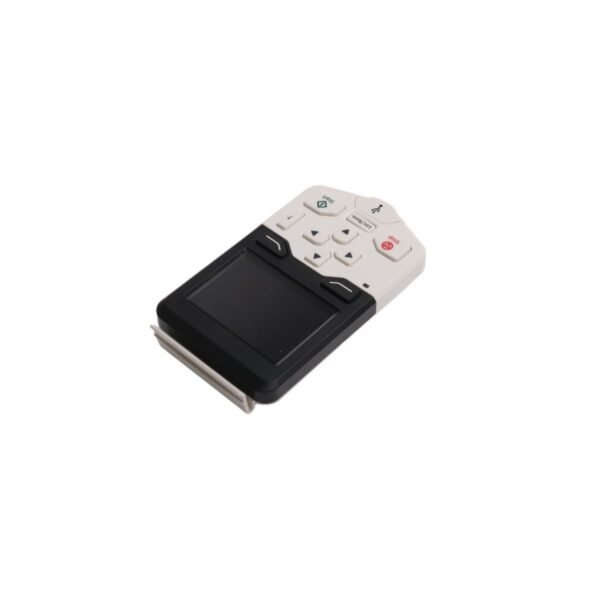

The ABB ACS-AP-I (3AUA0000088311) is an advanced graphical assistant control panel that serves as the primary human-machine interface (HMI) for various ABB industrial drive series. This intelligent keypad enables operators to perform rapid commissioning, detailed parameter adjustments, and real-time diagnostic monitoring through an intuitive multilingual display.

Comprehensive Drive Compatibility and Versatility

The ACS-AP-I module excels due to its universal application across ABB’s extensive inverter portfolio. It functions as a standardized programming tool for the ACS180, ACS380, ACS480, ACS530, and ACS580 series, as well as the high-tier ACS860 and ACS880 models. By providing a single HMI solution for multiple hardware families, the 3AUA0000088311 simplifies spare parts management and ensures that technical staff encounter a consistent interface regardless of the specific drive model. This cross-platform utility makes it an essential component for facilities utilizing a diverse range of motor control hardware within their Advant-800xA or standalone architectures.

High-Resolution Visualization and Diagnostics

Technicians benefit from the panel’s sharp graphical display, which replaces traditional coded inputs with clear text and visual aids. The interface presents live trend graphs and system status updates, allowing for immediate identification of operational anomalies. Furthermore, the assistant functionality includes built-in “Wizards” that guide users through the initial setup and tuning processes. These automated routines reduce the likelihood of configuration errors and significantly decrease the time required for system startup. Because the panel supports various languages, international teams can interact with the drive logic in their native tongue, further enhancing workplace safety and efficiency.

Durable Design and Simplified Maintenance

Engineered for the demands of industrial environments, the ACS-AP-I keypad features a robust housing that protects internal electronics from dust and mechanical impact. The unit supports easy mounting directly on the drive cover or on a cabinet door via a separate mounting platform. Its internal memory allows for the backup and restoration of drive parameter sets, which facilitates the rapid cloning of settings across multiple drives or the restoration of configurations during hardware replacements. This functionality minimizes facility downtime and ensures that specialized drive tuning remains preserved within the removable module.
