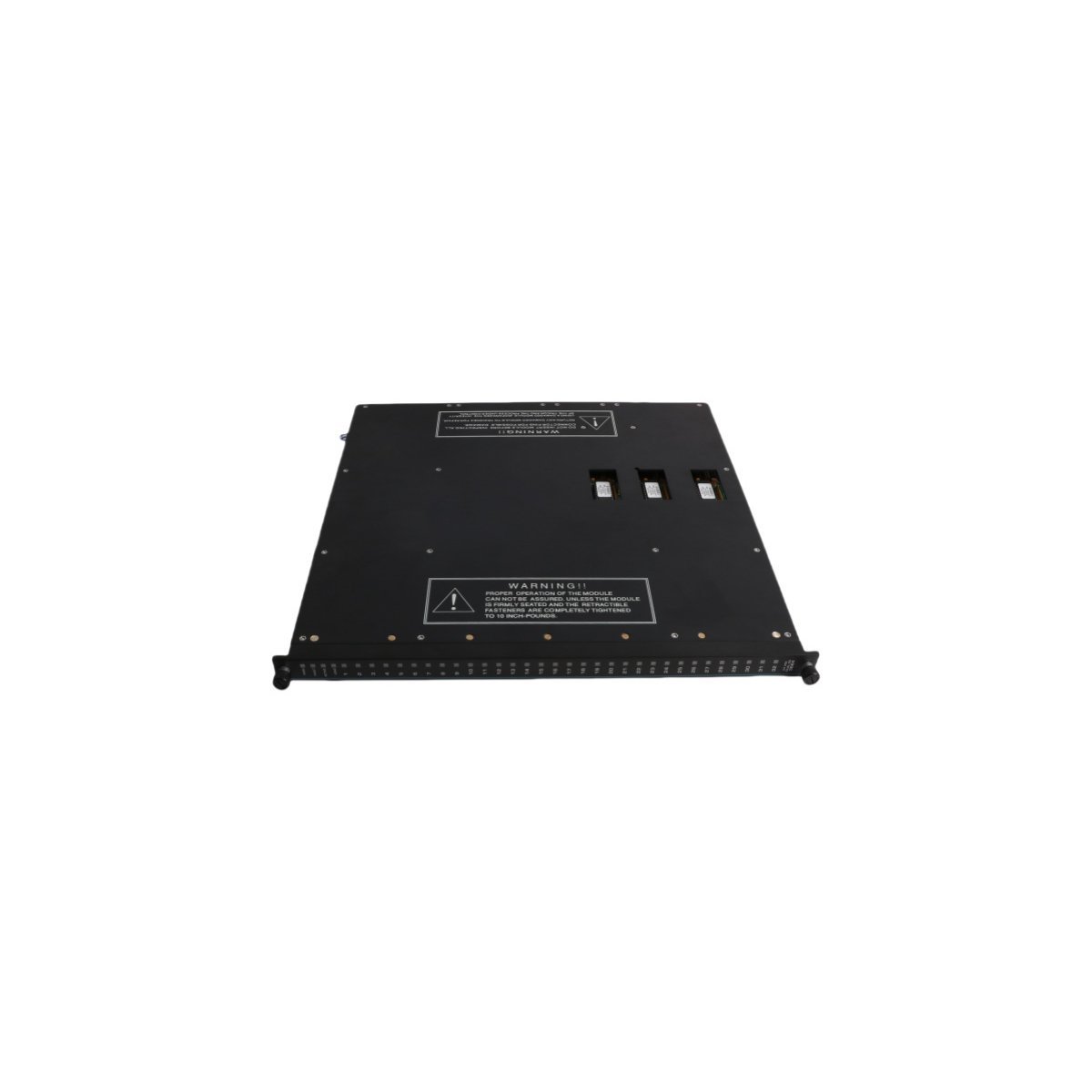

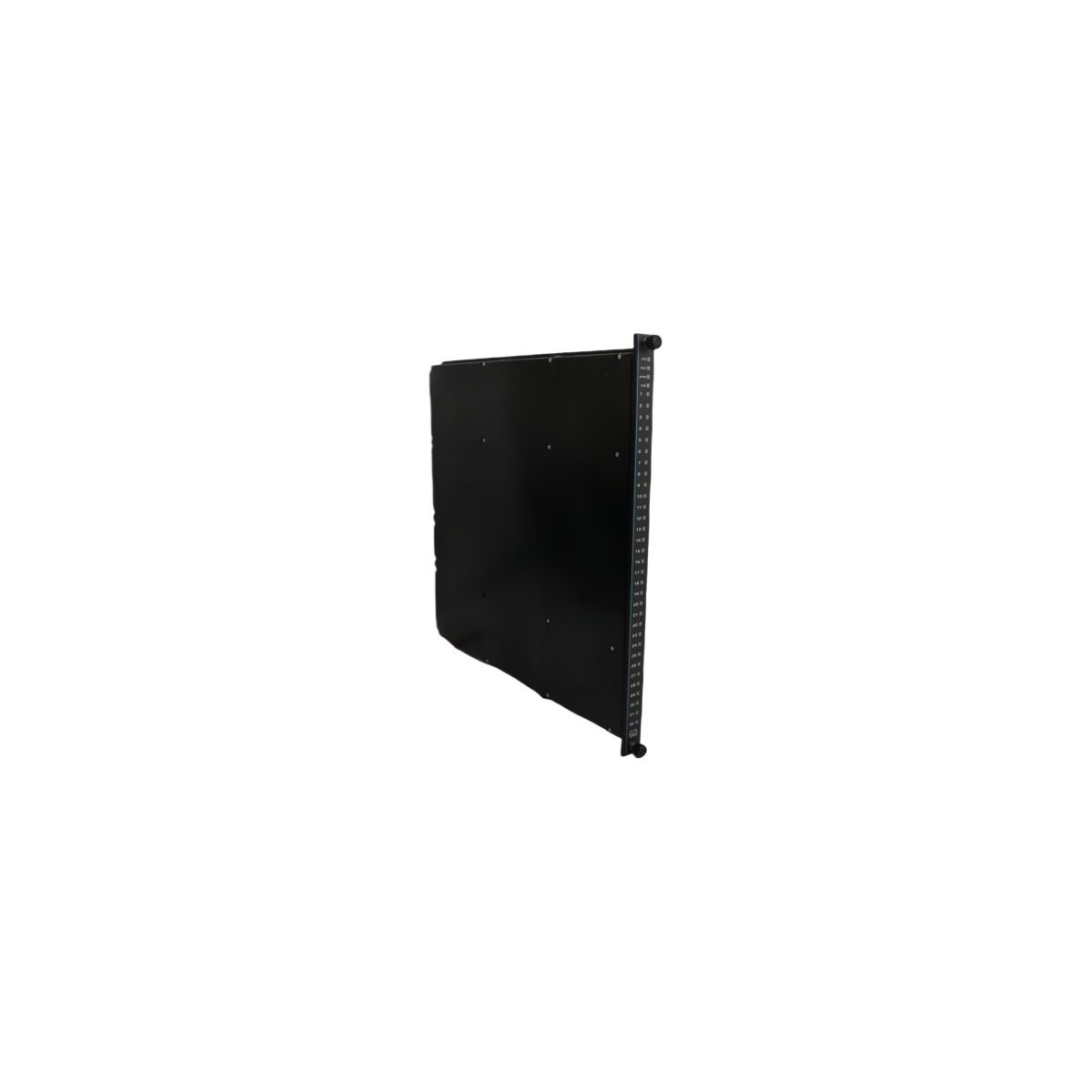

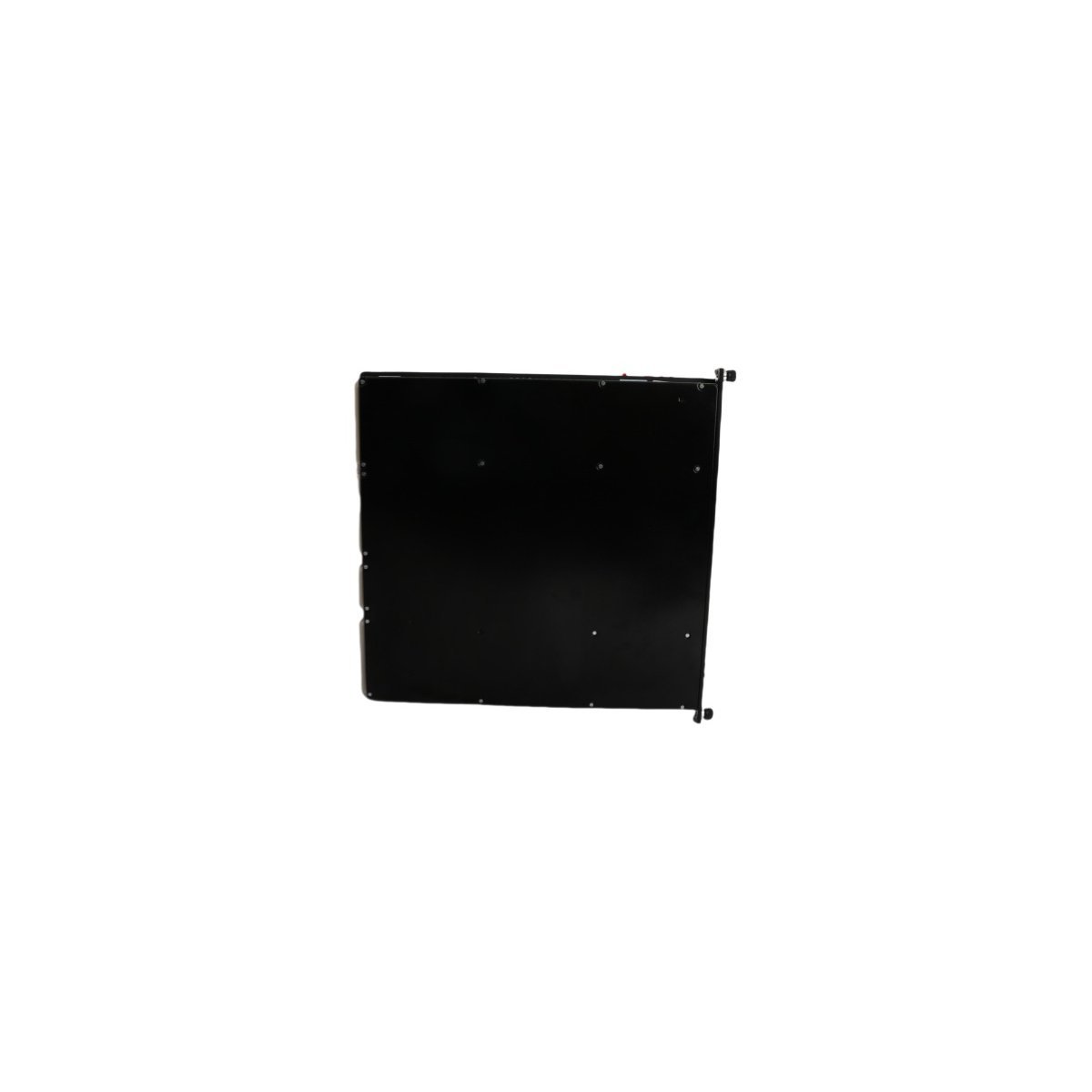

The Triconex 3664 is a high-availability Dual Digital Output Module designed for the Tricon Triple Modular Redundancy (TMR) safety system. It provides 32 supervised 24 VDC output channels, ensuring fail-safe control for critical actuators, valves, and motor starters in industrial environments.

Product Description

Redundant Architecture for Mission-Critical Control

The Triconex 3664 serves as a fundamental executive component within the Tricon safety-instrumented system. This module utilizes a dual-channel architecture to manage 32 discrete output points, providing an optimized balance between high density and safety integrity. By integrating the patented Triple Modular Redundancy (TMR) processing, the 3664 ensures that every command sent to the field is validated through a two-out-of-three voting mechanism. This design effectively prevents nuisance trips while guaranteeing that the safety function executes immediately upon demand. Consequently, this module is widely deployed in emergency shutdown (ESD) and fire and gas (F&G) systems across the global energy sector.

Precision Performance in Rugged Environments

Industrial facilities require hardware that maintains timing accuracy under extreme conditions, and the 3664 module delivers exactly that. It features high-speed switching capabilities that facilitate near-instantaneous response times for real-time process loops. Beyond speed, the module provides extensive internal diagnostics, including “stuck-on” and “stuck-off” fault detection, which alerts operators to potential failure points before they impact plant safety. To ensure consistent operation in diverse climates, the hardware operates reliably in temperatures ranging from -40°C to +70°C. This thermal resilience, combined with its 24 VDC load handling, makes the module suitable for the most demanding chemical processing and power generation applications.

Seamless Integration and Lifecycle Management

The Invensys Triconex 3664 streamlines system maintenance through its hot-swappable design, allowing for module replacement without de-energizing the field loads or halting the safety controller. While it interfaces naturally with the Tricon backplane, it also supports data visibility through various communication protocols for remote monitoring. Although this specific model reached its formal discontinuation date in late 2018, it remains a critical legacy component for maintaining existing Tricon v9 and v10 installations. Its robust construction minimizes the need for frequent servicing, while the standard 24 VDC output range ensures compatibility with a vast array of industrial actuators and solenoids.
