Description

Technical Overview

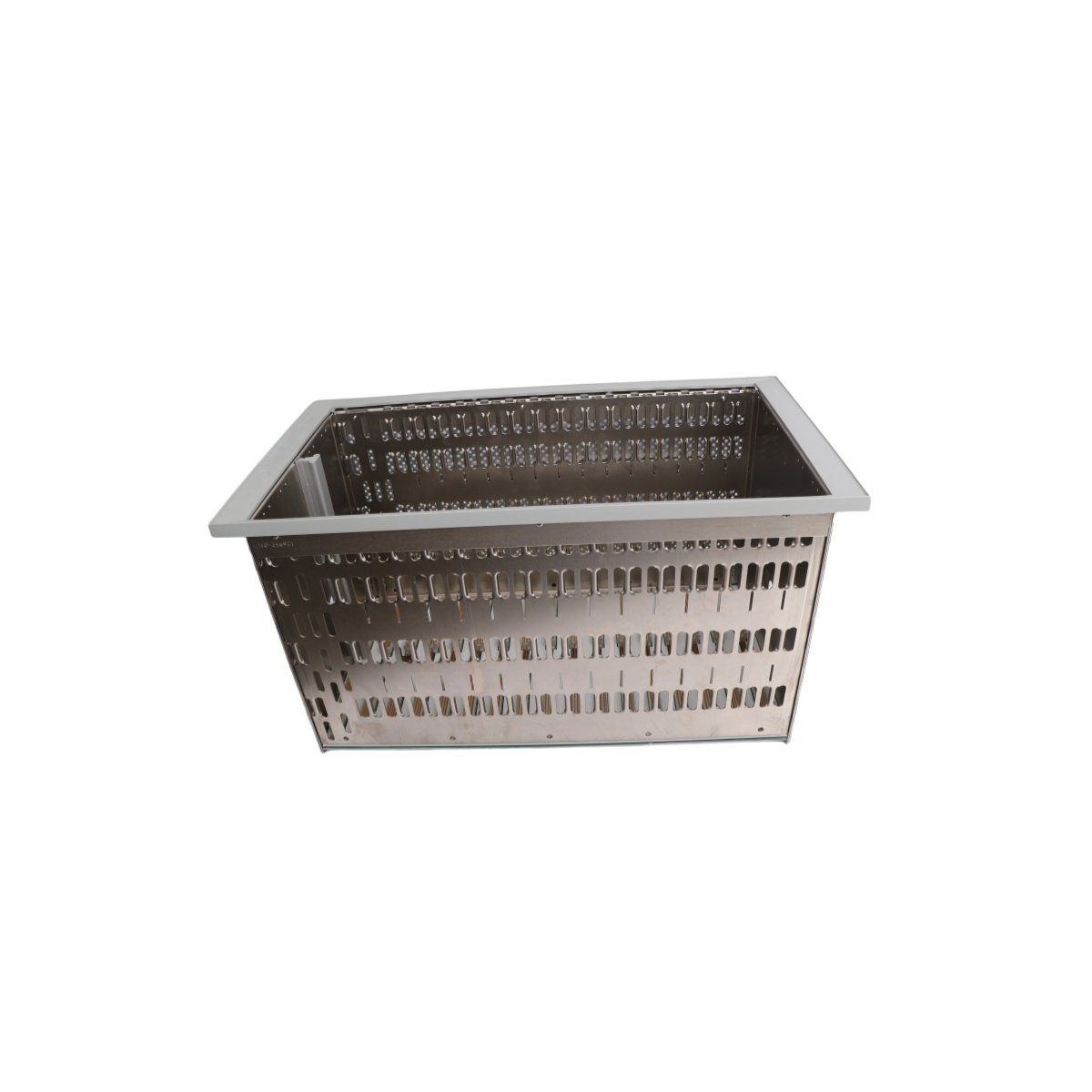

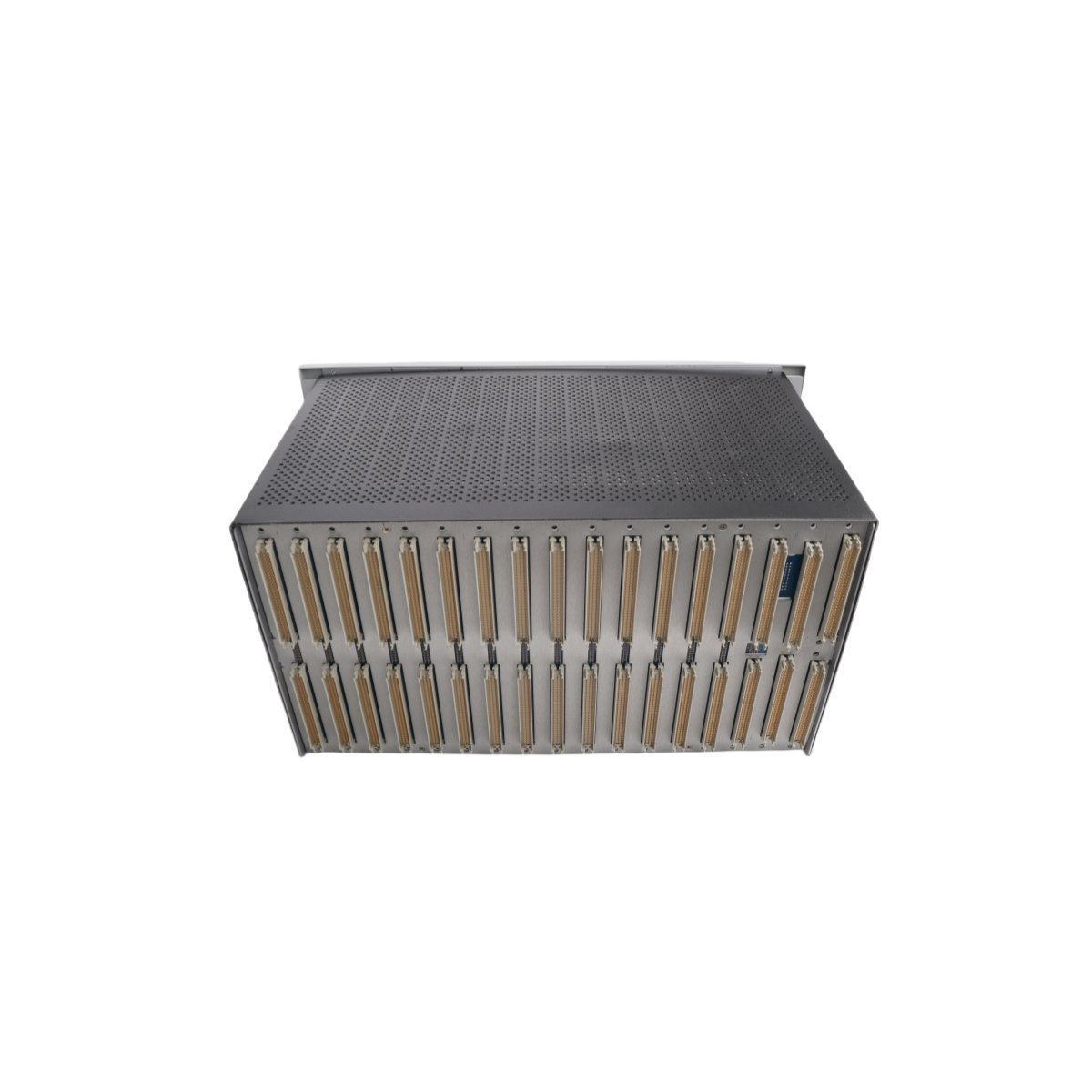

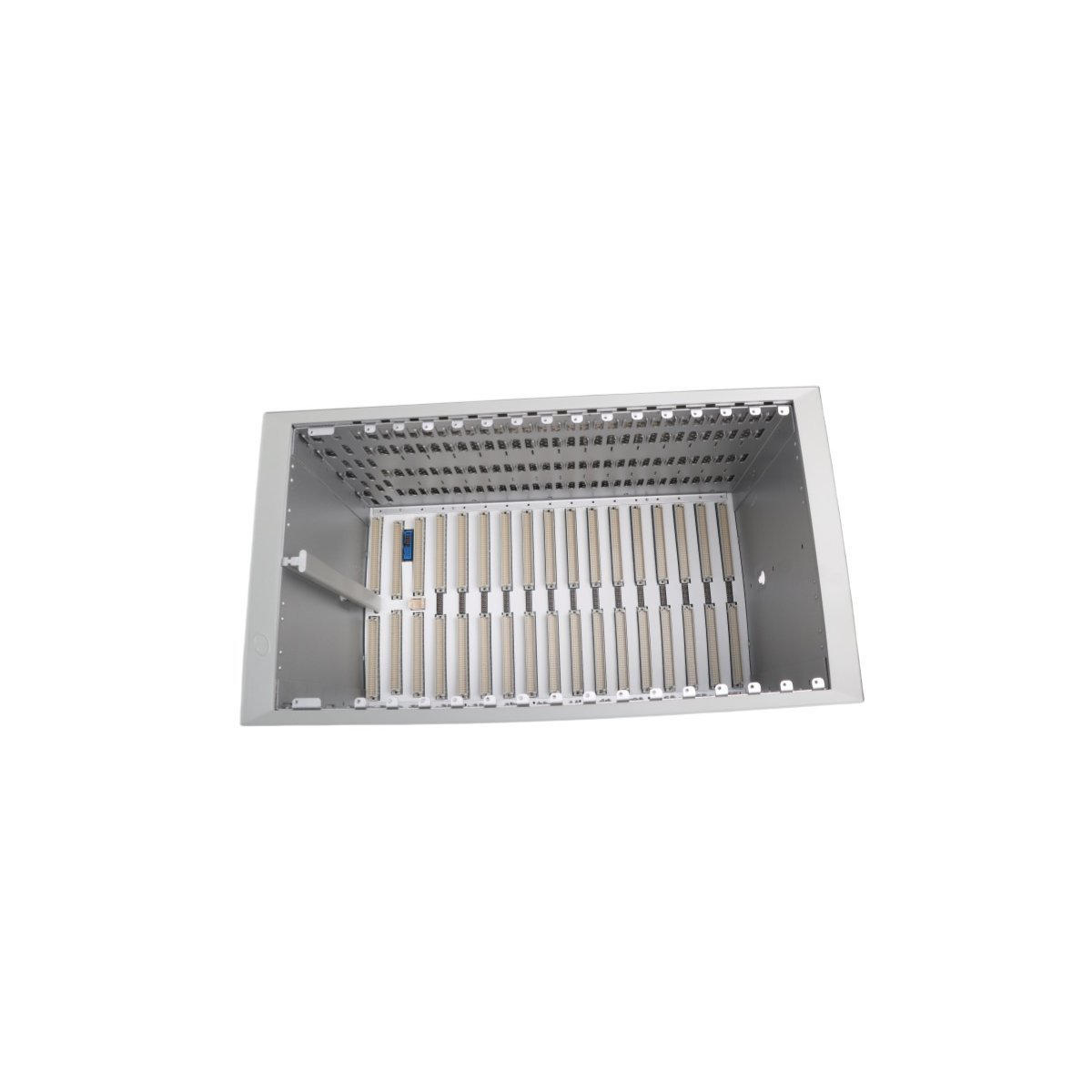

The Bently Nevada 3500/05-01-02-00-00-01 System Rack is a mission-critical component of the industry-leading 3500 Machinery Protection System (MPS), engineered for continuous, high-integrity monitoring of rotating equipment in demanding industrial environments. Designed to serve as the central mounting and power distribution backbone for up to 16 modular monitor modules, this rack ensures precise signal conditioning, reliable data acquisition, and seamless integration with plant-wide DCS and SCADA systems. Its robust aluminum chassis and optimized internal bus architecture minimize electromagnetic interference and thermal drift—critical factors in maintaining measurement accuracy for vibration, axial position, speed, and temperature parameters.

Deployed across oil & gas refineries, power generation facilities, petrochemical plants, and large-scale manufacturing operations, the 3500/05-01-02-00-00-01 supports redundant power inputs (24 VDC) and features built-in diagnostics for real-time health monitoring of rack status, module presence, and communication integrity. It complies with IEC 61508 SIL 2 requirements and meets stringent EMI/EMC standards (IEC 61000-4 series), ensuring operational resilience in electrically noisy settings such as compressor stations and turbine halls. The rack’s modular design enables scalable system expansion without downtime—allowing users to add or replace monitoring functions incrementally while preserving existing configuration and calibration data.

Key Features

• High-Density Modular Architecture: Supports up to 16 Bently Nevada 3500-series monitor modules in a single 19-inch rack-mount enclosure for space-efficient panel integration.
• Redundant Power Input & Diagnostics: Dual 24 VDC power inputs with automatic failover and comprehensive LED-based status indicators for power, communication, and module health.
• Industrial-Grade Construction: Anodized aluminum housing rated for operation in temperatures from –30°C to +70°C and humidity up to 95% non-condensing.
• Integrated Backplane Communication: High-speed, noise-immune backplane bus enables deterministic data transfer between modules and the 3500/22M or 3500/20M communication gateway.
• Compliance & Certification: Certified to UL 61010-1, CSA C22.2 No. 61010-1, and CE-marked for EMC and safety; compatible with Bently Nevada System 1™ software for configuration, trending, and alarm management.

Specifications

• Part Number: 3500/05-01-02-00-00-01
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: System Rack for 3500 Machinery Protection System
• Warranty: 24-month limited warranty from date of shipment; extended service agreements available

Contact us for bulk pricing and availability
