Description

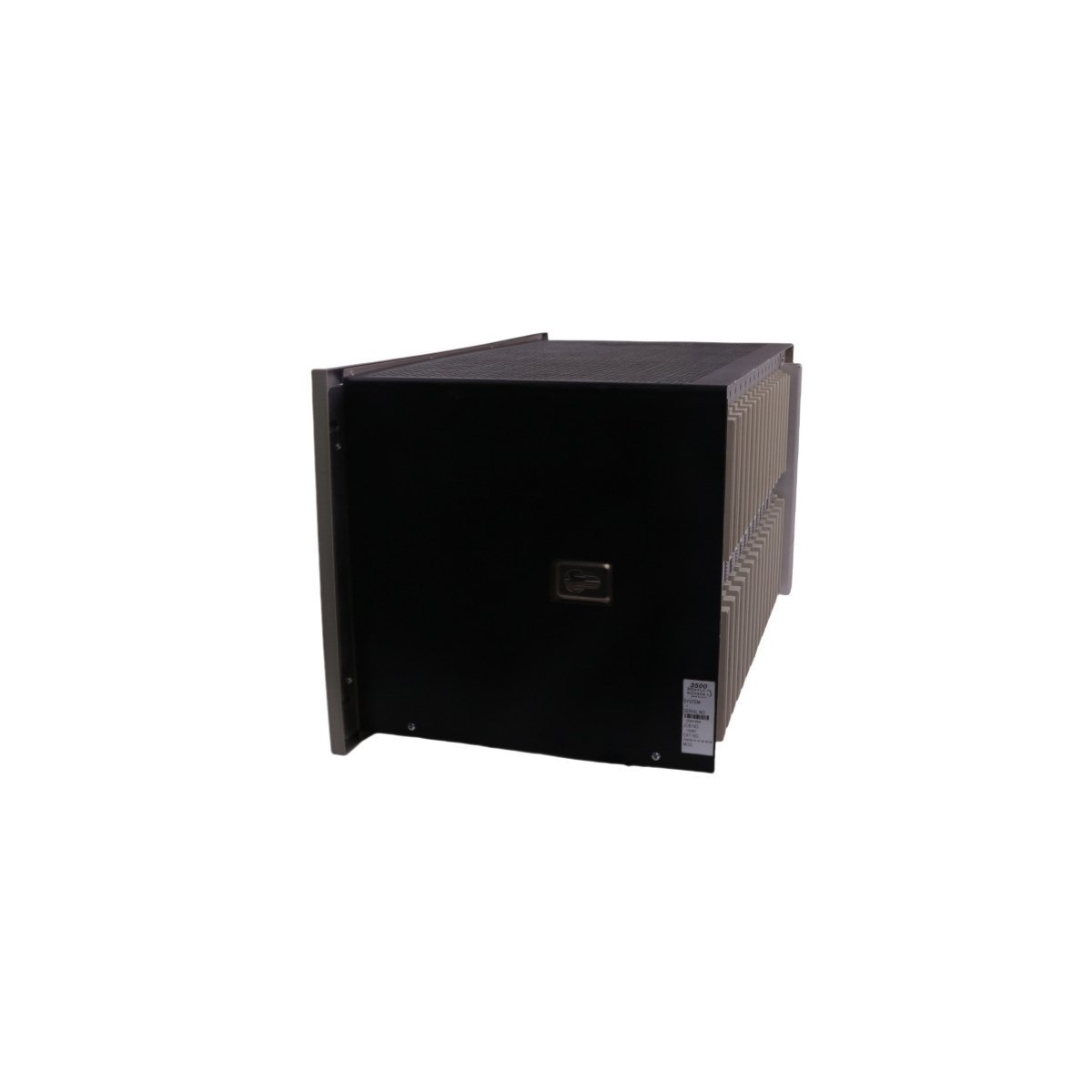

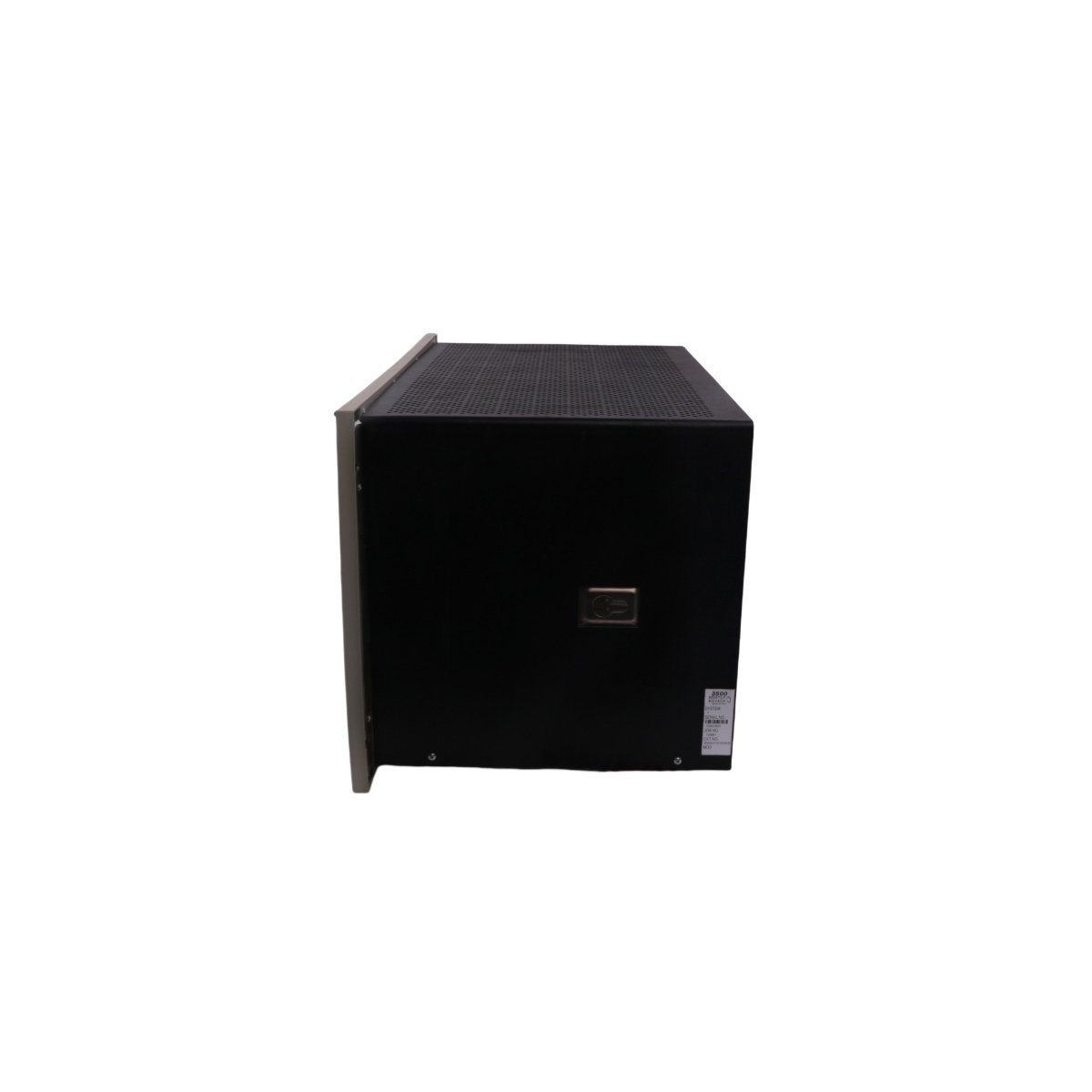

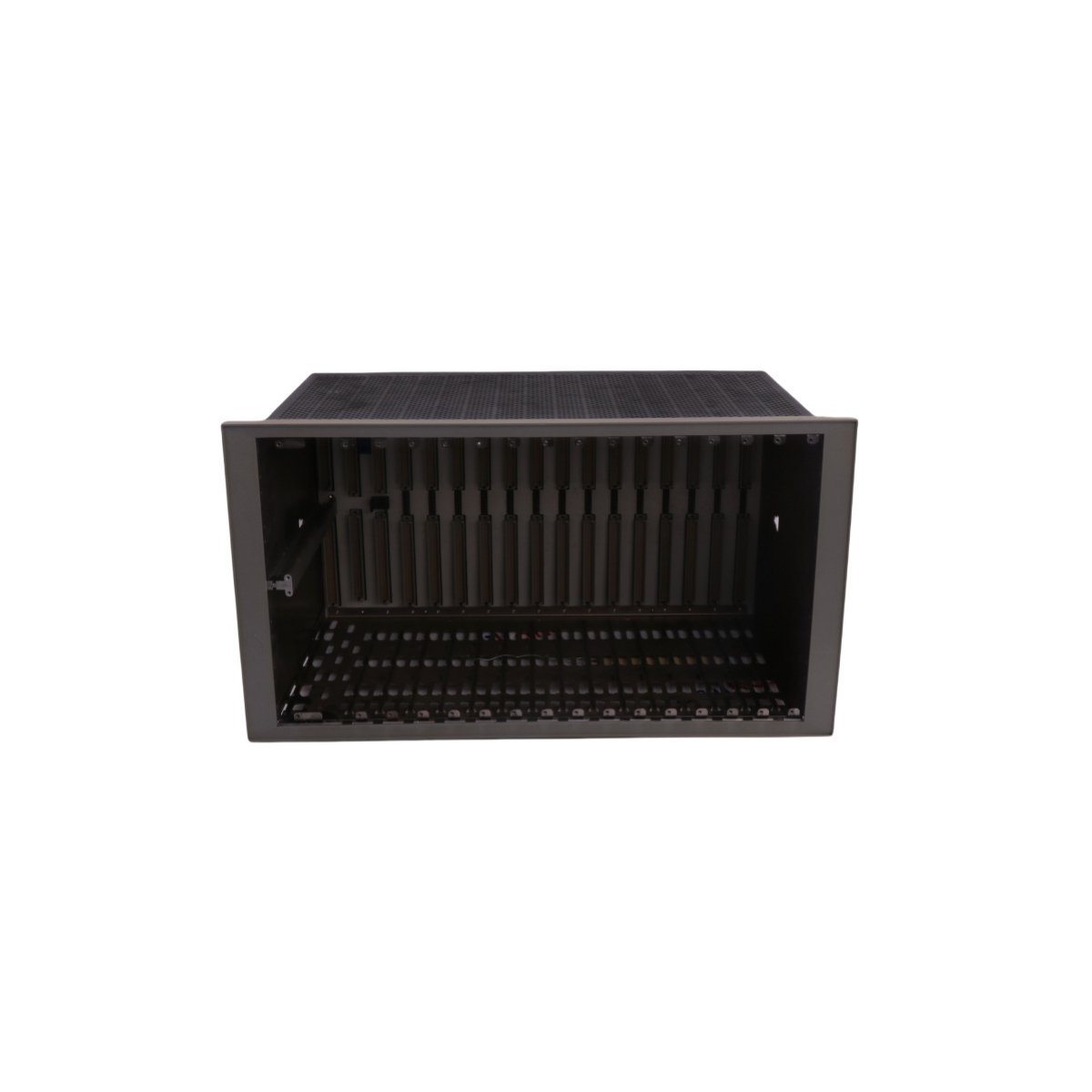

Bently Nevada 3500/05-01-02-00-00-00 System Rack

Overview

The Bently Nevada 3500/05-01-02-00-00-00 is a high-performance System Rack designed for industrial automation and machinery protection applications. As part of the renowned Bently Nevada 3500 monitoring system, this rack provides a robust and scalable platform for housing monitoring modules, power supplies, and communication interfaces. Its primary purpose is to ensure reliable condition monitoring and protection for critical rotating equipment such as turbines, compressors, and pumps.

Key features include modular expandability, high-density configuration support, and seamless integration with Bently Nevada’s 3500 series modules. The system rack is engineered for harsh industrial environments, offering superior vibration resistance and EMI shielding. Main benefits include reduced downtime through early fault detection, simplified maintenance with hot-swappable components, and compliance with industry safety standards.

Detailed Specifications (Parsed Code)

Operational Capabilities

The 3500/05-01-02-00-00-00 System Rack delivers exceptional performance with a capacity for up to 12 monitoring modules in a single chassis. It operates within a temperature range of -40°C to +70°C (-40°F to +158°F) and features an IP20-rated enclosure for basic protection against dust and accidental contact. The rack’s aluminum construction provides optimal EMI/RFI shielding while maintaining lightweight properties for easy installation.

Key operational benefits include automatic module recognition, real-time health monitoring, and compatibility with all 3500 series monitoring modules (vibration, temperature, position, etc.). The dual redundant power supply configuration (indicated by -02 in model number) ensures continuous operation during power fluctuations. The system supports both standalone operation and integration with plant DCS/SCADA systems through multiple communication protocols.

Technical FAQ

• Is this rack compatible with legacy Bently Nevada 3300 series modules?

  No, the 3500 series rack is designed specifically for 3500 series modules. While some functional similarities exist, the form factor and communication protocols are not backward compatible with 3300 series components.

• What environmental certifications does this rack carry?

  The base model meets UL 508, CE, and ATEX Zone 2 standards. For specific hazardous location certifications, consult factory for -00-00 suffix alternatives.

• Can additional communication interfaces be added to this rack?

  Yes, the system supports optional communication gateway modules (e.g., Profibus, Modbus) that can be installed in available module slots.

• What is the recommended maintenance schedule for this system rack?

  Bently Nevada recommends annual inspections of power supplies and connections, with module calibration per OEM specifications (typically 12-24 month intervals). The rack itself requires minimal maintenance beyond periodic cleaning and visual inspection.
