Description

Technical Overview

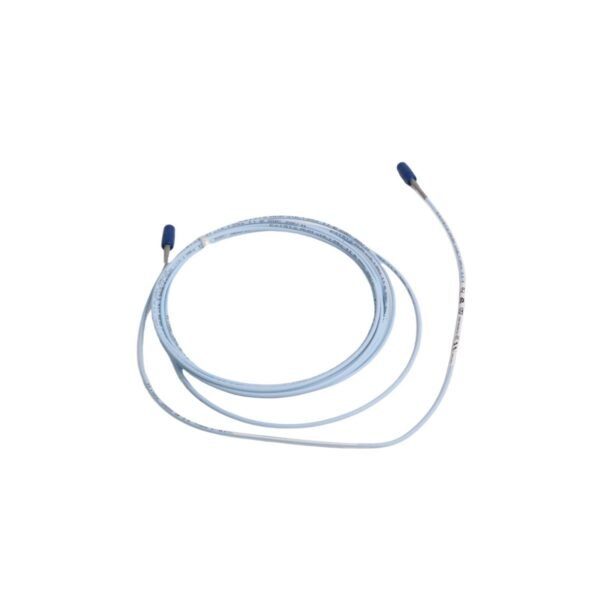

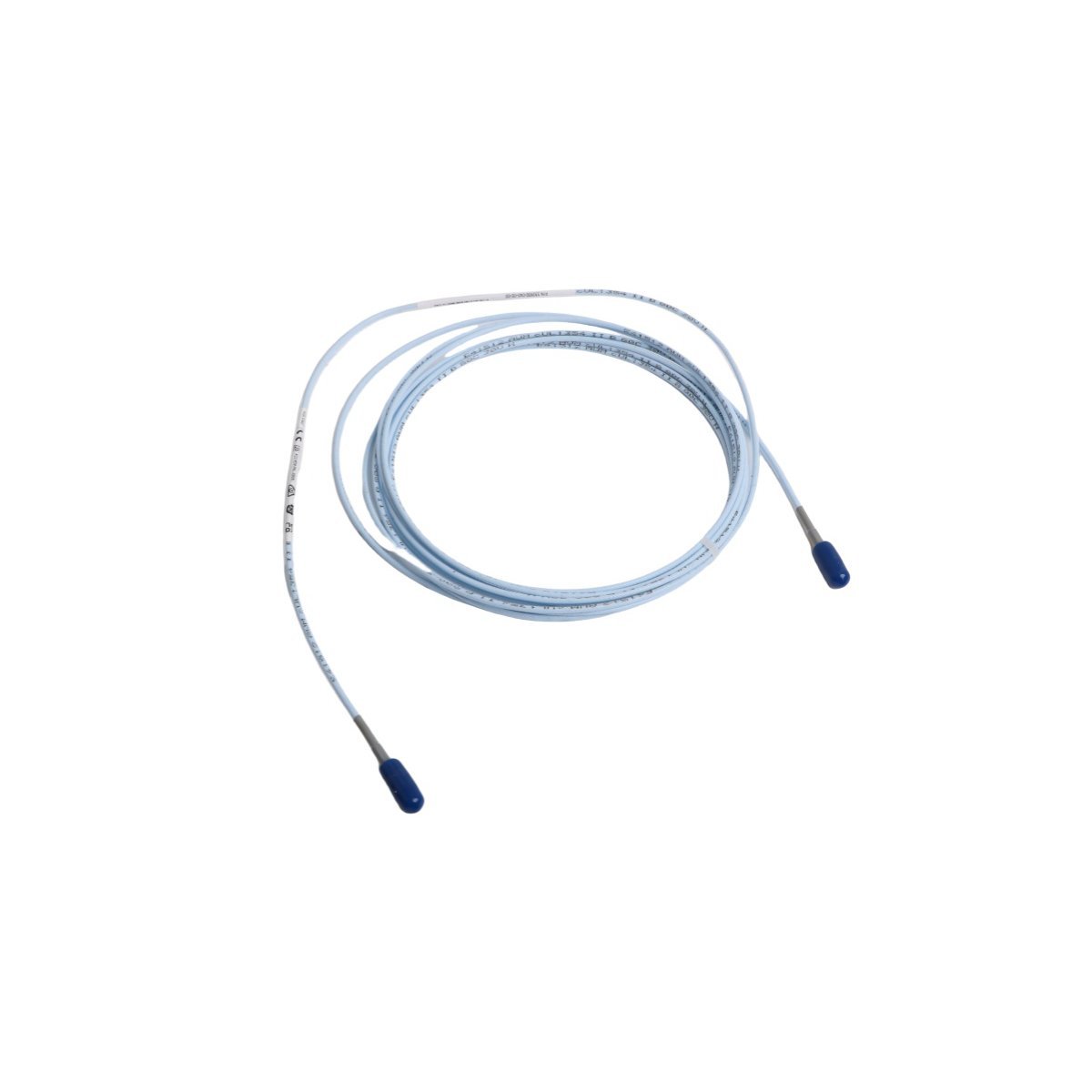

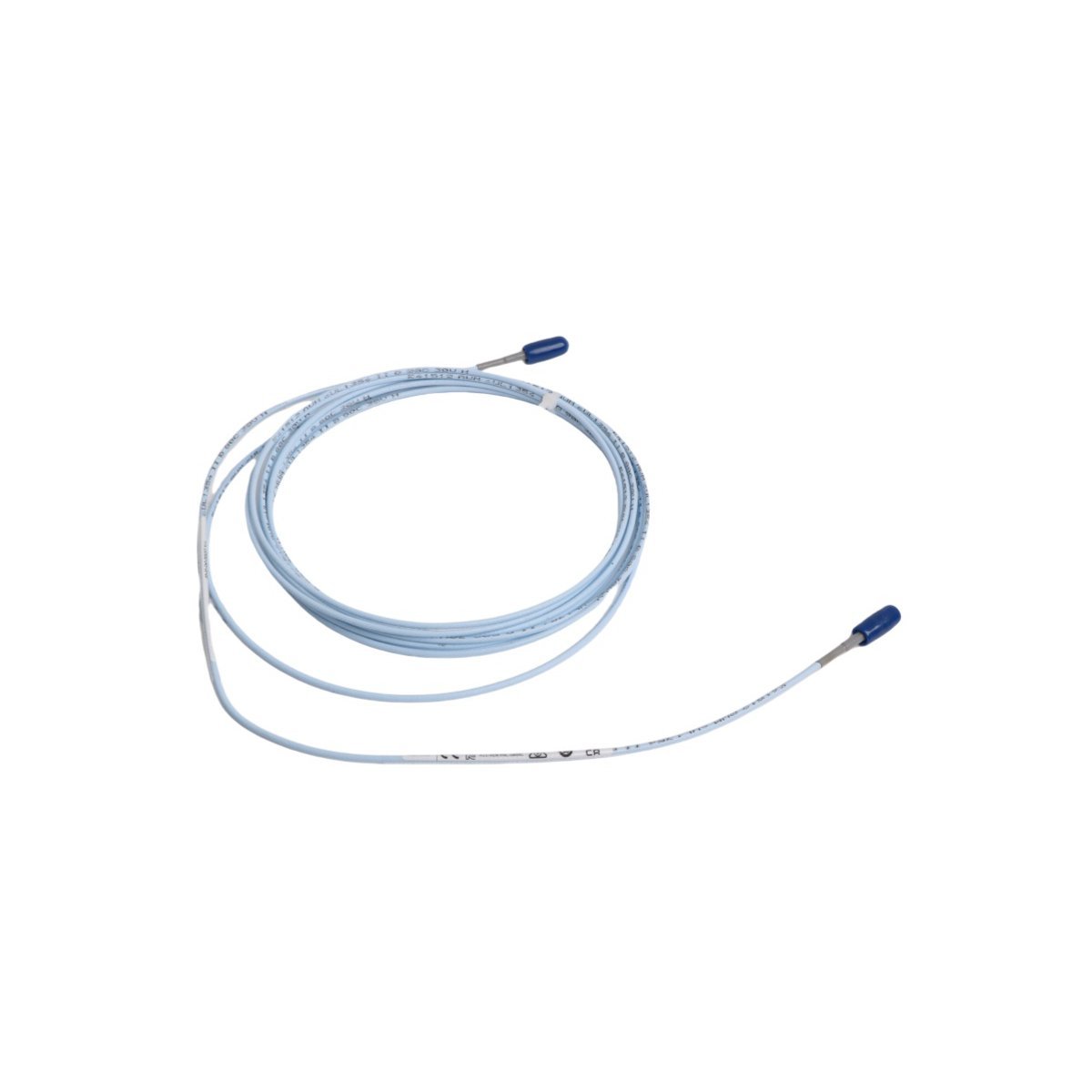

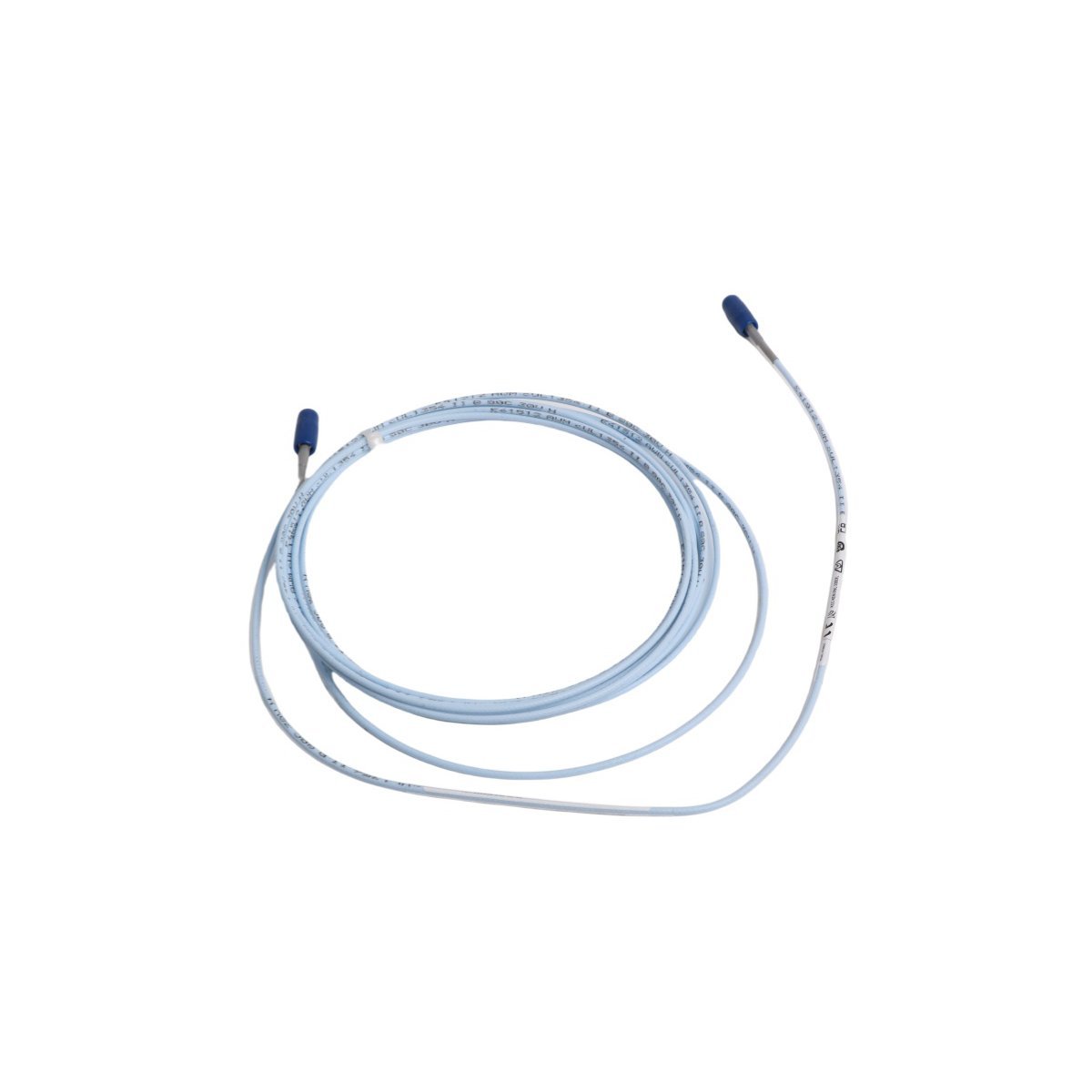

The Bently Nevada 330930-045-04-CN is a high-integrity 3300 NSv Extension Cable engineered for mission-critical machinery protection and condition monitoring applications in industrial automation, power generation, oil & gas, and heavy manufacturing environments. Designed as a seamless extension solution for the 3300 NSv proximity transducer system, this cable ensures reliable signal transmission between the sensor probe and the monitor module—maintaining signal fidelity, noise immunity, and phase accuracy even under harsh electromagnetic interference (EMI), vibration, and temperature fluctuations.

Constructed with precision-matched coaxial shielding and low-capacitance twisted-pair conductors, the 330930-045-04-CN preserves the calibrated sensitivity and dynamic response of the 3300 NSv system across its full operating range (0–10 kHz). Its robust polyurethane jacket provides superior abrasion resistance, oil resistance, and flexibility down to –40°C, making it ideal for installation in confined spaces, rotating equipment enclosures, and outdoor turbine skids. The cable features factory-terminated, gold-plated 7-pin MIL-C-26482 Series II connectors on both ends—ensuring repeatable mating cycles, low contact resistance, and compliance with IEC 61000-4-3/6 EMI standards.

Key Features

• EMI-Resistant Design: Triple-layer shielding (foil + braided + drain wire) minimizes signal degradation in high-noise plant environments.
• System-Calibrated Performance: Pre-tested and matched to Bently Nevada 3300 NSv transducer specifications—no field recalibration required.
• Ruggedized Construction: Thermoplastic polyurethane (TPU) jacket rated for continuous operation at up to +85°C and resistant to hydrocarbons, ozone, and UV exposure.
• Plug-and-Play Integration: Compatible with all 3300 NSv monitors (e.g., 3300 XL, 3500 series) and standard 3300 probe assemblies without adapter kits.
• Traceable Quality Assurance: Each unit carries serialized calibration documentation and conforms to ISO 9001-certified manufacturing processes.

Specifications

• Part Number: 330930-045-04-CN
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 NSv Extension Cable — 4.5 m length, straight-through configuration
• Warranty: 24 months from date of shipment, covering material defects and workmanship

Contact us for bulk pricing and availability
