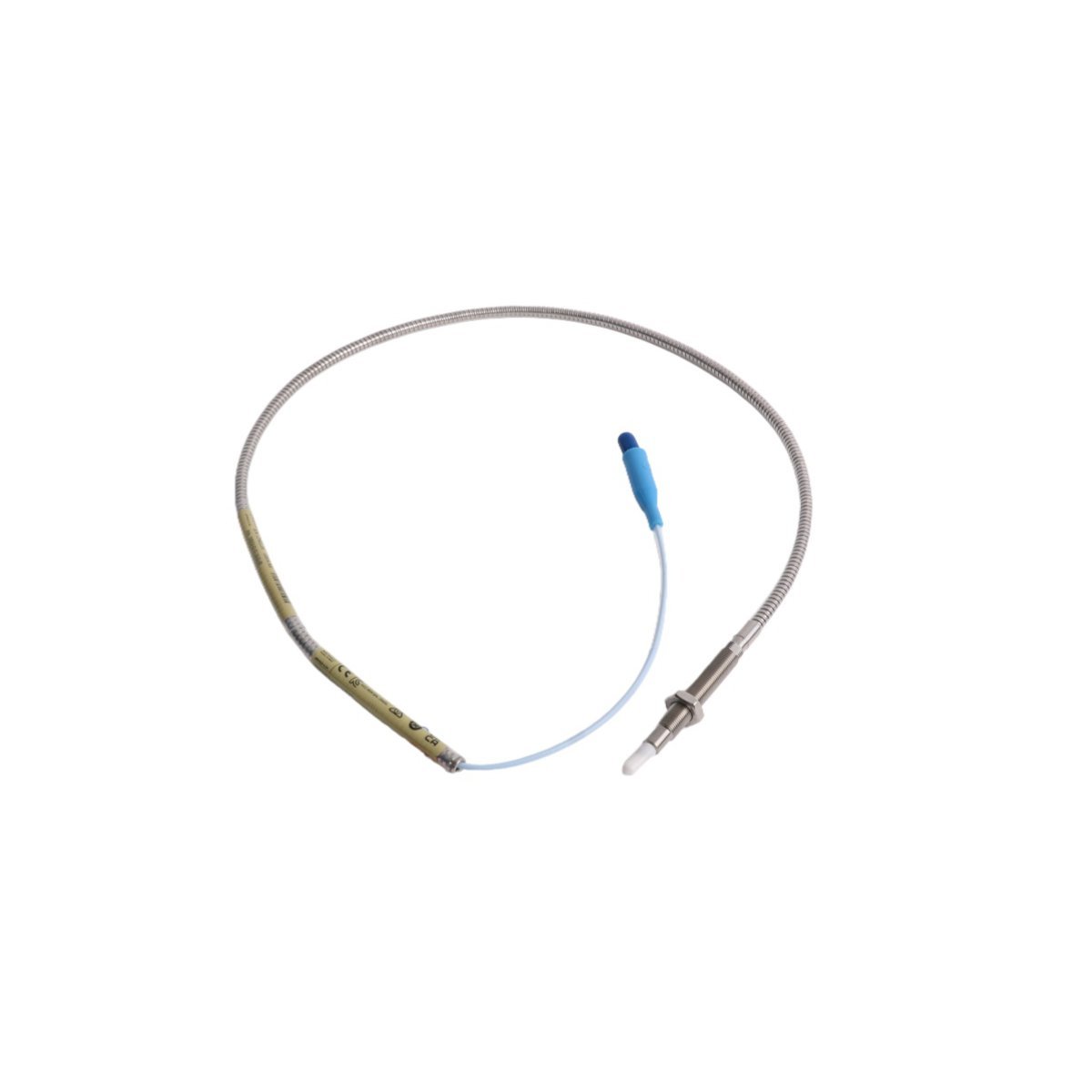

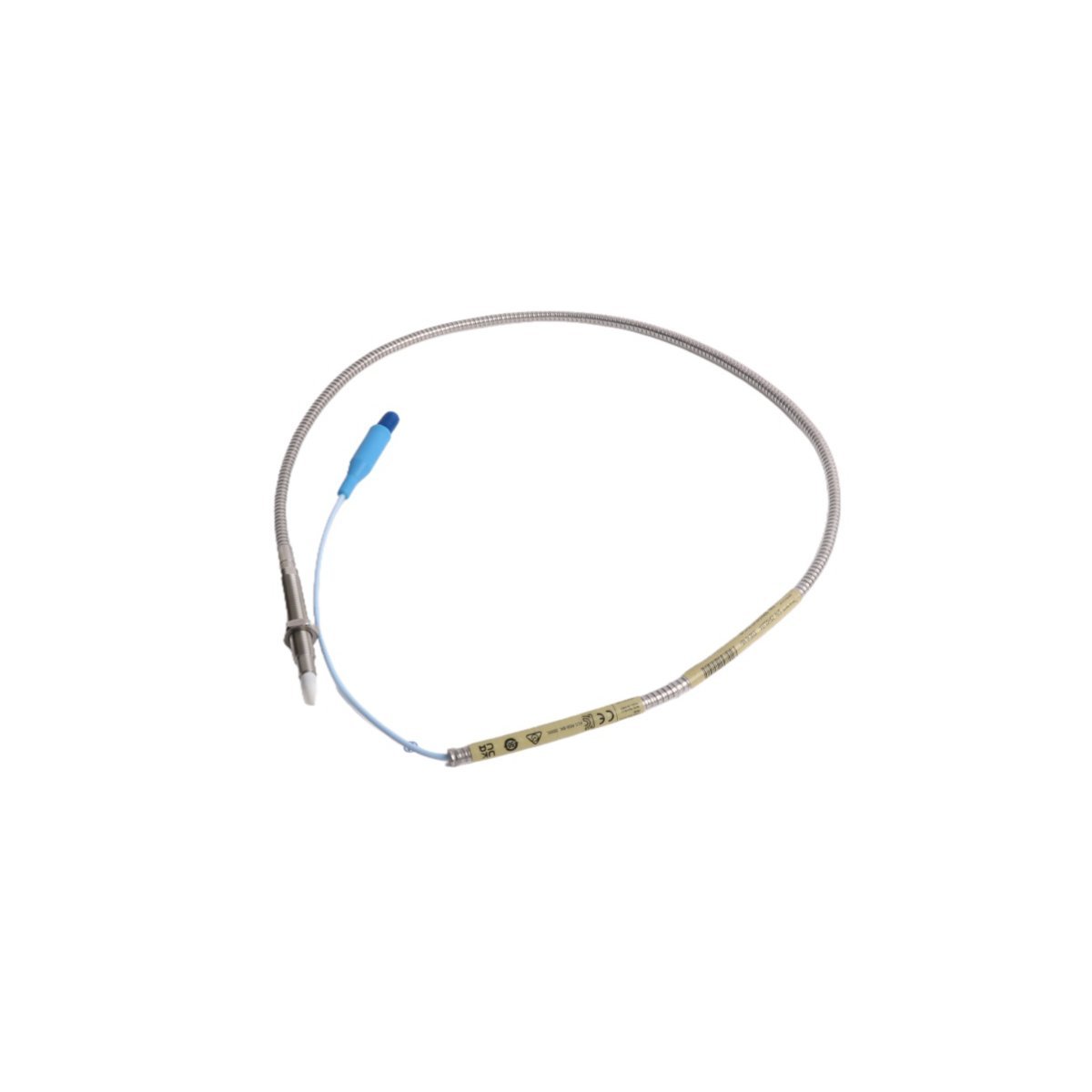

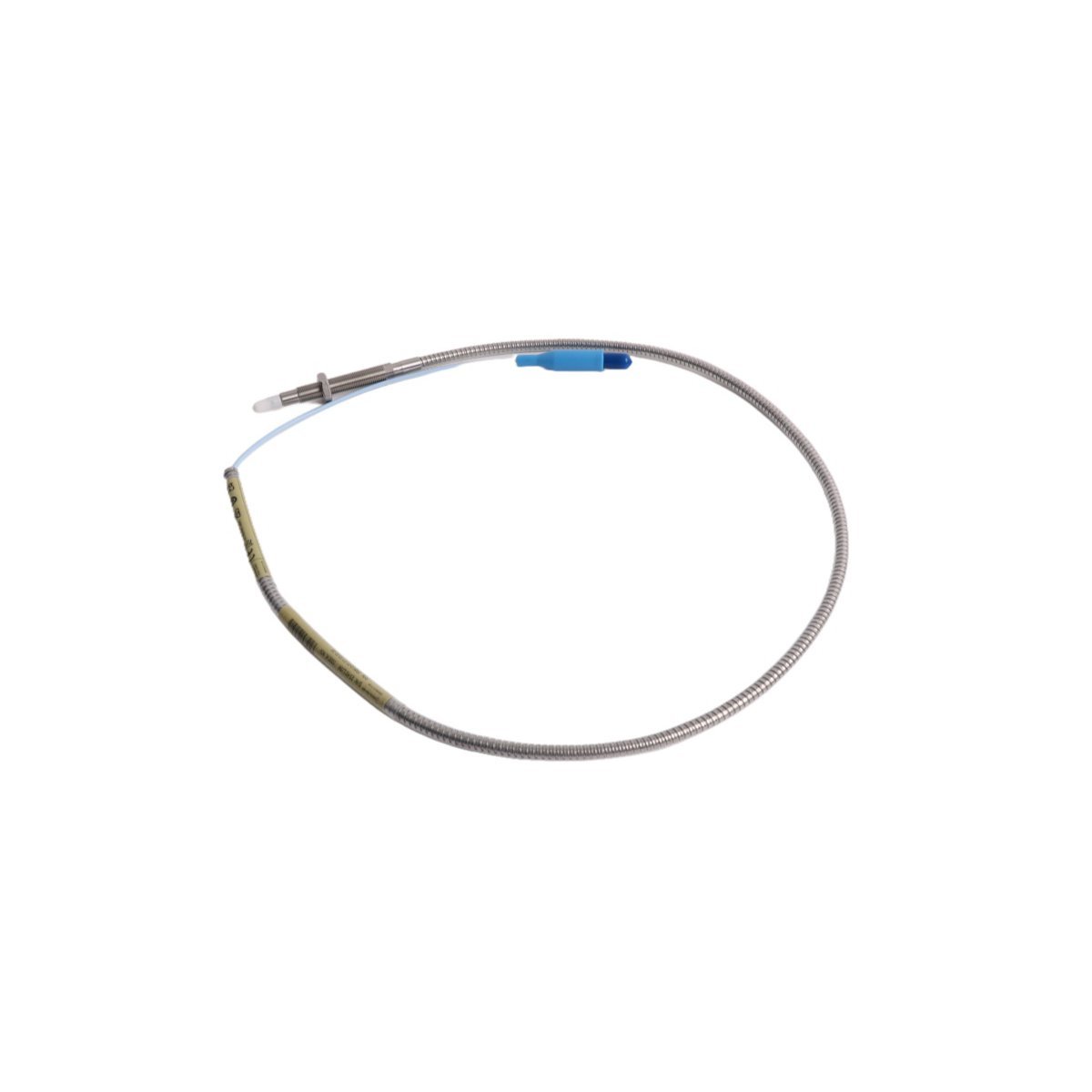

The Bently Nevada 330910-01-07-10-01-00 3300 NSv Probe is a high-precision, non-contact eddy-current proximity sensor engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada, a GE Digital company), this probe forms an integral component of the industry-standard 3300 Series Condition Monitoring System—widely deployed across power generation, oil & gas, petrochemical, marine propulsion, and industrial manufacturing sectors. Designed to operate reliably under extreme thermal, mechanical, and electromagnetic conditions, the 330910-01-07-10-01-00 delivers exceptional linearity (±0.5% full scale), temperature stability (±0.05%°C), and long-term calibration retention. Its robust 316 stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed ceramic tip ensure immunity to oil, steam, chemical exposure, and high-pressure environments. The probe is optimized for use with the 3300 XL 8 mm or 11 mm sensor systems and interfaces seamlessly with 3300/3300 XL transducers (e.g., 3300 XL 11 mm Proximitor® Transducer) to provide traceable, NIST-calibrated output signals compliant with API 670 (4th Edition) and ISO 10816 standards. As a new, factory-fresh unit, it ships with full OEM certification, serialized calibration data, and conforms to RoHS and CE directives. Backed by a comprehensive 24-month limited warranty, this probe supports predictive maintenance strategies, reduces unplanned downtime, and enhances asset reliability through early fault detection—including imbalance, misalignment, bearing wear, and resonance events.

Detailed Specifications

Key Features

• NIST-Traceable Calibration: Supplied with individual calibration certificate (ISO/IEC 17025 accredited), including dynamic sensitivity, linearity error, and thermal drift data across operational temperature range.
• Enhanced NSv (Non-Sensitive to Voltage) Design: Minimizes susceptibility to supply voltage fluctuations and common-mode noise—critical for installations near VFDs, SCR drives, and high-power switchgear.
• Hermetic Ceramic Tip Seal: Prevents moisture ingress and dielectric breakdown in humid, washdown, or subsea-adjacent environments; rated IP68 when mated with compatible connectors.
• Low Thermal Drift Architecture: Uses matched-material coil assembly and thermally compensated electronics to maintain ±0.05%°C zero shift—ensuring positional accuracy during turbine warm-up and load cycling.
• Plug-and-Play Integration: Fully compatible with all 3300/3300 XL monitoring systems, including 3500 Rack, System 1™ software, and Asset Suite analytics platforms without firmware updates or configuration changes.
• Ruggedized Mechanical Construction: 316 stainless steel probe body, PTFE-jacketed cable (UL AWM 20579), and nickel-plated brass connector withstand vibration up to 50 g RMS and shock up to 100 g peak.
• Extended Service Life: Rated for >100,000 hours MTBF under continuous operation; no moving parts, no wear surfaces, and no required periodic recalibration per OEM guidelines.
• Global Regulatory Support: Certified for hazardous locations (ATEX, IECEx), marine applications (DNV-GL, ABS), and nuclear-grade instrumentation (10 CFR 50 Appendix B compliant documentation available upon request).

Applications

• Gas & Steam Turbines: Real-time shaft vibration monitoring (radial and axial), thrust position tracking, and differential expansion measurement in combined-cycle and cogeneration plants.
• Centrifugal Compressors: Detection of blade pass frequency anomalies, surge onset, bearing degradation, and casing distortion in upstream oil & gas and LNG facilities.
• Large Electric Motors & Generators: Rotor eccentricity analysis, air-gap monitoring, and dynamic alignment verification during commissioning and performance testing.
• Marine Propulsion Systems: Shaft orbit analysis on main reduction gears and controllable pitch propellers aboard naval vessels, cruise liners, and offshore support vessels.
• Petrochemical Pumps & Expanders: Early identification of cavitation, seal failure, and coupling misalignment in high-pressure hydrocarbon service (e.g., FCCU, hydrotreaters, amine units).
• Wind Turbine Gearboxes: Low-speed shaft position and vibration trending for condition-based maintenance in offshore and onshore wind farms.
• Nuclear Power Plant Auxiliary Systems: Monitoring of feedwater pumps, condensate extraction pumps, and emergency diesel generator sets per ASME OM Code requirements.
• Industrial Blowers & Fans: Critical speed mapping, resonance avoidance, and unbalance correction in cement, mining, and pulp & paper operations.
