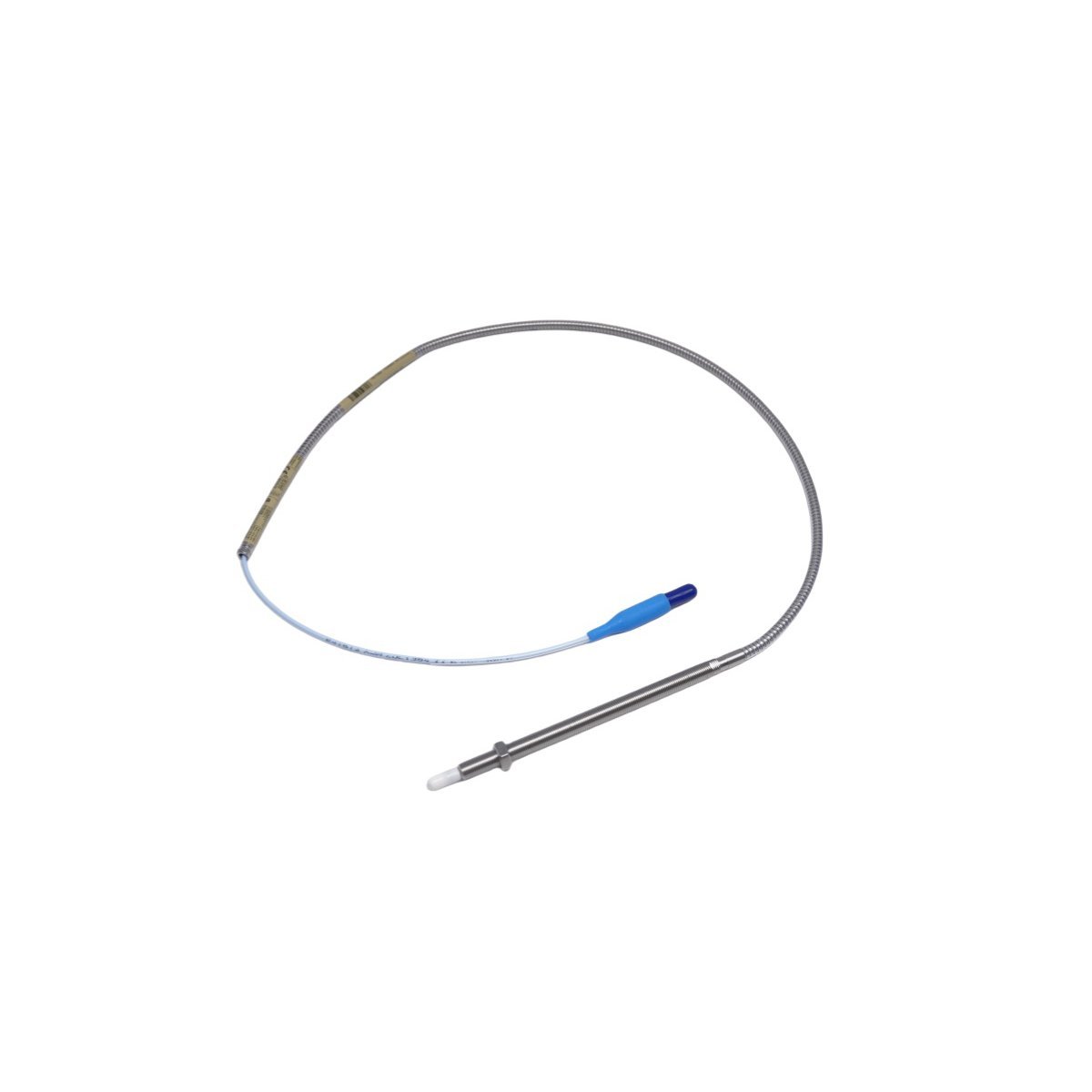

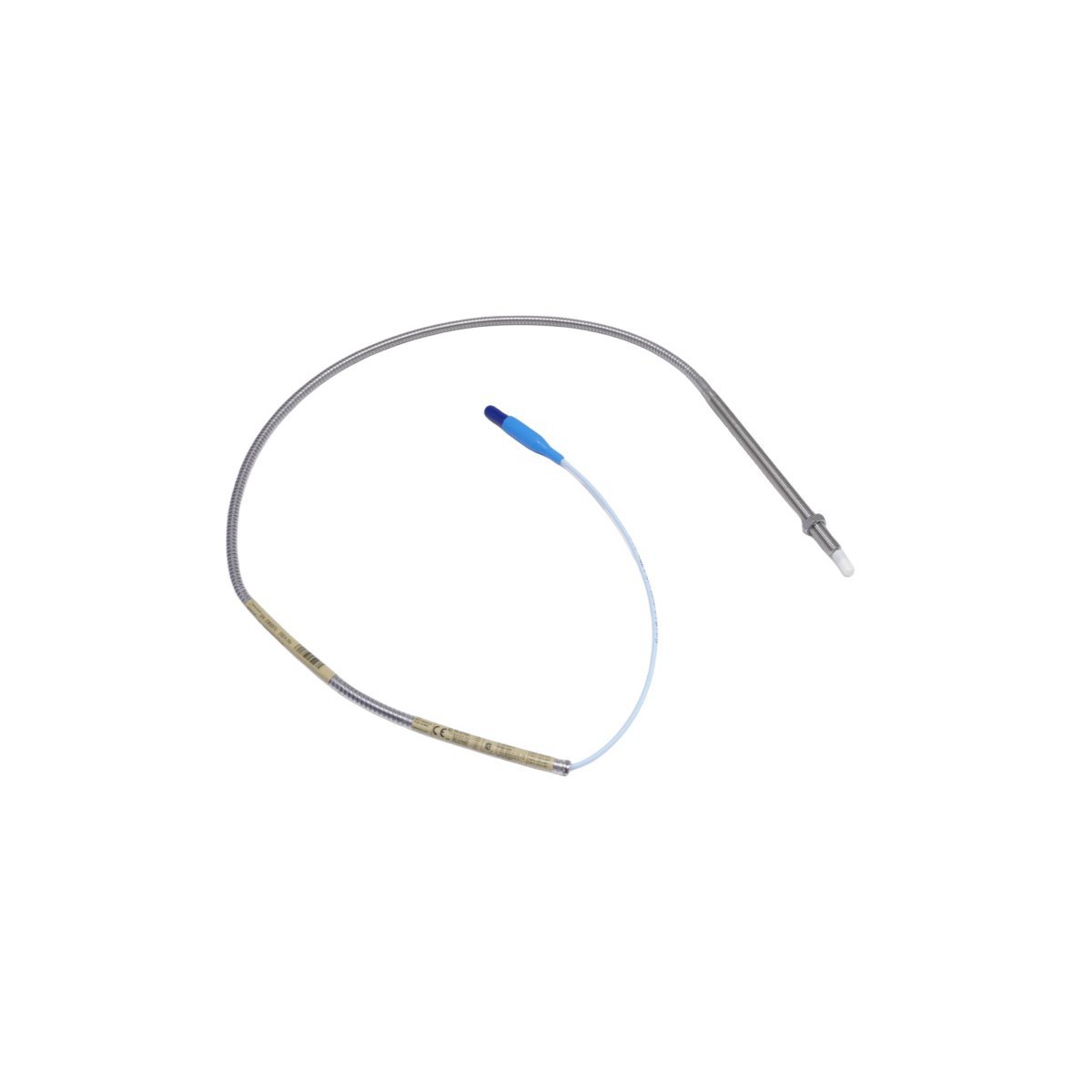

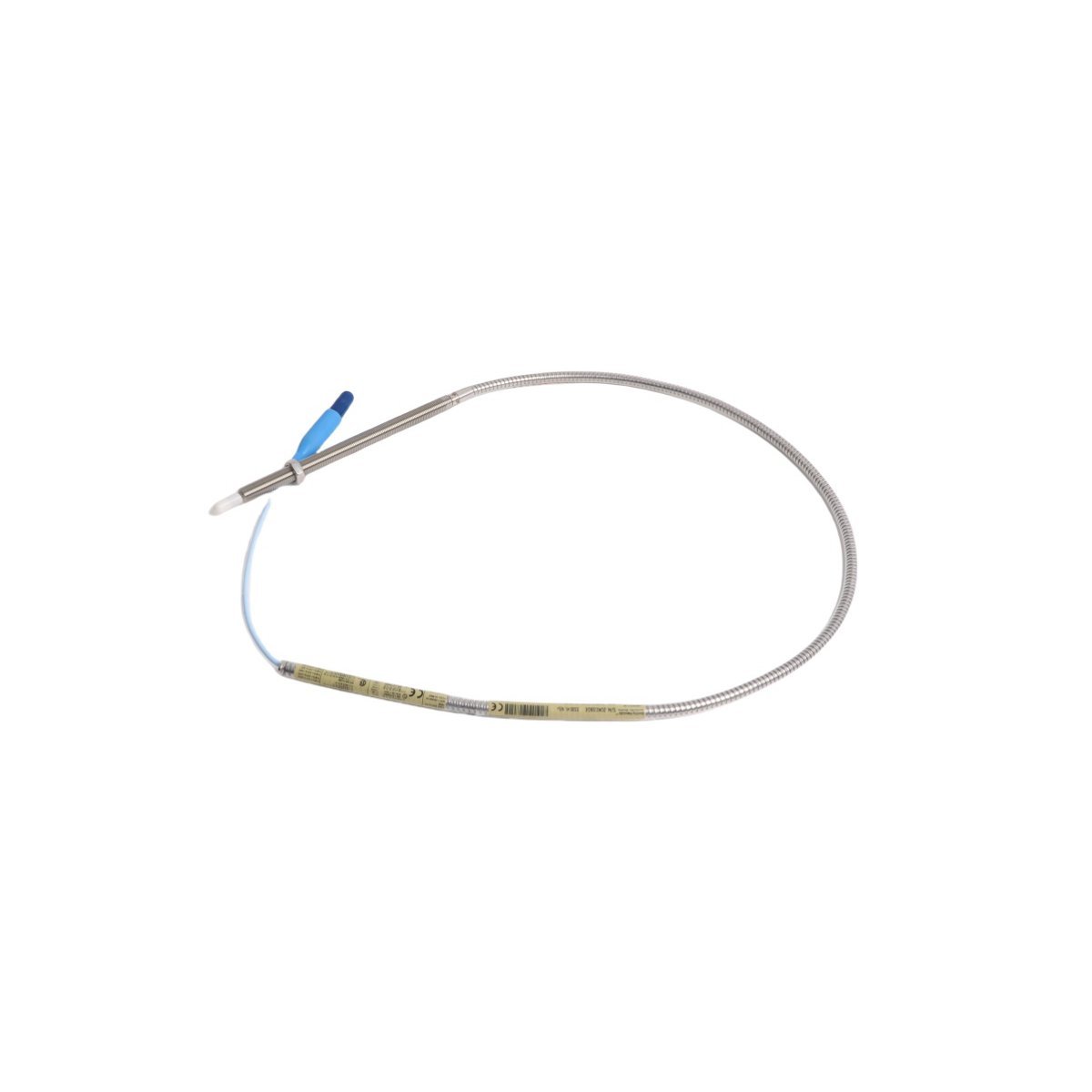

The Bently Nevada 330909-00-60-10-01-CN is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada—a globally recognized leader in condition monitoring and predictive maintenance solutions), this probe forms an integral component of the industry-standard 3300 Series Monitoring System. Designed to meet stringent API 670 (4th Edition) and ISO 10816 requirements, the 330909-00-60-10-01-CN delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across demanding industrial environments. Its robust construction features a corrosion-resistant stainless steel housing and high-purity ceramic insulators, ensuring long-term reliability under extreme temperatures (–30 °C to +125 °C ambient), humidity, and mechanical shock conditions. The probe operates on the eddy-current principle, generating a high-frequency electromagnetic field that interacts with conductive target surfaces—typically ferromagnetic or non-ferrous shaft materials such as 4140 steel or Inconel—to produce a linear voltage output proportional to the gap between probe tip and target. This model is specifically configured for use with the 3300 NSv (Non-Switched) monitor architecture and complies with RoHS 2.0 directives. All units are factory-calibrated against NIST-traceable standards and undergo 100% functional testing prior to shipment. As a new, unused OEM product, each probe carries a full 24-month limited warranty from Baker Hughes, covering material defects and workmanship under normal operating conditions.

Detailed Specifications

Key Features

• OEM-Grade Calibration & Traceability: Each probe is individually calibrated at the Baker Hughes calibration laboratory using NIST-traceable instrumentation, with full calibration certificate (including linearity, sensitivity, and thermal drift data) included.
• Enhanced Thermal Stability: Utilizes low-drift ceramic core technology and precision-matched coil windings to maintain accuracy across wide ambient temperature swings—critical for turbine, compressor, and pump applications.
• EMI/RFI Immunity: Integrated triple-shielded coaxial cable and optimized internal grounding architecture ensure stable operation in high-noise environments near VFDs, switchgear, and large motors.
• Corrosion-Resistant Construction: 316 stainless steel probe body and high-purity alumina ceramic insulator provide superior resistance to chemical exposure, salt spray, and process contaminants.
• API 670 Compliance Ready: Meets all mandatory requirements for proximity probe systems per API RP 670 (4th Ed.), including signal conditioning, alarm thresholds, and redundancy architecture support.
• Plug-and-Play Integration: Seamless compatibility with 3300 NSv monitors, 3500/40M, and legacy 3300 XL platforms—no recalibration required when replacing existing 3309xx-series probes.
• Extended Service Life: Rated for >100,000 hours MTBF (Mean Time Between Failures) under nominal operating conditions, minimizing unplanned downtime and lifecycle cost of ownership.
• Global Support Ecosystem: Backed by Baker Hughes’ worldwide network of certified service centers, application engineers, and 24/7 technical support—ensuring rapid resolution and compliance assurance.

Applications

• Steam and Gas Turbines: Continuous monitoring of radial vibration, thrust position, and differential expansion in power generation and combined-cycle plants—supporting ISO 10816-3 Class U/N criteria.
• Centrifugal Compressors: Detection of shaft orbit instability, surge onset, and bearing wear in oil & gas transmission, LNG liquefaction, and petrochemical processing facilities.
• Large Electric Motors and Generators: Shaft displacement measurement for alignment verification, dynamic balancing, and early fault detection in critical drive trains.
• Reciprocating Machinery: Cylinder head clearance monitoring and crosshead guidance analysis in high-pressure hydrogen compressors and syngas units.
• Aerospace Ground Test Stands: High-fidelity rotor dynamics characterization during engine certification and endurance testing, leveraging the probe’s 10 kHz bandwidth and sub-micron resolution.
• Marine Propulsion Systems: Shaft runout and gear mesh monitoring on naval vessels and commercial cargo ships operating under harsh maritime conditions.
• Renewable Energy Infrastructure: Condition monitoring of main shaft bearings and gearbox input stages in utility-scale wind turbines (IEC 61400-25 compliant deployments).
• Pharmaceutical and Food Processing Equipment: Hygienic, non-invasive shaft position sensing in sanitary centrifuges and mixers where contact sensors are prohibited.
