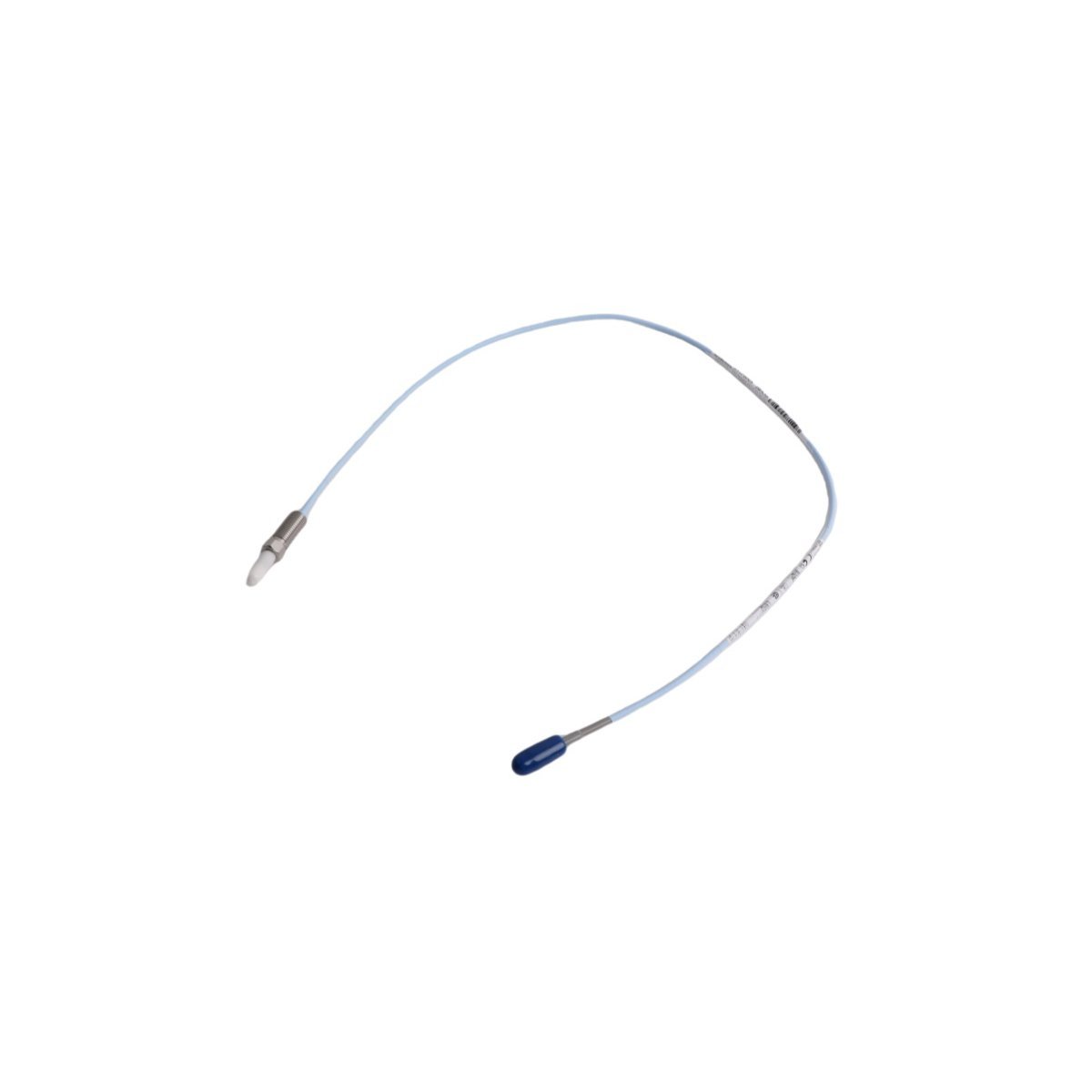

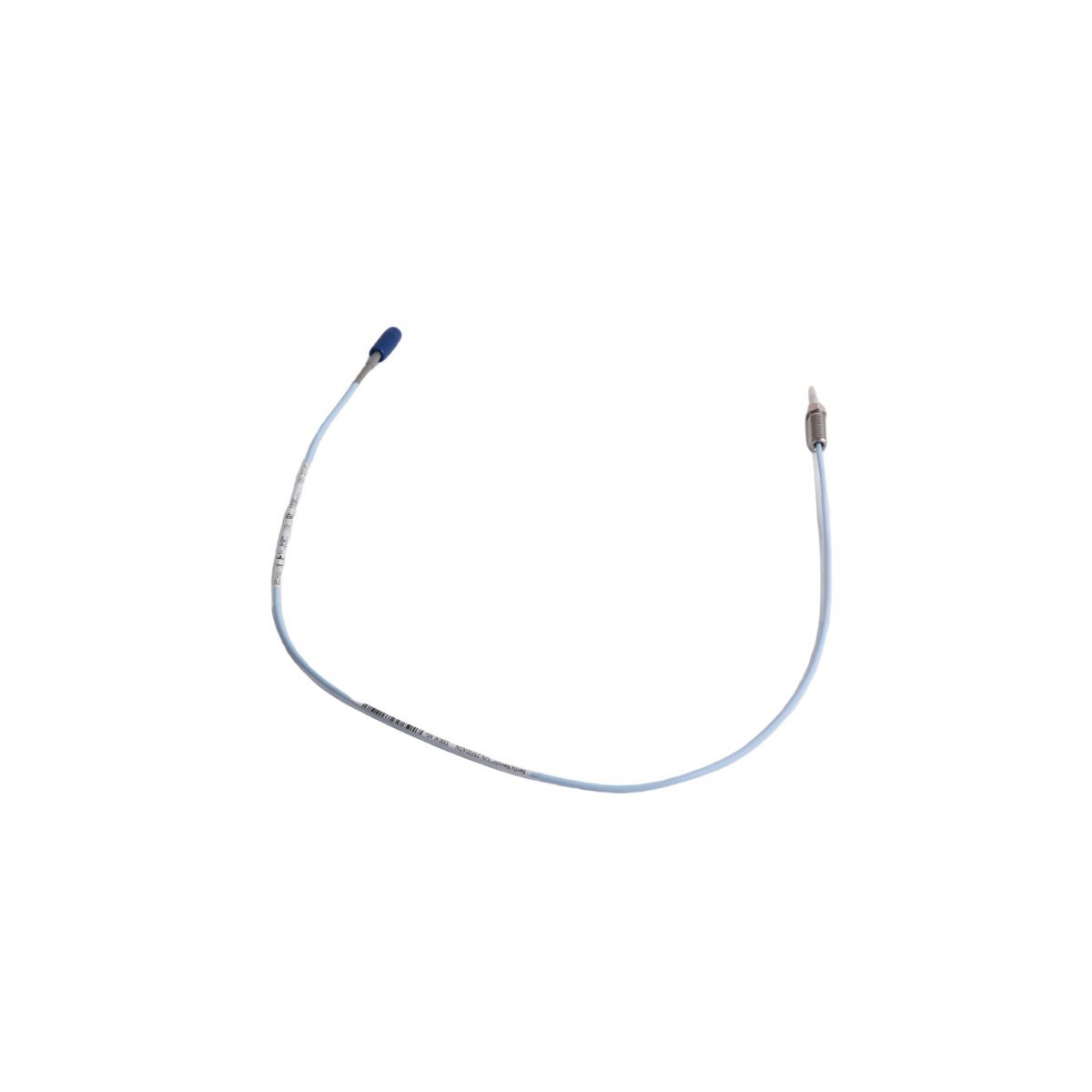

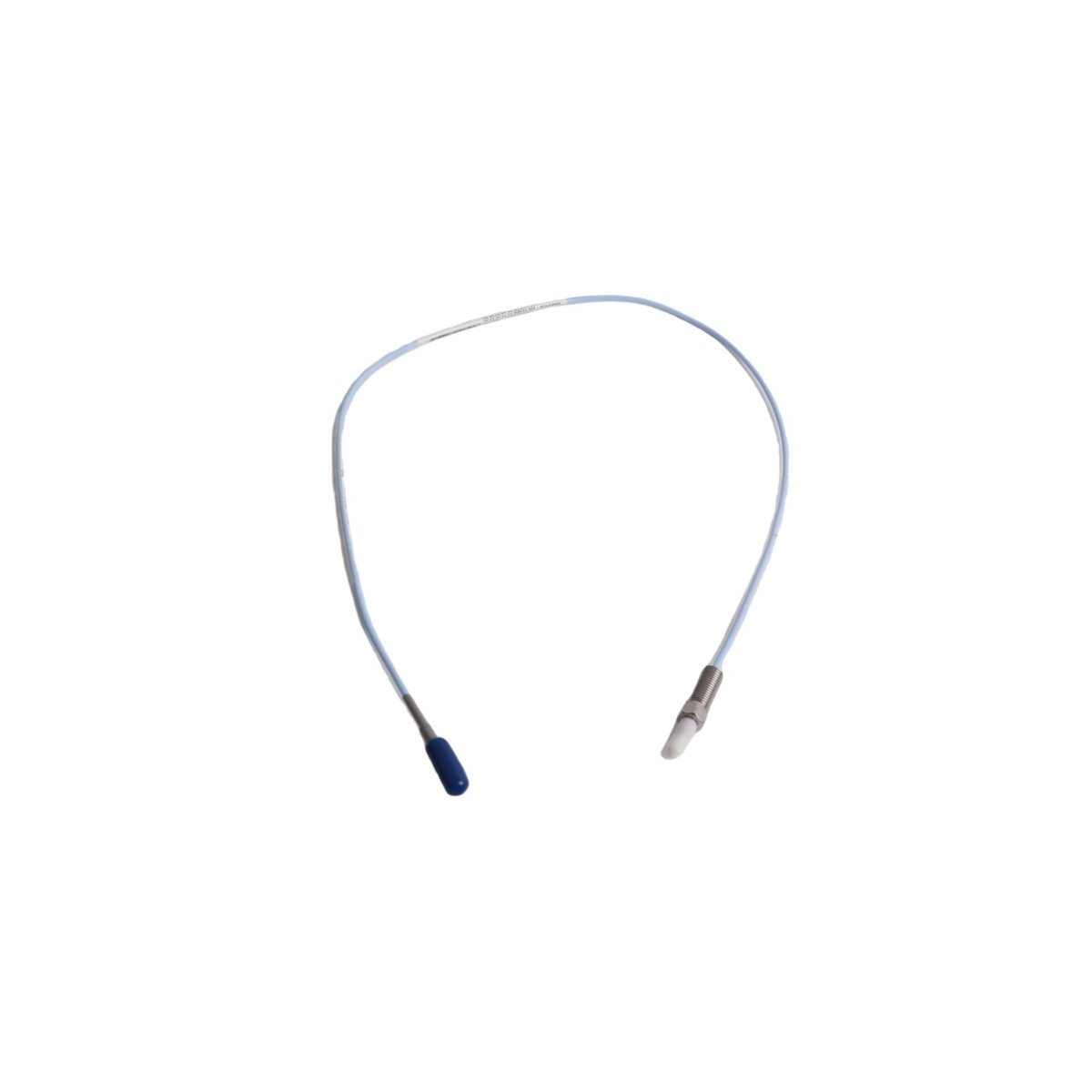

The Bently Nevada 330906-02-12-05-05-02-05 3300 NSv Reverse Mount Probe is a high-precision, non-contact eddy-current proximity probe engineered for critical machinery protection and condition monitoring in industrial rotating equipment applications. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in asset reliability solutions, this probe is part of the industry-standard 3300 Series vibration monitoring system ecosystem. Designed specifically for reverse-mount configurations—where the probe body is installed from the rear of the bearing housing or machine frame—the 330906-02-12-05-05-02-05 enables optimal sensor placement in space-constrained, high-integrity mechanical environments without compromising measurement fidelity. Its robust construction integrates a precision-machined stainless steel housing, gold-plated connector interface, and temperature-compensated coil assembly, ensuring stable output across wide operational ranges (-40 °C to +125 °C ambient). The probe delivers linear, repeatable displacement measurements with exceptional resolution (<0.25 µm RMS) and frequency response up to 10 kHz, meeting API 670 (4th Edition) and ISO 10816 compliance requirements for turbomachinery protection systems. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation, including sensitivity, linearity error, and thermal drift coefficients. This probe is exclusively compatible with Bently Nevada 3300 NSv (Next-Generation System v) monitors and preamplifiers, supporting seamless integration into modern distributed control systems (DCS) and enterprise asset management platforms.

Detailed Specifications

Key Features

• True Reverse-Mount Design: Engineered with rear-thread engagement and optimized body geometry to install flush within bearing housings or structural mounts—eliminating external protrusions and enhancing mechanical integrity in high-vibration zones.
• NIST-Traceable Calibration: Each probe ships with individual calibration certificate verifying sensitivity, linearity, thermal stability, and phase response—essential for API 670-compliant machinery protection systems.
• Enhanced Environmental Resilience: Hermetically sealed housing with IP68-rated ingress protection; resistant to oil immersion, steam cleaning, and corrosive process atmospheres common in refineries and power plants.
• NSv System Integration: Fully interoperable with Bently Nevada 3300 NSv monitors, enabling advanced diagnostics including orbit analysis, cascade plots, and real-time spectrum streaming via Ethernet/IP or Modbus TCP.
• Thermal Drift Compensation: Advanced coil winding and compensation circuitry limit zero-shift to <±0.5% FS/°C—critical for long-term stability in turbines operating across wide thermal transients.
• OEM-Backed Reliability: Manufactured under AS9100D and ISO 9001:2015 certified processes; subject to 100% functional testing, including sweep-frequency response and shock/vibration validation.
• Plug-and-Play Configuration: Pre-programmed with unique serial ID and calibration parameters; auto-recognized by NSv monitors—reducing commissioning time by up to 70% versus legacy 3300 systems.

Applications

• Steam and Gas Turbines: Axial position monitoring of thrust collars and differential expansion measurement in multi-casing turbine trains per API RP 612 and IEC 60034-30-2.
• Centrifugal Compressors & Pumps: Radial vibration and shaft position sensing on overhung impellers and double-suction configurations where forward-mount access is obstructed by couplings or gearboxes.
• Hydroelectric Generators: Bearing pedestal-mounted reverse probes for synchronous generator rotor axial float detection and dynamic air-gap monitoring.
• Petrochemical Process Trains: High-reliability monitoring in hazardous areas (Class I, Div 1, Groups B, C, D) with optional ATEX/IECEx certification support through approved barrier systems.
• Wind Turbine Gearboxes: Low-speed shaft position tracking in nacelle-mounted planetary gearsets—leveraging reverse-mount capability to avoid interference with lubrication manifolds and cooling ducts.
• Nuclear Power Plant Auxiliaries: Safety-related Class 1E monitoring of feedwater pumps, circulating water pumps, and emergency diesel generator sets per IEEE 383 and RCC-E standards.
