Description

Technical Overview

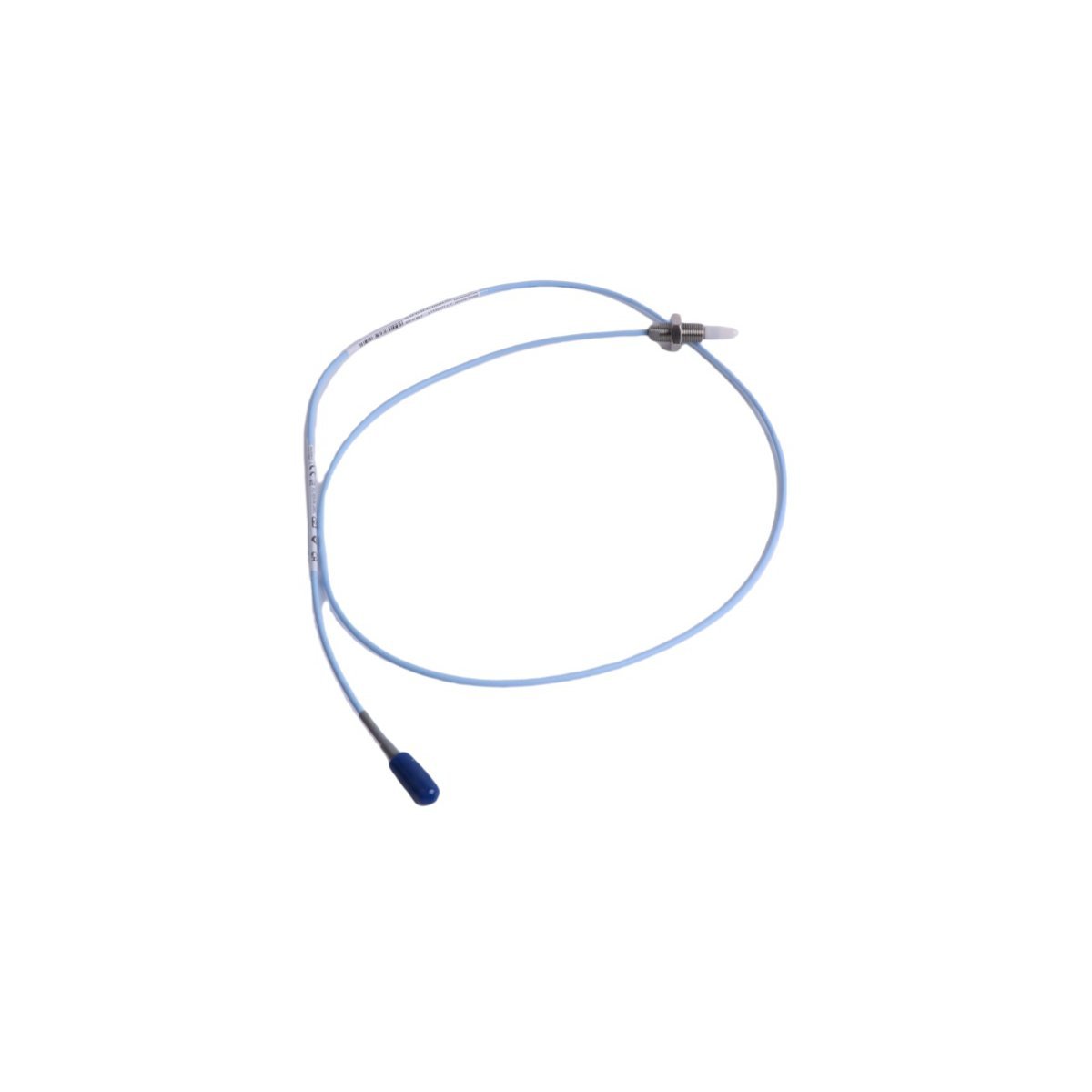

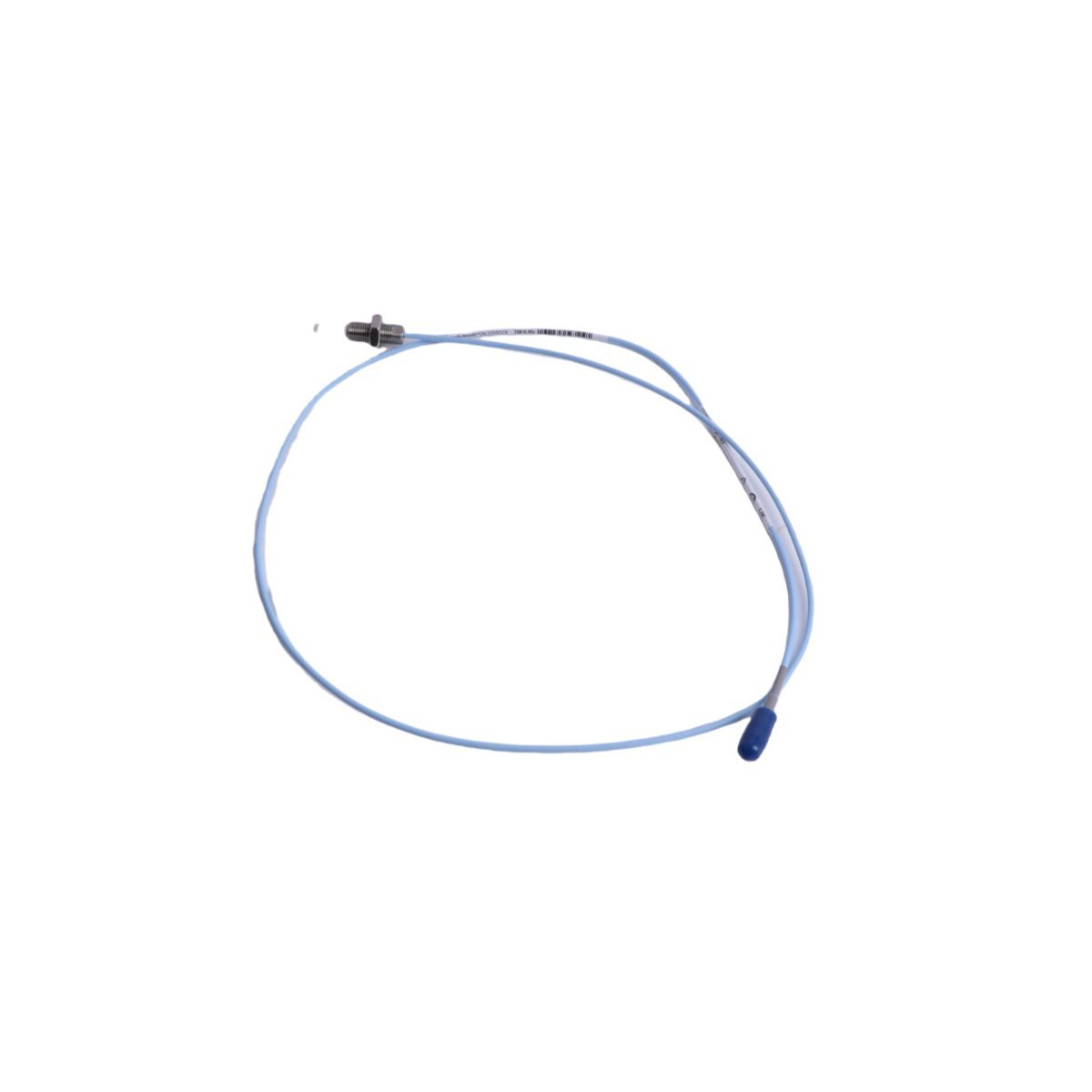

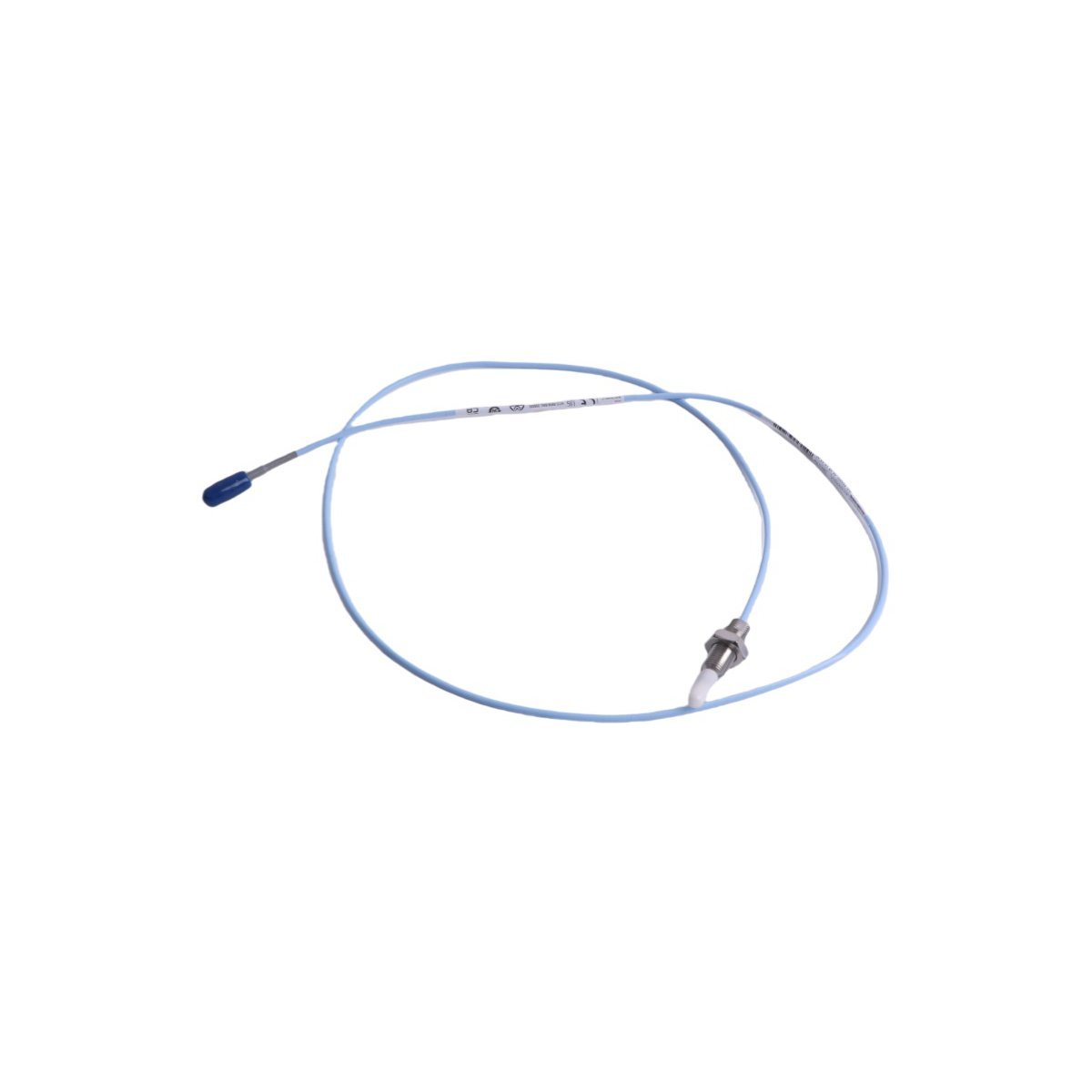

The Bently Nevada 330905-01-08-10-01-00 is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is an integral component of the 3300 Series Machinery Protection System (MPS) and fully compatible with the 3300 NSv Proximity Transducer family. Designed to meet stringent industrial reliability standards—including API 670 (4th Edition) and ISO 10816—this probe delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across demanding operational environments. The 330905-01-08-10-01-00 features a robust stainless steel housing, gold-plated connector interface, and hermetically sealed sensing element optimized for long-term performance in high-temperature, high-humidity, and corrosive atmospheres. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with individual calibration certificates verifying sensitivity, linearity error (< ±0.5% FS), and frequency response (0–10 kHz). As a new, unused OEM product, it carries full Baker Hughes warranty coverage and is backed by comprehensive technical support, firmware compatibility assurance, and lifecycle management services. Sourced directly from authorized U.S.-based distribution channels, the probe is manufactured in the United States—ensuring compliance with ITAR, EAR, and Made-in-USA regulatory requirements.

Detailed Specifications

Key Features

• OEM-Exact Performance: Identical form, fit, function, and calibration to original Bently Nevada factory specifications—ensuring seamless integration with existing 3300 NSv, 3500, and System 1 platforms without reconfiguration or recalibration delays.
• Enhanced Thermal Stability: Advanced coil winding and core material composition minimize temperature-induced drift (< 0.01%/°C), critical for turbine, compressor, and generator applications where ambient fluctuations exceed 100 °C.
• Corrosion-Resistant Construction: 316 stainless steel body and gold-plated connector resist oxidation, salt spray, and hydrocarbon exposure—validated per ASTM B117 for 1,000+ hours of continuous salt fog testing.
• Low-Noise Signal Integrity: Proprietary coaxial cable shielding and optimized impedance matching reduce common-mode noise by >60 dB, enabling reliable sub-micron resolution even in electrically noisy switchgear or VFD-rich environments.
• Plug-and-Play Compatibility: Pre-matched to 3300 NSv transducers (e.g., 134320-01-00-00) and certified for use with all 3300 XL, 3300 XL 25 mm, and 3300 XL 50 mm system configurations.
• Regulatory Compliance: Certified to ATEX II 2G Ex ia IIC T6 Ga, IECEx ia IIC T6 Ga, and UL/cUL Class I, Division 1, Groups A, B, C, D—enabling safe deployment in hazardous locations including refineries, chemical plants, and offshore platforms.
• Traceability & Documentation: Each probe ships with serialized calibration data, RoHS/REACH compliance statement, and full Baker Hughes Certificate of Conformance (CoC).

Applications

• Steam and Gas Turbines: Real-time monitoring of thrust bearing position, rotor eccentricity, and blade tip clearance in power generation assets compliant with NERC PRC-005 and ISO 20816-3 standards.
• Centrifugal Compressors: Axial position and vibration analysis for integrally geared and overhung compressors in petrochemical, LNG, and air separation facilities.
• Large Electric Motors & Generators: Detection of air gap variation, stator-to-rotor rub conditions, and dynamic misalignment in high-voltage motors rated above 5 MW.
• Reciprocating Machinery: Cylinder head vibration and crosshead displacement monitoring in large two- and four-stroke engines used in marine propulsion and backup power systems.
• Aerospace Ground Support Equipment: Certification-grade shaft monitoring for aircraft engine test stands and auxiliary power unit (APU) validation rigs requiring MIL-STD-810G environmental resilience.
• Wind Turbine Gearboxes: Low-speed shaft runout and planetary carrier position monitoring in direct-drive and geared nacelle configurations meeting IEC 61400-25 cybersecurity and data integrity protocols.
• Research & Development Test Benches: High-fidelity dynamic characterization of novel bearing designs, magnetic levitation systems, and active vibration control algorithms under controlled laboratory conditions.
