Description

Technical Overview

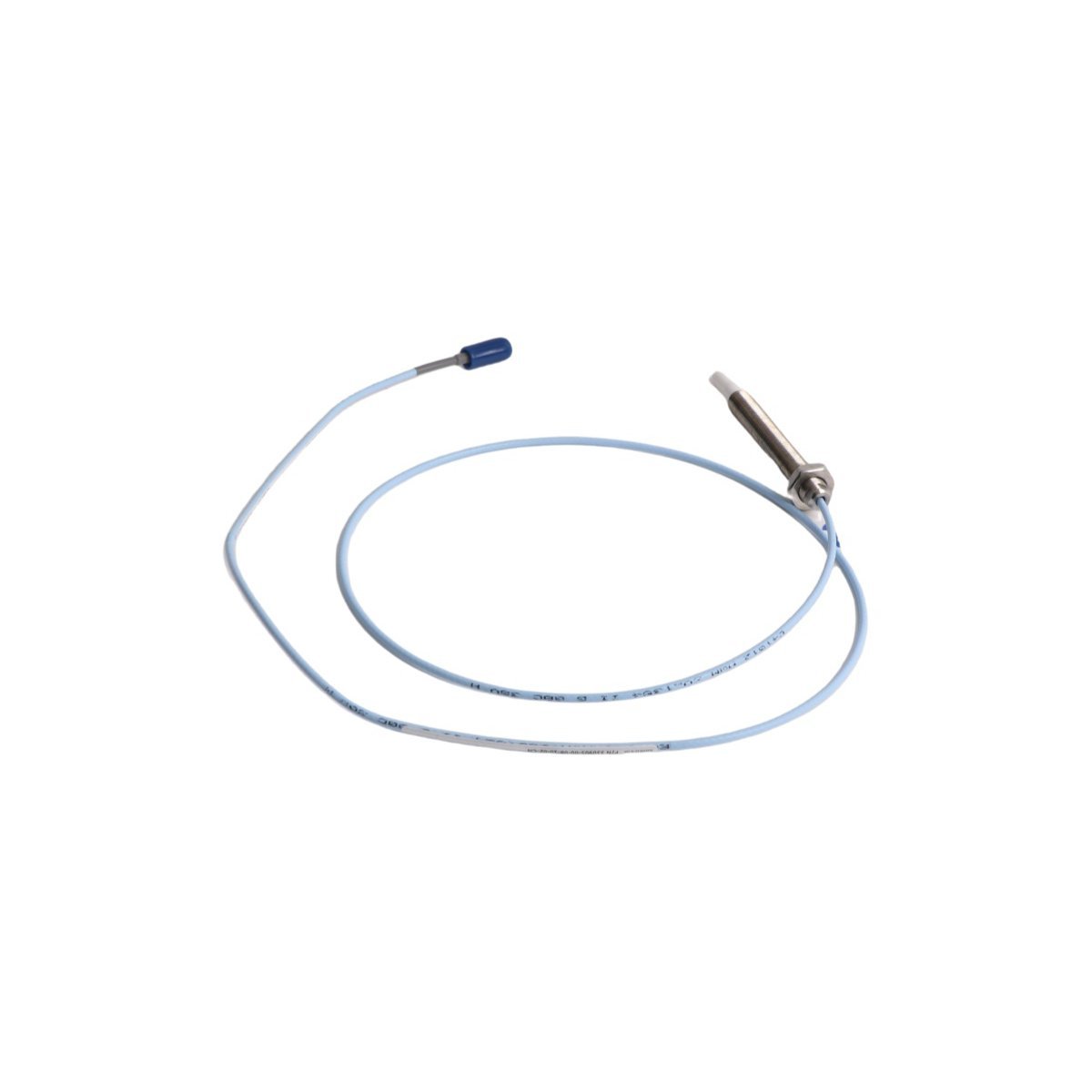

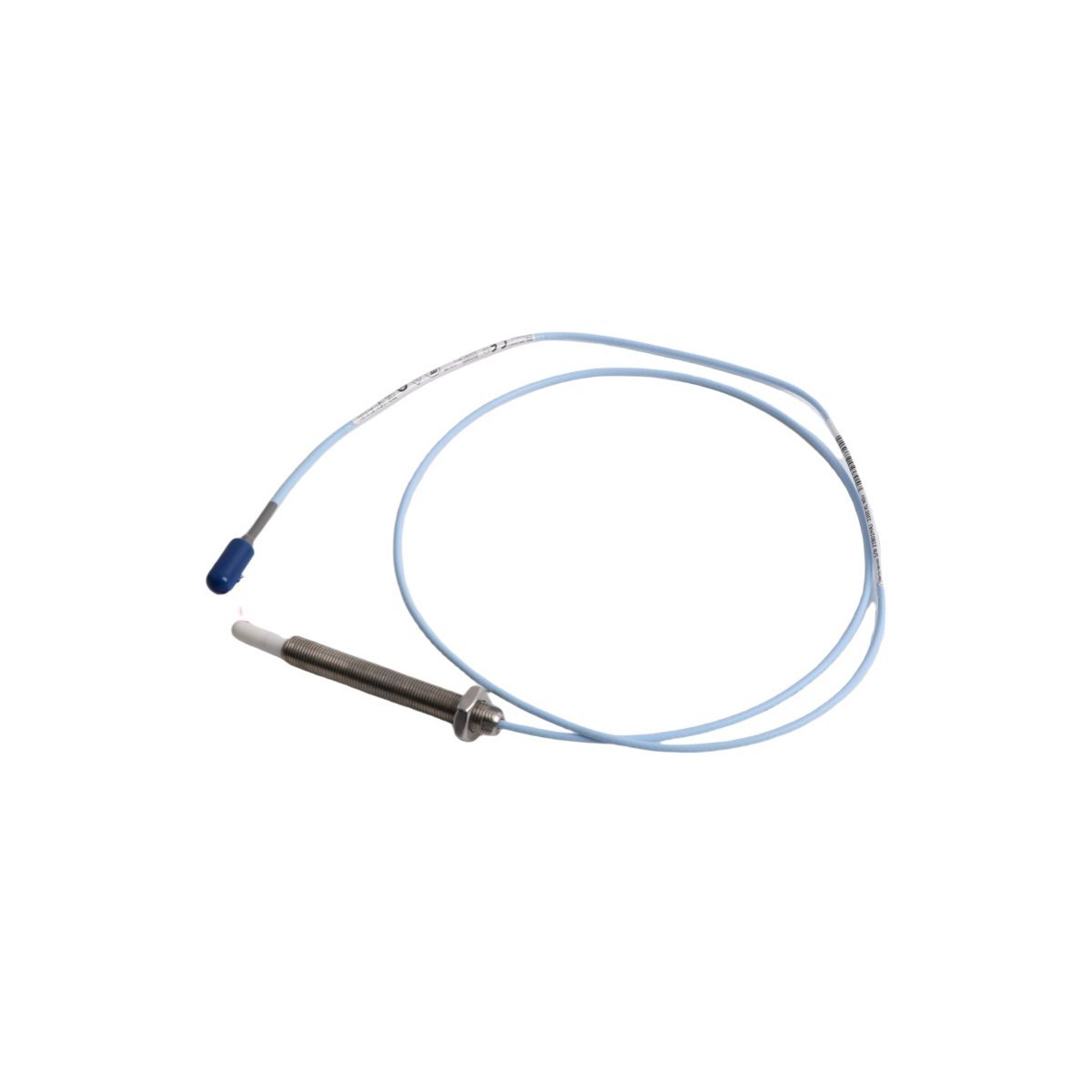

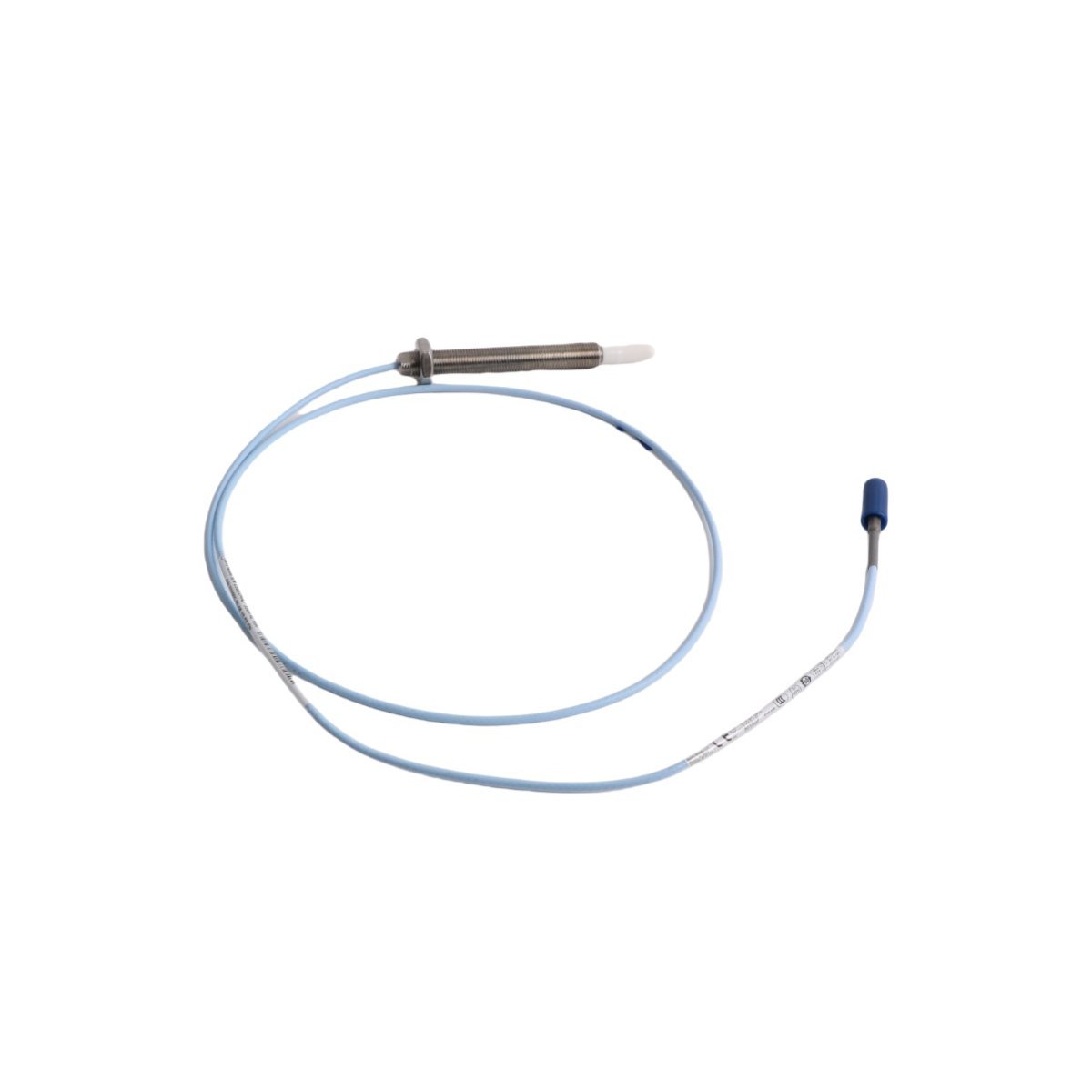

The Bently Nevada 330905-00-09-05-05-02-05 is a high-precision, industrial-grade 3300 NSv Proximity Probe engineered for continuous, non-contact vibration and position monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms a critical component of the industry-standard 3300 Series monitoring system. Designed to meet stringent API 670 (4th Edition) and ISO 10816 specifications, the 3300 NSv Proximity Probe delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity—ensuring reliable performance in demanding environments such as power generation plants, oil & gas refineries, petrochemical facilities, and large-scale industrial compressor stations. The probe operates on eddy-current principles, generating a high-frequency electromagnetic field that interacts with conductive target materials (typically 4140 steel or equivalent) to produce proportional output voltage signals. Its robust stainless steel housing (AISI 316L) provides superior corrosion resistance, while the integrated PTFE-insulated coaxial cable ensures signal integrity over extended distances up to 300 meters when used with compatible 3300 XL or 3300 NSv extension cables and前置 amplifiers. Each unit undergoes rigorous factory calibration traceable to NIST standards and is supplied with full calibration documentation, including sensitivity (mV/mil), linearity error (< ±0.3% FS), and temperature coefficient (< 0.01%/°C). The probe is offered in new, factory-fresh condition—never refurbished or previously installed—and backed by a comprehensive 24-month limited warranty covering material defects and workmanship under normal industrial use.

Detailed Specifications

Key Features

• NIST-Traceable Calibration: Supplied with individual calibration certificate verifying sensitivity, linearity, and thermal drift—essential for compliance with ISO 17025 and regulatory audits.
• Enhanced Thermal Stability: Advanced coil design and low-thermal-expansion materials minimize output drift across extreme ambient fluctuations, ensuring measurement consistency in turbine enclosures and compressor skids.
• Corrosion-Resistant Construction: AISI 316L stainless steel probe body and PTFE-insulated cable withstand aggressive chemical exposure, salt fog, and high-humidity environments common in offshore platforms and marine propulsion systems.
• Optimized for NSv Architecture: Fully compatible with Bently Nevada 3300 NSv monitors and 3300 XL extension cables—enabling seamless integration into legacy and next-generation monitoring networks without signal degradation.
• High Signal-to-Noise Ratio (SNR): Engineered for >70 dB SNR at 1 kHz, enabling accurate detection of sub-micron shaft displacements and early-stage bearing faults.
• Plug-and-Play Installation: Precision-machined M10 thread and standardized connector eliminate field calibration adjustments—reducing commissioning time by up to 40% versus legacy probes.
• Long-Term Reliability: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation—validated via accelerated life testing per MIL-STD-810H.
• Global Regulatory Compliance: Certified to ATEX II 2G Ex ia IIC T4 Ga, IECEx ia IIC T4 Ga, and UL/cUL Class I, Div 1, Groups A, B, C, D—approved for hazardous locations worldwide.

Applications

• Steam and Gas Turbines: Real-time monitoring of radial vibration, axial position, and differential expansion in utility-scale and industrial turbines operating at speeds up to 30,000 RPM.
• Centrifugal Compressors: Detection of impeller imbalance, misalignment, and surge onset in process gas compression trains within refineries and LNG facilities.
• Large Electric Motors and Generators: Shaft orbit analysis and thrust bearing wear assessment in 5–100 MW synchronous machines.
• Petrochemical Pumps: Cavitation detection, coupling health evaluation, and mechanical seal monitoring in API 610-compliant centrifugal pumps handling corrosive or high-temperature fluids.
• Wind Turbine Gearboxes: Low-speed main shaft displacement tracking and high-speed pinion vibration analysis in offshore and onshore wind farms.
• Nuclear Power Plant Auxiliary Systems: Safety-critical monitoring of feedwater pumps, condensate extraction units, and emergency diesel generators meeting ASME OM Code requirements.
• Marine Propulsion Systems: Shaft alignment verification and propeller hub vibration analysis aboard commercial vessels and naval fleets.
• Test Stands and R&D Labs: High-fidelity dynamic characterization of rotating components during qualification, endurance, and failure-mode testing.
