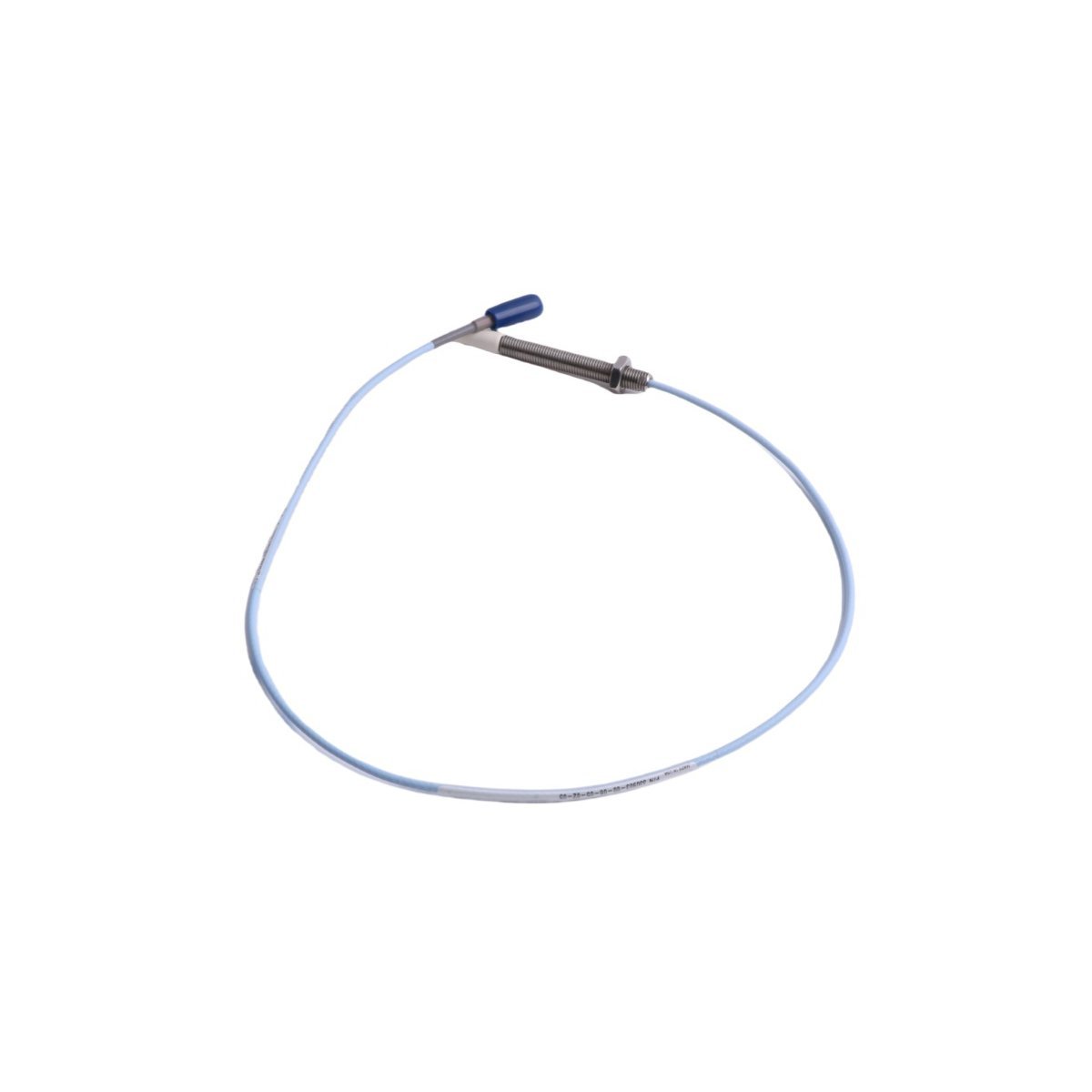

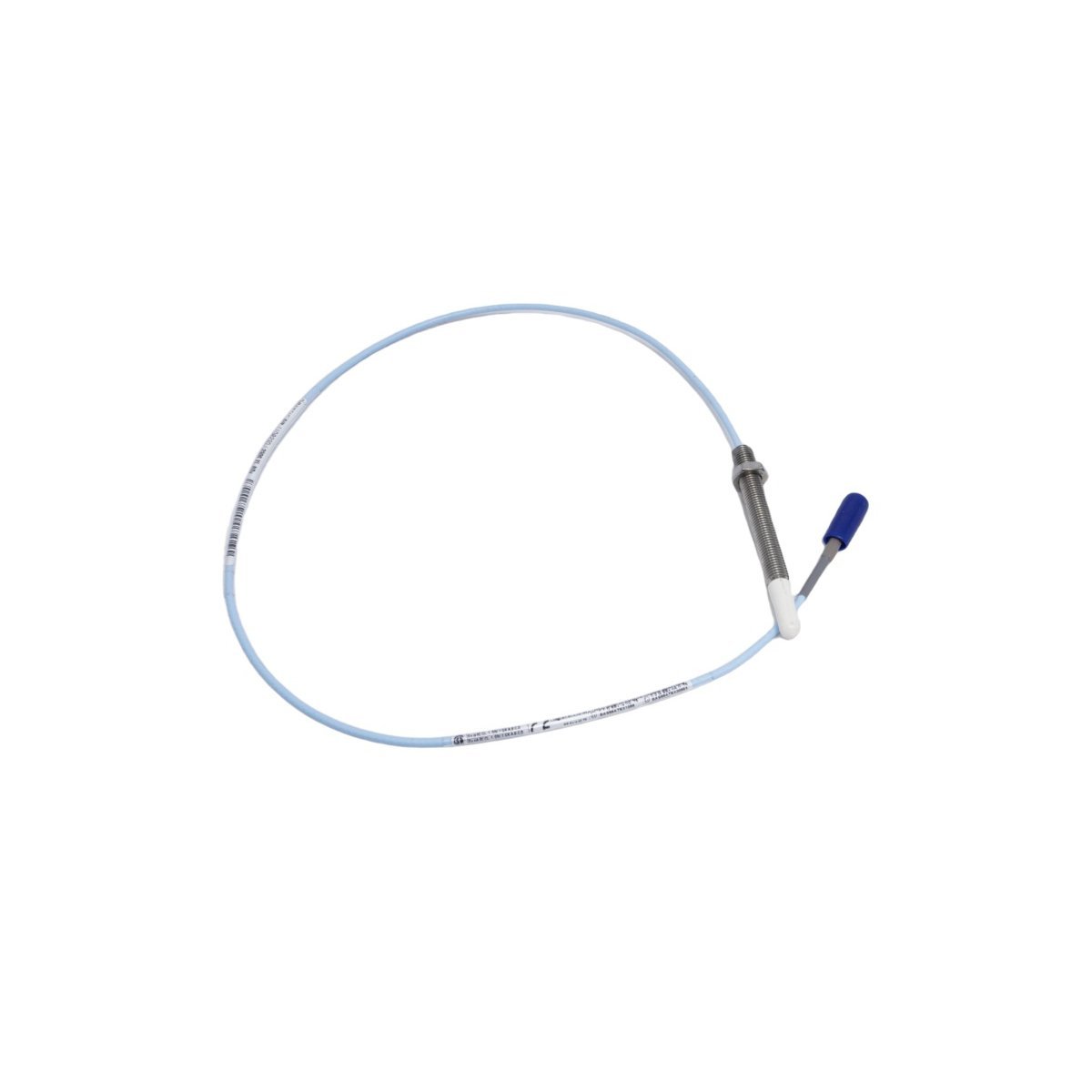

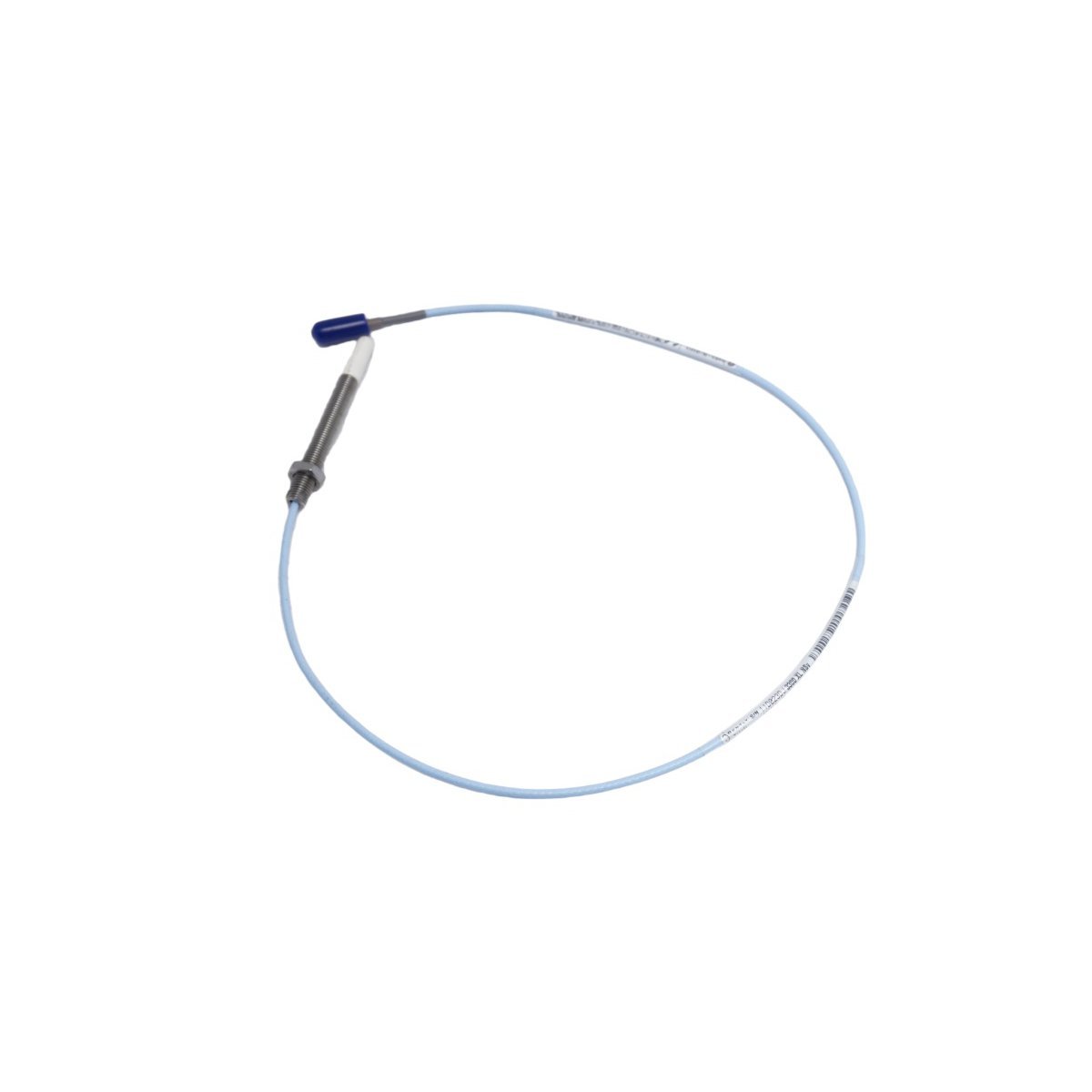

The Bently Nevada 330903-00-05-05-01-00 is a high-precision, non-contact proximity probe engineered for continuous vibration, displacement, and position monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 NSv (Next-Generation System) family—designed to deliver exceptional signal fidelity, thermal stability, and long-term reliability under demanding industrial conditions. The 330903-00-05-05-01-00 probe operates on the eddy-current principle, generating highly linear and repeatable analog output signals proportional to the gap between the probe tip and conductive target surfaces (e.g., shafts, thrust collars, or bearing housings). Its robust construction integrates aerospace-grade materials—including a corrosion-resistant stainless steel housing, PTFE-insulated coaxial cable, and a precision-machined ceramic tip—to ensure consistent performance across extreme temperature gradients (–40 °C to +125 °C ambient), high-vibration environments, and chemically aggressive atmospheres. This model is supplied as new, factory-fresh inventory with full traceability to original Bently Nevada production batches. Each unit undergoes rigorous 100% end-of-line calibration against NIST-traceable standards and includes a comprehensive 24-month limited warranty covering defects in materials and workmanship. Designed and assembled in the United States, the probe complies with ISO 10816, API 670 (4th Edition), and IEC 61000-6-2/6-4 electromagnetic compatibility requirements. With its optimized frequency response (0–10 kHz bandwidth), low noise floor (< 5 mV RMS), and minimal phase shift (< 5° at 1 kHz), the 330903-00-05-05-01-00 enables precise detection of sub-micron mechanical anomalies—including shaft orbit distortion, rubs, misalignment, and bearing wear—supporting early fault identification and data-driven asset integrity decisions.

Detailed Specifications

Key Features

• Industry-Leading Linearity & Stability: Achieves ±0.5 % linearity across full range and <0.05 %/°C thermal drift coefficient—ensuring measurement consistency across wide ambient fluctuations.
• Integrated Low-Noise Cable Assembly: Factory-terminated 5-meter RG-174-style coaxial cable with double-shielded construction minimizes EMI/RFI susceptibility and eliminates field termination errors.
• NIST-Traceable Calibration: Each probe ships with a unique calibration certificate documenting sensitivity, linearity, frequency response, and temperature compensation data per ANSI/NCSL Z540-1.
• Optimized for 3300 NSv Monitoring Systems: Fully interoperable with 3300 NSv rack-based monitors (e.g., 3300 XL, 3500/22M), offering seamless integration, automatic probe recognition, and advanced diagnostics via Asset Manager software.
• Robust Mechanical Design: Hermetically sealed ceramic tip and 316 SS body withstand high-pressure washdowns, steam cleaning, hydrogen sulfide exposure, and abrasive particulate ingress (IP68 rated).
• Extended Service Life: Rated for >100,000 operating hours under nominal conditions—reducing total cost of ownership and unplanned downtime risk.
• Global Regulatory Compliance: Certified for hazardous locations (Class I, Div 1, Groups B, C, D; ATEX II 2G Ex db IIB T4 Gb) when used with approved safety barriers.

Applications

• Turbomachinery Monitoring: Real-time shaft vibration, axial position, and differential expansion measurement in steam/gas turbines, compressors, and pumps per API 612/617 standards.
• Power Generation Assets: Critical rotor dynamics surveillance in nuclear, combined-cycle, and hydroelectric generators—including thrust bearing wear detection and magnetic center verification.
• Oil & Gas Infrastructure: Condition monitoring of reciprocating compressors, centrifugal blowers, and offshore platform drivers exposed to salt-laden, high-humidity environments.
• Refinery & Petrochemical Processes: Continuous displacement tracking for critical equipment such as FCCU main air blowers, hydrogen recycle compressors, and amine system pumps.
• Marine Propulsion Systems: Shaft orbit analysis and bearing clearance validation in naval and commercial vessel propulsion trains operating under shock/vibration stress.
• Research & Test Benches: High-fidelity dynamic testing of prototype rotating components, including modal analysis, unbalance response characterization, and bearing dynamics studies.
• Renewable Energy Integration: Rotor position and vibration feedback for large-scale wind turbine gearboxes and direct-drive generators requiring ISO 20816-2 compliance.
