Description

Technical Overview

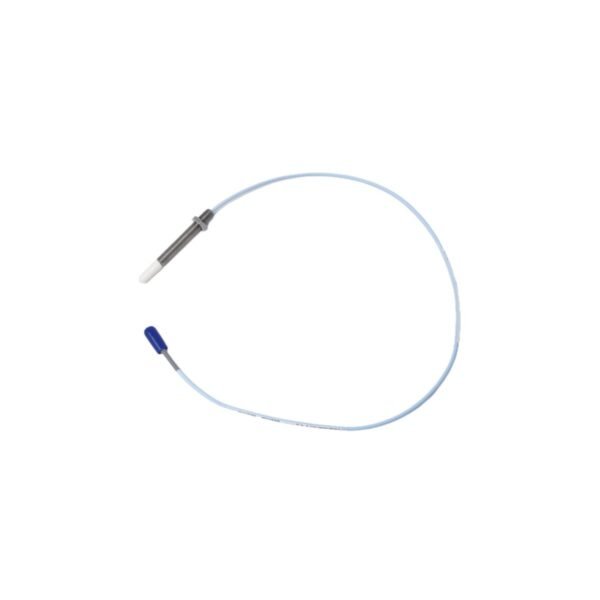

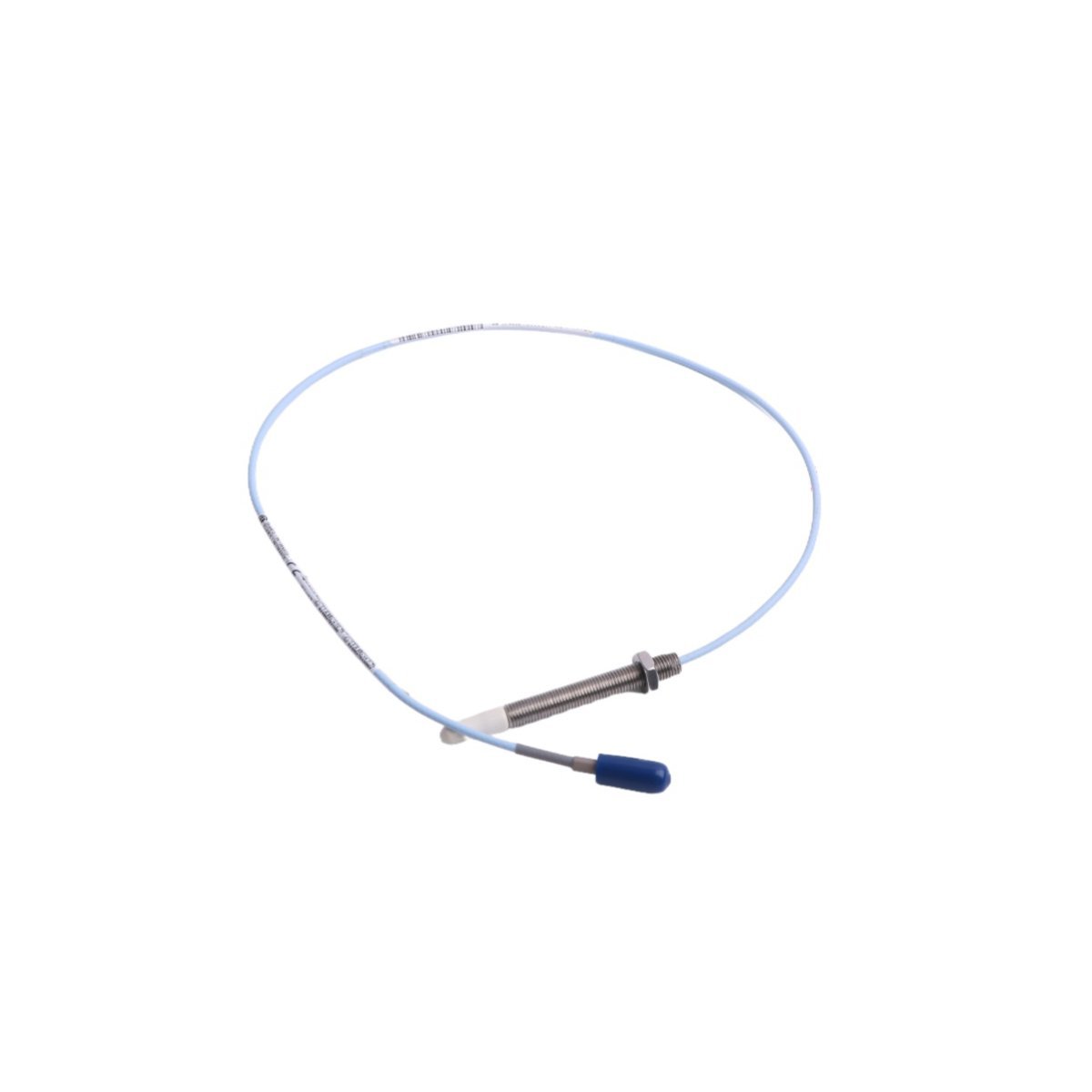

The Bently Nevada 330903-00-04-05-02-CN is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 NSv (Next-Generation Sensor) series—designed to deliver exceptional signal integrity, thermal stability, and long-term reliability under demanding industrial conditions. The “CN” suffix denotes compliance with China-specific regulatory and electromagnetic compatibility (EMC) requirements, including GB/T 17626 and CCC certification, making it ideal for deployment across power generation, oil & gas, petrochemical, and heavy industrial facilities within mainland China and other regulated APAC markets. Each unit is factory-calibrated using traceable NIST-equivalent standards and undergoes rigorous environmental stress screening—including temperature cycling from –40 °C to +125 °C, shock (50 g), and vibration (20 g RMS)—to ensure consistent performance across its operational lifespan. The probe features a robust 316 stainless steel housing, PTFE-insulated coaxial cable, and a hermetically sealed ceramic connector interface rated IP67, providing superior resistance to moisture, corrosion, and hydrocarbon exposure. Supplied in new, unused condition, every 330903-00-04-05-02-CN unit carries a comprehensive 24-month limited warranty covering material defects and workmanship, backed by Baker Hughes’ global technical support network and authorized calibration services. With a compact form factor measuring 11.2 mm (0.44 in) in diameter and 120 mm (4.72 in) in overall length—including integrated 5-meter low-noise coaxial cable—and a lightweight design of just 185 g (6.5 oz), the probe enables flexible installation in space-constrained bearing housings without compromising mechanical resonance characteristics. Originating from Baker Hughes’ state-of-the-art manufacturing facility in Juárez, Mexico—certified to ISO 9001:2015 and IATF 16949—the 330903-00-04-05-02-CN exemplifies precision engineering aligned with international quality benchmarks and stringent OEM integration protocols.

Detailed Specifications

Key Features

• NSv Next-Generation Sensor Architecture: Integrates advanced eddy-current sensing technology with optimized coil geometry and proprietary core materials to achieve superior linearity (<±0.5% full scale), reduced temperature drift (80 dB).
• China-Specific Certification (CN Variant): Pre-certified to Chinese national standards including GB/T 17626 for EMC immunity and safety, eliminating costly local retesting and accelerating project commissioning timelines.
• Integrated 5-Meter Low-Noise Cable: Factory-terminated, strain-relieved coaxial cable minimizes signal degradation, eliminates field soldering errors, and ensures impedance continuity critical for high-frequency vibration analysis.
• Corrosion-Resistant Construction: 316 stainless steel probe body and PTFE cable jacket provide exceptional resistance to H₂S, salt spray, solvents, and high-humidity environments typical in offshore platforms and refineries.
• OEM-Ready Integration: Fully compatible with Bently Nevada 3300/3500 System 1 monitoring platforms, as well as third-party DCS/PLC interfaces via standard 4–20 mA or voltage output transducers.
• Extended Service Life: Rated for >100,000 hours MTBF under continuous operation; validated through accelerated life testing per MIL-HDBK-217F.
• Global Calibration & Support Ecosystem: Backed by Baker Hughes’ worldwide network of ISO/IEC 17025-accredited calibration labs and 24/7 technical assistance for configuration, diagnostics, and troubleshooting.

Applications

• Steam and Gas Turbines: Monitoring radial vibration and thrust position in HP/IP/LP sections of utility-scale and industrial turbines operating at speeds up to 15,000 RPM.
• Centrifugal Compressors: Detecting rotor instability, bearing wear, and misalignment in pipeline transmission, LNG liquefaction, and process air compression systems.
• Large Electric Motors & Generators: Ensuring compliance with ISO 10816-3 vibration severity thresholds and supporting predictive maintenance programs in wind farms and hydropower stations.
• Petrochemical Reactor Circulators: Continuous shaft displacement measurement in high-temperature, high-pressure hydrogen service where contact sensors would fail.
• Railway Traction Motors: Condition-based monitoring for rolling stock OEMs requiring SIL2-compliant position feedback per IEC 61508.
• Marine Propulsion Systems: Corrosion-resistant vibration sensing on main engines and reduction gears aboard commercial vessels and naval vessels meeting DNV-GL and CCS class rules.
• Renewable Energy Gearboxes: Early fault detection in wind turbine gearboxes subjected to variable load cycles and extreme ambient temperature swings.
