Description

Technical Overview

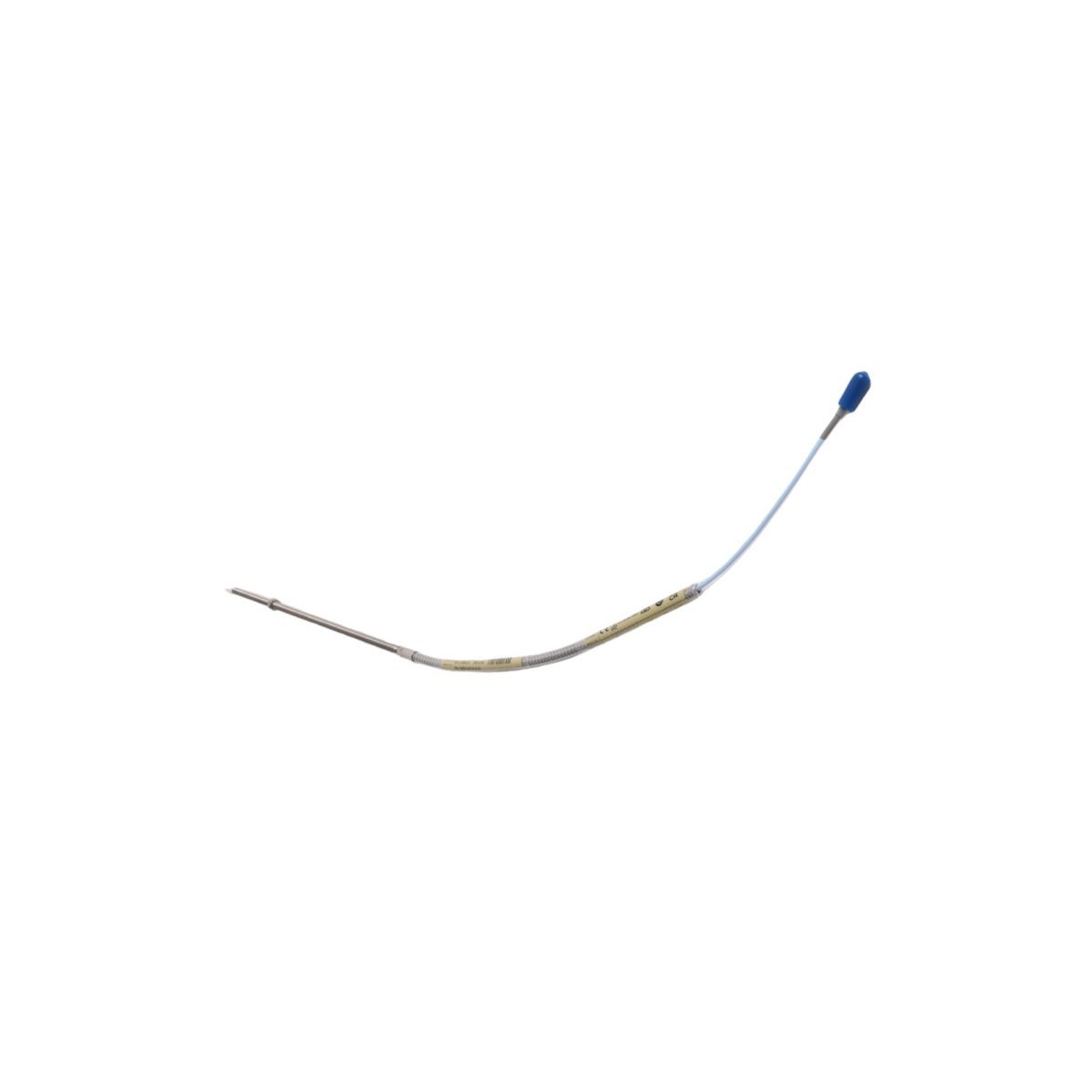

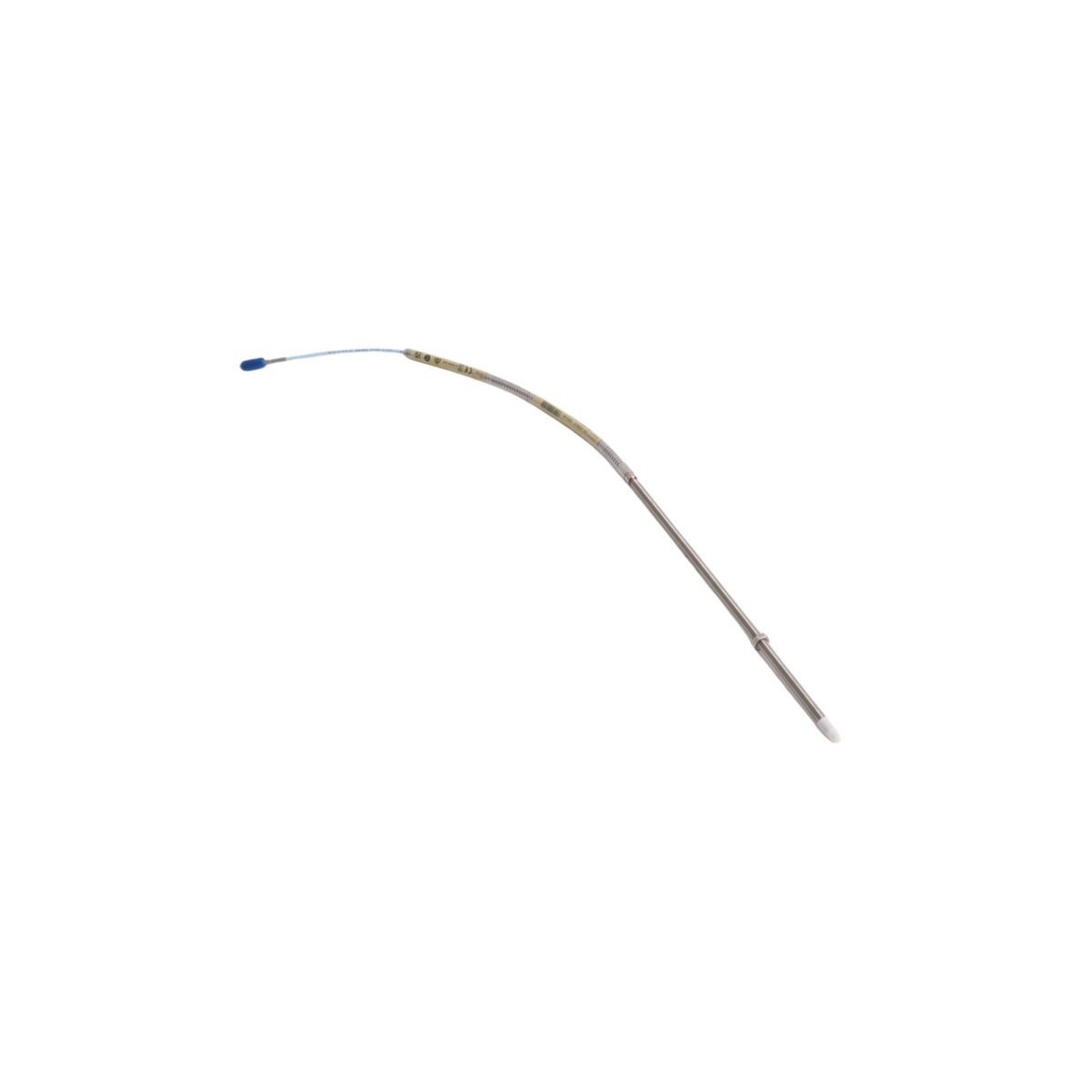

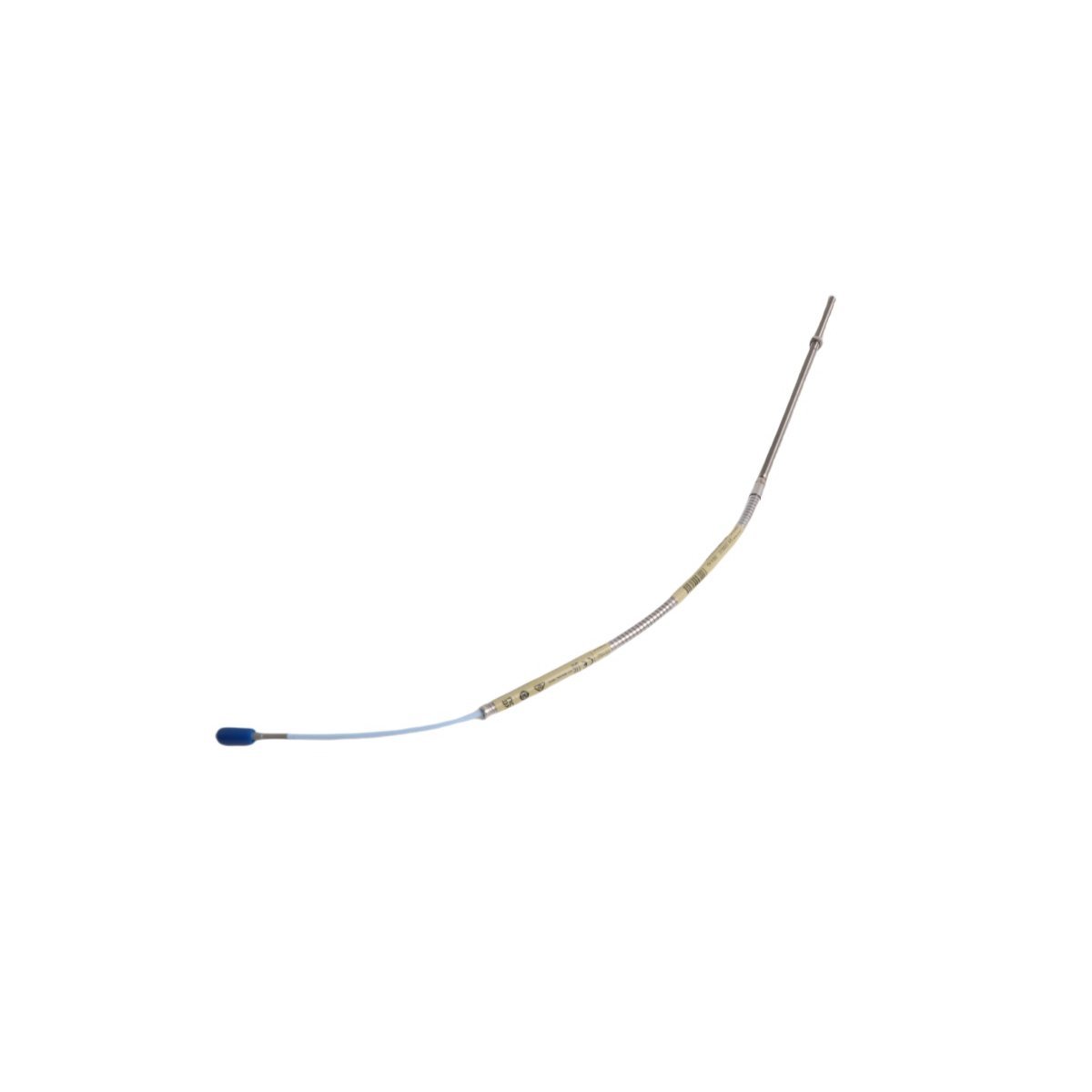

The Bently Nevada 330902-00-95-05-02-00 3300 NSv Probe is a high-precision, non-contact eddy-current displacement sensor engineered for mission-critical machinery protection and condition monitoring in industrial rotating equipment applications. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in asset reliability solutions, this probe forms the foundational sensing element of the industry-standard 3300 Series vibration and position monitoring systems. Designed to operate reliably under extreme thermal, mechanical, and electromagnetic conditions—including high temperatures, aggressive chemical environments, and intense vibration—the 330902-00-95-05-02-00 delivers exceptional linearity, repeatability, and long-term stability. Its advanced coil architecture and optimized ceramic insulator ensure minimal phase shift and signal distortion across its full measurement range, enabling accurate shaft relative displacement, axial position, differential expansion, and gap voltage measurements. The probe complies with ISO 10816, API 670 (4th Edition), and IEC 61000-6-2/6-4 electromagnetic compatibility standards. It is supplied as new, factory-fresh inventory—never refurbished or previously installed—with full traceability to original Bently Nevada production lot records. Each unit undergoes rigorous 100% functional testing, including sensitivity calibration verification, frequency response sweep, and thermal drift validation at ±5 °C and +70 °C ambient extremes. Backed by a comprehensive 24-month limited warranty covering material defects and workmanship, this probe guarantees operational integrity for critical infrastructure in power generation, oil & gas, petrochemical, and turbomachinery OEM installations.

Detailed Specifications

Key Features

• Precision Calibrated Sensitivity: Factory-calibrated to ±1.5% full-scale accuracy with NIST-traceable documentation; includes individual calibration certificate with serial-matched slope and null data.
• Thermally Stable Ceramic Construction: High-purity alumina ceramic insulator minimizes thermal drift (<0.05% FS/°C) and ensures dimensional stability across wide temperature gradients.
• Corrosion-Resistant Housing: 316 stainless steel probe body with passivated surface finish provides superior resistance to H₂S, salt spray, hydrocarbons, and acidic condensates per ASTM B117 testing.
• Low-Noise Signal Integrity: Integrated triaxial shielding and optimized coil geometry reduce EMI susceptibility by >60 dB compared to legacy probes—critical for compliance with API RP 500 Zone 1 hazardous area requirements.
• Plug-and-Play Compatibility: Fully interoperable with all 3300/3300 XL monitor racks, 3500 series systems, and legacy 1772/1776 monitors without firmware updates or configuration changes.
• Extended Service Life: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation at rated temperature and vibration profiles per MIL-HDBK-217F.
• Optimized for API 670 Compliance: Meets all mandatory requirements for proximity probe systems used in machinery protection—including dynamic response, linearity, environmental robustness, and documentation traceability.
• RoHS 3 & REACH Compliant: Contains zero restricted substances per EU Directive 2015/863 and Annex XVII of Regulation (EC) No 1907/2006.

Applications

• Steam and Gas Turbines: Axial position monitoring of thrust collars, differential expansion measurement between casing and rotor, and bearing housing vibration analysis in combined-cycle and cogeneration plants.
• Centrifugal Compressors & Pumps: Shaft relative vibration (radial and axial), seal clearance monitoring, and surge detection in upstream oil & gas processing, LNG liquefaction trains, and refinery services.
• Aeroderivative Engines: Rotor dynamics surveillance in marine propulsion and distributed power generation where compact size and high-frequency response are essential.
• Hydroelectric Generators: Thrust bearing wear assessment, air-gap monitoring, and synchronous vibration analysis under variable load conditions.
• Reciprocating Machinery: Crosshead position tracking, cylinder liner wear detection, and crankshaft deflection measurement in large-bore diesel and gas engines.
• OEM Equipment Integration: Pre-qualified for inclusion in original equipment manufacturer control panels, skid-mounted packages, and packaged compressor stations requiring certified machinery protection systems.
• Condition-Based Maintenance Programs: Enables predictive analytics integration with OSIsoft PI System, GE Digital Predix, and Siemens Desigo CC platforms via standard 4–20 mA or Modbus RTU interface adapters.
• Hazardous Area Installations: Certified for use in Class I, Division 1, Groups B, C, D (UL 1203) and ATEX II 2G Ex db IIB T4 Gb environments when paired with appropriate intrinsically safe barriers.
