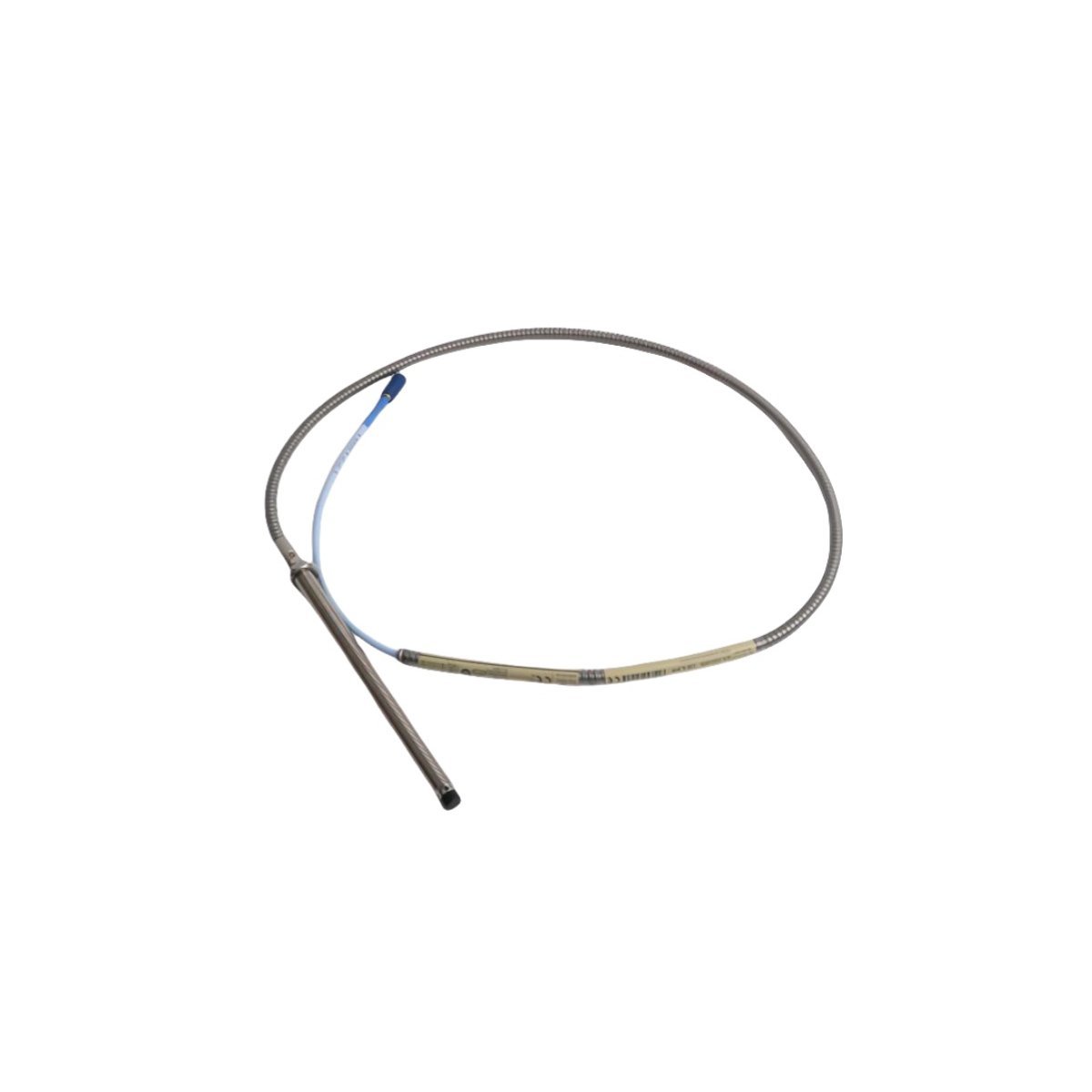

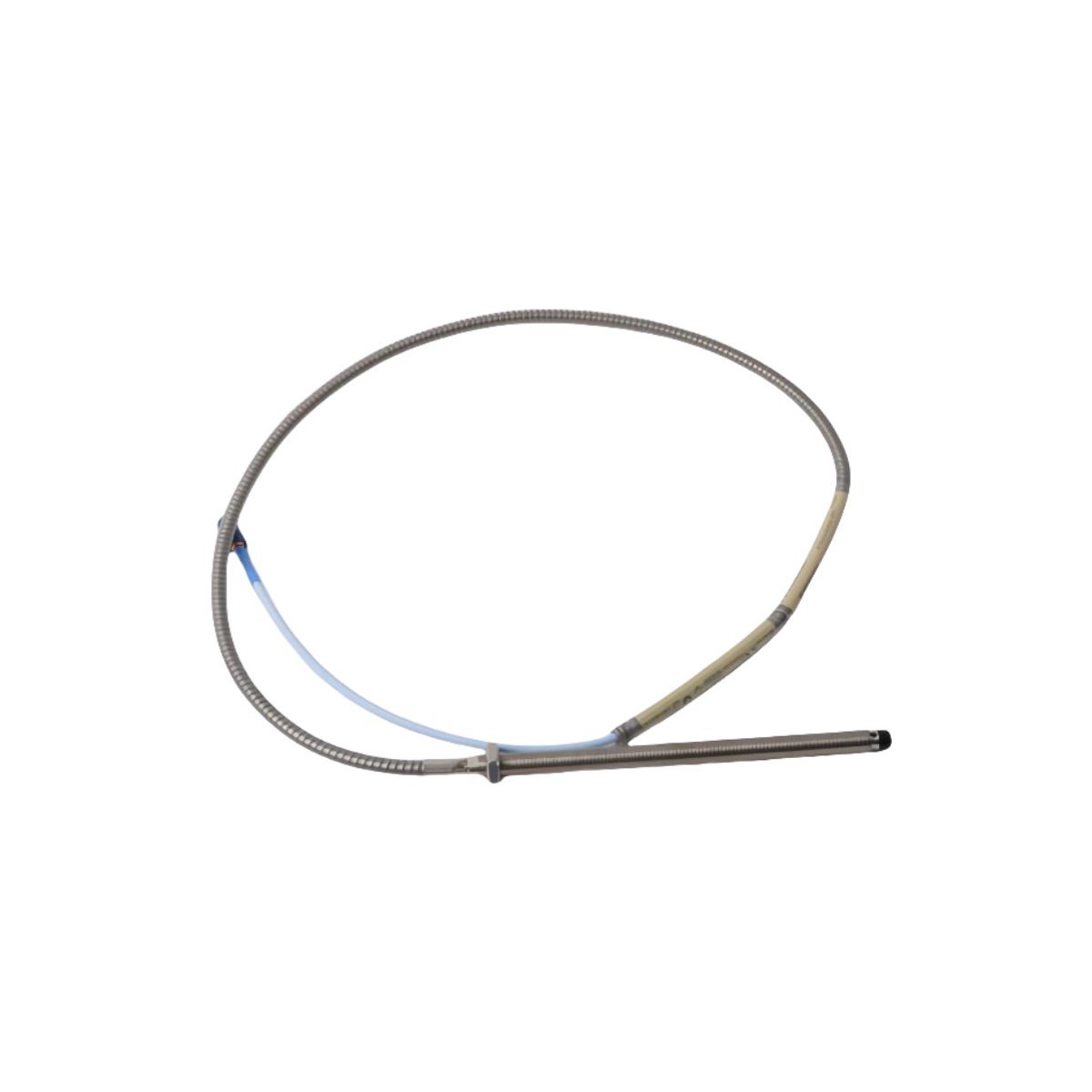

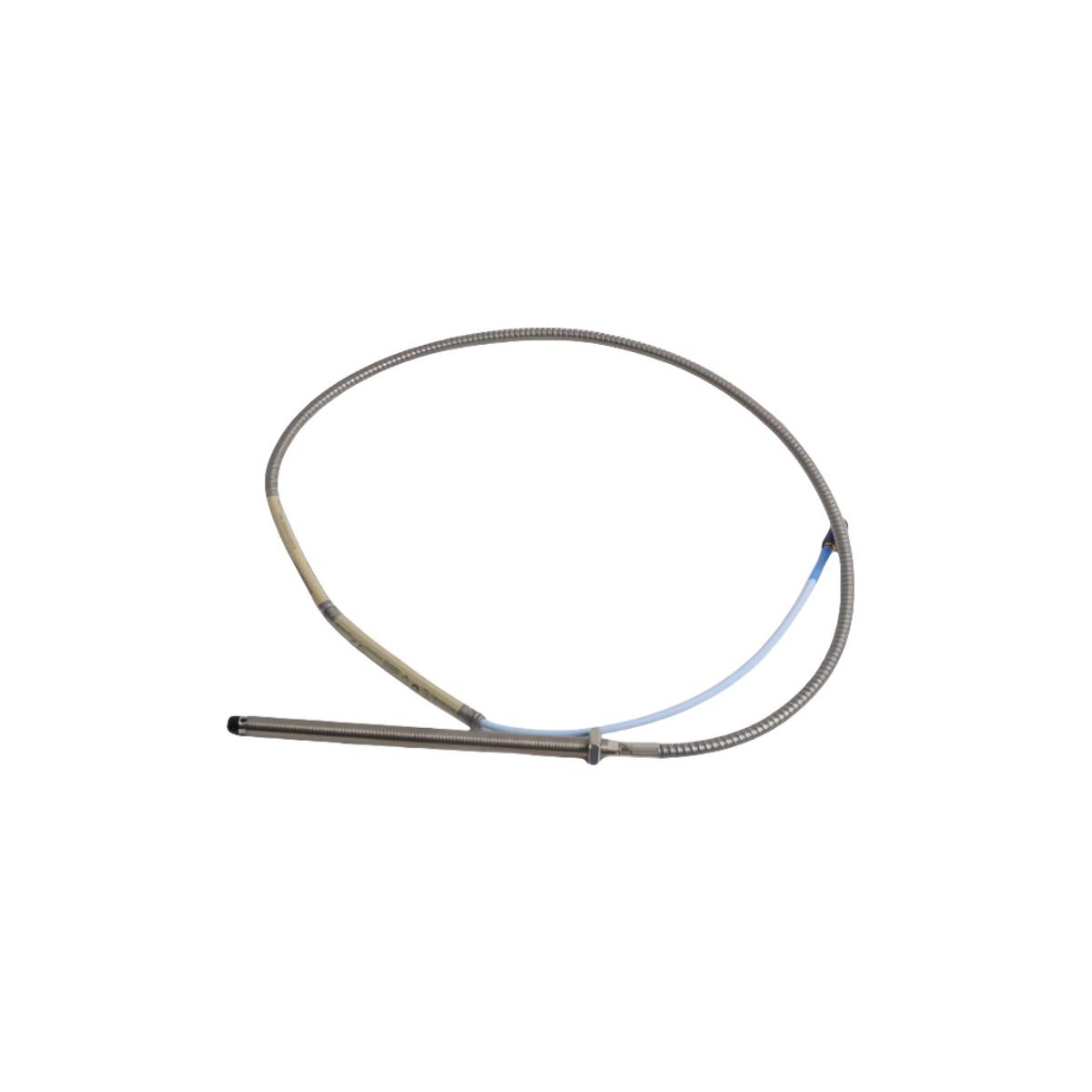

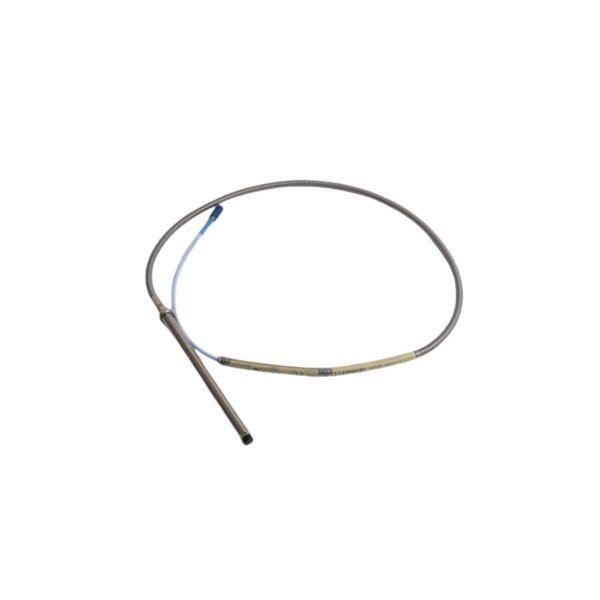

The Bently Nevada 330902-00-15-10-02-05 Proximity Probe is a high-precision, industrial-grade eddy-current sensor engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in condition monitoring and predictive maintenance solutions, this probe forms an integral component of the 3300 XL series—renowned for exceptional linearity, thermal stability, and long-term reliability in harsh industrial environments. Designed specifically for integration with the 3300 XL 25 mm and 50 mm proximity transducer systems, the 330902-00-15-10-02-05 delivers accurate dynamic and static measurements of shaft radial vibration, axial position, differential expansion, and thrust collar movement. Its robust construction features a stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed connector interface to ensure immunity from moisture, oil immersion, electromagnetic interference (EMI), and mechanical shock. The probe operates on the principle of eddy-current induction, generating a high-frequency magnetic field that interacts with conductive target materials—typically ferromagnetic alloys such as 4140 steel—to produce a linear voltage output proportional to gap change. With a calibrated sensitivity of 7.87 V/mm (200 mV/mil) and a linear range of ±1.5 mm (±60 mils), it enables sub-micron resolution and repeatability better than ±0.25% of full scale. This model is supplied new and factory-tested, meeting all applicable IEC 61000-4 electromagnetic compatibility standards and ISO 10816 vibration evaluation guidelines. It is widely deployed across power generation, oil & gas, petrochemical, marine propulsion, and turbomachinery OEM applications where operational integrity, regulatory compliance, and asset lifecycle optimization are mission-critical.

Detailed Specifications

Key Features

• High-Fidelity Signal Integrity: Ultra-low noise design (< 50 µV rms) and optimized shielding deliver superior signal-to-noise ratio, minimizing false alarms and enabling precise trending of subtle mechanical anomalies.
• Thermal Stability: Compensated coil geometry and temperature-stable ferrite core maintain calibration accuracy across extreme ambient gradients—critical for steam turbine casings and compressor housings.
• Ruggedized Industrial Construction: 316 stainless steel probe body, fluoropolymer (PTFE) insulation, and gold-plated MIL-spec connectors ensure longevity in corrosive, high-vibration, and high-pressure process environments.
• Plug-and-Play Compatibility: Fully interoperable with Bently Nevada 3300 XL, 3500, and System 1 platforms—including seamless integration with 3300 XL 25 mm/50 mm extension cables and proximity drivers (e.g., 3300 XL 11 mm, 25 mm, or 50 mm transducers).
• NIST-Traceable Calibration: Each unit ships with a unique calibration certificate documenting sensitivity, linearity (±0.15% FSO typical), frequency response, and thermal drift—validating conformance to API RP 670 (4th Edition) requirements.
• Optimized for Critical Machinery Monitoring: Engineered to meet stringent API 670 Category 4 performance criteria for shaft vibration and position monitoring on centrifugal compressors, steam/gas turbines, and large electric motors.
• Sustainable Lifecycle Support: Backed by Baker Hughes’ global service network—including recalibration, repair, technical documentation, and obsolescence management—ensuring multi-decade operational continuity.

Applications

• Rotating Equipment Health Monitoring: Real-time measurement of radial vibration (bearing housing and shaft orbit), axial position (thrust bearing clearance), and differential expansion in steam turbines, gas turbines, and centrifugal compressors.
• Predictive Maintenance Programs: Integration into enterprise-wide condition monitoring systems (e.g., System 1, DeltaV, PI System) for automated fault detection—enabling early identification of imbalance, misalignment, bearing wear, rubs, and resonance conditions.
• OEM Turbomachinery Integration: Factory-installed sensing solution for original equipment manufacturers requiring certified, repeatable proximity measurement per ISO 10816-3 and API RP 670 specifications.
• Power Generation Asset Management: Continuous monitoring of generator rotor position, exciter end float, and turbine casing expansion in nuclear, combined-cycle, and hydroelectric plants to support regulatory compliance (e.g., NRC, ISO 55000).
• Oil & Gas Downstream Operations: Reliable operation in refinery coker drum compressors, flare gas recovery units, and LNG train drivers exposed to H₂S, hydrocarbon vapors, and cyclic thermal loading.
• Marine Propulsion Systems: Shaft alignment verification and torsional vibration analysis aboard commercial vessels and naval platforms, where EMI resilience and salt-spray resistance are mandatory.
• Research & Development Test Benches: High-fidelity displacement acquisition for academic, aerospace, and advanced manufacturing R&D labs validating dynamic modeling, control algorithms, and digital twin fidelity.
