Technical Overview

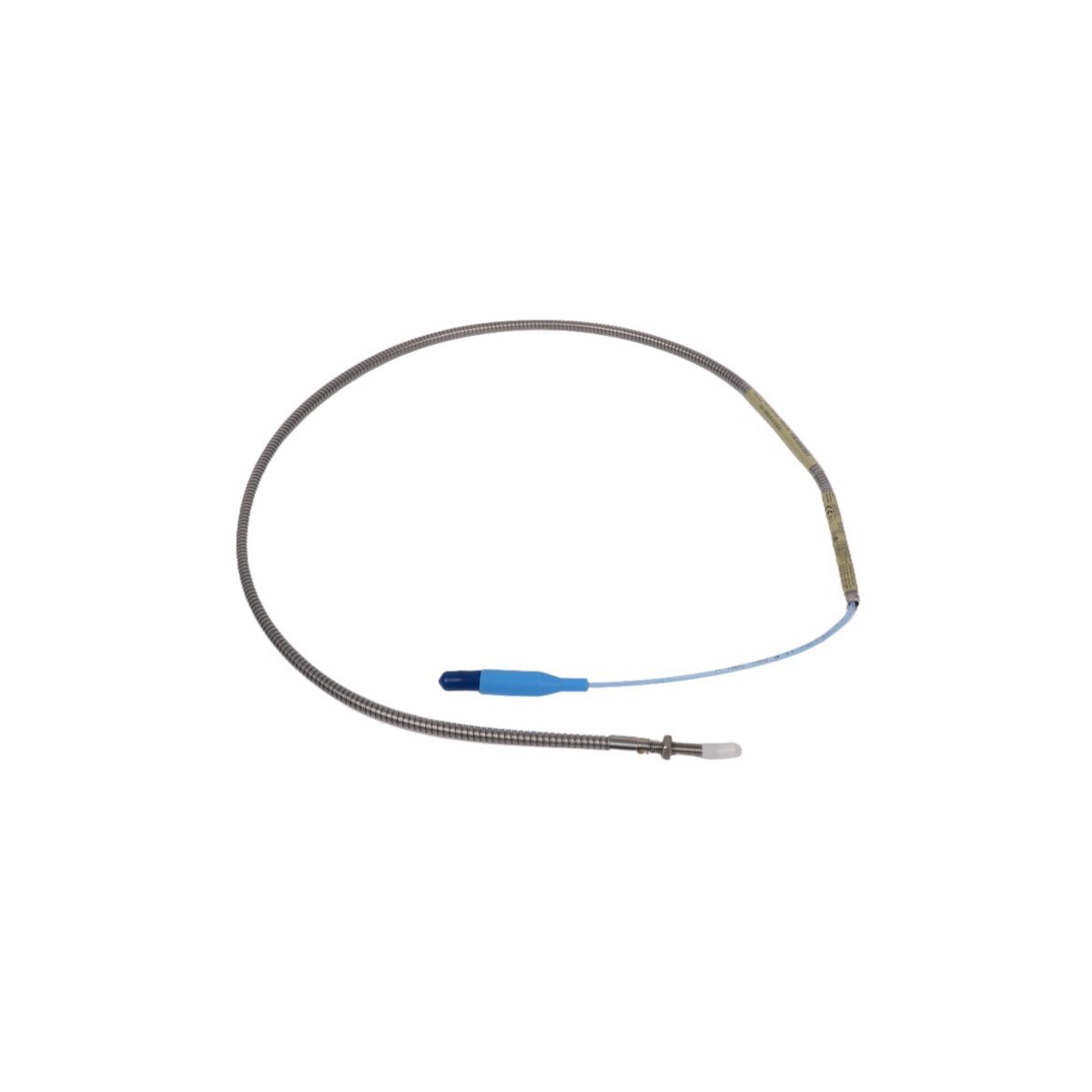

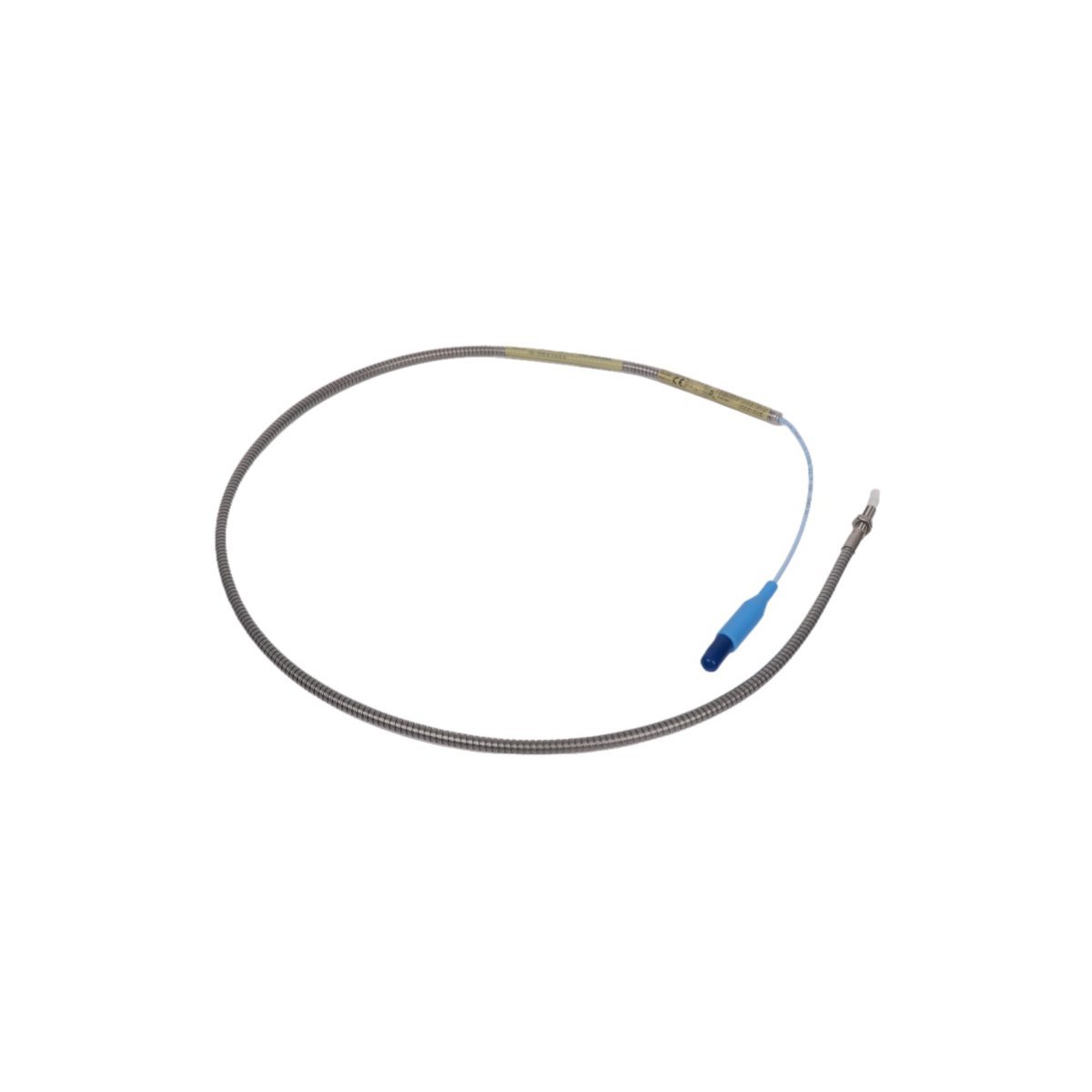

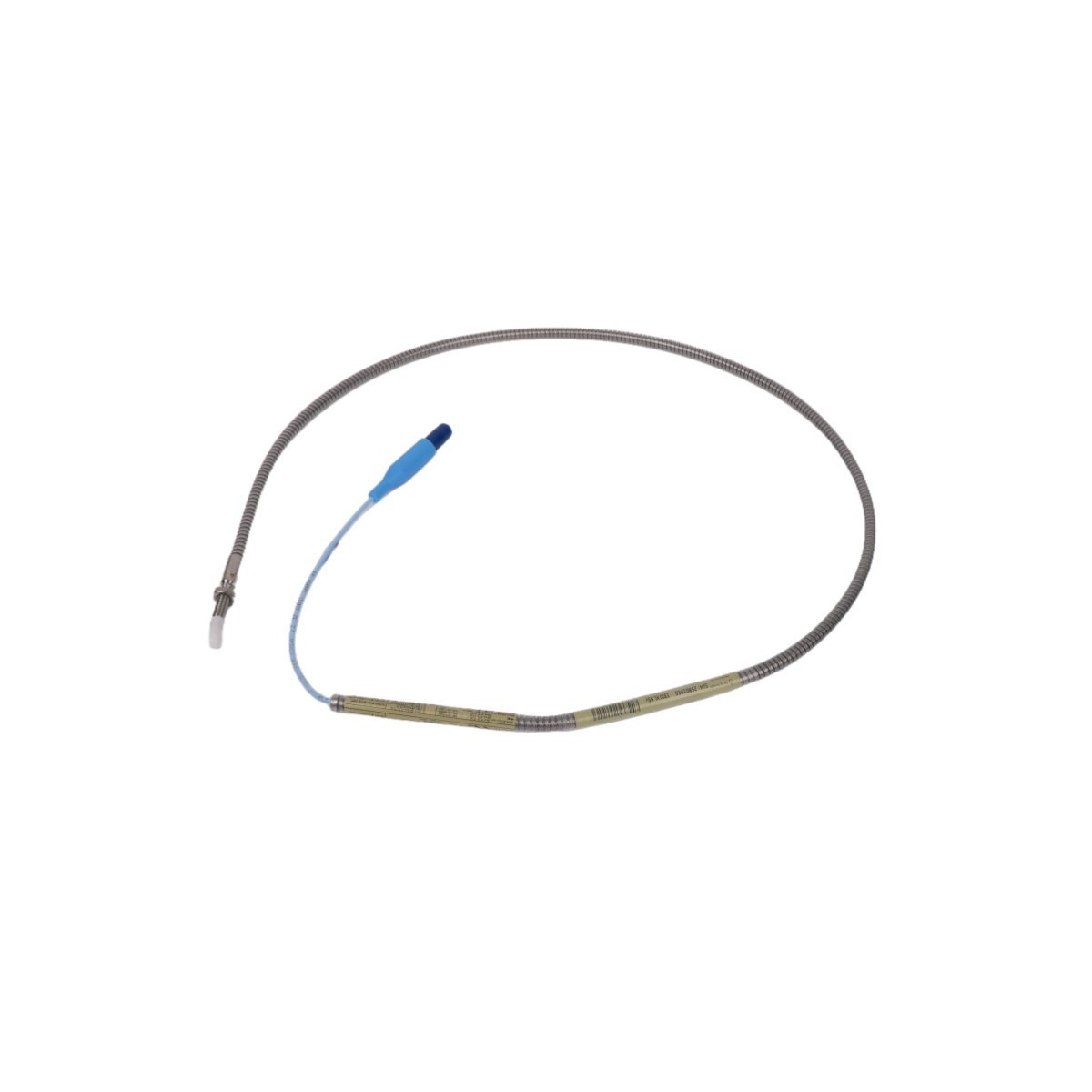

The Bently Nevada 330902-00-10-10-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe forms a critical component of the 3300 Series Condition Monitoring System — widely deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities. Designed to operate reliably under extreme environmental conditions—including high temperatures, electromagnetic interference (EMI), and mechanical shock—the 330902-00-10-10-02-05 delivers exceptional linearity, repeatability, and long-term stability. Its robust stainless steel construction and hermetically sealed design ensure corrosion resistance and extended service life, even in aggressive chemical or humid atmospheres. This probe operates on the eddy-current principle, generating an electromagnetic field that interacts with conductive target surfaces (typically ferromagnetic shafts) to produce a proportional analog output voltage signal—enabling real-time diagnostics and early fault detection. As a factory-new, original equipment manufacturer (OEM) product, it complies fully with API 670 (4th Edition) standards for machinery protection systems and meets stringent IEC 61508 SIL-2 functional safety requirements when integrated into certified architectures. Backed by a comprehensive 24-month limited warranty, the probe is supplied in pristine condition, rigorously tested and calibrated per ISO 17025-accredited procedures prior to shipment.

Detailed Specifications

Key Features

• OEM Precision Calibration: Factory-calibrated to meet Bently Nevada’s exacting traceability standards (NIST-traceable), ensuring zero drift and optimal system integration with 3300/3500 monitors and 3300 NSv preamplifiers.
• Enhanced Environmental Resilience: IP68-rated housing and fluoropolymer-insulated cabling deliver superior resistance to moisture, hydrocarbons, solvents, and thermal cycling—ideal for offshore platforms and refinery environments.
• Optimized Electromagnetic Compatibility (EMC): Compliant with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions); engineered to maintain signal integrity in high-EMI zones near VFDs, switchgear, and arc furnaces.
• Plug-and-Play Interchangeability: Fully compatible with legacy 3300 series systems and backward-integrated with newer 3500 and System 1™ platforms—minimizing downtime during upgrades or replacements.
• High-Fidelity Dynamic Response: 10 kHz bandwidth enables accurate capture of high-frequency vibration events such as blade pass, gear mesh, and bearing defect frequencies—critical for advanced spectral analysis.
• Long-Term Stability Guarantee: Less than 0.5% sensitivity shift over 5 years under nominal operating conditions—validated through accelerated life testing and documented in OEM reliability reports.
• Comprehensive Documentation Package: Includes calibration certificate, RoHS/REACH compliance statement, API 670 conformance summary, and installation best-practice guide—all provided digitally and in hard copy.

Applications

• Steam and Gas Turbines: Monitoring radial vibration and thrust position in high-pressure turbine sections, ensuring compliance with OEM clearance limits and preventing catastrophic rotor-stator contact.
• Centrifugal Compressors: Detecting imbalance, misalignment, and surge precursors in natural gas transmission and process air compression systems—supporting API RP 686 integrity protocols.
• Large Electric Motors and Generators: Measuring shaft orbit, eccentricity, and dynamic runout in 5+ MW synchronous machines to verify magnetic center alignment and stator-rotor air gap uniformity.
• Petrochemical Pumps: Providing continuous feedback for API 610-compliant centrifugal and reciprocating pumps handling abrasive or high-temperature process fluids.
• Wind Turbine Gearboxes: Integrated into nacelle-based condition monitoring systems to detect early-stage bearing degradation and gear tooth wear—extending service intervals and reducing O&M costs.
• Nuclear Power Plant Auxiliary Systems: Deployed in Class 1E qualified configurations (with appropriate preamplifier and cabling) for safety-related monitoring of feedwater pumps and emergency diesel generators.
• Marine Propulsion Systems: Withstanding salt-laden atmospheres and vibration spectra unique to shipboard propulsion motors and reduction gears—certified to DNV-GL Marine Guidelines.
