Technical Overview

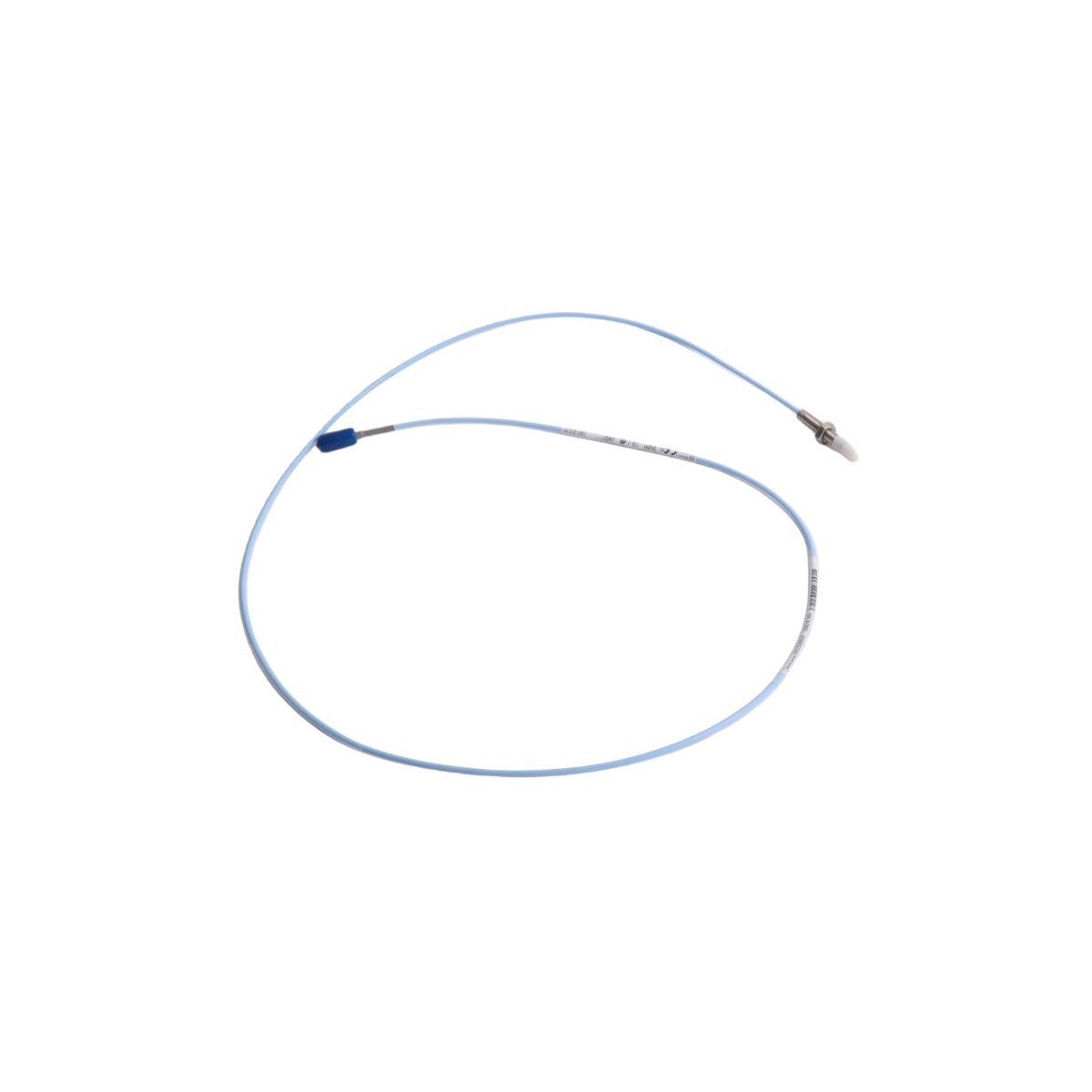

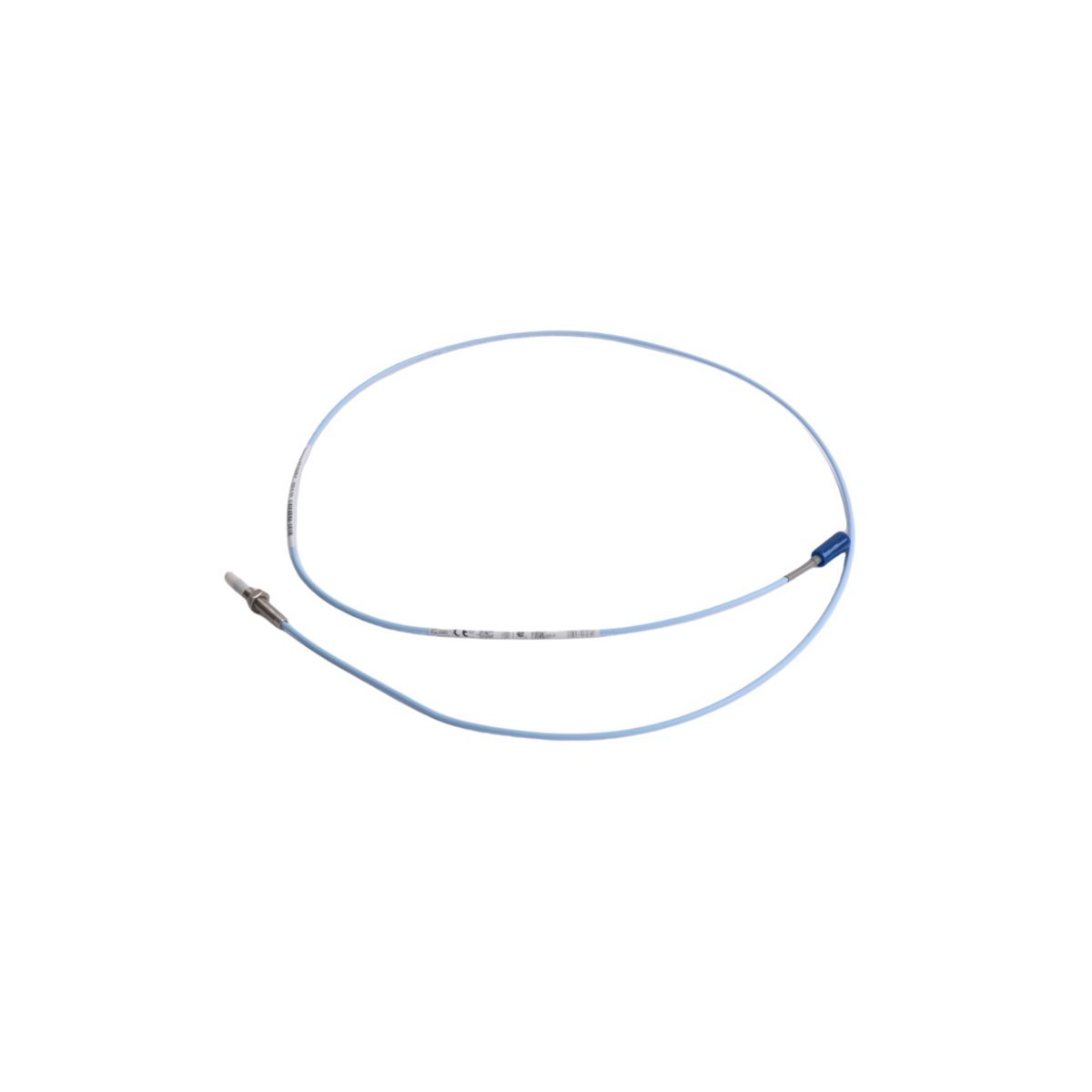

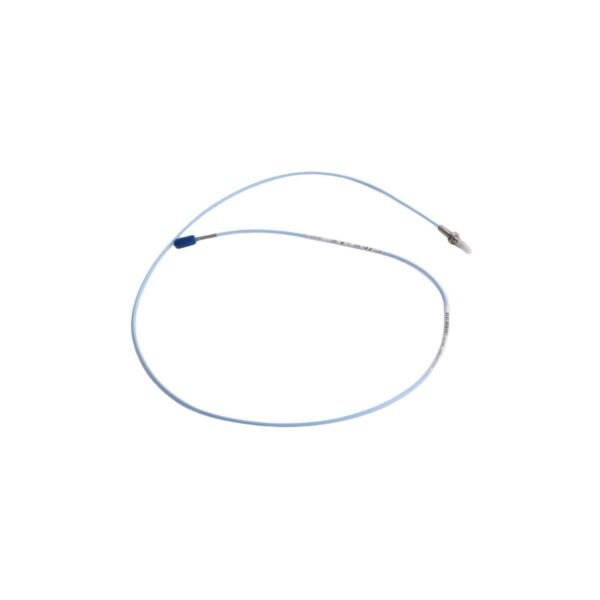

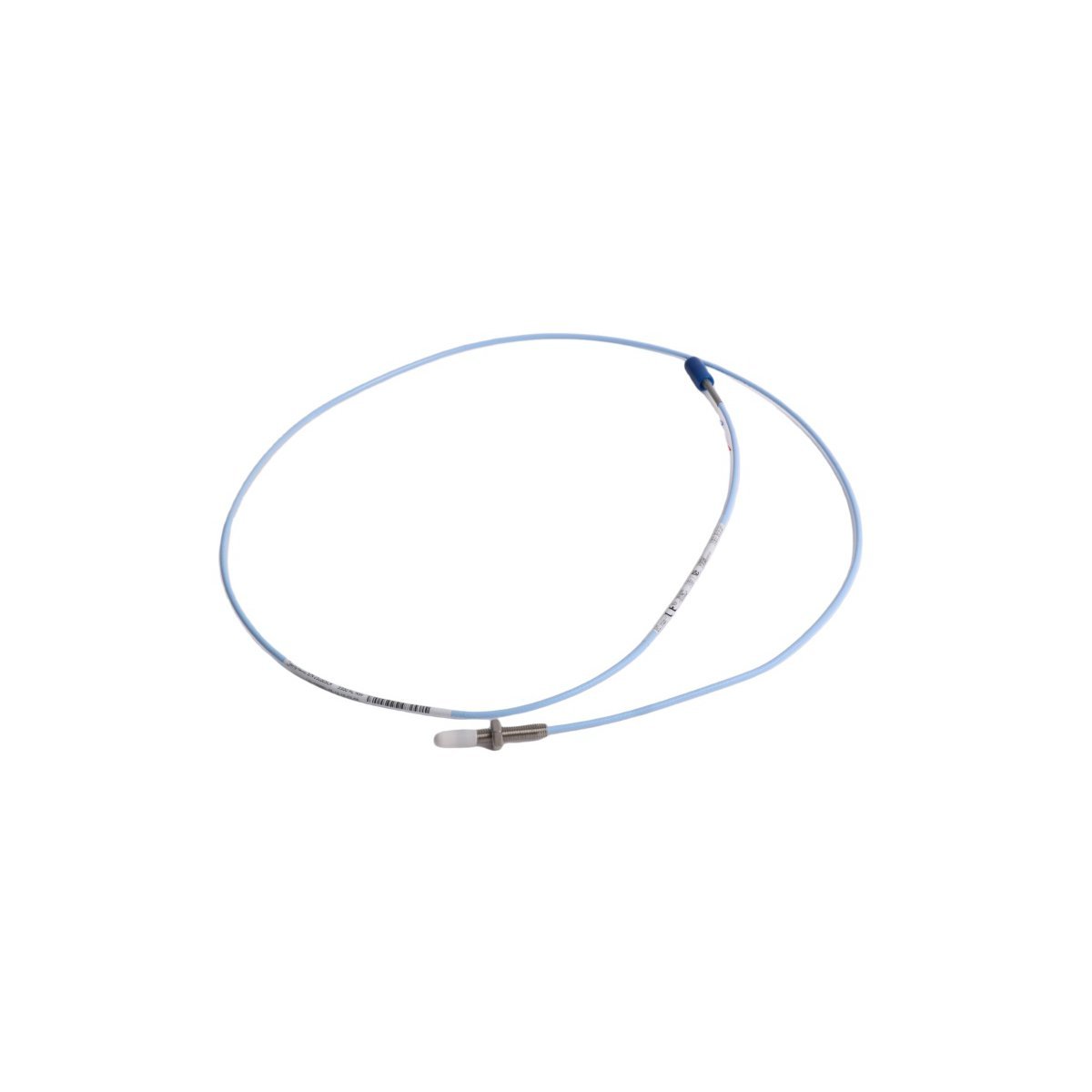

The Bently Nevada 330901-22-40-10-01-05 is a high-precision, non-contact proximity probe engineered for mission-critical machinery protection and condition monitoring in industrial automation environments. As part of the trusted 3300 NSv Series, this probe delivers exceptional signal fidelity, thermal stability, and mechanical robustness—essential for continuous operation in turbomachinery, compressors, motors, and generators across oil & gas, power generation, and chemical processing sectors.

Designed to interface seamlessly with Bently Nevada 3300 XL and 3500 monitoring systems, the 330901-22-40-10-01-05 features advanced eddy-current sensing technology calibrated for accurate shaft displacement, vibration, and position measurements. Its stainless steel housing and integrated coaxial cable ensure resistance to harsh environmental conditions—including extreme temperatures (–30°C to +125°C), EMI/RFI interference, and corrosive atmospheres—while maintaining long-term calibration integrity without field recalibration.

Detailed Specifications

• Model Number: 330901-22-40-10-01-05
• Brand: Bently Nevada (a Baker Hughes business)
• Probe Type: Non-contact eddy-current proximity probe (NSv Series)
• Tip Diameter: 22 mm
• Linear Range: 4.0 mm (±2.0 mm)
• Sensitivity: 8.0 V/mm (typical, at 10 kHz)
• Cable Length: 5.0 meters (integrated, low-noise coaxial)
• Operating Temperature Range: –30°C to +125°C (probe tip); –40°C to +85°C (connector)
• Material: 316 stainless steel body; PTFE-insulated cable
• Electrical Connection: 10-32 UNF threaded connector (standard 3300 interface)
• Compliance: ATEX II 2G Ex db IIC T6 Gb, IECEx DBA 22.0027X, CE, RoHS, UL/cUL listed

Operational Capabilities

The 330901-22-40-10-01-05 excels in real-time dynamic and static displacement monitoring, enabling early detection of bearing wear, misalignment, shaft bow, and rotor instability. Its optimized frequency response (0–10 kHz) supports both low-frequency orbit analysis and high-frequency fault signature detection—critical for predictive maintenance strategies aligned with ISO 10816 and API 670 standards.

When paired with compatible Bently Nevada monitors, the probe enables configurable alarm thresholds, event logging, and integration into DCS/SCADA platforms via Modbus TCP or OPC UA gateways. Its plug-and-play compatibility with existing 3300 infrastructure minimizes retrofit downtime, while its field-proven reliability reduces total cost of ownership through extended service intervals and reduced false alarms.

Technical FAQ

Q: Is the 330901-22-40-10-01-05 compatible with legacy 3300 system racks?

A: Yes. This NSv probe maintains full backward compatibility with all Bently Nevada 3300 XL and 3500 monitoring systems, including older 3300 rack-based configurations. No firmware upgrades are required for basic operation, though optimal performance is achieved with v4.0+ monitor firmware.

Q: Can this probe be used in hazardous areas?

A: Absolutely. The probe meets ATEX, IECEx, and UL Class I Division 1 requirements for use in Zone 1/21 and Division 1 hazardous locations—ideal for offshore platforms, refineries, and explosive dust environments.

Q: What is the recommended calibration interval?

A: Bently Nevada specifies a 24-month calibration interval under normal operating conditions. However, calibration verification is advised after mechanical shock, extreme thermal cycling, or if baseline drift exceeds ±2% of full-scale output.
