Technical Overview

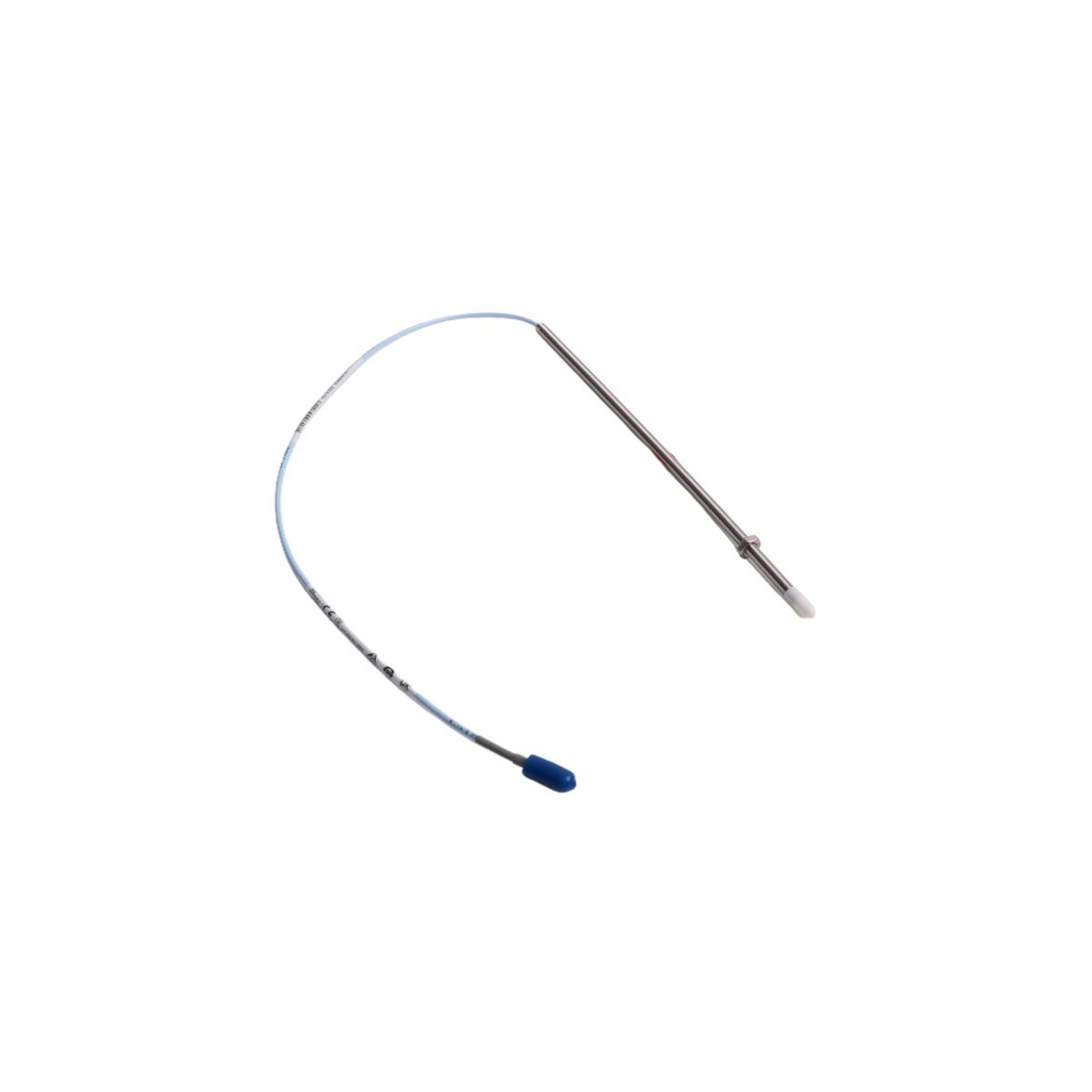

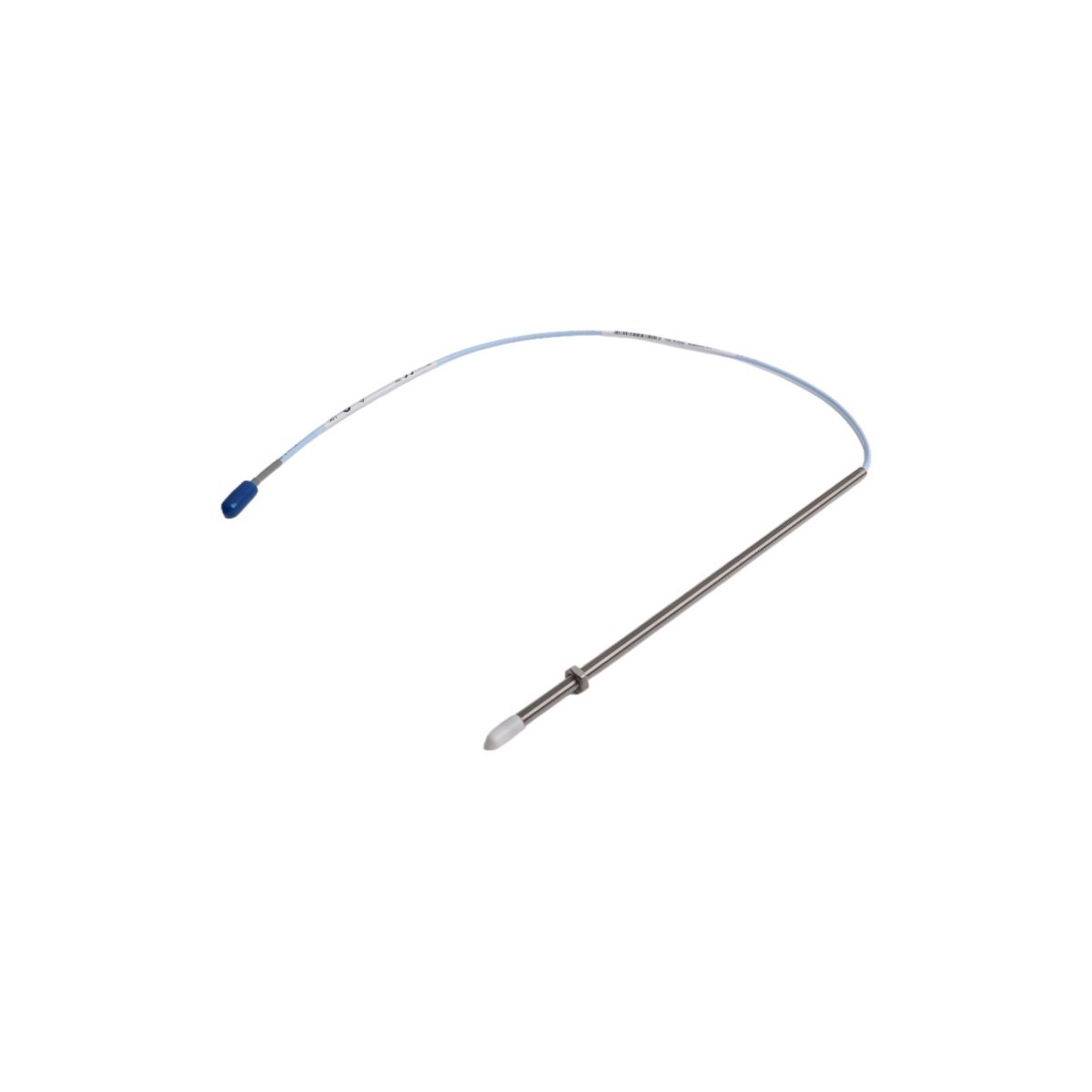

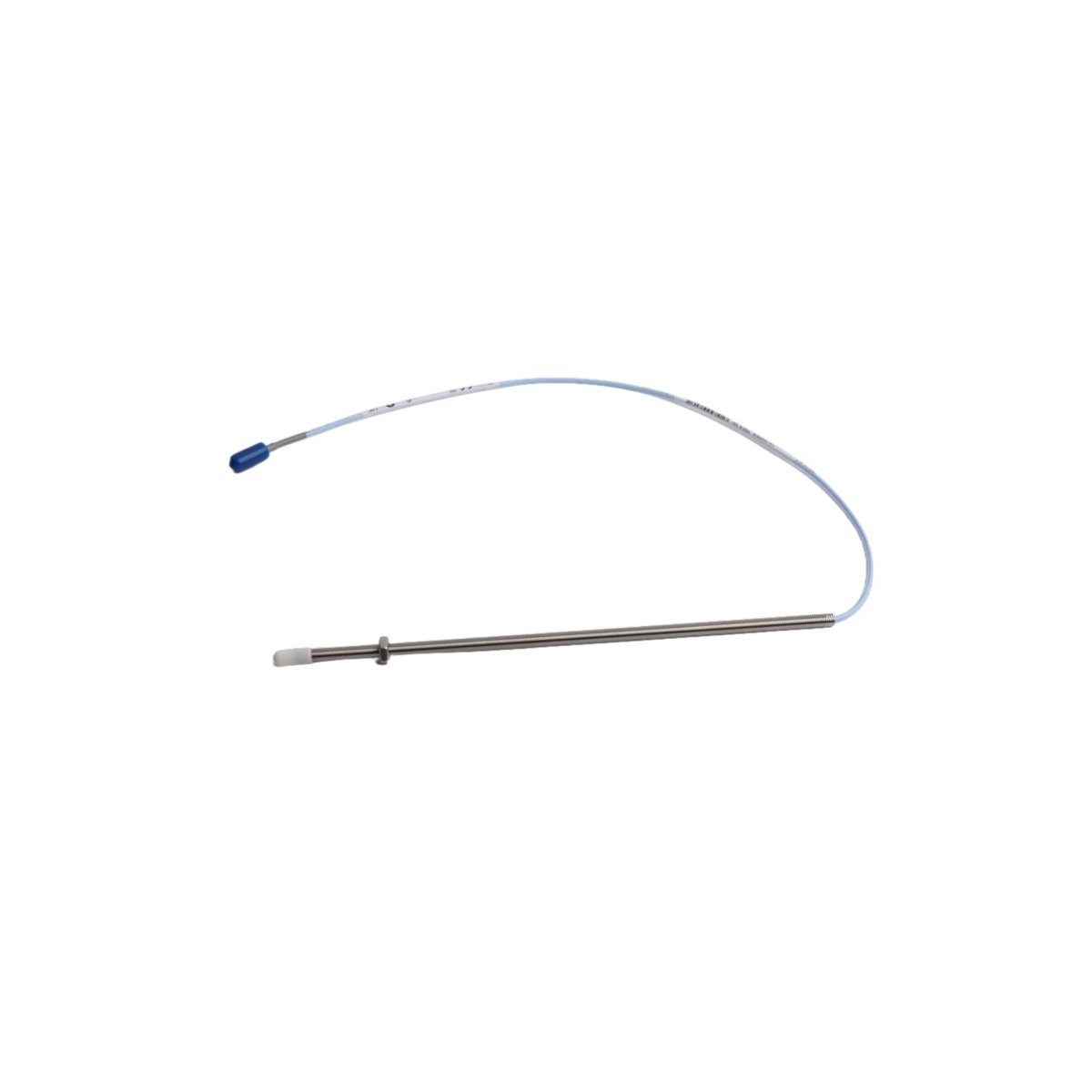

The Bently Nevada 330901-02-47-10-01-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 NSv (Next-Generation System v) family, designed to deliver exceptional signal integrity, thermal stability, and long-term reliability in demanding environments. The 330901-02-47-10-01-00 is a pre-assembled, factory-calibrated probe system comprising a probe tip, integral cable, and connector assembly, optimized for seamless integration with Bently Nevada 3300/3500 series monitoring systems and compatible data acquisition platforms. Built to meet stringent IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards, it operates reliably across extreme temperature gradients (–30 °C to +120 °C ambient), high-vibration zones, and corrosive atmospheres commonly found in power generation, oil & gas, petrochemical, and heavy industrial facilities. Each unit undergoes rigorous calibration traceable to NIST standards, ensuring measurement accuracy within ±1% full scale across its operational range. The probe is supplied in new, factory-fresh condition, backed by a comprehensive 24-month limited warranty covering material defects and workmanship. Its robust stainless steel construction (AISI 431 probe body, PTFE-insulated coaxial cable) ensures mechanical durability and resistance to moisture, hydrocarbons, and chemical exposure. Originating from Baker Hughes’ ISO 9001:2015-certified manufacturing facility in Houston, Texas, USA, the 330901-02-47-10-01-00 exemplifies American engineering excellence and global compliance with API RP 670 (4th Edition) and ISO 10816-3 for machinery vibration evaluation.

Detailed Specifications

Key Features

• NSv-Optimized Signal Integrity: Advanced eddy-current sensing technology with proprietary coil winding and core geometry minimizes phase shift and harmonic distortion, enabling accurate shaft orbit analysis and transient event capture.
• Factory Calibration & Traceability: Individually calibrated at the point of manufacture using laser interferometry; calibration certificate includes NIST-traceable data, sensitivity slope, linearity error, and thermal drift coefficients.
• Enhanced Environmental Resilience: Hermetically sealed probe tip with ceramic insulator and gold-plated connector contacts ensure corrosion resistance in H₂S, salt mist, and hydrocarbon-laden atmospheres per ASTM B117 testing.
• Integrated Cable Design: 10-meter low-capacitance, double-shielded coaxial cable (braided + foil) reduces EMI susceptibility and maintains signal fidelity over extended runs—eliminating field splicing and associated failure points.
• Plug-and-Play Compatibility: Direct interoperability with all Bently Nevada 3300/3500 monitors, System 1™ software, and third-party DCS/SCADA platforms via standard 4–20 mA or voltage output interfaces.
• Thermal Stability Engineered: Compensated coil design and low-TCR (Temperature Coefficient of Resistance) materials limit sensitivity drift to ≤0.05%/°C across the full operating range—critical for turbine and compressor applications.
• Asset Lifecycle Support: Backed by Baker Hughes’ global technical support network, predictive calibration services, and digital twin integration capabilities via the Asset Performance Management (APM) suite.

Applications

• Steam & Gas Turbines: Real-time monitoring of radial vibration, axial position, and differential expansion in utility-scale and combined-cycle power plants—enabling predictive maintenance aligned with NERC PRC-005 and ISO 20816-2 requirements.
• Petroleum Refining Compressors: Detection of bearing wear, misalignment, and rotor rub in centrifugal and reciprocating compressors operating under high-pressure, high-temperature process conditions.
• Offshore Oil & Gas Platforms: Corrosion-resistant performance in marine environments for critical subsea pump drives, FPSO main engines, and gas lift compressors subject to salt fog and cyclic loading.
• Hydroelectric Generators: Shaft runout and thrust bearing displacement measurement for synchronous generators where electromagnetic interference mitigation is essential.
• Chemical Processing Reactors: Monitoring agitator shaft position and vibration in exothermic reaction vessels requiring intrinsically safe, non-intrusive sensing solutions.
• Rail & Marine Propulsion Systems: Condition monitoring of main propulsion diesel engines and auxiliary generators aboard commercial vessels and locomotives, meeting IMO MARPOL Annex VI and AAR S-600 specifications.
• Renewable Energy Infrastructure: Supporting advanced diagnostics in wind turbine gearboxes and pitch control actuators through high-bandwidth displacement trend analysis integrated into SCADA-based O&M platforms.
