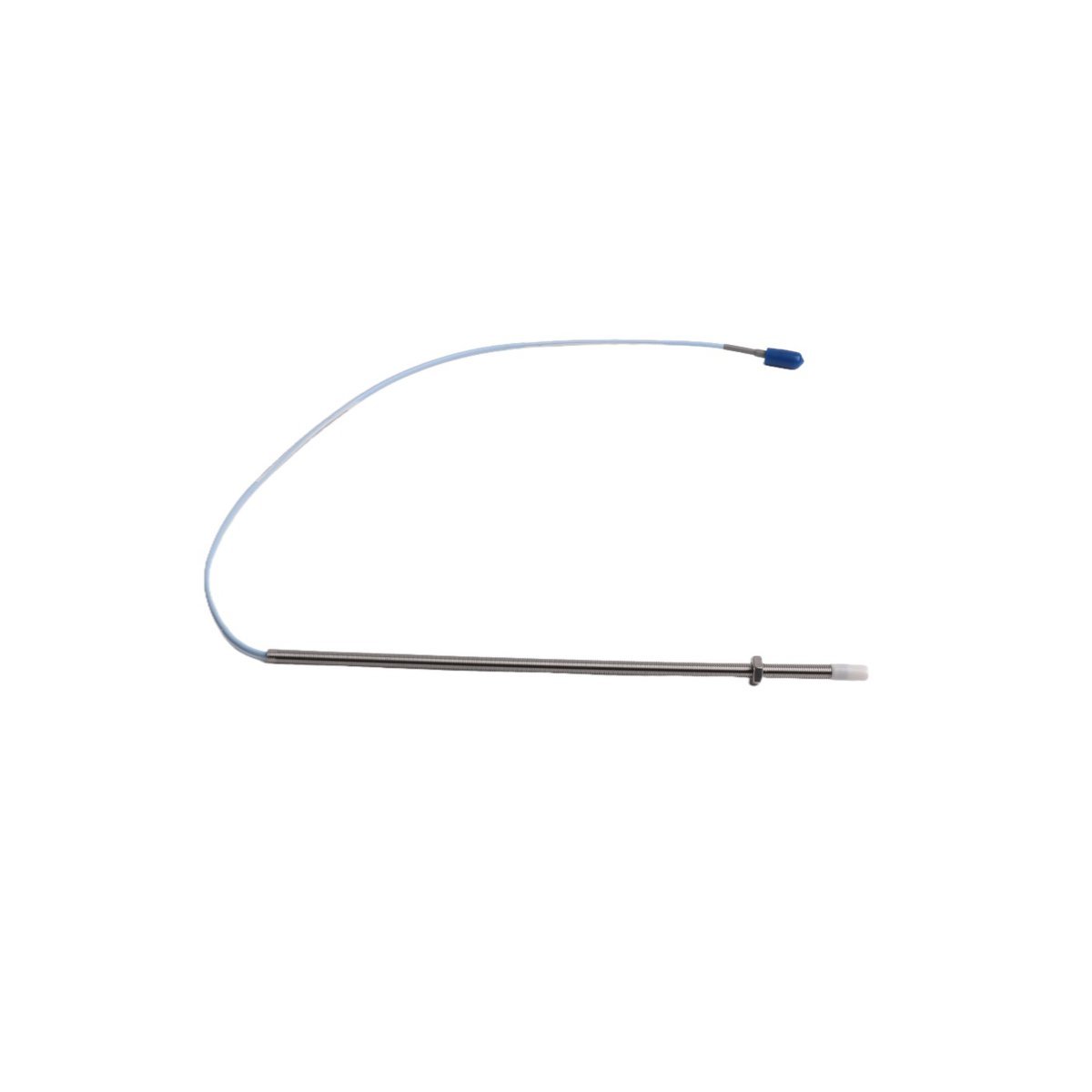

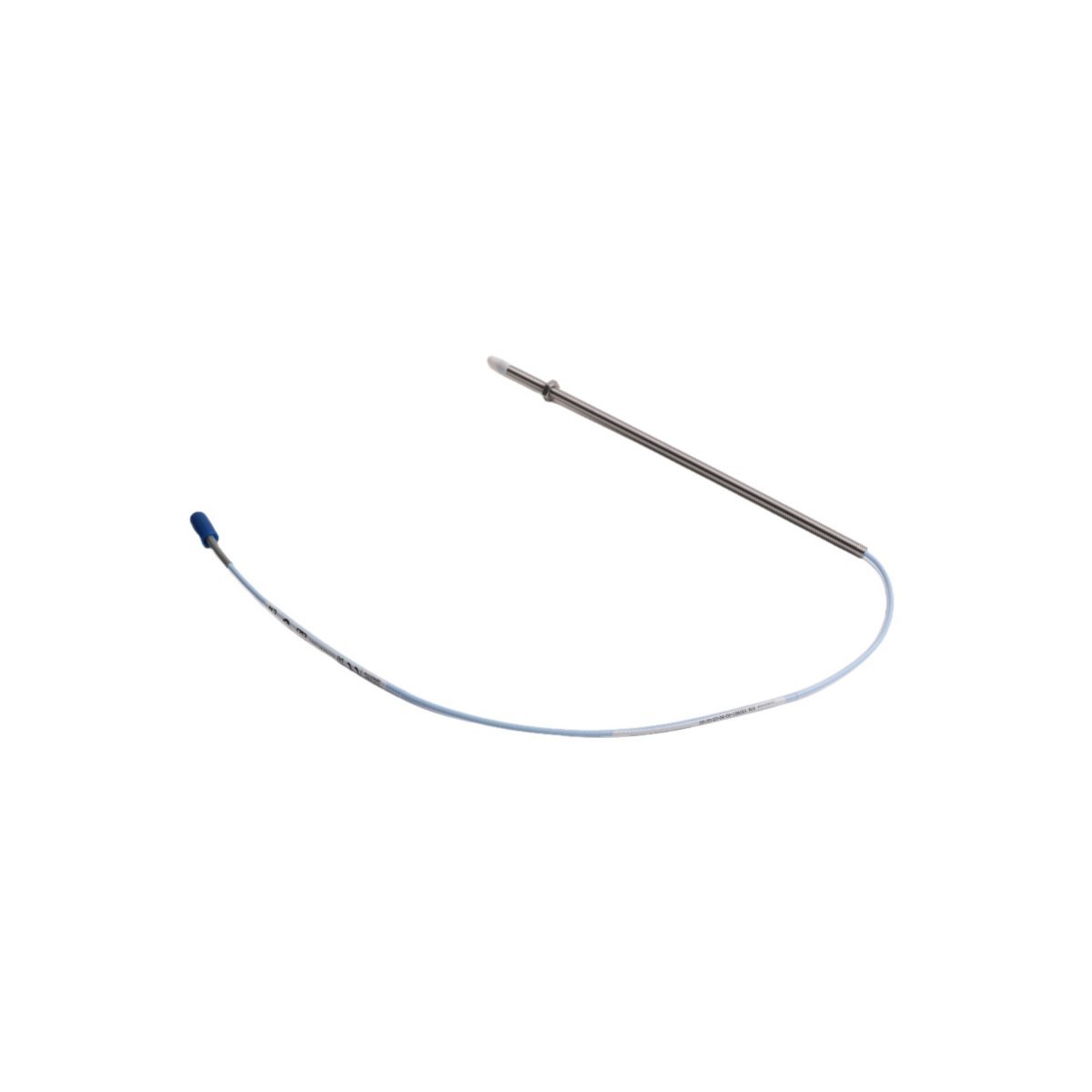

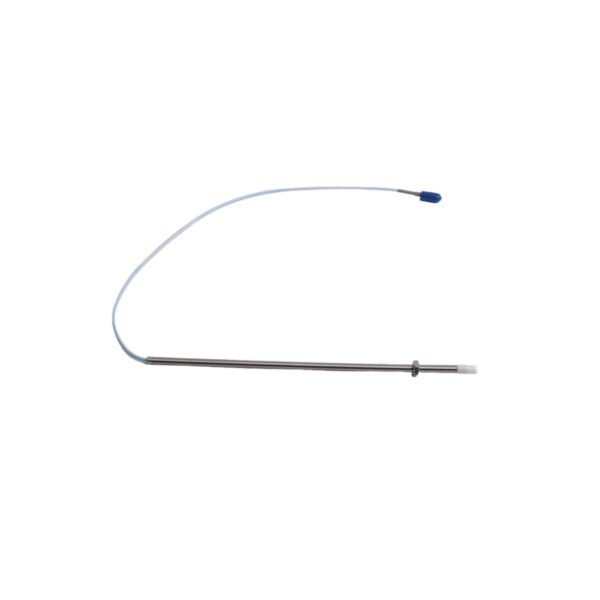

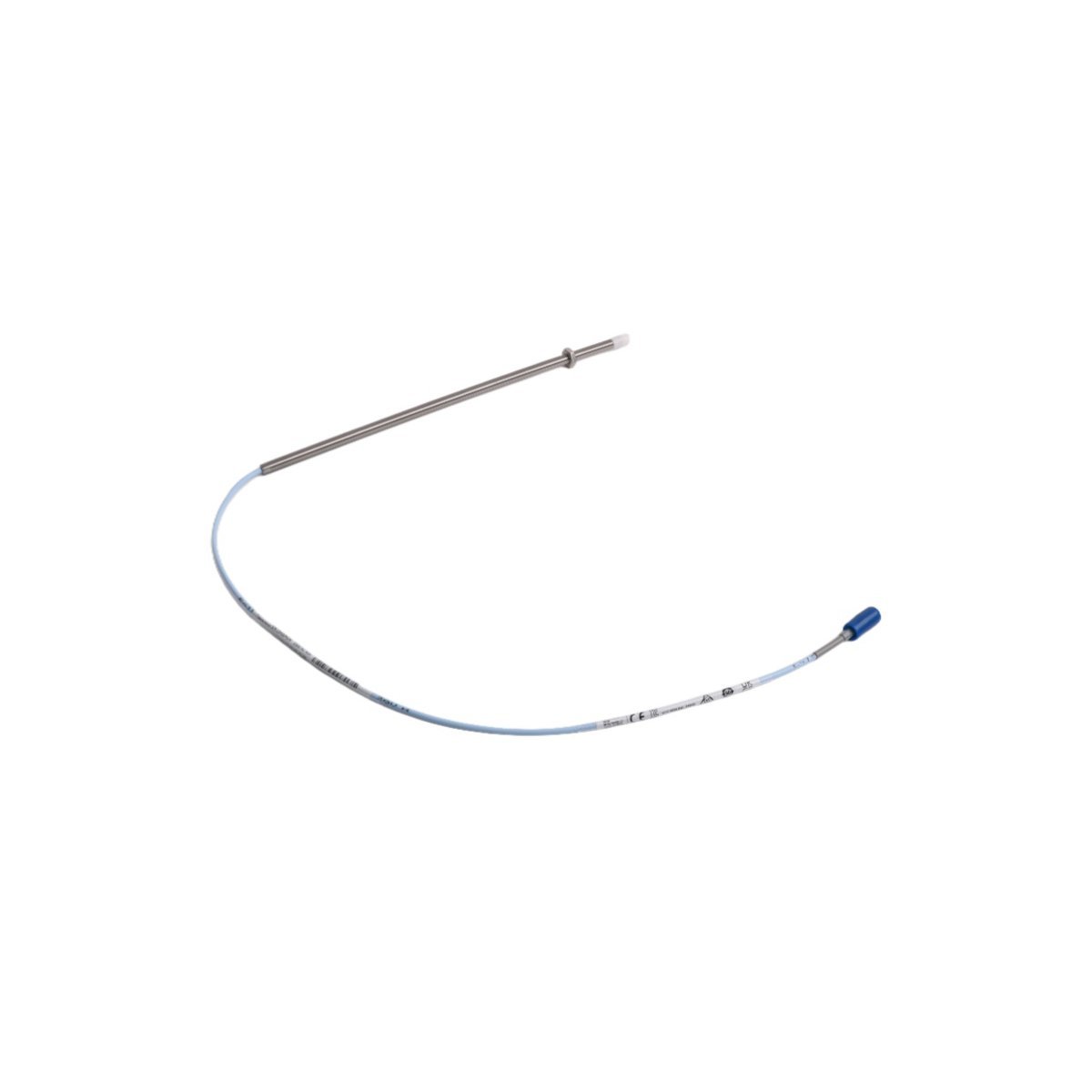

The Bently Nevada 330901-00-90-10-01-05 is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand), this probe is an integral component of the industry-standard 3300 Series Condition Monitoring System—widely deployed across power generation, oil & gas, petrochemical, pulp & paper, and marine propulsion sectors. Designed to operate reliably under extreme thermal, mechanical, and electromagnetic conditions, the 330901-00-90-10-01-05 delivers exceptional linearity, repeatability, and temperature stability over its operational life. It utilizes eddy-current technology to generate highly accurate displacement measurements with sub-micron resolution, enabling early detection of mechanical anomalies such as imbalance, misalignment, bearing wear, rotor rub, and thrust collar degradation. Each probe undergoes rigorous factory calibration against NIST-traceable standards and is supplied with individual calibration certificates verifying sensitivity (7.87 V/mm or 200 mV/mil), linearity error (±0.5% full scale), and thermal drift (<0.05% FS/°C). The probe features a robust stainless steel housing (AISI 416 or 17-4PH depending on configuration), hermetically sealed electronics, and a PTFE-insulated, high-flex coaxial cable rated for continuous operation at temperatures up to +125°C ambient. As a new, factory-fresh unit, it is backed by a comprehensive 24-month limited warranty covering material defects and workmanship—ensuring long-term measurement integrity and operational confidence.

Detailed Specifications

Key Features

• API 670-Compliant Performance: Fully certified to meet all requirements of API RP 670 (4th Edition) for machinery protection systems—including sensitivity tolerance, linearity, thermal stability, and electromagnetic compatibility (EMC).
• NSv (Noise Suppressed version) Technology: Incorporates proprietary noise-reduction circuitry that minimizes common-mode interference from variable frequency drives (VFDs), switch-mode power supplies, and RF sources—critical in modern digital plant environments.
• Hermetic Sealing & Corrosion Resistance: Probe tip and housing are laser-welded and helium-leak tested to IP68; compatible with aggressive process environments including steam, hydrocarbon vapors, and salt-laden atmospheres.
• Factory-Calibrated & Traceable: Each unit ships with a unique, NIST-traceable calibration certificate documenting actual sensitivity, linearity curve, phase response, and thermal coefficients—eliminating field recalibration needs.
• Optimized Cable Construction: Low-capacitance, double-shielded coaxial cable with fluoropolymer insulation ensures signal fidelity over extended distances and resists abrasion, flex fatigue, and chemical exposure.
• Plug-and-Play Integration: Directly compatible with all 3300 XL, 3300 NSv, and 3500 series monitors without adapters or configuration changes—reducing commissioning time and human error.
• Sustainable Lifecycle Design: RoHS-compliant materials, recyclable stainless steel housing, and extended service life (>15 years typical) support ESG compliance and total cost of ownership reduction.

Applications

• Steam and Gas Turbines: Real-time monitoring of radial vibration (bearing journals), axial position (thrust collars), and differential expansion (casing-to-rotor growth) in multi-stage turbines operating at 3000–3600 RPM.
• Centrifugal Compressors & Pumps: Detection of surge onset, bearing degradation, coupling misalignment, and seal failure in critical hydrocarbon processing and pipeline compression stations.
• Large Electric Motors & Generators: Shaft orbit analysis and eccentricity tracking for air-gap monitoring in >5 MW synchronous machines used in combined-cycle and nuclear power plants.
• Reciprocating Machinery: Cylinder head vibration and crosshead displacement measurement in large-frame natural gas compressors and refinery feed pumps.
• Marine Propulsion Systems: Main engine crankshaft deflection and gear mesh monitoring aboard LNG carriers, cruise liners, and naval vessels—where EMI resilience and shock/vibration tolerance are paramount.
• Condition-Based Maintenance Programs: Foundation sensor for predictive analytics platforms (e.g., Baker Hughes’ Axon, GE Digital’s Predix) feeding AI-driven fault diagnostics and remaining useful life (RUL) estimation models.
• Regulatory Compliance Monitoring: Supporting ISO 10816-3, ISO 20816-2, and IEC 60034-14 vibration severity assessments for asset integrity management systems (AIMS) and regulatory audits (e.g., OSHA PSM, EPA RMP).
