Description

Technical Overview

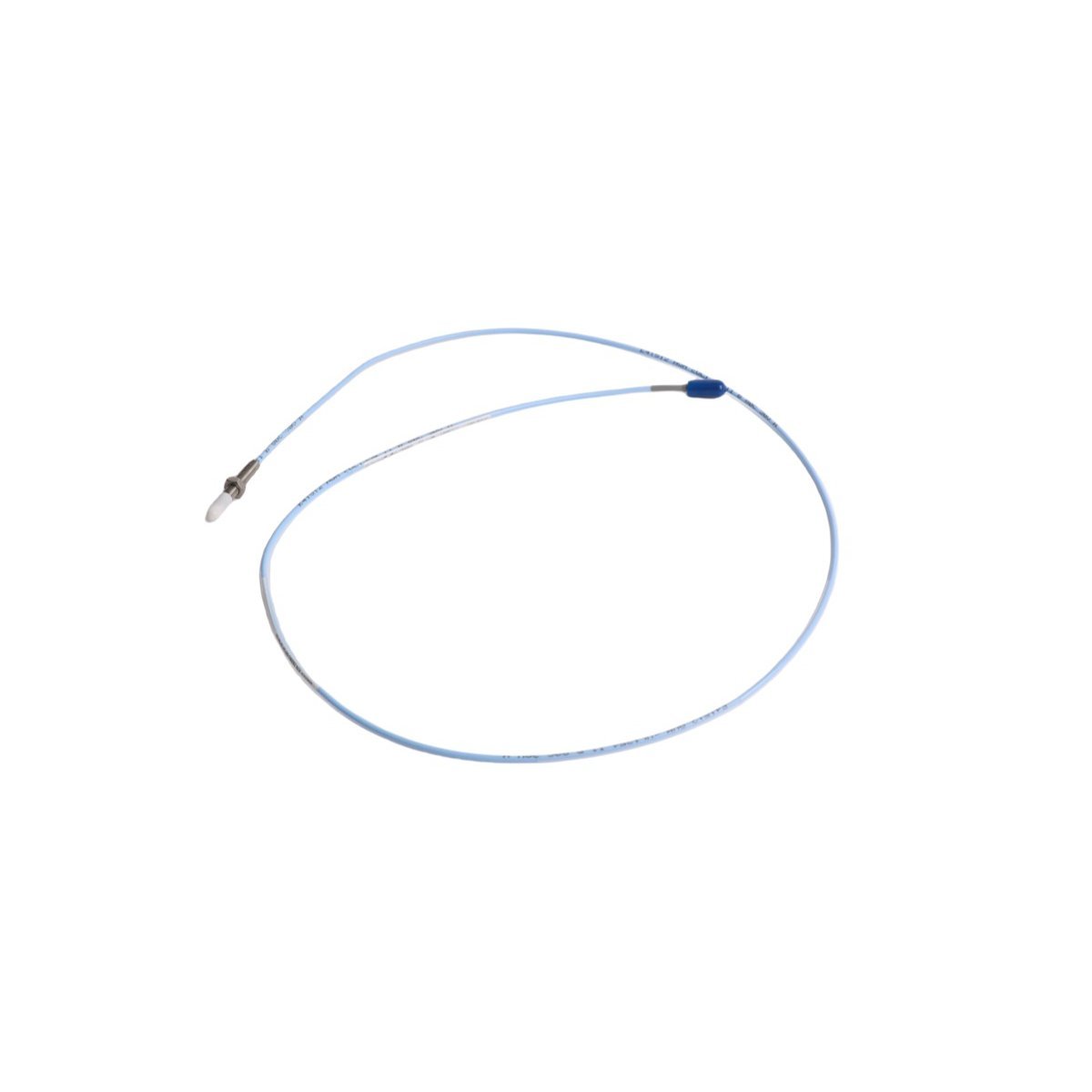

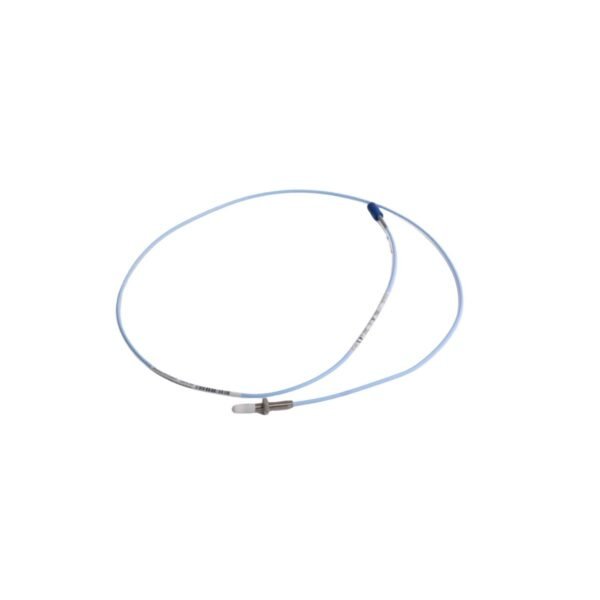

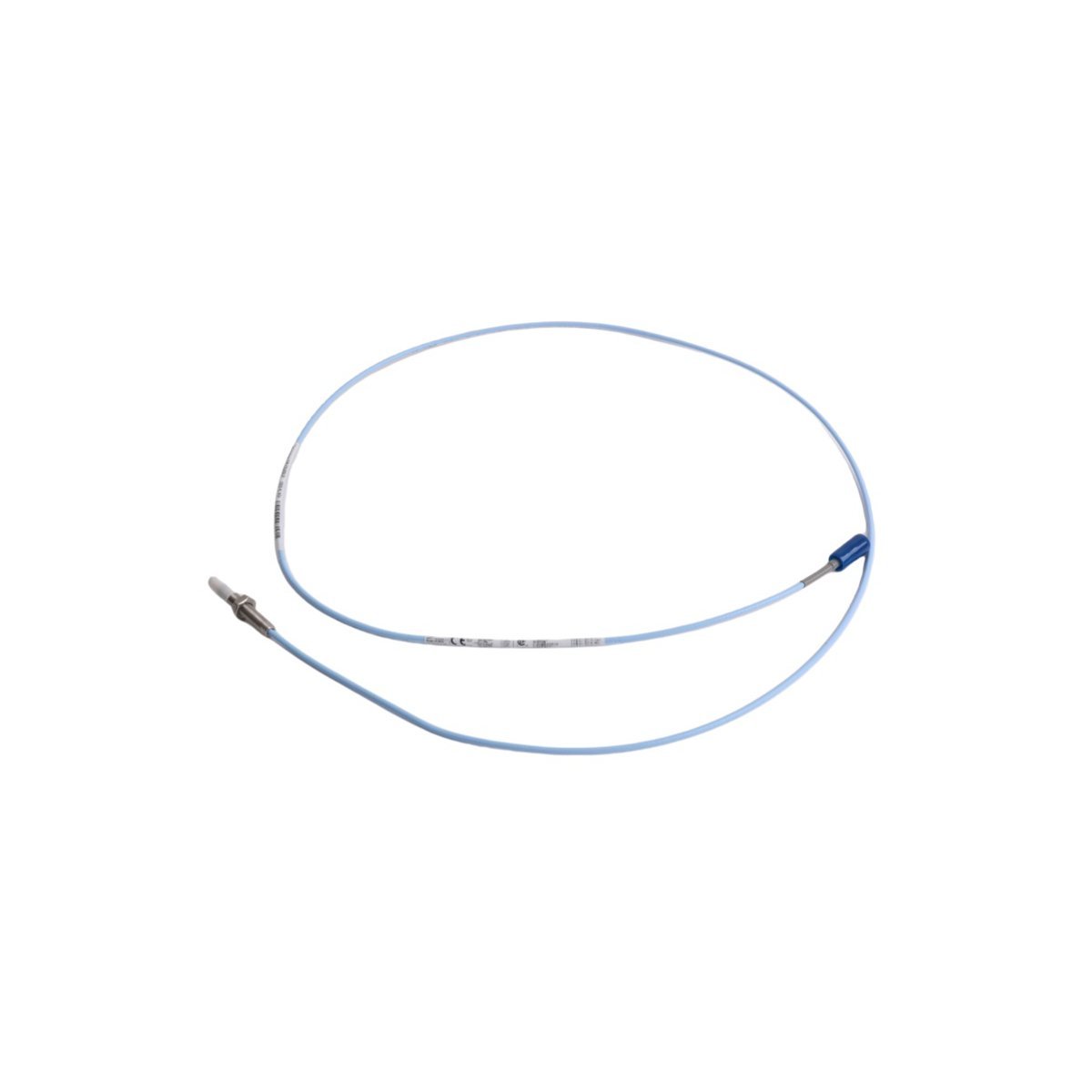

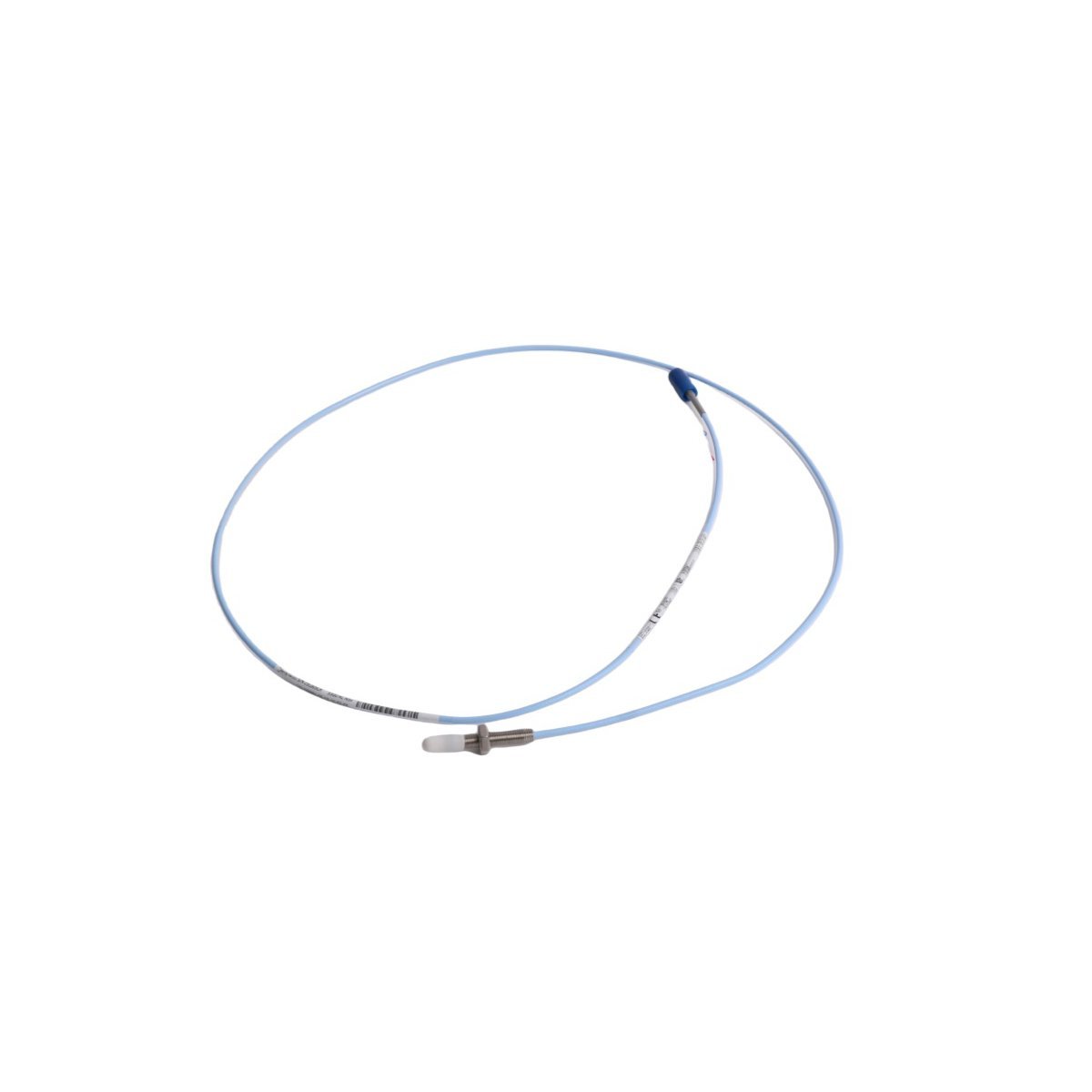

The Bently Nevada 330901-00-19-10-02-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring in critical rotating machinery applications. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring and predictive maintenance solutions—this probe forms an integral component of the 3300 NSv (Next-Generation System) family. Designed to operate seamlessly with the 3300 NSv monitor and 3300 XL extension cables, the 330901-00-19-10-02-00 delivers exceptional signal fidelity, thermal stability, and electromagnetic interference (EMI) immunity across demanding operational environments. Its robust construction adheres to stringent IEC 61000-4, API RP 670 (5th Edition), and ISO 10816 standards, ensuring compliance with international machinery protection system (MPS) requirements. The probe utilizes eddy-current technology to measure dynamic displacement of conductive target surfaces—including shafts, thrust collars, and bearing housings—with sub-micron resolution and linearity better than ±1% full scale. Each unit undergoes rigorous factory calibration against NIST-traceable reference standards and is supplied with a certified calibration report. This model is offered in new, factory-fresh condition, backed by a comprehensive 24-month limited warranty covering material defects and workmanship. Assembled in the United States, the probe reflects Bently Nevada’s commitment to precision engineering, quality control, and long-term reliability in mission-critical infrastructure.

Detailed Specifications

Key Features

• NIST-Traceable Calibration: Supplied with individual calibration certificate verifying sensitivity, linearity, and frequency response against National Institute of Standards and Technology (NIST)-traceable references—ensuring measurement integrity and audit readiness.
• NSv System Integration: Fully compatible with Bently Nevada 3300 NSv monitors and 3300 XL extension cables, enabling plug-and-play deployment with automatic sensor recognition and configuration via Asset Health Management (AHM) software.
• Enhanced Thermal Stability: Advanced coil winding and encapsulation techniques minimize temperature-induced drift—critical for high-temperature turbine, compressor, and motor applications where ambient fluctuations exceed 80 °C.
• EMI/RFI Immunity: Engineered with multi-layer shielding, common-mode rejection circuitry, and balanced output design to maintain signal integrity in electrically noisy environments such as variable-frequency drive (VFD) installations and switchgear proximity.
• Corrosion-Resistant Construction: Stainless steel (316 SS) housing with PTFE-insulated, nickel-plated connector and epoxy-filled cable termination—optimized for offshore, chemical processing, and high-humidity industrial settings.
• API RP 670 Compliance: Meets all mandatory requirements for Machinery Protection Systems (MPS), including redundancy support, self-test diagnostics, and fault detection logic—facilitating regulatory compliance and insurance certification.
• Long-Term Reliability: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation; validated through accelerated life testing per MIL-STD-810G.

Applications

• Steam & Gas Turbines: Monitoring radial vibration, axial position (thrust), and differential expansion in power generation and cogeneration plants—supporting ISO 10816-3 severity classifications and outage prevention strategies.
• Centrifugal Compressors & Pumps: Detecting imbalance, misalignment, bearing wear, and surge onset in oil & gas, petrochemical, and LNG facilities—enabling predictive maintenance aligned with API 617 and API 610 standards.
• Large Electric Motors & Generators: Measuring rotor eccentricity, air-gap variation, and frame vibration in high-voltage direct-drive systems—critical for grid stability and IEEE 112B efficiency verification.
• Aero-Derivative Engines: Supporting health monitoring in marine propulsion and emergency backup power units where compact size, wide temperature range, and shock resistance are paramount.
• Wind Turbine Gearboxes: Providing early-stage fault detection for planetary carrier movement, high-speed shaft runout, and bearing preload loss—integrated into SCADA-based condition monitoring systems (CMS).
• Research & Test Benches: Used in university labs, OEM validation centers, and R&D facilities for modal analysis, rotordynamics modeling, and transient event capture due to its wide bandwidth and DC-coupled response.
