Technical Overview

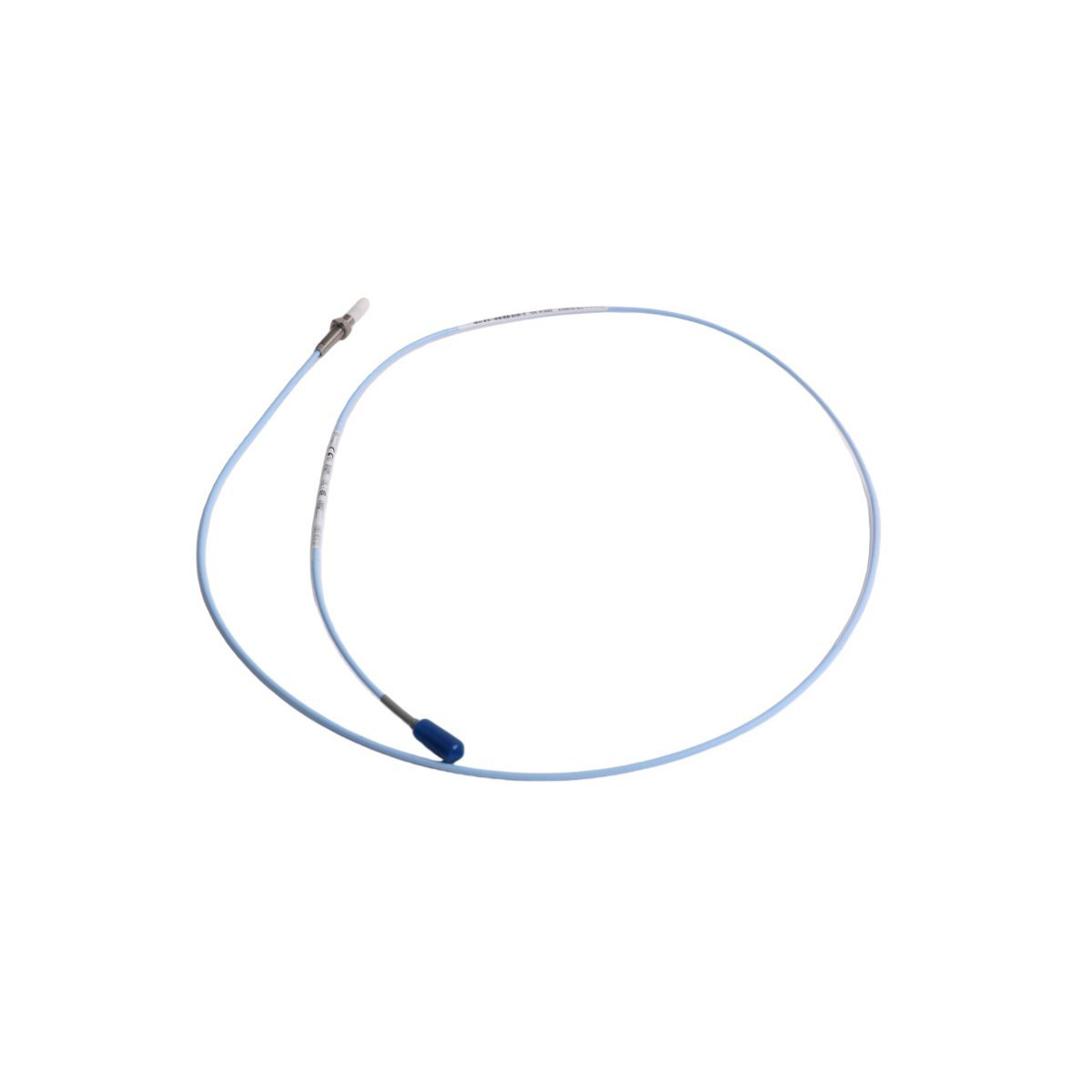

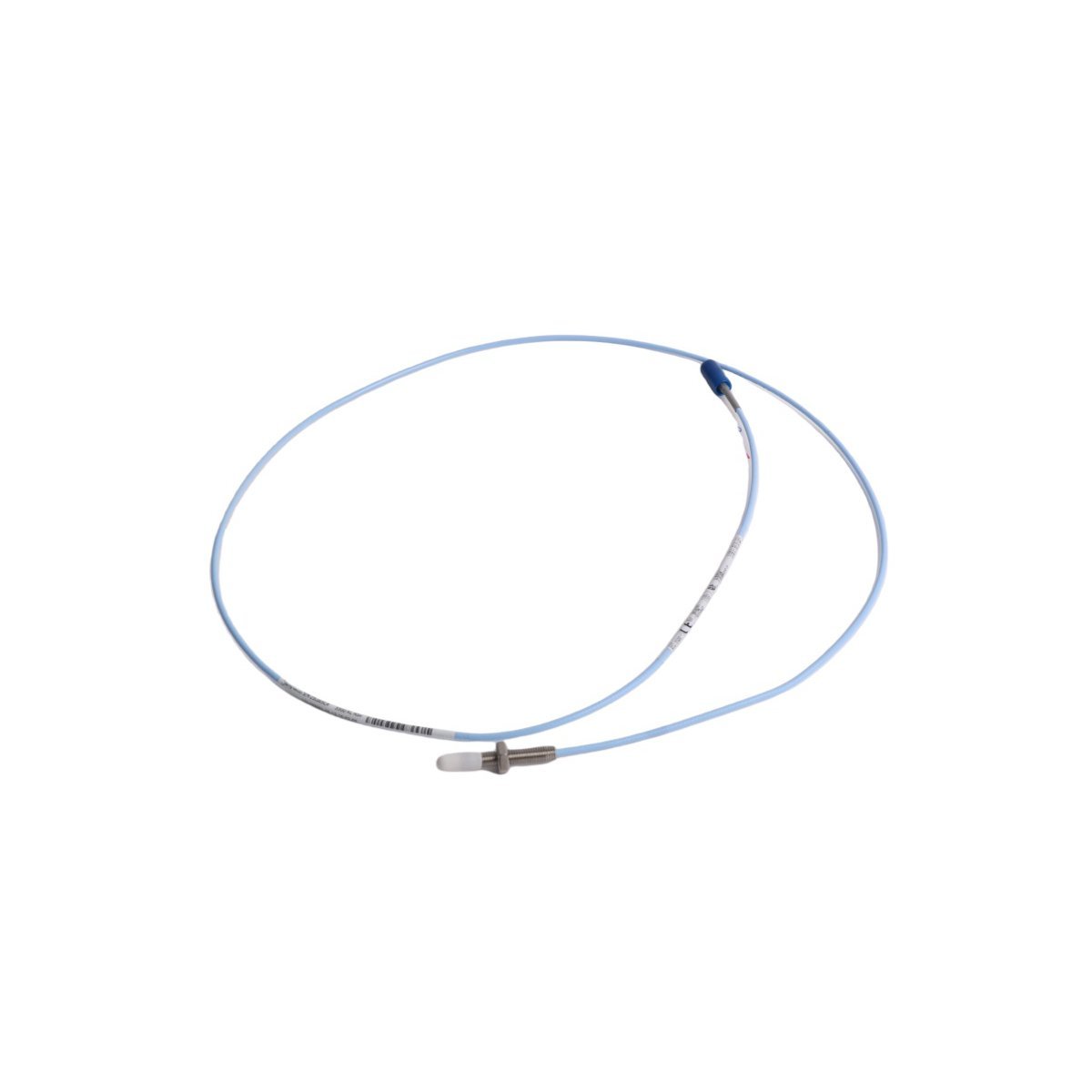

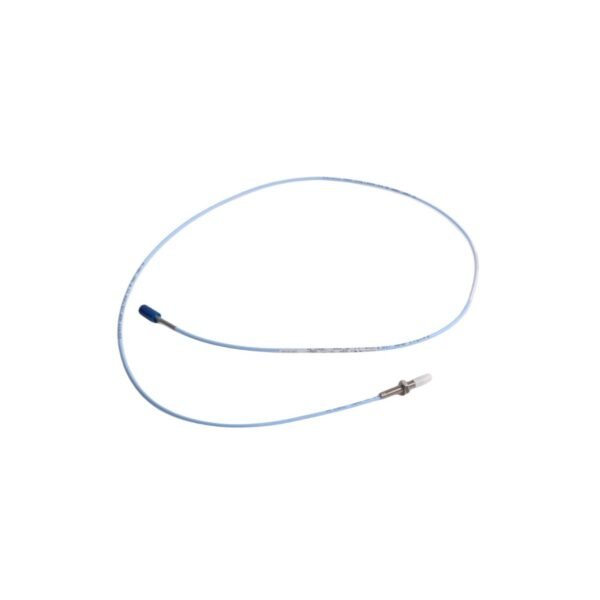

The Bently Nevada 330901-00-12-70-01-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in mission-critical rotating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring since 1961—this probe is part of the trusted 3300 NSv (Next-Generation Sensitivity and Versatility) series. Designed to meet stringent API 670 (4th Edition) and ISO 10816 standards, the 330901-00-12-70-01-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity across harsh operational environments. Its robust construction integrates a precision-machined stainless steel housing with a high-purity ceramic insulator and optimized coil geometry, ensuring consistent sensitivity of 7.87 V/mm (200 mV/mil) and a linear range of ±1.27 mm (±50 mils). The probe operates seamlessly with Bently Nevada 3300 XL and 3500 series monitors, enabling real-time shaft orbit analysis, differential expansion tracking, and axial position verification. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation—including sensitivity slope, linearity error (<±0.5% FS), and frequency response (DC to 10 kHz). This probe is available exclusively as new, factory-fresh inventory—never refurbished or reconditioned—guaranteeing full compliance with OEM performance specifications and long-term reliability in demanding oil & gas, power generation, petrochemical, and marine propulsion applications.

Detailed Specifications

Key Features

• NIST-Traceable Calibration: Each probe ships with individual calibration certificate verifying sensitivity, linearity, and thermal drift performance—essential for regulatory compliance and predictive maintenance program integrity.
• Enhanced Thermal Stability: Optimized coil winding and ceramic insulator minimize output drift across extreme temperature gradients (±0.02%/°C), ensuring accuracy in turbine casings and compressor housings.
• EMI/RFI Immunity: Fully shielded coaxial cable and grounded stainless steel housing provide >60 dB rejection of electromagnetic interference—critical in VFD-rich environments and switchgear proximity.
• API 670 Compliance Ready: Meets all mechanical, electrical, and performance requirements for Machinery Protection Systems (MPS), including dual-channel redundancy support and fault-tolerant diagnostics.
• Corrosion-Resistant Design: Passivated 17-4 PH stainless steel body and hermetically sealed ceramic interface resist hydrogen sulfide (H₂S), salt spray, and hydrocarbon exposure per ASTM B117 and NACE MR0175.
• Plug-and-Play Integration: Compatible with Bently Nevada 3300 XL, 3500, and System 1 platforms without firmware updates or configuration changes—reducing commissioning time by up to 40%.
• Long-Term Reliability: Rated for >100,000 operating hours under continuous duty; validated via accelerated life testing per MIL-STD-810G.
• Global Support Ecosystem: Backed by Baker Hughes’ worldwide service network, including application engineering, on-site commissioning, and certified training programs aligned with ISO 18436-2.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, thrust position, and differential expansion in GE, Siemens, Mitsubishi, and Alstom OEM installations.
• Centrifugal Compressors: Detecting shaft misalignment, bearing wear, and surge onset in upstream oil & gas processing, LNG liquefaction trains, and refinery air separation units.
• Large Electric Motors & Generators: Providing high-fidelity rotor dynamics data for IEEE 841-compliant critical drive systems in power plants and industrial facilities.
• Petrochemical Pumps: Enabling early detection of cavitation, impeller imbalance, and seal failure in API 610-compliant horizontal and vertical pumps.
• Marine Propulsion Systems: Supporting condition-based maintenance on main reduction gears and controllable pitch propellers aboard commercial vessels and naval platforms.
• Wind Turbine Gearboxes: Delivering reliable low-frequency displacement data for main shaft deflection and planetary carrier movement in IEC 61400-25 environments.
• Nuclear Power Auxiliary Systems: Meeting ASME NQA-1 quality requirements for Class 1E monitoring in feedwater pump turbines and emergency diesel generator sets.
• Research & Development Test Rigs: Serving as a metrology-grade reference sensor in university and OEM labs conducting rotordynamics, modal analysis, and active magnetic bearing development.
