Description

Technical Overview

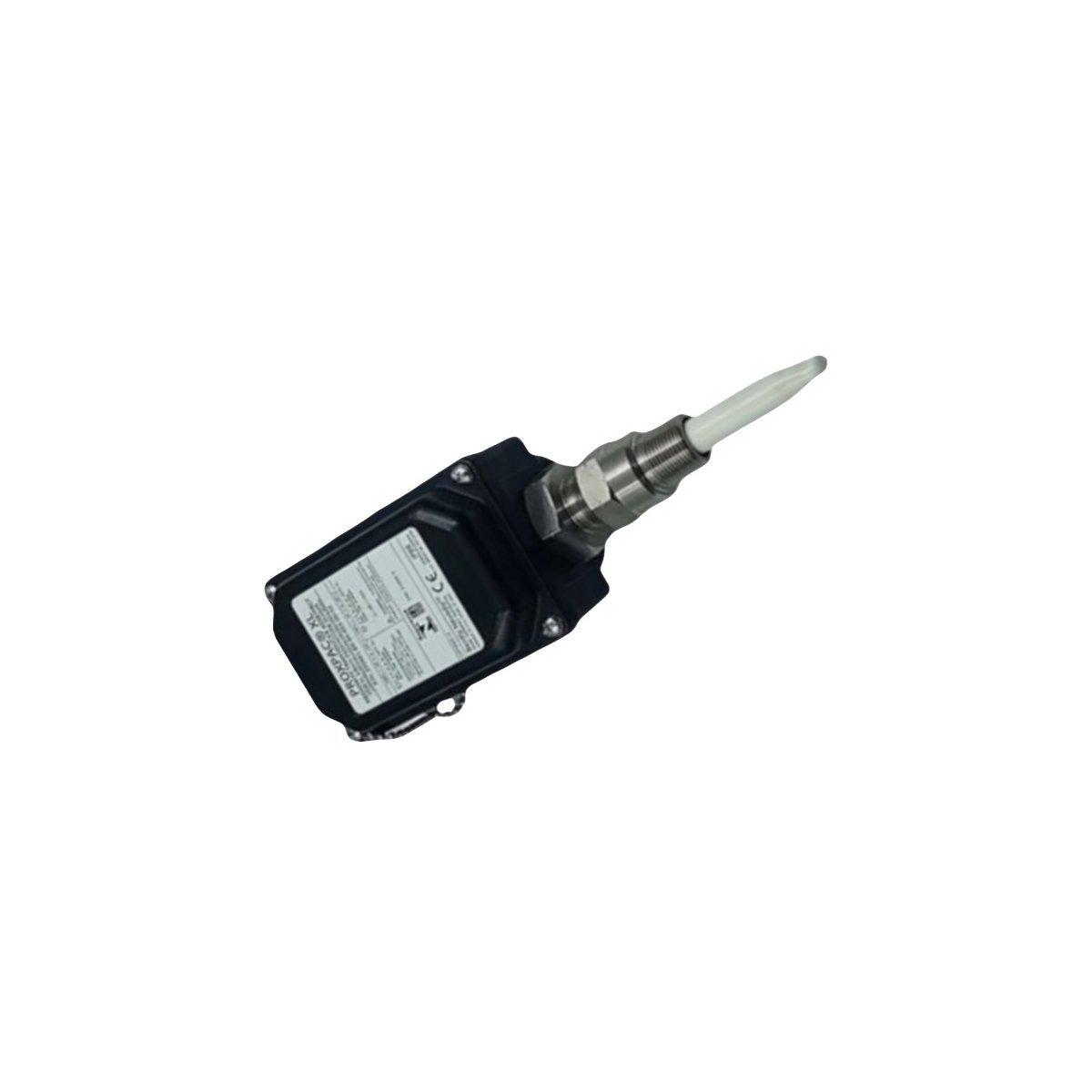

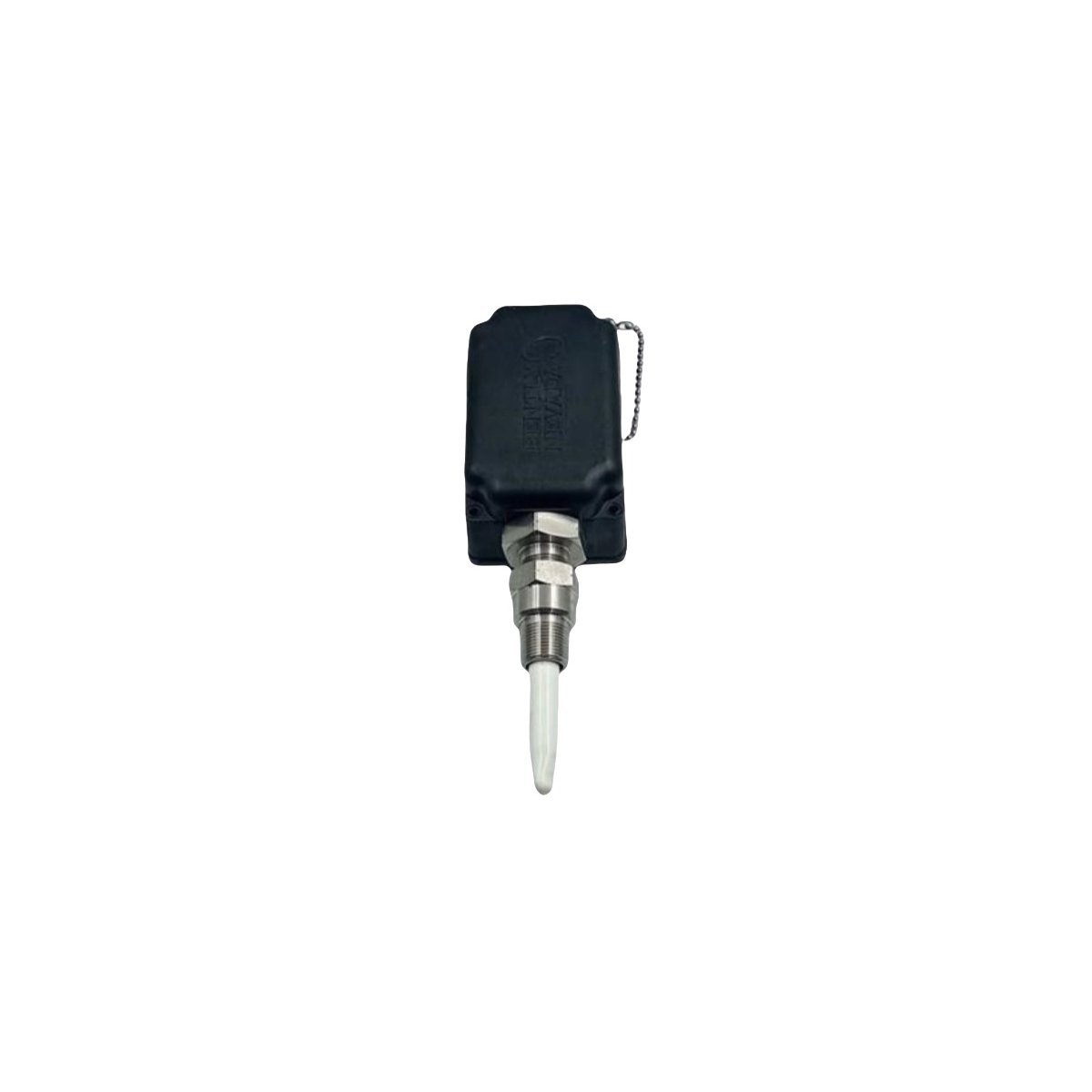

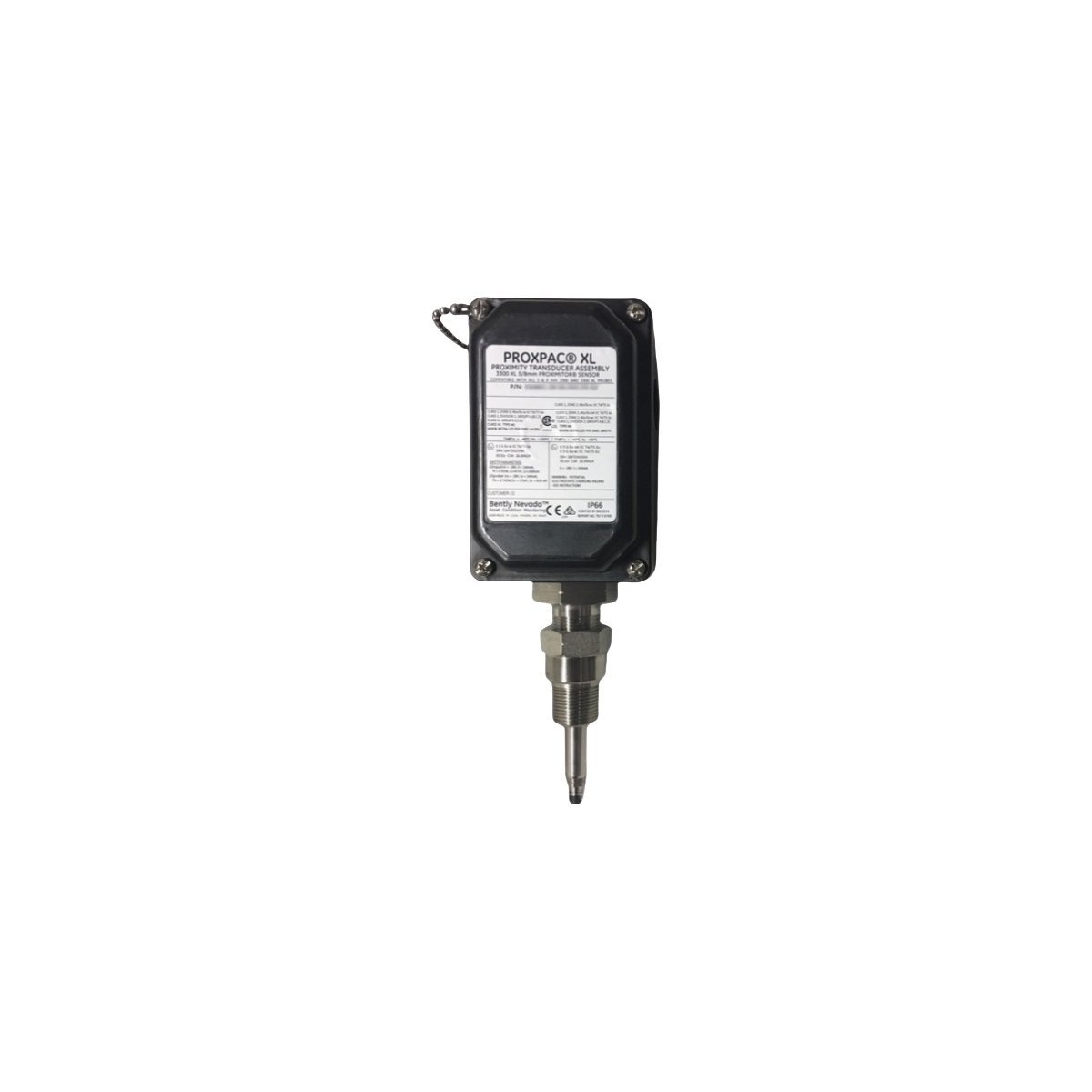

The Bently Nevada 330881-28-04-080-03-02 PROXPAC XL Proximity Transducer is a high-precision, industrial-grade eddy-current proximity sensing solution engineered for mission-critical machinery protection and condition monitoring systems. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset reliability and predictive maintenance technologies, this transducer forms the foundational sensing element of the industry-standard 3300 XL series monitoring ecosystem. Designed to operate reliably in harsh environments—including extreme temperatures, high vibration, electromagnetic interference (EMI), and corrosive atmospheres—the 330881-28-04-080-03-02 delivers exceptional linearity, repeatability, and long-term stability across its calibrated range. Its robust stainless steel construction, hermetically sealed probe tip, and integrated temperature-compensated electronics ensure consistent performance over extended service life—critical for continuous operation in power generation, oil & gas, petrochemical, and heavy industrial applications. This transducer is supplied as new, factory-fresh inventory with full traceability to original Bently Nevada manufacturing standards. Each unit undergoes rigorous calibration and functional testing prior to shipment, guaranteeing compliance with API 670 (Machinery Protection Systems) and ISO 10816 (Mechanical Vibration Evaluation) specifications. The device is intended for permanent installation on rotating equipment such as steam and gas turbines, centrifugal compressors, pumps, and large motors, where precise shaft displacement, vibration, and position measurements are essential for predictive maintenance, alarm generation, and shutdown logic.

Detailed Specifications

Key Features

• API 670-Compliant Design: Fully certified for use in Machinery Protection Systems (MPS), meeting stringent requirements for fault tolerance, redundancy support, and diagnostic capability per the latest edition of API RP 670.
• Enhanced Thermal Stability: Integrated temperature compensation circuitry minimizes zero-shift and sensitivity drift across the full operating range, ensuring measurement accuracy even during rapid thermal transients.
• High Immunity to EMI/RFI: Precision-wound, shielded probe coil and double-shielded coaxial cabling provide superior noise rejection in electrically noisy environments—critical near VFDs, switchgear, and high-current bus ducts.
• Hermetic Probe Sealing: Laser-welded stainless steel housing with ceramic insulator prevents moisture ingress, corrosion, and dielectric breakdown—ideal for offshore platforms, refineries, and humid climates.
• Plug-and-Play Integration: Compatible with all 3300 XL Monitoring Systems (e.g., 3500, 3300 XL 25, 3300 XL 50) and supports Smart Transducer Interface (STI) for automated sensor identification and configuration.
• Long-Term Calibration Retention: Factory-calibrated using NIST-traceable standards; maintains calibration for ≥5 years under normal operating conditions without field recalibration.
• Modular System Architecture: Interchangeable probe, cable, and preamp components allow for flexible system upgrades, field repairs, and customized configurations without full replacement.
• Diagnostic Self-Test Capability: Built-in health monitoring provides real-time status feedback (OK/FAULT), open-circuit detection, short-circuit detection, and power failure alerts via the monitor interface.

Applications

• Rotating Equipment Monitoring: Continuous measurement of shaft radial vibration, axial position (thrust), and differential expansion in steam turbines, gas turbines, and hydroelectric generators.
• Machinery Protection Systems (MPS): Primary input for critical alarms and emergency shutdown (ESD) functions in compliance with IEC 61508 SIL-2 requirements for safety instrumented systems (SIS).
• Oil & Gas Infrastructure: Monitoring of centrifugal and reciprocating compressors, pipeline pumps, and LNG train drivers operating under high-pressure, high-temperature, or explosive atmospheres (ATEX/IECEx Zone 2 compliant when installed with appropriate barriers).
• Petrochemical Refineries: Vibration surveillance of FCCU compressors, hydrogen recycle units, and critical feed pumps exposed to hydrogen sulfide, chlorides, and process vapors.
• Power Generation Assets: Integration into distributed control systems (DCS) and condition monitoring platforms (e.g., System 1®) for predictive analytics, trend analysis, and digital twin modeling.
• Marine Propulsion Systems: Shaft orbit analysis and bearing wear detection on main propulsion engines and reduction gears aboard commercial vessels and naval platforms.
• Research & Test Facilities: High-fidelity dynamic testing of prototype rotors, magnetic bearings, and advanced drivetrain assemblies requiring sub-micron resolution and phase-coherent output.
