Description

Technical Overview

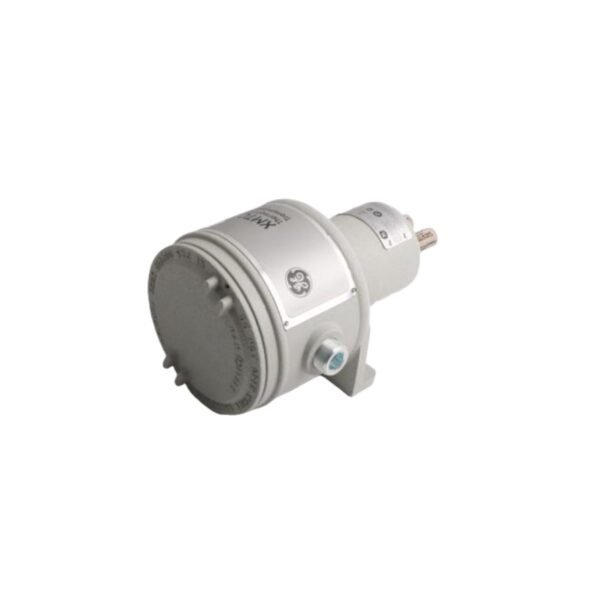

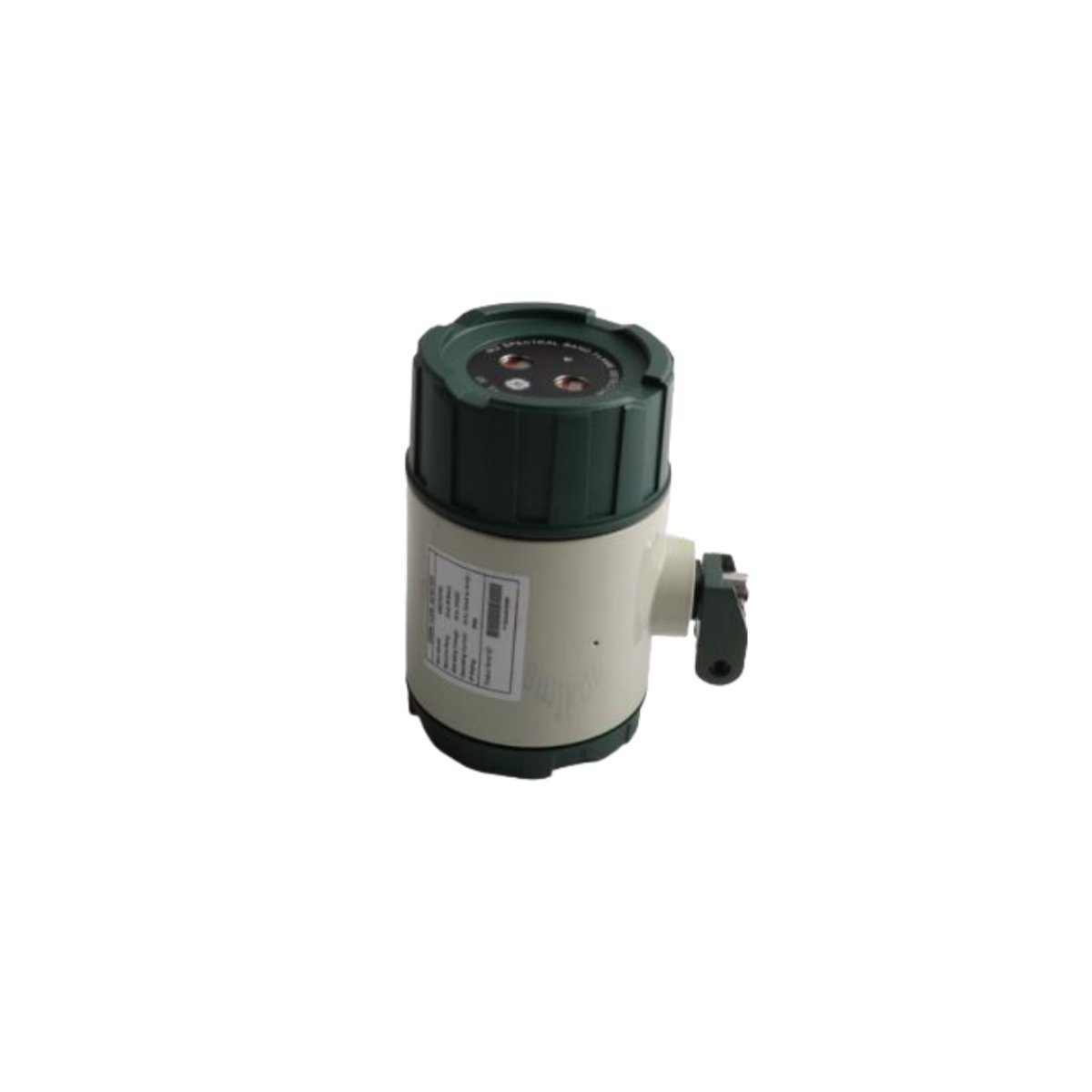

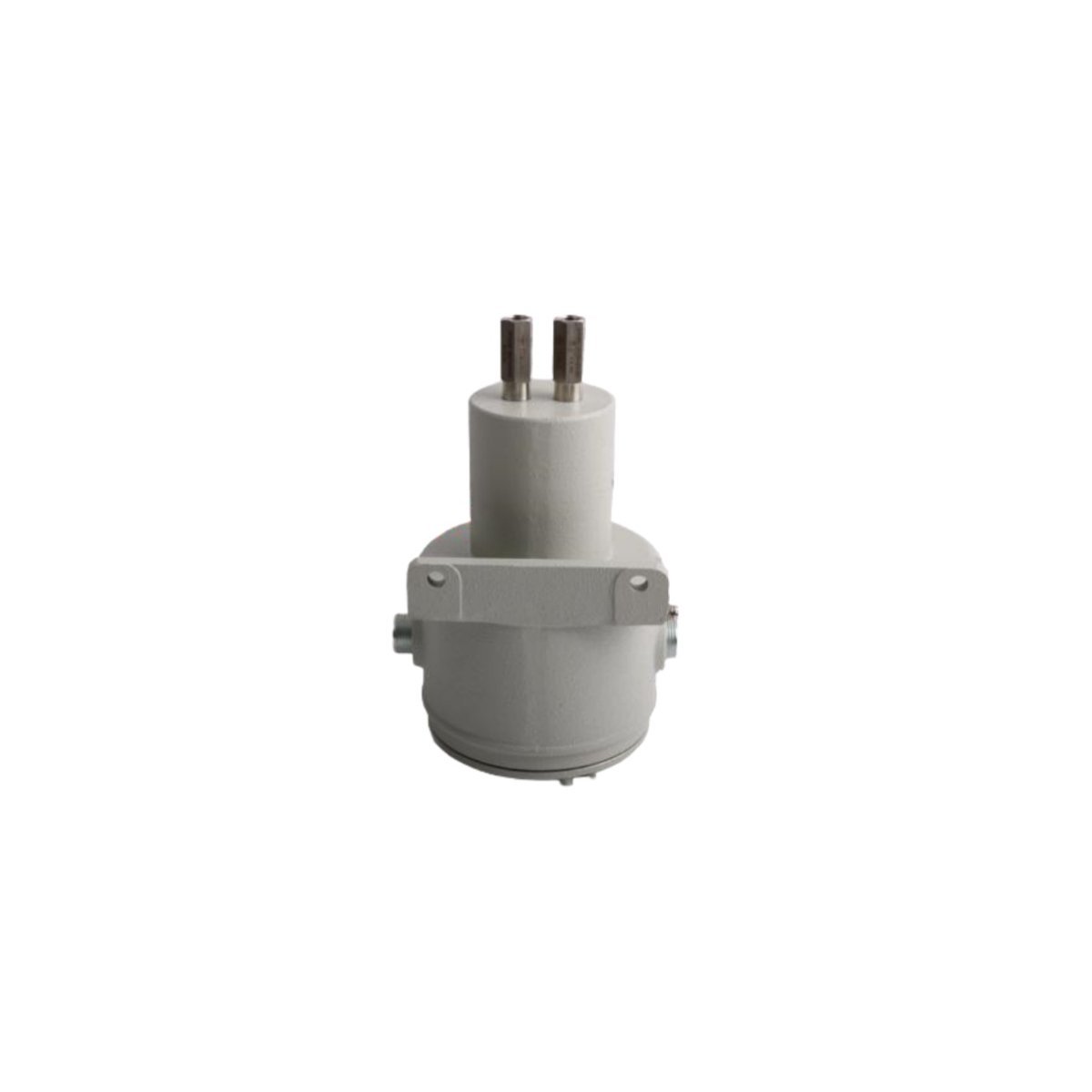

The Bently Nevada 330880-RU-50-028-03-02 Thermal Conductivity Transmitter is a high-precision, industrial-grade analytical instrument engineered for continuous, real-time measurement of gas composition based on thermal conductivity principles. Manufactured by Bently Nevada—a globally recognized leader in machinery protection, condition monitoring, and process instrumentation under the Baker Hughes portfolio—the device delivers exceptional accuracy, long-term stability, and robust performance in demanding hazardous and non-hazardous environments. Designed specifically for integration into critical safety and process control systems, this transmitter conforms to IEC 61508 SIL 2 functional safety requirements and meets ATEX, IECEx, and UL certifications for use in Class I, Div 1/Zone 1 locations. The unit employs dual-sensor, temperature-compensated Wheatstone bridge architecture to eliminate drift from ambient fluctuations and ensure repeatable measurements across wide operating ranges. Its modular construction features field-replaceable sensor cartridges, reducing lifecycle maintenance costs and minimizing process downtime. The 330880-RU-50-028-03-02 operates as a 4–20 mA analog output transmitter with HART® 7 protocol support, enabling seamless integration with DCS, PLC, and SCADA platforms. It supports configurable linear or square-root output scaling, user-defined alarm thresholds, and diagnostic self-monitoring (including sensor health, temperature deviation, and loop integrity). All firmware is upgradable via standard HART communicator or AMS Device Manager, ensuring future-proof adaptability. This model is supplied new-in-box (NIB), factory-calibrated, and backed by a comprehensive 24-month limited warranty—reflecting Bently Nevada’s commitment to reliability, traceability, and compliance with ISO 9001:2015 quality management standards.

Detailed Specifications

Key Features

• Advanced Dual-Sensor Architecture: Independent reference and measurement sensors with active temperature compensation eliminate thermal drift and enable true differential conductivity analysis—even under rapid ambient shifts.
• Full SIL 2 Certification: Certified per IEC 61508 for use in Safety Instrumented Systems (SIS), supporting critical shutdown logic in hydrogen purity monitoring, inerting control, and flammability hazard mitigation.
• HART 7 Digital Communication: Enables remote configuration, diagnostics, calibration verification, and predictive maintenance data extraction without interrupting process operation.
• Modular, Field-Replaceable Sensor Cartridge: Reduces mean time to repair (MTTR) to under 5 minutes; no recalibration required after cartridge swap due to embedded digital calibration memory.
• Multi-Gas Configuration Flexibility: Supports up to 16 user-defined gas pairs via software configuration—ideal for facilities managing diverse process streams across refining, chemical, and power generation applications.
• Robust Hazardous Area Certification: Certified for Zone 1/Div 1 installation without additional barriers—reducing engineering complexity, panel space, and total installed cost.
• Embedded Diagnostics & Health Monitoring: Continuous self-check of sensor integrity, thermal gradient anomalies, loop resistance, and ambient temperature deviation with configurable alarm outputs.
• Wide Operating Range & High Reliability: Validated for continuous operation at −40°C to +70°C ambient and rated for MTBF > 120,000 hours—minimizing unplanned outages in mission-critical infrastructure.

Applications

• Hydrogen Purity Monitoring in Power Generators: Real-time tracking of H₂ concentration in turbine cooling systems to maintain ≥98% purity and prevent insulation degradation or explosive mixtures.
• Inert Gas Blanketing & Purging Control: Verifying nitrogen or argon blanket integrity in storage tanks, reactors, and distillation columns to suppress combustion and oxidation hazards.
• Flue Gas & Combustion Efficiency Optimization: Measuring CO₂ and O₂ content in exhaust streams to fine-tune burner air-fuel ratios and reduce NOₓ emissions.
• Biogas Upgrading & Renewable Natural Gas (RNG) Processing: Quantifying CH₄, CO₂, and H₂S concentrations pre- and post-membrane separation or amine scrubbing.
• Semiconductor Manufacturing Atmosphere Control: Ensuring ultra-high-purity inert or forming gas environments (e.g., N₂/H₂ blends) in diffusion furnaces and CVD chambers.
• Chemical Reactor Composition Safeguarding: Detecting hazardous gas buildups (e.g., H₂ in chlorine lines) and triggering interlocks to prevent runaway reactions or corrosion events.
• Landfill & Wastewater Digester Gas Analysis: Continuous monitoring of methane yield and landfill gas calorific value for energy recovery optimization and regulatory reporting.
• Pharmaceutical Lyophilization & Sterile Processing: Validating nitrogen purge cycles and maintaining low-oxygen headspace conditions during vial stoppering and packaging.
