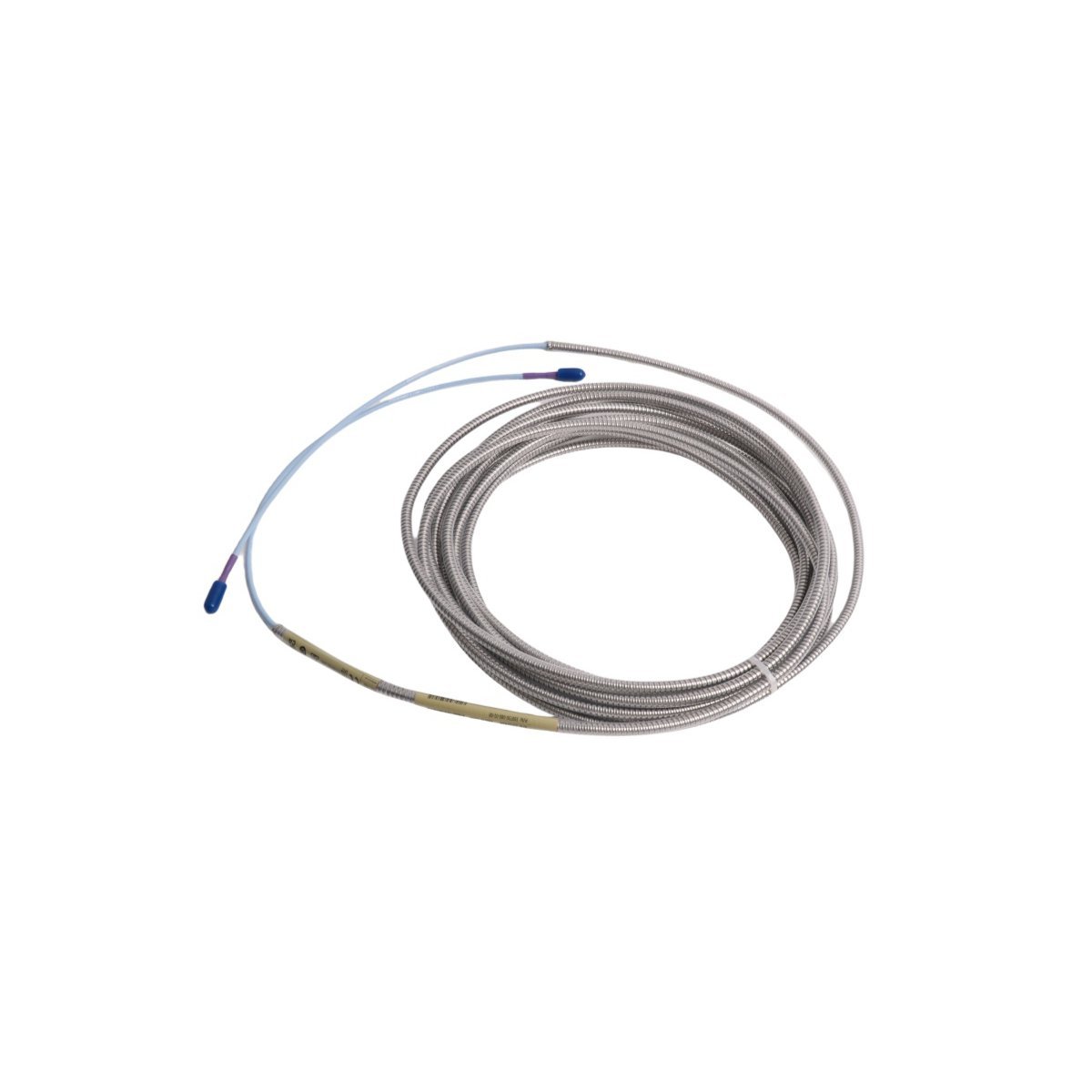

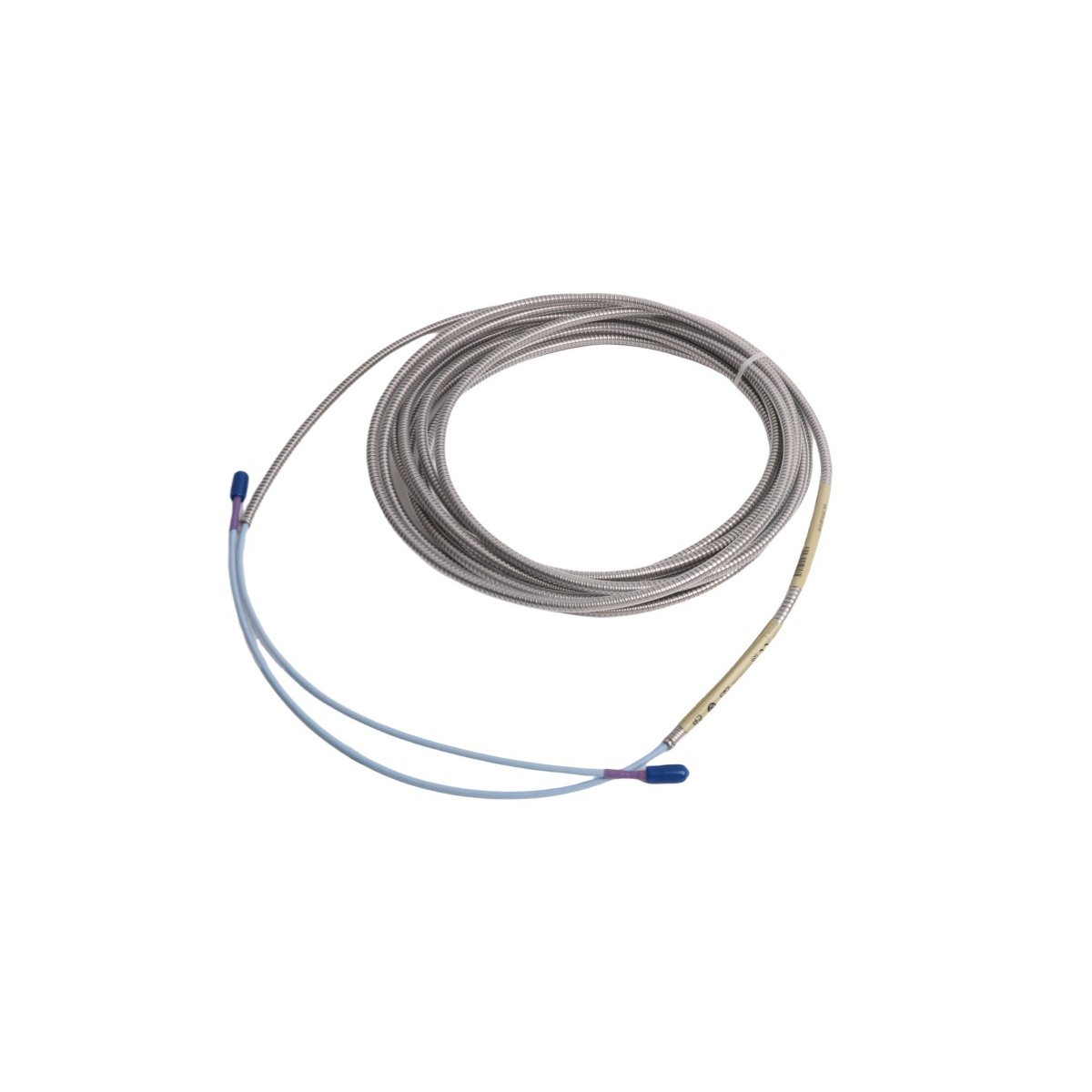

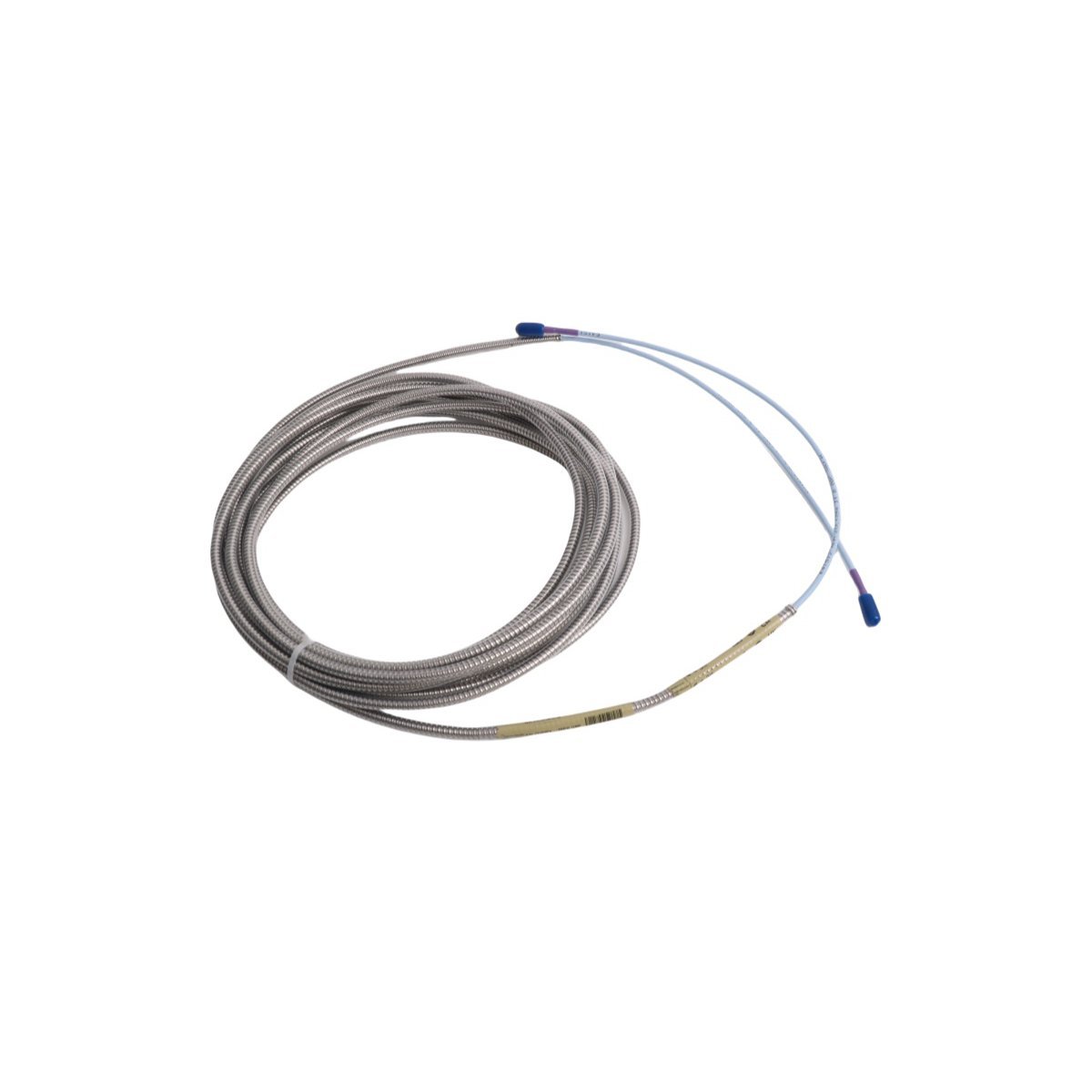

The Bently Nevada 330730-080-03-05 is a high-integrity, precision-engineered extension cable designed exclusively for use with the Bently Nevada 3300 XL series proximity probe systems. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in machinery protection and condition monitoring solutions, this cable serves as a critical interface between the 3300 XL proximity transducer and the monitoring system’s前置 signal conditioner or rack-mounted monitor. Engineered to preserve signal fidelity across extended distances without introducing phase shift, attenuation, or electromagnetic interference (EMI) susceptibility, the 330730-080-03-05 ensures metrological traceability and compliance with API RP 670 (4th Edition) and ISO 10816 standards for vibration and position monitoring. Its robust construction incorporates low-noise, double-shielded coaxial architecture with precision-matched impedance (50 Ω nominal), enabling stable operation in demanding industrial environments—including high-vibration, high-temperature, and electrically noisy settings typical of power generation, oil & gas, petrochemical, and heavy manufacturing facilities. The cable is supplied in new, factory-fresh condition—fully tested, calibrated, and certified per Bently Nevada’s stringent quality control protocols—and backed by a comprehensive 24-month limited warranty covering material defects and workmanship. As an original equipment manufacturer (OEM) component, it guarantees full compatibility with all 3300 XL 11 mm diameter proximity probes (e.g., 330104-00-05-05-02-00), eliminating integration risks associated with third-party alternatives.

Detailed Specifications

Key Features

• OEM-Exact Signal Integrity: Precision-engineered 50 Ω impedance matching ensures zero signal degradation, preserving linearity, sensitivity (typically 4.0 mV/µm), and phase response up to 10 kHz — critical for accurate shaft orbit and dynamic position analysis.
• Industrial-Grade Shielding: Dual-layer EMI suppression (foil + braid) delivers >95 dB common-mode rejection at 1 MHz, preventing noise coupling from VFDs, switchgear, and arc furnaces.
• Extreme Environment Resilience: FEP insulation and LSZH jacket withstand hydrocarbon exposure, steam cleaning, ozone, UV radiation, and mechanical abrasion — validated via 2,000-hour salt-spray (ASTM B117) and 10-million-cycle flex testing.
• Plug-and-Play Compatibility: Fully interoperable with all 3300 XL 11 mm probes (e.g., 330104, 330180), 3300/16 monitors, 3500 rack systems, and System 1™ software — no recalibration required upon installation.
• Traceable Calibration Documentation: Each unit ships with a serialized calibration certificate verifying DC resistance (<1.2 Ω), shield continuity (<0.1 Ω), and frequency response flatness (±0.1 dB from 0–10 kHz).
• Sustainable Design: Halogen-free materials reduce toxic fume emission during fire events; recyclable metal and polymer components align with corporate ESG reporting requirements.
• Global Regulatory Assurance: Certified to UL, CSA, CE, and UKCA standards — simplifies cross-border deployment and audit readiness for ISO 55001 and NIST SP 800-53 compliance programs.

Applications

• Rotating Machinery Protection: Real-time shaft displacement monitoring for steam turbines, gas turbines, centrifugal compressors, and large motors in combined-cycle power plants and refineries.
• Condition Monitoring Systems (CMS): Integration into automated predictive maintenance platforms for early detection of bearing wear, misalignment, rubs, and oil whirl — supporting ISO 13373-1 analytics.
• API 670-Compliant Machinery Trains: Primary vibration and axial position sensing in critical service pumps, fans, and expanders governed by American Petroleum Institute safety mandates.
• High-Risk Process Environments: Deployment in hazardous areas (Class I Div 2, Zone 2) where intrinsic safety and explosion-proof integrity are non-negotiable — compatible with Bently Nevada IS barriers.
• Retrofit & Modernization Projects: Seamless replacement of legacy 3300 non-XL cables without hardware or firmware upgrades — reduces downtime and engineering change order (ECO) costs.
• Research & Development Test Benches: High-fidelity data acquisition for rotor dynamics modeling, modal analysis, and control system validation in aerospace and academic laboratories.
• Marine Propulsion Systems: Shaft position and thrust monitoring on naval vessels and LNG carriers, meeting MIL-STD-810H environmental ruggedness and IMO MSC.1/Circ.1450 vibration criteria.
