Description

Technical Overview

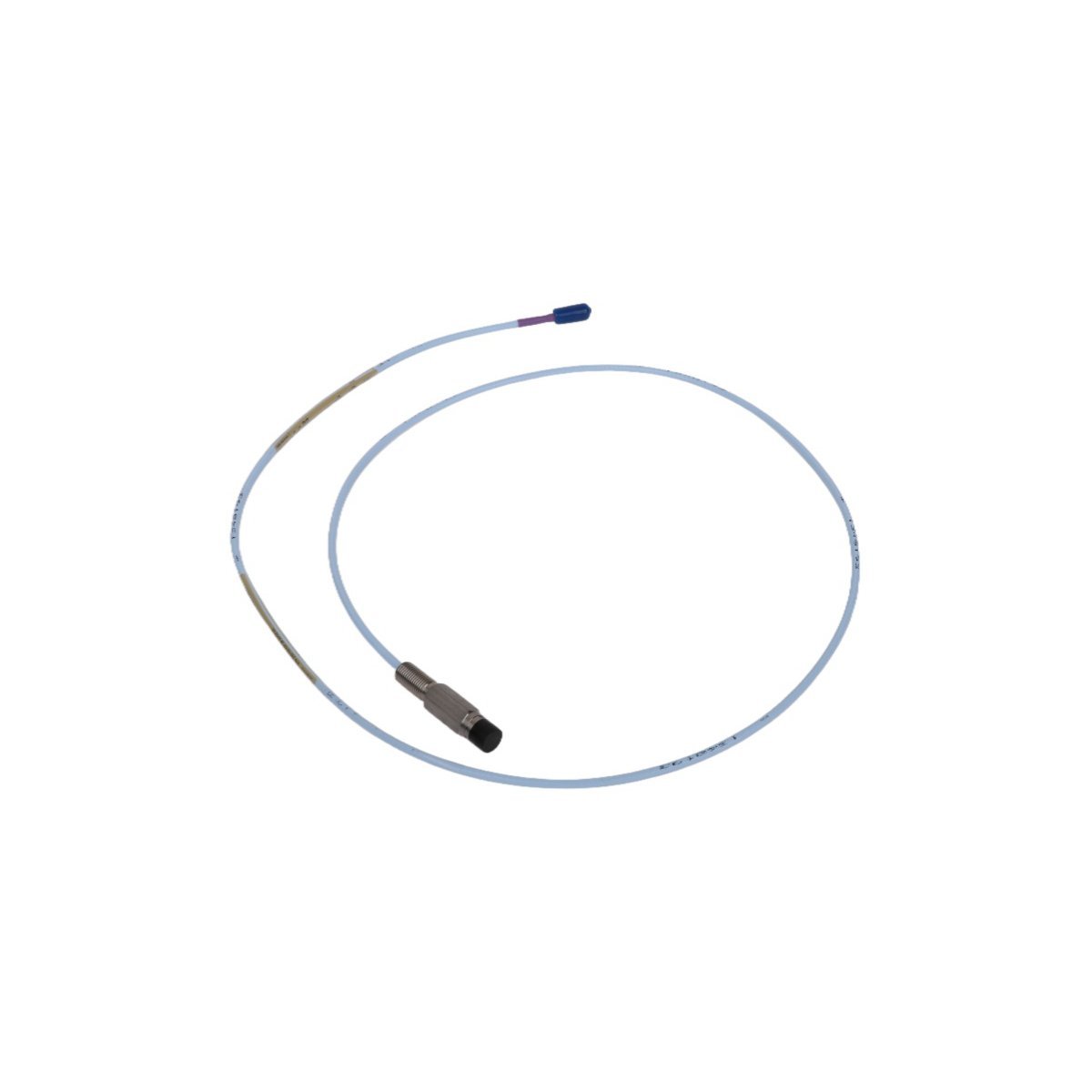

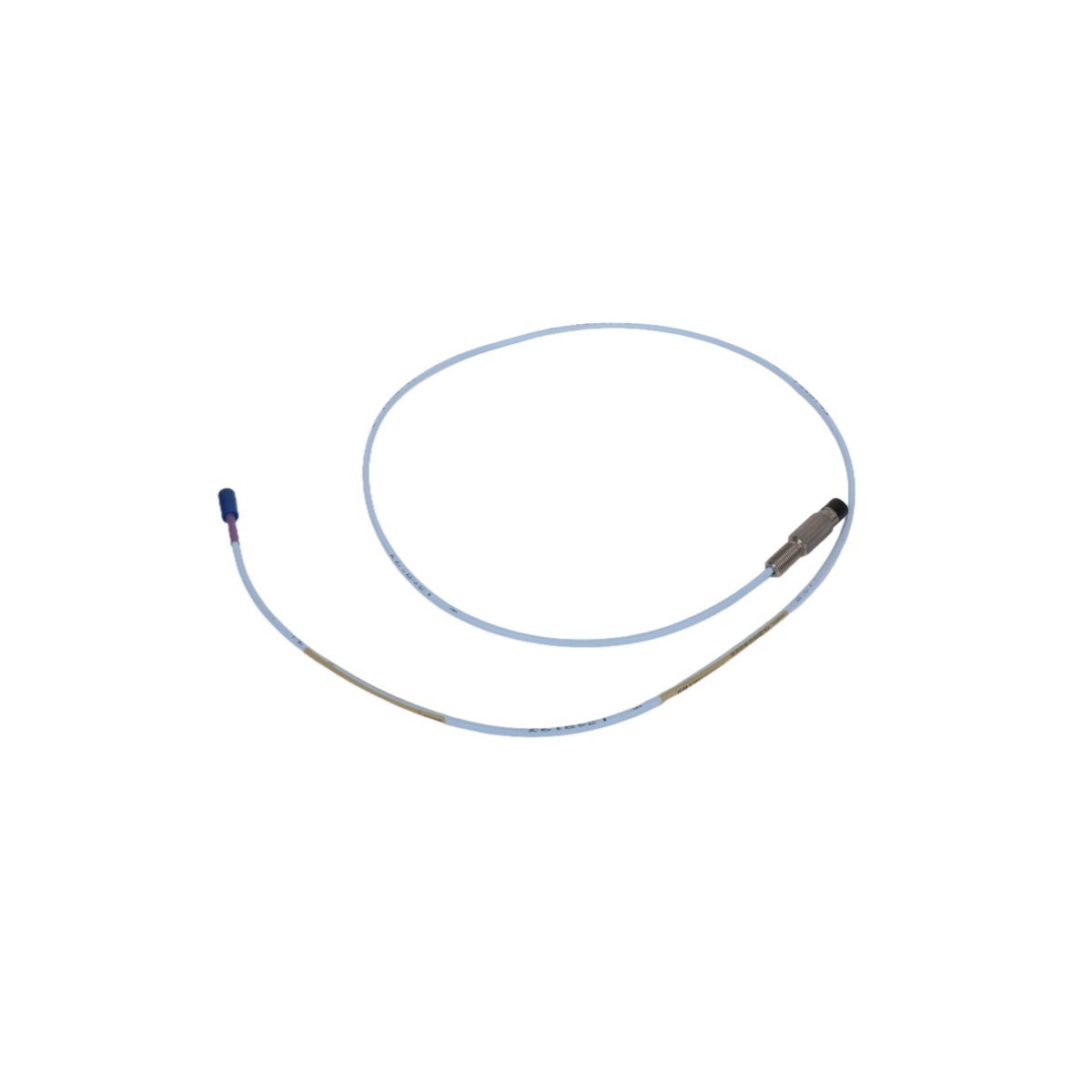

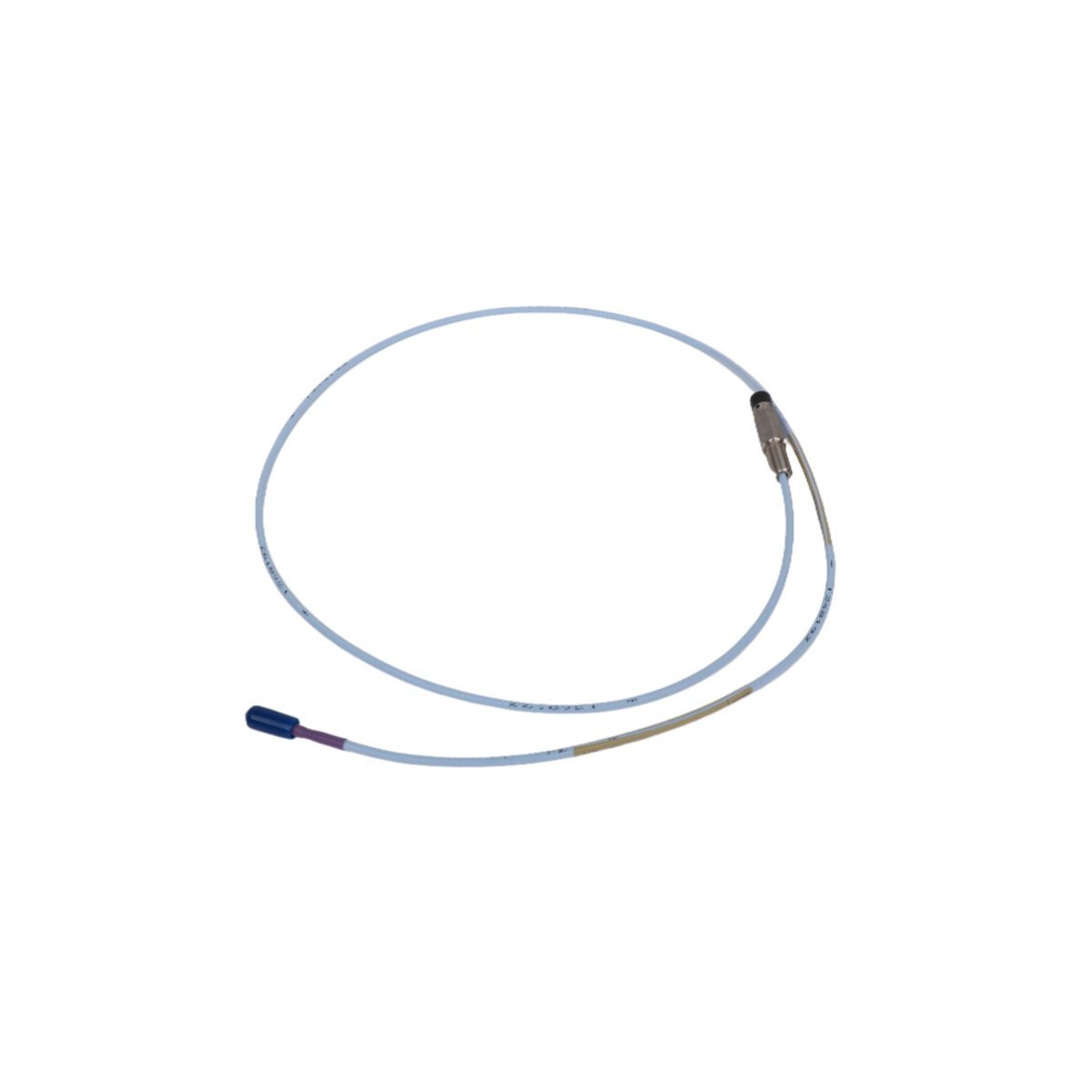

The Bently Nevada 330705-02-18-10-02-05 is a high-precision, reverse-mount proximity probe engineered for demanding industrial condition monitoring and machinery protection applications. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset reliability and predictive maintenance solutions, this probe belongs to the trusted 3300 XL family—renowned for exceptional signal integrity, thermal stability, and long-term repeatability. Designed specifically for reverse-mount configurations, the 330705-02-18-10-02-05 enables seamless integration into space-constrained or rear-accessible mounting locations where conventional forward-mount probes are impractical. Its 11 mm sensing diameter delivers optimal balance between resolution and robustness for medium-to-large rotating equipment, including steam and gas turbines, centrifugal compressors, large motors, and critical pumps. The probe features a rugged stainless steel housing, integral PTFE-insulated coaxial cable (10 ft / 3.05 m), and a precision-machined tip optimized for linear output across its calibrated range. All units are factory-calibrated per API 670 (4th Edition) and ISO 10816 standards, ensuring compliance with global machinery protection requirements. This product is supplied new, unused, and in original factory packaging—guaranteeing full traceability, documented calibration certificates, and adherence to stringent quality control protocols established at the Bently Nevada manufacturing facility in Minden, Nevada, USA.

Detailed Specifications

Key Features

• True Reverse-Mount Design: Engineered with rear-facing sensing geometry and integrated mounting thread (M18 × 1.5 mm) for secure installation in confined spaces behind bearing housings, flanges, or structural supports—eliminating the need for costly custom brackets or re-engineering.
• Enhanced Thermal Stability: Utilizes proprietary ceramic-filled epoxy and matched coefficient-of-expansion materials to maintain calibration accuracy across extreme ambient temperature fluctuations (±0.05% full scale/°C drift).
• High Immunity to EMI/RFI: Triple-shielded coaxial cable construction (copper braid + aluminum foil + drain wire) ensures reliable operation in electrically noisy environments such as VFD-driven systems and switchgear proximity zones.
• Factory-Calibrated Traceability: Each unit includes a NIST-traceable calibration certificate with individual linearity curve, sensitivity verification, and temperature compensation data—fully compliant with ISO/IEC 17025 accredited processes.
• Corrosion-Resistant Construction: 316 stainless steel body and PTFE-insulated cable provide superior resistance to hydrocarbons, solvents, steam, salt spray, and industrial coolants—ideal for offshore, petrochemical, and power generation deployments.
• Plug-and-Play Compatibility: Fully interoperable with all 3300 XL monitoring systems—including 3300 NSV, 3500 Rack, and System 1 software—requiring no field recalibration or configuration changes upon installation.
• Extended Service Life: Rated for >100 million cycles of continuous operation under rated conditions; validated via accelerated life testing per MIL-STD-810H vibration and shock profiles.

Applications

• Turbomachinery Protection: Shaft displacement monitoring on steam turbines, gas turbines, and air compressors for thrust position, differential expansion, and axial shift detection per API 670 Category A/B requirements.
• Large Motor & Generator Monitoring: Rotor eccentricity, air gap variation, and dynamic runout assessment in high-voltage synchronous and induction machines (5 MW+).
• Centrifugal Pump Surveillance: Bearing housing vibration and shaft relative displacement in API 610-compliant pumps used in refineries, LNG terminals, and water desalination plants.
• Power Generation Asset Integrity: Critical monitoring of generator rotors, exciter shafts, and turbine-generator couplings in combined-cycle, nuclear, and hydroelectric facilities.
• Offshore & Harsh Environment Installations: Reverse-mount capability simplifies retrofitting on aging platforms where front-side access is obstructed by piping, insulation, or structural members.
• Predictive Maintenance Programs: Integration with System 1™ software for trend analysis, alarm validation, and automated health scoring—supporting ISO 18436-2 certified vibration analyst workflows.
• Original Equipment Manufacturer (OEM) Integration: Pre-qualified for inclusion in new-build rotating equipment packages by leading OEMs including Siemens Energy, GE Vernova, MAN Energy Solutions, and Mitsubishi Power.
