Description

Technical Overview

Product Description

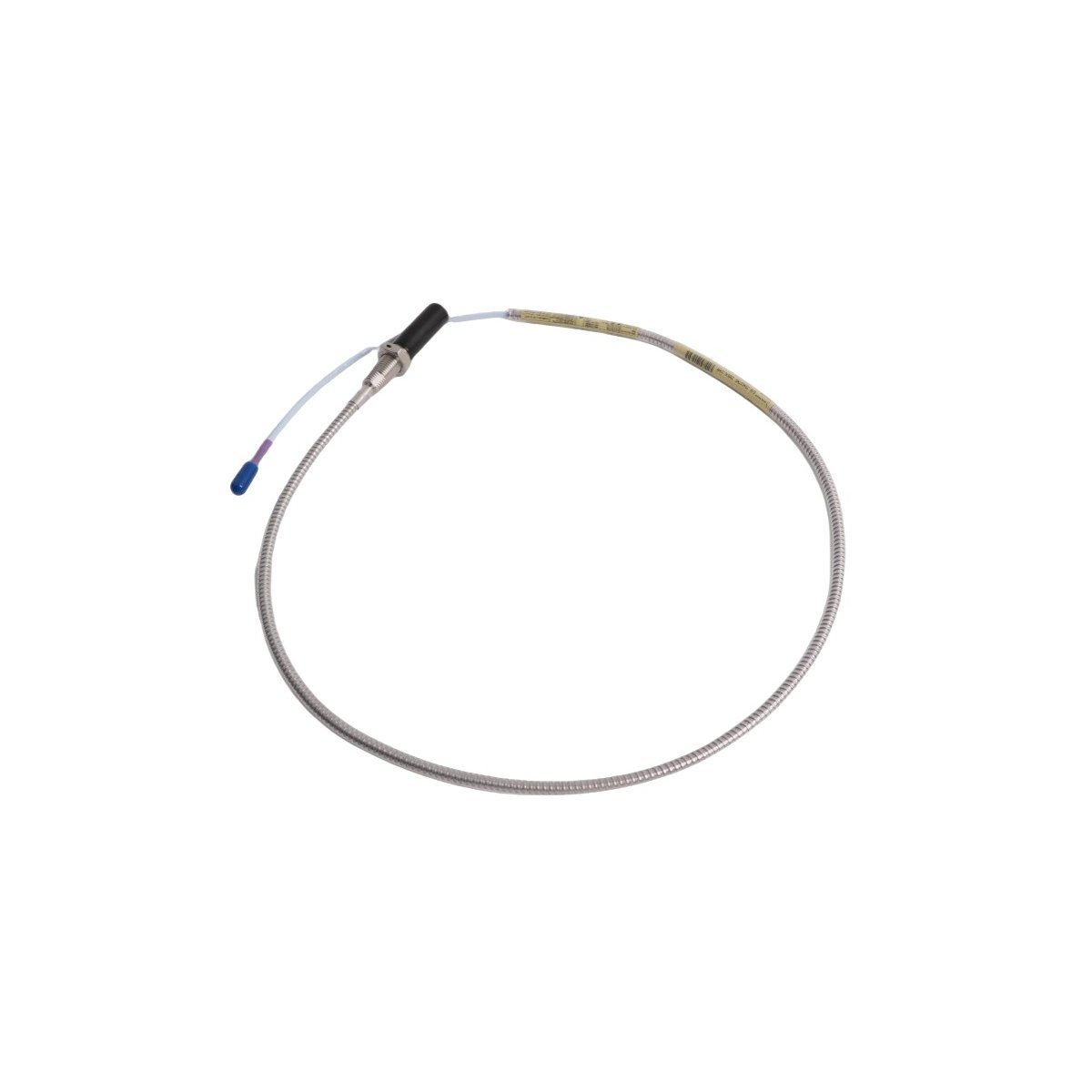

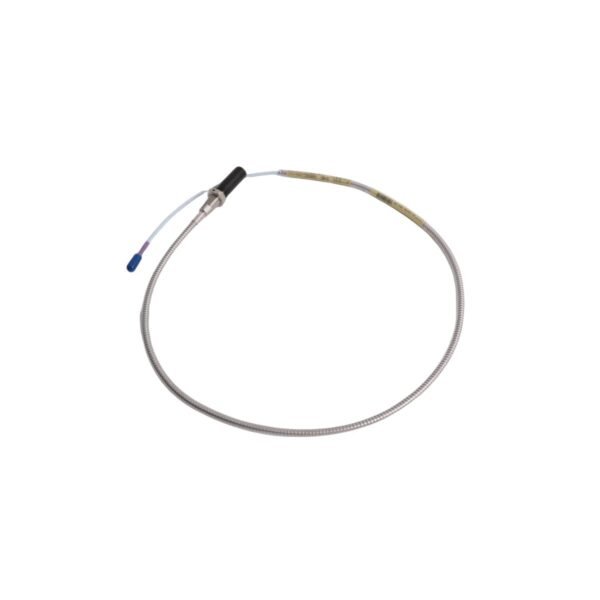

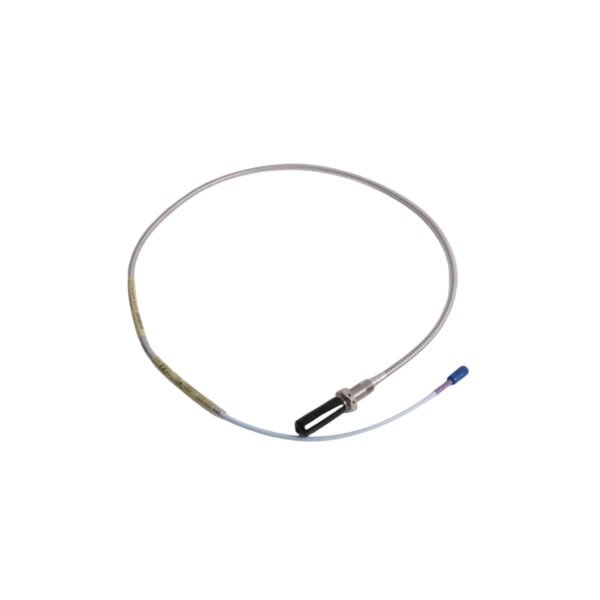

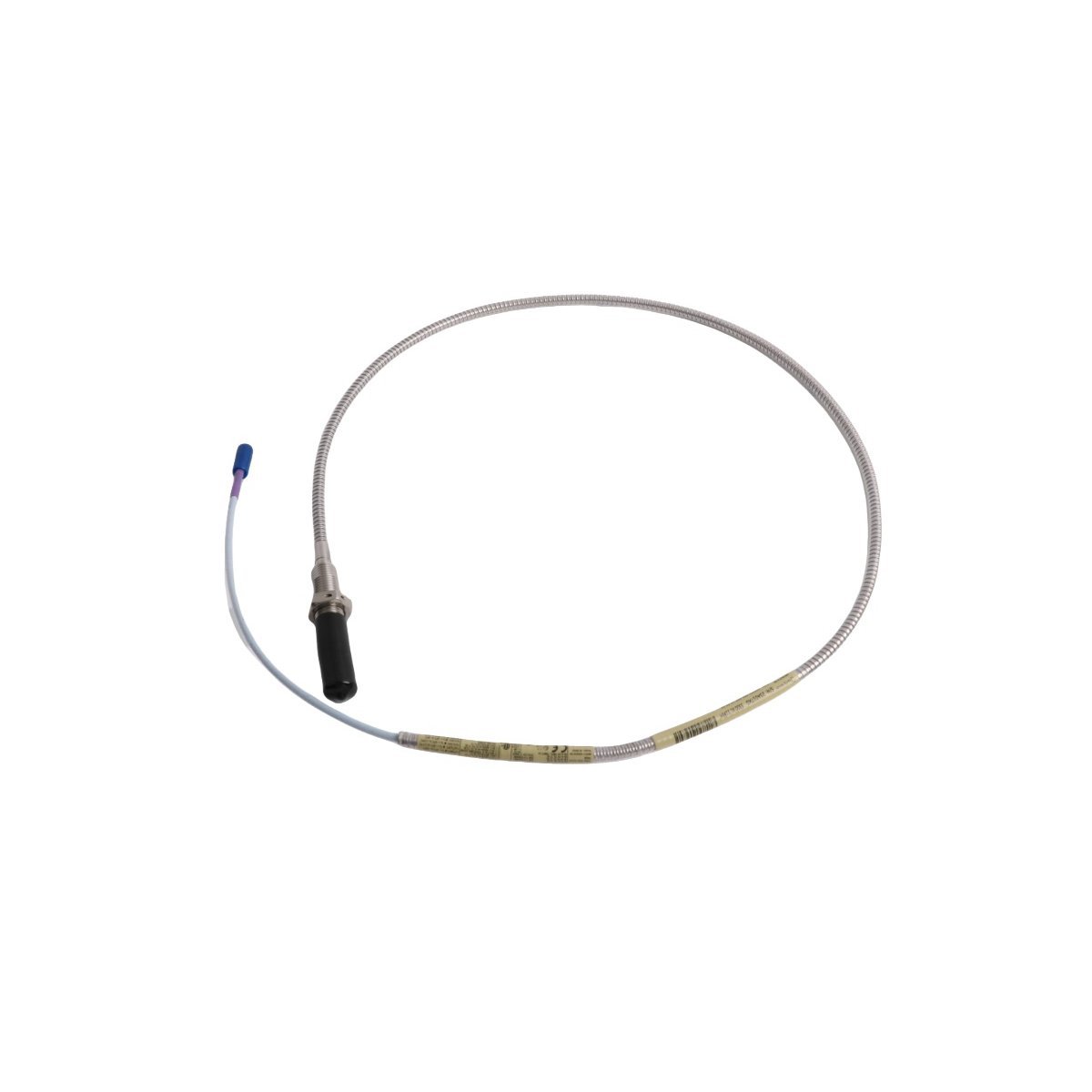

The Bently Nevada 330704-000-100-10-01-CN is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring in critical rotating machinery. As part of the trusted 3300 XL 11 mm Proximity Probe System, this model delivers exceptional linearity, thermal stability, and immunity to electromagnetic interference (EMI) — essential attributes for reliable condition monitoring in power generation, oil & gas, petrochemical, and heavy manufacturing environments.

Key Benefits

• Enhanced Signal Integrity: Features advanced eddy-current sensing technology with optimized coil design for superior signal-to-noise ratio and minimal phase shift across operating temperatures (–30°C to +120°C).
• Plug-and-Play Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems and legacy 3300 frameworks — simplifying retrofits and reducing commissioning time.
• Ruggedized Construction: Stainless steel housing with hermetically sealed connector and PTFE-insulated cable rated for harsh industrial conditions, including exposure to oil, steam, and corrosive atmospheres.

Typical Applications

This probe is widely deployed for shaft vibration, axial position, differential expansion, and keyphasor reference measurements on steam turbines, gas turbines, compressors, large motors, and centrifugal pumps. Its 11 mm diameter sensing face provides optimal balance between resolution and standoff range (typically 0.5–2.5 mm), making it ideal for OEM integrations and plant-wide predictive maintenance programs.

Detailed Specifications

Operational Capabilities

High-Fidelity Dynamic Response

Engineered for bandwidth up to 10 kHz, the 330704-000-100-10-01-CN ensures accurate capture of high-frequency rotor dynamics, including blade pass frequencies and subsynchronous vibrations — critical for early fault detection in high-speed turbomachinery.

Thermal Drift Compensation

Incorporates proprietary temperature-compensated coil windings and stable ferrite core materials, limiting sensitivity drift to <±0.05% per °C — significantly outperforming standard probes in ambient-variable installations.

EMI/RFI Resilience

Meets IEC 61000-4-3 (Level 3) and IEC 61000-4-6 (Level 3) immunity standards, ensuring uninterrupted operation near VFDs, switchgear, and high-power transmission lines without signal corruption.

Technical FAQ

Is this probe compatible with legacy 3300 monitors?

Yes — the 330704-000-100-10-01-CN is fully backward-compatible with all Bently Nevada 3300 series monitors (including 3300/16, 3300/20, and 3300/25), requiring no firmware upgrades or configuration changes.

What is the recommended calibration interval?

Bently Nevada recommends annual system calibration using certified traceable equipment. However, due to its robust construction and stable electronics, field recalibration is rarely needed unless subjected to mechanical shock or extreme thermal cycling.

Can it be used in explosive atmospheres?

Not intrinsically safe by default. For Class I, Div 1 hazardous locations, pairing with an approved safety barrier (e.g., Pepperl+Fuchs KFD2-UT2-Ex1) and proper conduit grounding is required per NEC Article 500 and IEC 60079-11.
