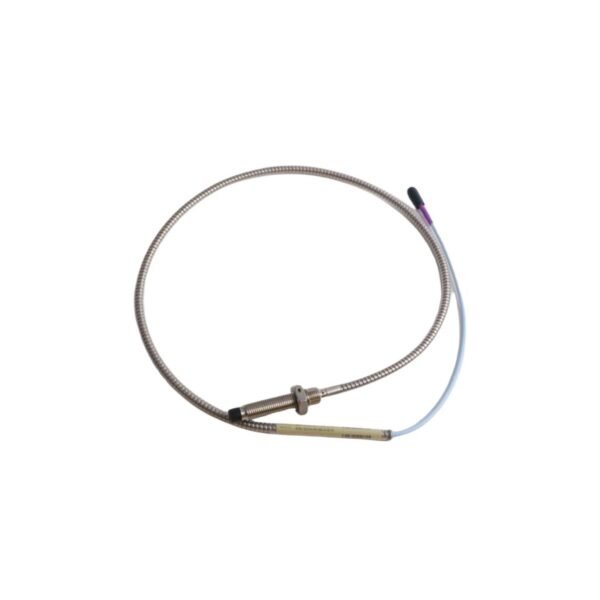

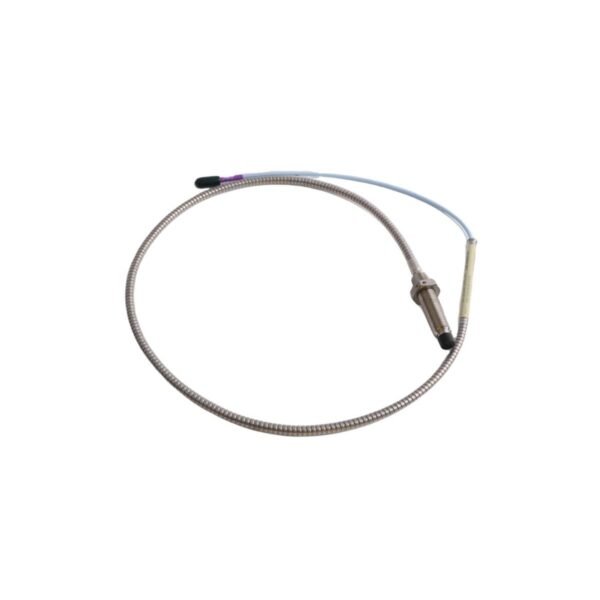

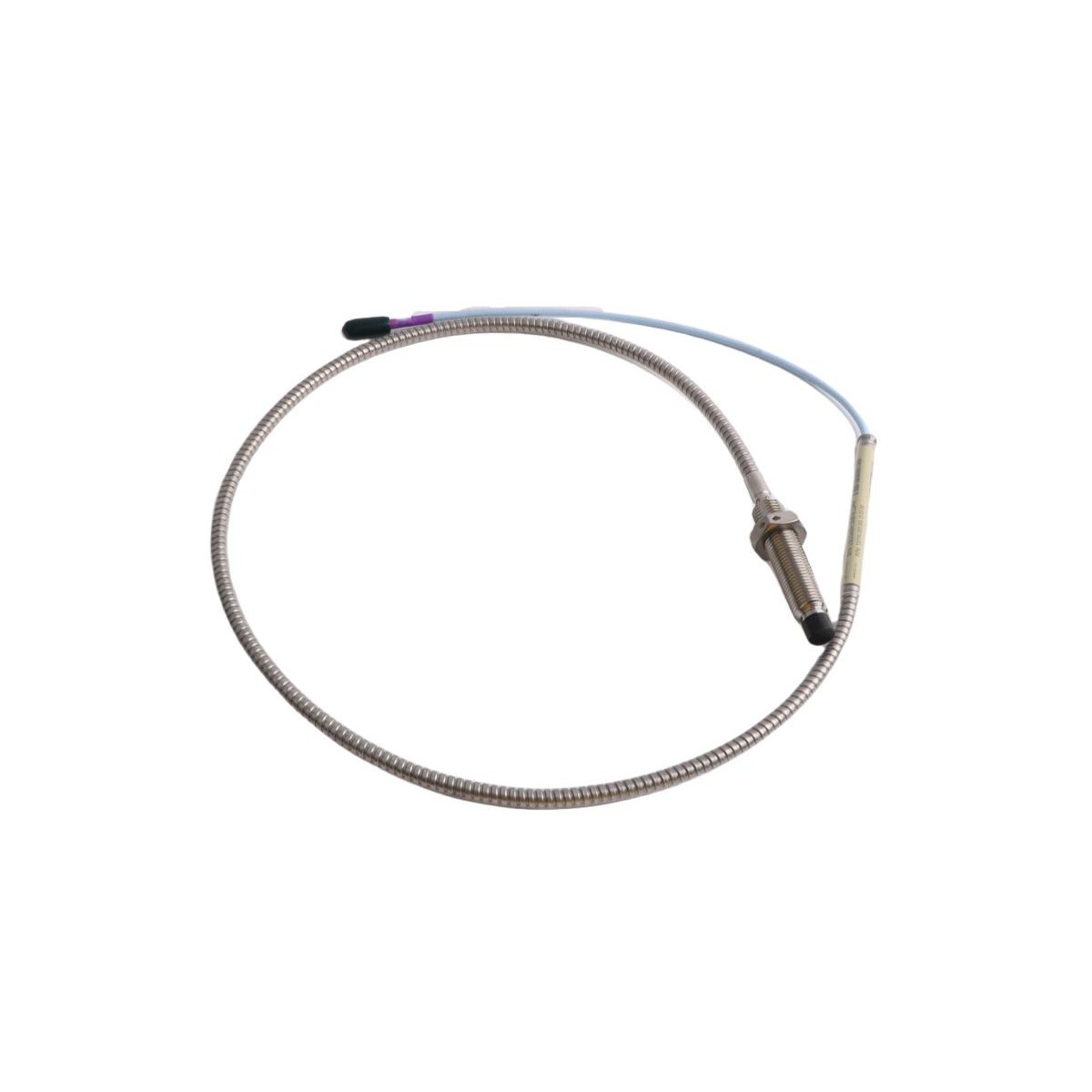

330704-000-060-10-02-00 | Bently Nevada | 3300 XL 11 mm Proximitor Sensor

### Product Description
This is a non-contact eddy-current proximity sensor designed for continuous displacement and vibration monitoring of rotating machinery shafts.
Moreover, it delivers high-resolution analog output for dynamic position measurement in harsh industrial environments.
Therefore, it integrates with Bently Nevada 3300 monitoring systems to support condition-based maintenance strategies.

### Technical Specifications

### Typical Applications
– Turbine shaft axial position and thrust bearing monitoring
– Compressor and motor shaft radial vibration and gap measurement
– Gearbox and centrifugal pump shaft displacement analysis
– Steam and gas turbine differential expansion monitoring

### FAQ
What is the standard output signal?
4–20 mA analog current output, linear with target displacement.

Is this sensor compatible with legacy 3300 rack systems?
Yes, it is fully compatible with all 3300 series monitor racks and accessories.

Does it require external power conditioning?
No, it operates directly from the 3300 system’s 24 VDC supply with integrated regulation.

What is the nominal sensing range?
1.0 mm (0.04 in) full-scale range, calibrated for 4.0–8.0 mm air gap.

Can it be used with non-ferrous targets?
No, it is calibrated for use with 4140 steel; performance degrades significantly on non-ferrous materials.
