Description

Technical Overview

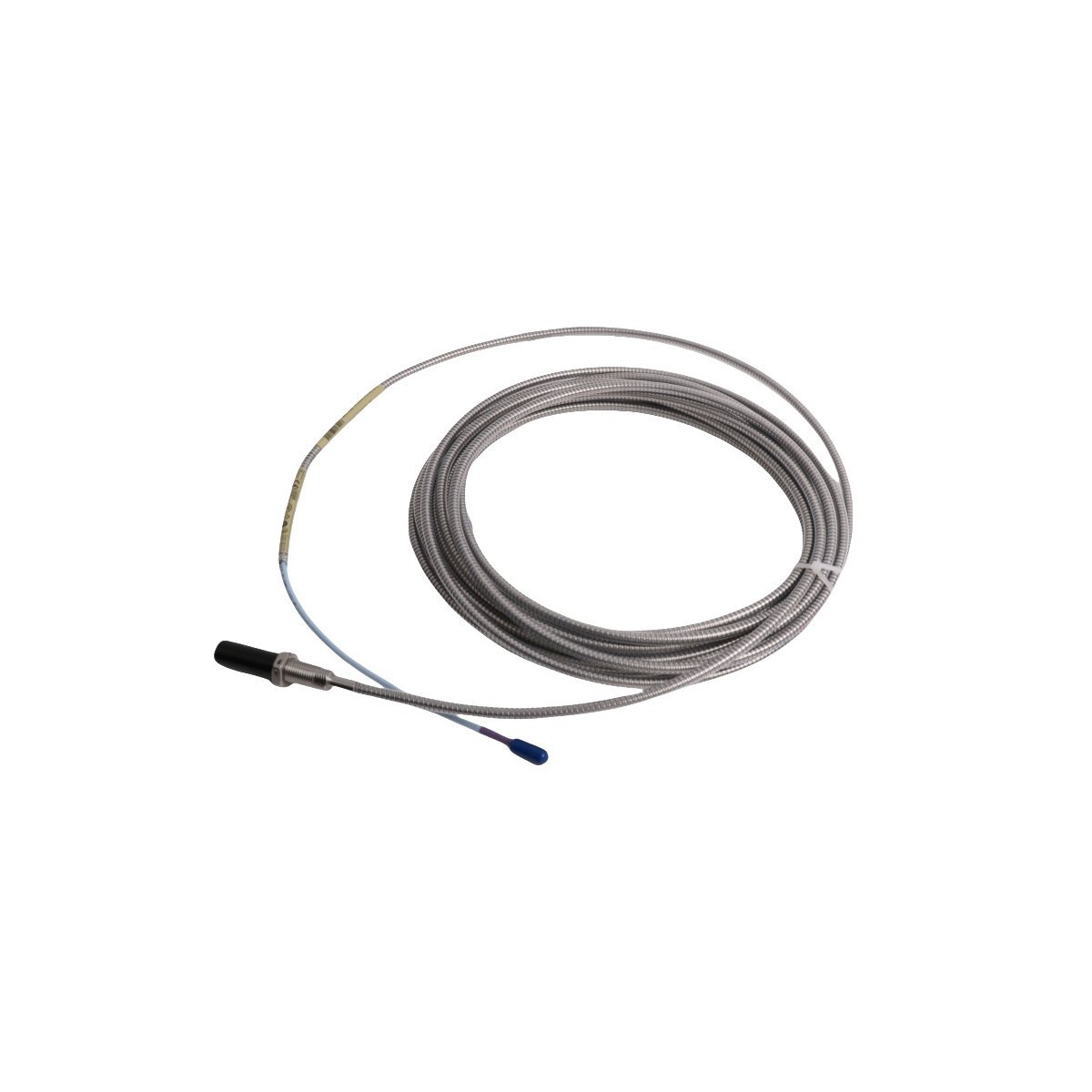

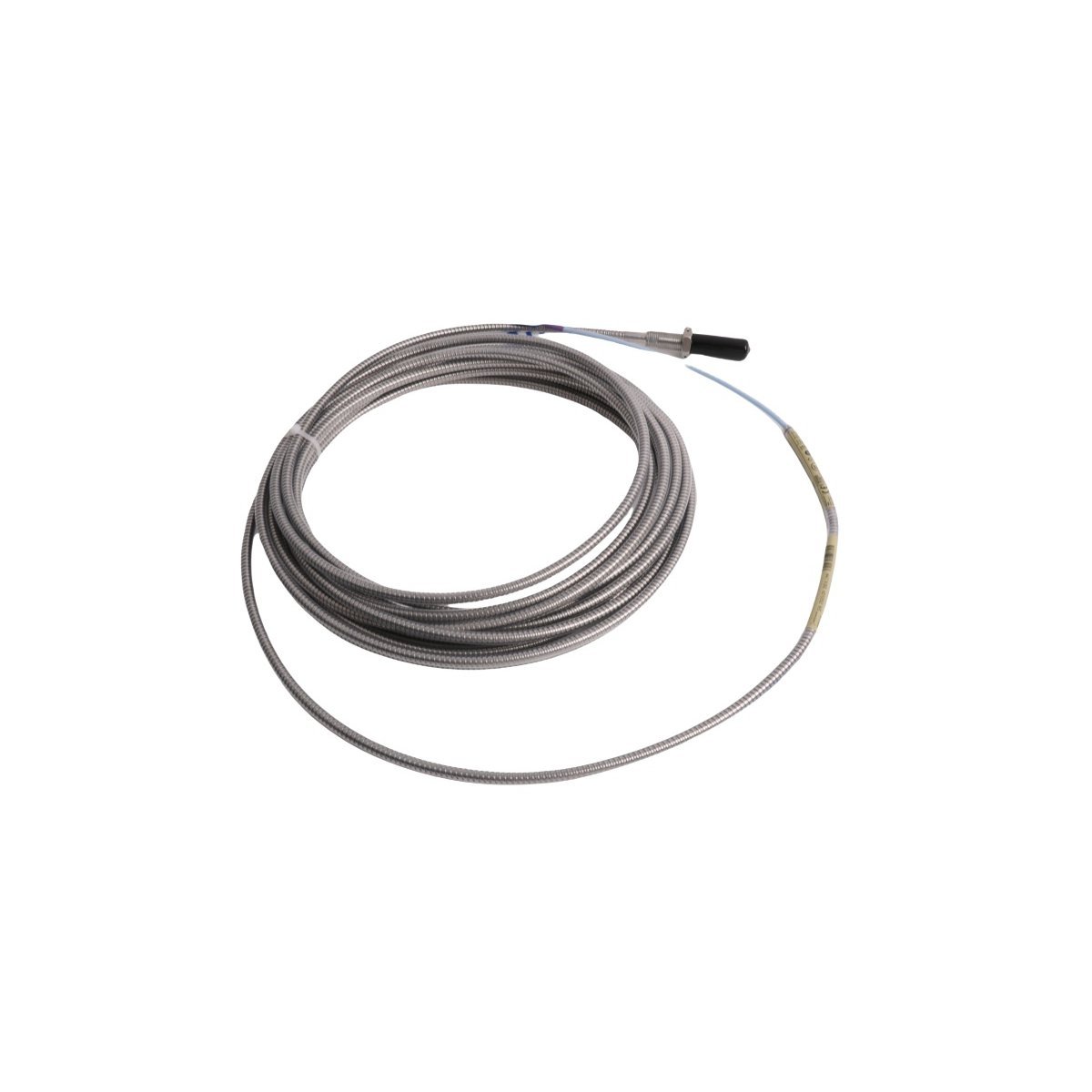

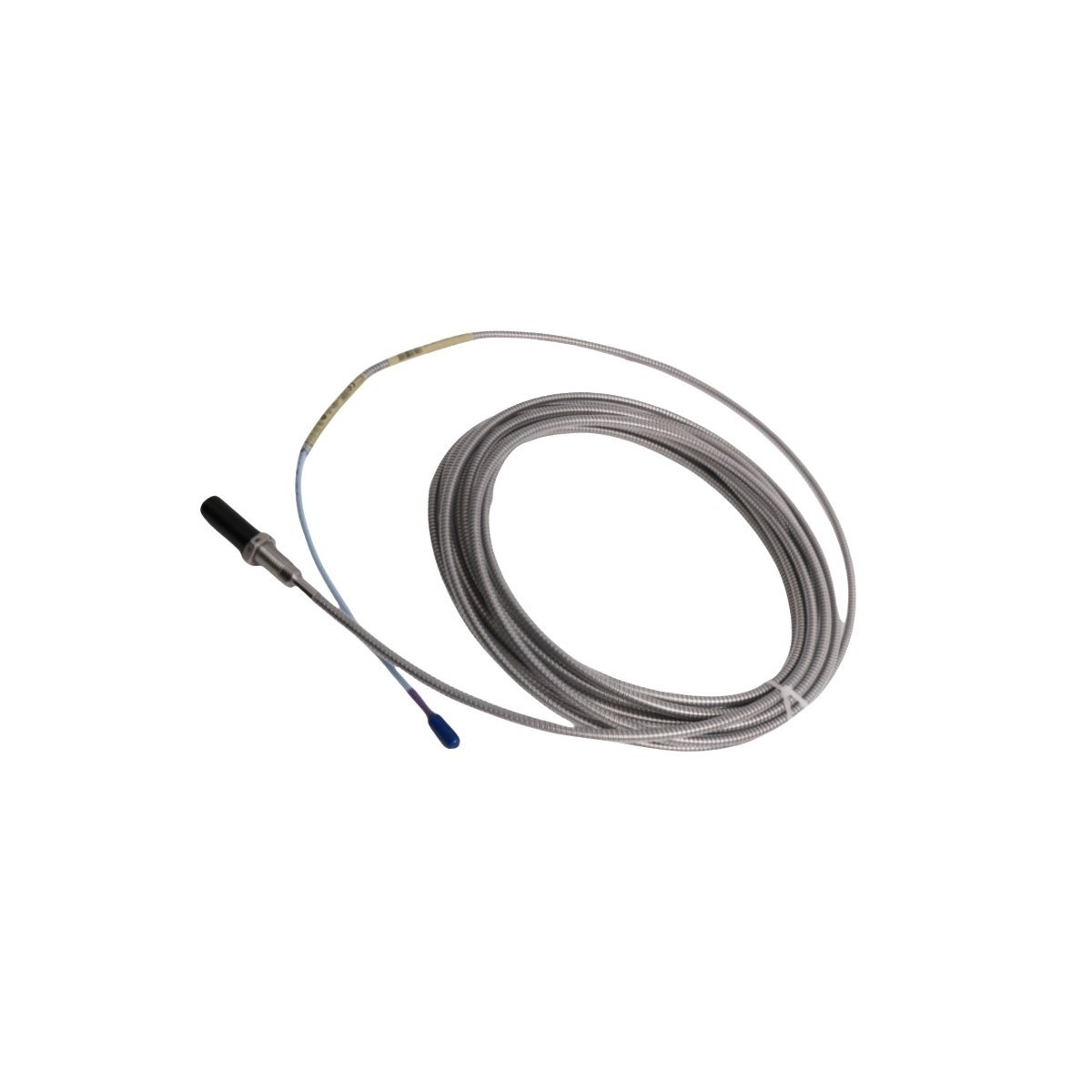

The Bently Nevada 330704-00-60-10-02-CN is a high-precision, non-contact proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the trusted 3300 XL series—renowned for exceptional stability, repeatability, and immunity to environmental interference. Designed specifically for use with 11 mm diameter probe tips, the 330704-00-60-10-02-CN delivers industry-leading linearity (±1% full scale) and thermal drift compensation across demanding industrial operating conditions. Its robust construction features a stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed tip assembly, ensuring long-term reliability in high-vibration, high-temperature, and chemically aggressive environments. The probe complies with ISO 10816, API 670 (5th Edition), and IEC 61000-6-2/6-4 electromagnetic compatibility standards. All units are factory-calibrated using traceable NIST-certified equipment and shipped with a full calibration certificate. This model is supplied in new, factory-fresh condition, directly sourced from authorized Baker Hughes distribution channels. Each unit carries a comprehensive 24-month limited warranty covering material defects and workmanship under normal use and proper installation. Originating from the United States, the probe adheres to stringent ASME, ANSI, and RoHS-compliant manufacturing protocols. With an overall length of 6.0 meters (19.7 ft), outer diameter of 6.35 mm (0.25 in), and a net weight of 0.82 kg (1.81 lbs), the 330704-00-60-10-02-CN integrates seamlessly into existing 3300 XL monitoring systems—including 3300 NSV, 3500, and System 1 platforms—without requiring firmware upgrades or hardware modifications. Its CN suffix denotes compliance with China-specific regulatory requirements, including CCC certification and GB/T 17626 electromagnetic immunity testing, making it ideal for deployment in power generation, petrochemical, and heavy industrial facilities across Asia-Pacific markets.

Detailed Specifications

Key Features

• Precision 11 mm Tip Geometry: Optimized for high-resolution measurement of small-diameter shafts and tight-clearance applications, delivering superior signal-to-noise ratio and reduced edge-effect error.
• Thermally Stable Calibration: Advanced temperature-compensated coil design ensures minimal zero-shift and sensitivity drift across extreme ambient fluctuations—from arctic compressor stations to tropical refinery environments.
• Hermetic Tip Seal: Laser-welded stainless steel tip housing prevents moisture ingress, oil contamination, and particulate accumulation—critical for extended service life in dirty or wet process areas.
• EMI/RFI Immunity: Fully shielded coaxial architecture and proprietary grounding topology suppress common-mode noise from variable frequency drives (VFDs), welding equipment, and high-power switching circuits.
• Plug-and-Play Compatibility: Seamless integration with all 3300 XL system components—including 3300 XL 11 mm preamps, 3500 rack modules, and System 1 diagnostic software—eliminating configuration overhead and reducing commissioning time by up to 40%.
• Traceable NIST Calibration: Each probe ships with a unique, laser-engraved serial number and a factory-issued calibration certificate traceable to National Institute of Standards and Technology (NIST) standards.
• CCC-Compliant Design: Specifically engineered to meet China’s mandatory CCC certification requirements, including flame-retardant jacketing (UL 94 V-0), enhanced surge protection, and localized EMC validation per GB/T 17626 series.
• Extended Service Life: Rated for >100,000 hours MTBF (Mean Time Between Failures) under continuous operation, significantly reducing unplanned downtime and lifecycle cost of ownership.

Applications

• Steam and Gas Turbines: Monitoring radial vibration and thrust position in OEM and retrofitted turbine trains across power generation, combined-cycle plants, and cogeneration facilities.
• Centrifugal Compressors: Critical shaft displacement and casing vibration analysis in oil & gas transmission, LNG liquefaction, and petrochemical process compression systems.
• Large Electric Motors and Generators: Detection of rotor eccentricity, bearing wear progression, and air-gap variation in high-inertia rotating equipment (>5 MW).
• Reciprocating Machinery: Piston rod runout and crosshead displacement measurement in large reciprocating compressors and pumps where traditional accelerometers lack resolution.
• Nuclear Power Plants: Safety-grade position monitoring for reactor coolant pumps and auxiliary feedwater systems, compliant with IEEE 344 seismic qualification requirements.
• Marine Propulsion Systems: Shaft alignment verification and dynamic load assessment on main propulsion turbines and reduction gears aboard commercial vessels and naval platforms.
• Wind Turbine Gearboxes: Low-speed shaft position trending and bearing preload analysis in offshore and onshore wind farms leveraging 3300 XL’s wide dynamic range and DC-coupled output.
• Industrial Fans and Blowers: Real-time monitoring of impeller runout and bearing degradation in HVAC, cement kiln, and steel mill forced-draft applications.
