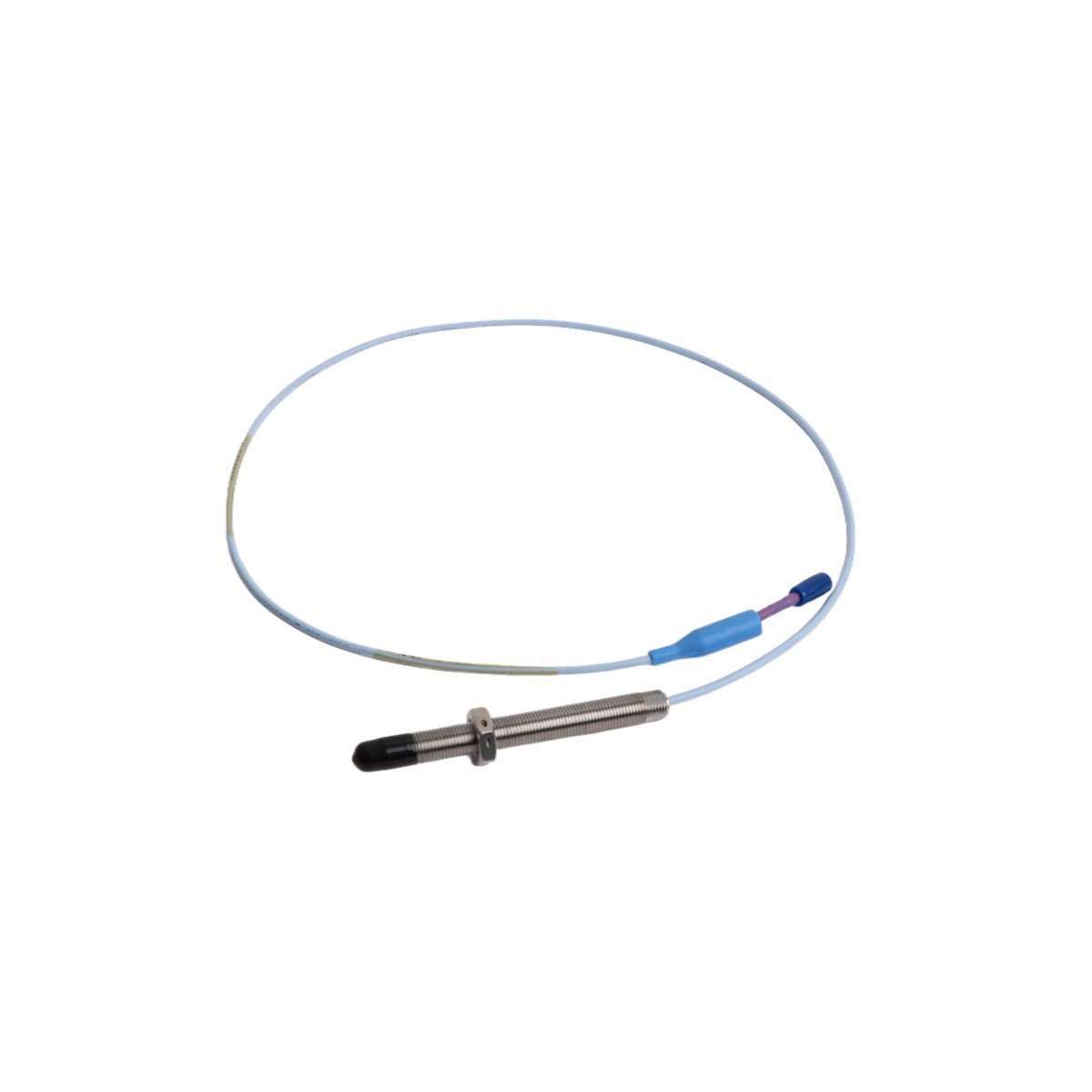

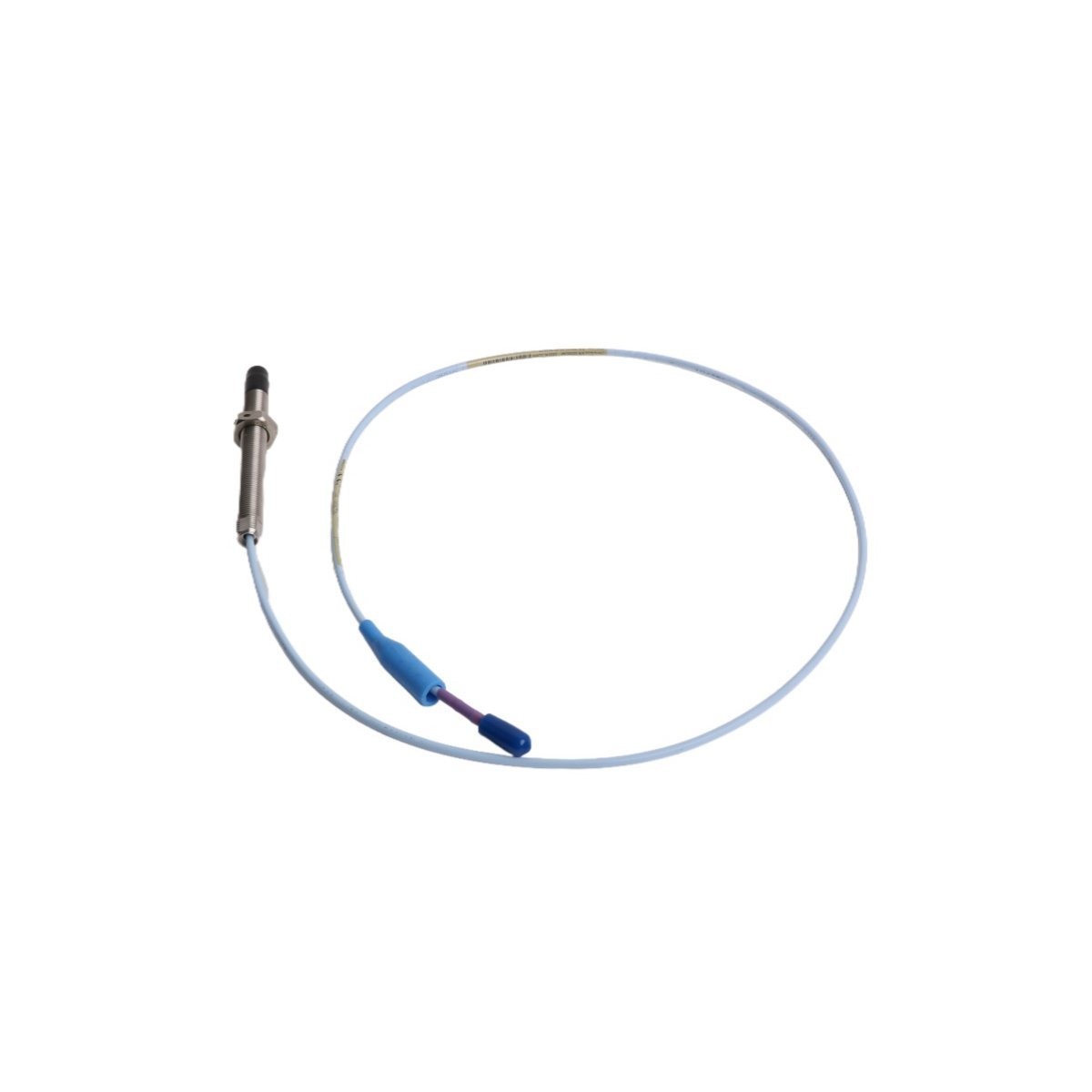

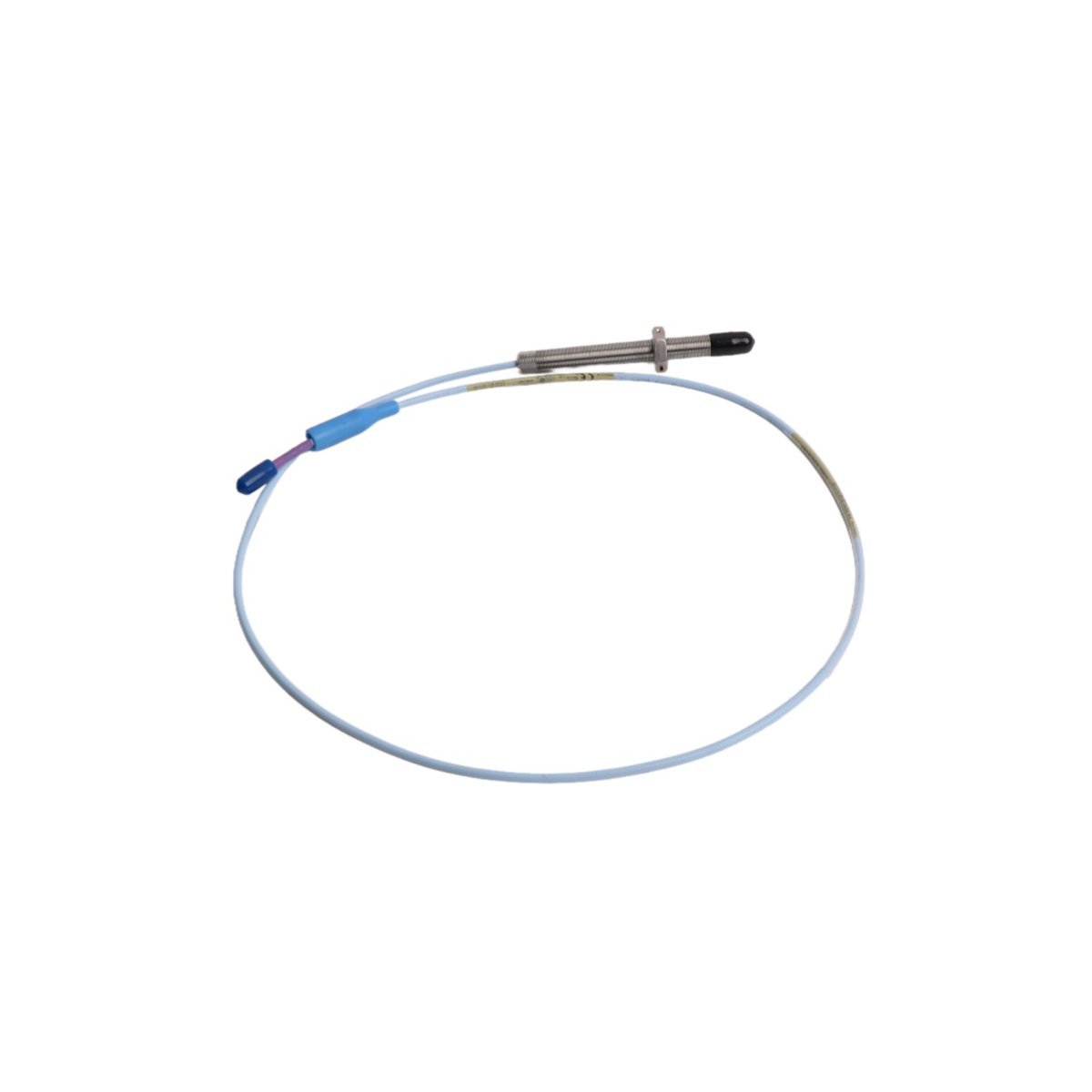

The Bently Nevada 330701-00-40-10-11-05 is a high-precision, non-contact eddy-current proximity probe engineered for continuous, real-time monitoring of shaft vibration, axial position, and differential expansion in rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance solutions, this probe is part of the industry-standard 3300 XL series—renowned for exceptional signal fidelity, thermal stability, and long-term reliability under demanding industrial conditions. Designed specifically for integration with the 3300 XL 11 mm sensor system architecture, the probe delivers linear output across its calibrated range with minimal temperature drift (<0.05% FS/°C) and outstanding immunity to electromagnetic interference (EMI). Its robust stainless steel housing, hermetically sealed construction, and high-purity ceramic insulator ensure consistent performance in environments subject to extreme temperatures (–30°C to +120°C ambient), high humidity, oil mist, and mechanical shock. The probe operates on the fundamental principle of eddy-current displacement measurement: an oscillating magnetic field generated by the probe’s coil induces eddy currents in the conductive target surface (typically ferromagnetic shaft material), with changes in impedance directly correlating to gap distance. This analog voltage output (–2 VDC to –18 VDC) is compatible with all 3300 XL monitoring systems—including 3500, 3300 NSV, and System 1™—enabling seamless data acquisition, alarm generation, and trending analysis. As a new, factory-fresh unit, the 330701-00-40-10-11-05 is supplied with full traceable calibration documentation compliant with ISO/IEC 17025 standards and backed by Baker Hughes’ comprehensive 24-month limited warranty.

Detailed Specifications

Key Features

• Ultra-Stable Calibration: Factory-calibrated to ±0.5% linearity over full 2.0 mm range using laser interferometry; includes NIST-traceable calibration certificate with serial-specific sensitivity, linearity, and thermal drift data.
• Hermetic Sealing: Dual O-ring and glass-to-metal seal design prevents moisture ingress, ensuring IP68-rated protection and eliminating internal condensation or corrosion—even during rapid thermal cycling.
• EMI/RFI Immunity: Integrated Faraday shielding and twisted-pair inner conductor configuration suppress common-mode noise up to 10 kV/m (1 GHz), critical for operation near VFDs, switchgear, and high-power motors.
• Optimized Thermal Performance: Low-coefficient-of-expansion ceramic insulator and matched thermal expansion housing minimize zero-shift and sensitivity drift across operating temperature extremes.
• Robust Mechanical Design: 316 stainless steel body with hardened tip resists abrasion, impact, and chemical exposure; rated for continuous operation at 10 g RMS vibration per MIL-STD-810H.
• Plug-and-Play Integration: Fully compatible with 3300 XL extension cables, proximitor modules (e.g., 3300 16-channel rack), and software platforms including System 1™ Machinery Health Manager and Asset Monitor.
• Sustainability-Ready: Compliant with EU RoHS 3 Directive (2015/863/EU) and REACH SVHC regulations; recyclable metal/ceramic construction supports circular economy initiatives.

Applications

• Turbomachinery Monitoring: Critical shaft vibration and thrust position measurement in steam turbines, gas turbines, and centrifugal compressors (ISO 10816-3 Class III/IV compliance).
• Rotating Equipment Protection: Integral component of API 670-compliant machinery protection systems (MPS) for pumps, fans, blowers, and motors in oil & gas, power generation, and chemical processing facilities.
• Differential Expansion Monitoring: Paired with dual-probe configurations to measure relative thermal growth between casings and rotors in high-temperature applications such as combined-cycle power plants.
• Startup/Shutdown Analysis: High-fidelity low-speed tracking (down to 0.1 rpm) for orbit analysis, rub detection, and critical speed mapping during commissioning and maintenance outages.
• Condition-Based Maintenance (CBM): Enables early fault detection—including imbalance, misalignment, bearing wear, and resonance—supporting ISO 18436-2 certified vibration analyst workflows.
• Renewable Energy Systems: Reliable shaft position monitoring in wind turbine gearboxes and hydroelectric generator sets exposed to variable load profiles and environmental stressors.
• Marine Propulsion Systems: Certified for use in marine-classified engines and reduction gears aboard commercial vessels and naval platforms (DNV-GL, ABS, LR approved).
