Description

Technical Overview

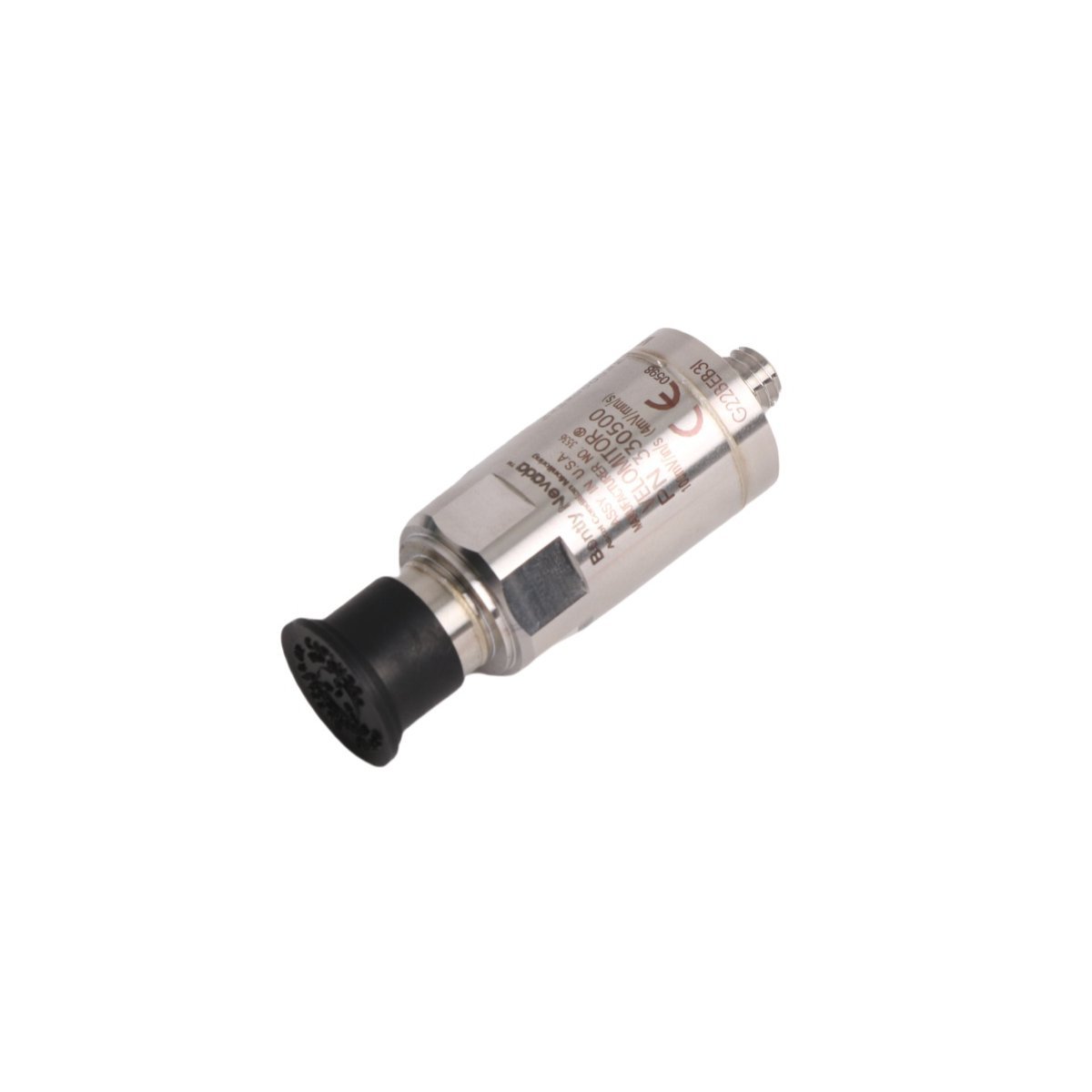

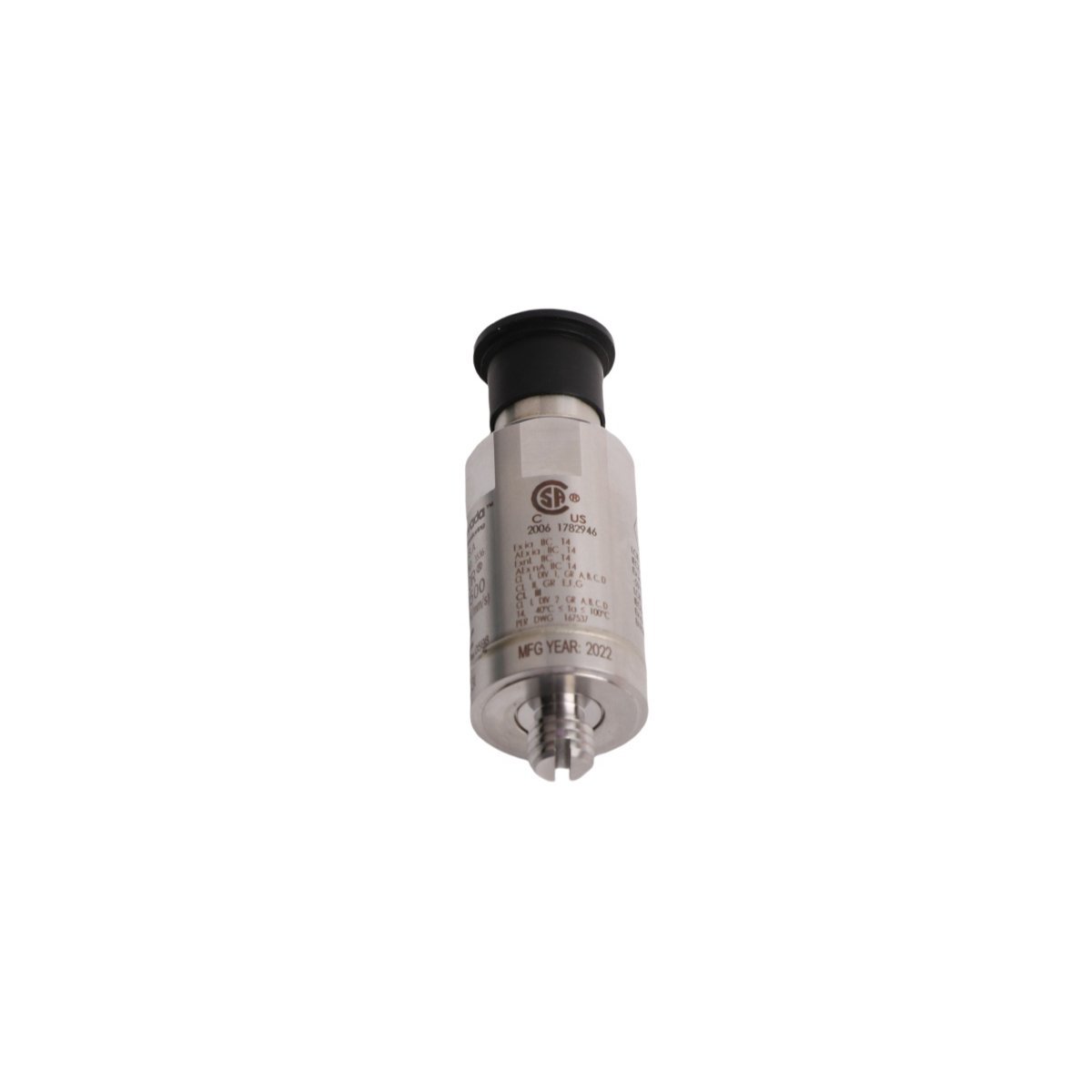

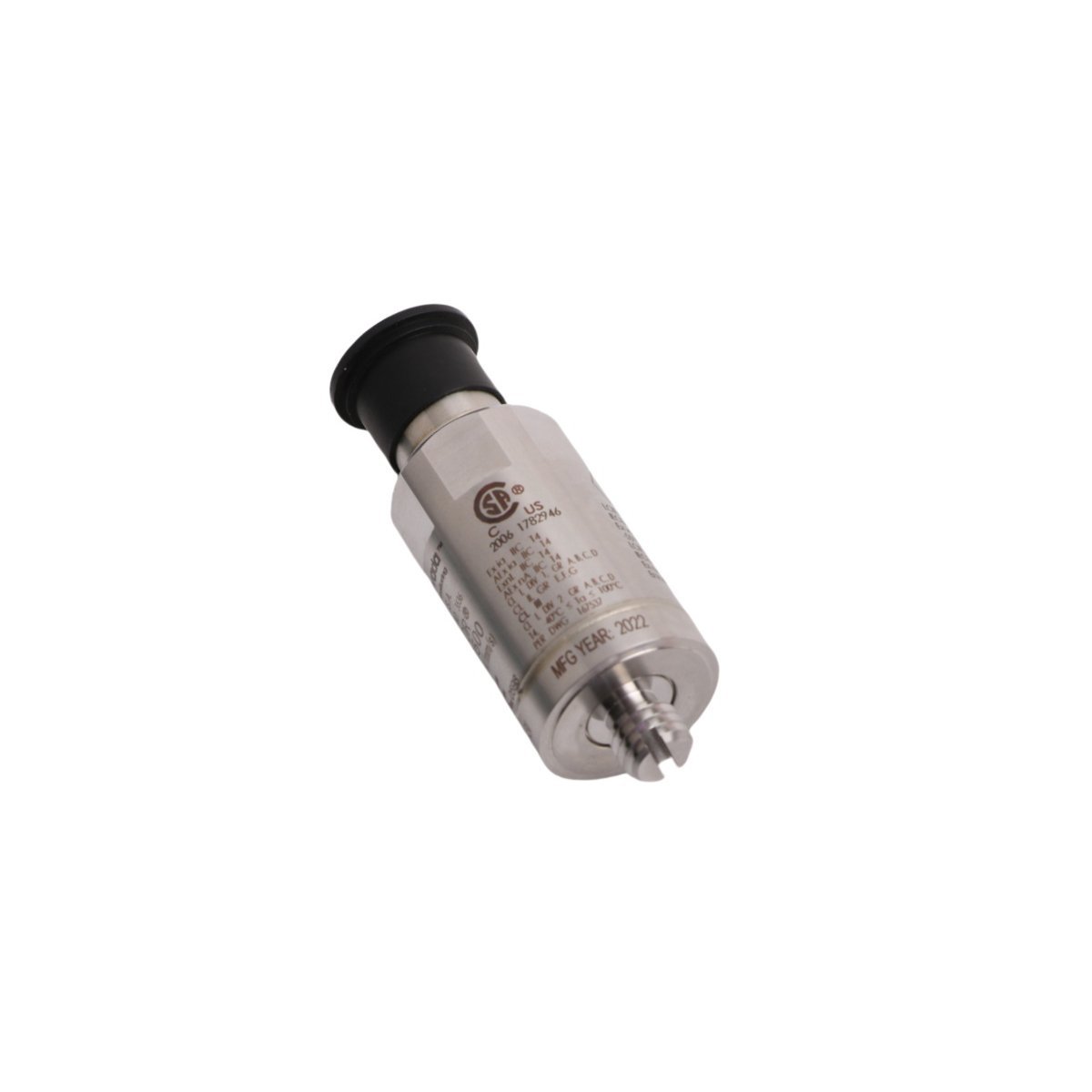

The Bently Nevada 330500-07-04 Velomitor Piezo-velocity Sensor is a high-performance, industrial-grade vibration monitoring transducer engineered for continuous, reliable measurement of velocity-based mechanical vibration in rotating and reciprocating machinery. Manufactured by Baker Hughes under the globally recognized Bently Nevada brand—a leader in asset condition monitoring and predictive maintenance solutions—this sensor leverages proprietary piezoelectric ceramic technology to deliver exceptional signal fidelity, wide dynamic range, and long-term stability. Designed specifically for integration into comprehensive machinery protection systems (MPS), the 330500-07-04 operates as a self-generating (IEPE-compatible) velocity sensor with built-in signal conditioning, eliminating the need for external charge amplifiers. Its robust stainless steel housing, hermetically sealed construction, and integrated 10–32 UNF stud mount ensure optimal performance in harsh industrial environments characterized by extreme temperatures, moisture, oil mist, electromagnetic interference (EMI), and mechanical shock. The sensor complies with international standards including ISO 2954 (vibration severity measurement), ISO 10816 (machinery vibration evaluation), and IEEE Std 112 (electrical interface compatibility). As a new, factory-fresh unit, it ships with full traceability, original calibration documentation, and is backed by a standard 24-month limited warranty. Originating from the United States, this sensor reflects rigorous American manufacturing protocols, precision metrology, and stringent quality control aligned with AS9100 and ISO 9001:2015 requirements. With its optimized frequency response (4.5 Hz to 1,000 Hz ±5%), low noise floor (<0.25 mV rms), and linear output (100 mV/(in/s)), the 330500-07-04 serves as a critical component in safeguarding mission-critical assets across power generation, oil & gas, petrochemical, water/wastewater, and heavy industrial sectors.

Detailed Specifications

Key Features

• True Velocity Output: Delivers direct, analog velocity signals proportional to vibration velocity (in/s or mm/s), enabling immediate interpretation without post-processing—ideal for real-time health monitoring and alarm triggering.
• IEPE Compatibility: Integrates seamlessly with industry-standard data acquisition systems, PLCs, DCS platforms, and Bently Nevada System 1™ software via constant-current excitation.
• Wide Operating Temperature Range: Maintains accuracy and reliability from cryogenic to high-heat environments—critical for turbine casings, compressor frames, and gearboxes.
• Hermetic Stainless Steel Construction: Resists corrosion, hydrocarbon exposure, steam cleaning, and aggressive chemical atmospheres common in refineries and offshore platforms.
• Low-Noise, High-Stability Design: Utilizes low-noise piezoceramic elements and internal thermal compensation to minimize drift and ensure calibration retention over 5+ years.
• Integrated Mounting Stud: Eliminates mounting variability and ensures consistent coupling—reducing installation error and enhancing repeatability in multi-sensor arrays.
• Factory-Calibrated & Traceable: Supplied with NIST-traceable calibration certificate (as-per ISO/IEC 17025), documenting sensitivity, frequency response, and phase linearity at multiple points.
• Plug-and-Play Integration: Compatible with Bently Nevada 3500, 3300, and 3700 series monitors, as well as third-party systems supporting IEPE sensors (e.g., National Instruments, Dewesoft, HBM).

Applications

• Rotating Equipment Monitoring: Continuous vibration surveillance of steam/gas turbines, centrifugal compressors, axial fans, and large electric motors—supporting API RP 500/505 and ISO 10816 compliance.
• Power Generation Assets: Critical monitoring of generator bearings, exciter housings, and condensate pump trains in fossil, nuclear, and combined-cycle plants.
• Oil & Gas Infrastructure: Protection of upstream pumping stations, midstream pipeline compressors, and downstream refinery centrifuges operating in hazardous (Class I Div 1) areas.
• Petrochemical Process Trains: Early detection of imbalance, misalignment, bearing degradation, and resonance in agitators, extruders, and reactor feed pumps.
• Water/Wastewater Treatment Plants: Reliable long-term monitoring of submersible and dry-pit pumps, blowers, and clarifier drives exposed to humidity and corrosive vapors.
• Condition-Based Maintenance Programs: Enables trend analysis, spectral diagnostics, and automated alerting within enterprise-wide CMMS/EAM platforms such as SAP PM and IBM Maximo.
• Machine Protection Systems (MPS): Serves as primary input for trip logic in safety-critical applications requiring SIL 2 certification per IEC 61511.
• Research & Development Testing: Used in laboratory vibration testing, modal analysis, and structural dynamics validation due to its flat phase response and minimal mass loading.
