Description

Technical Overview

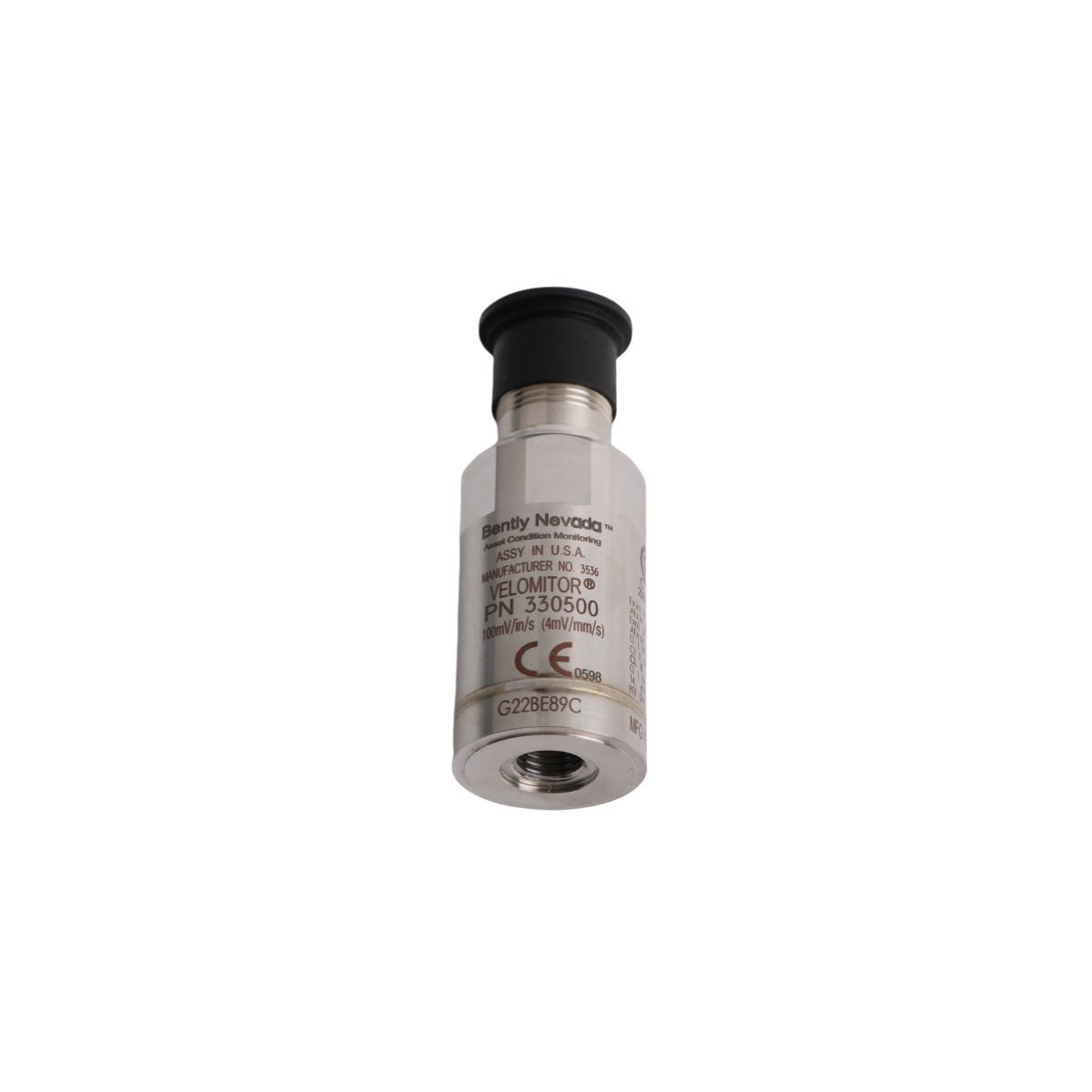

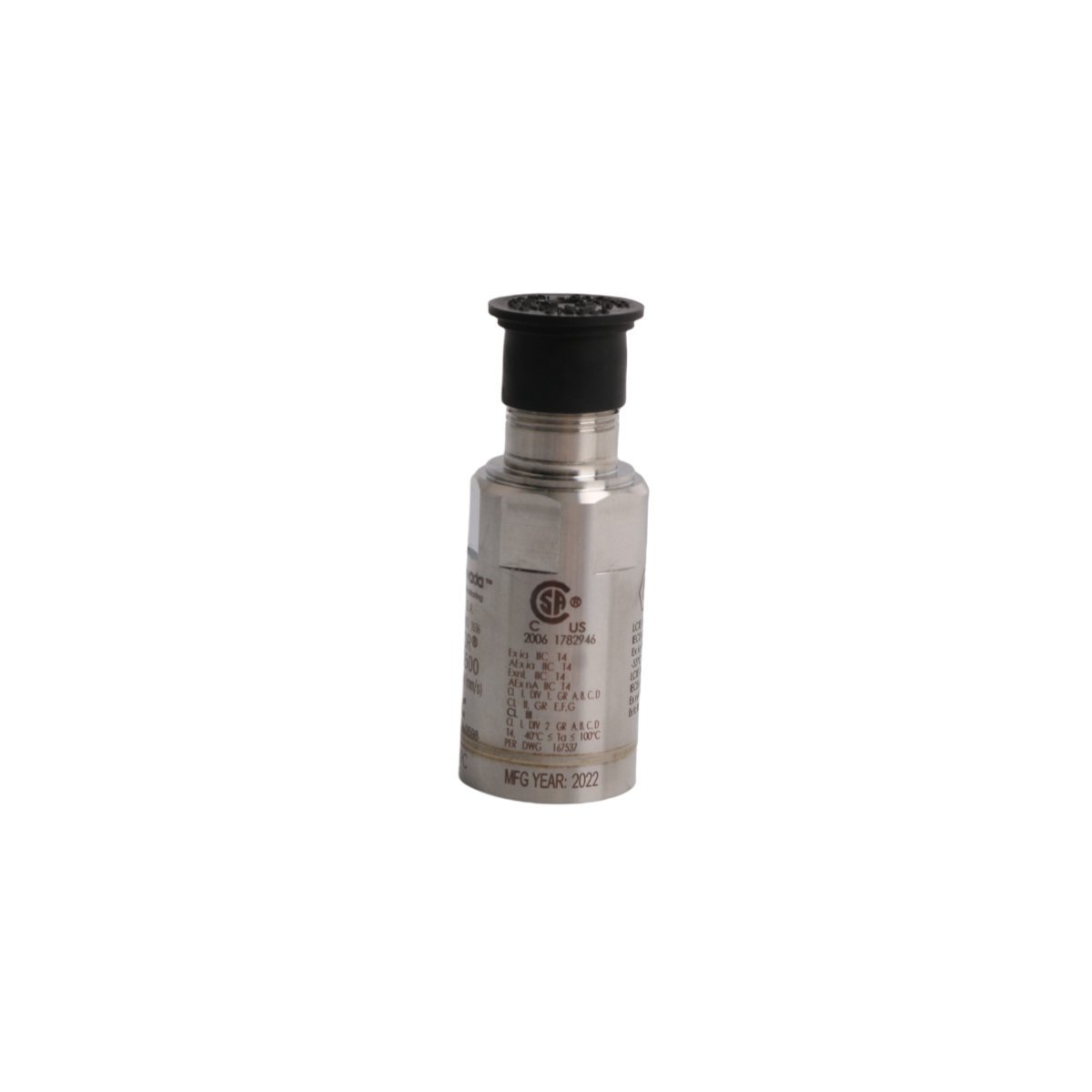

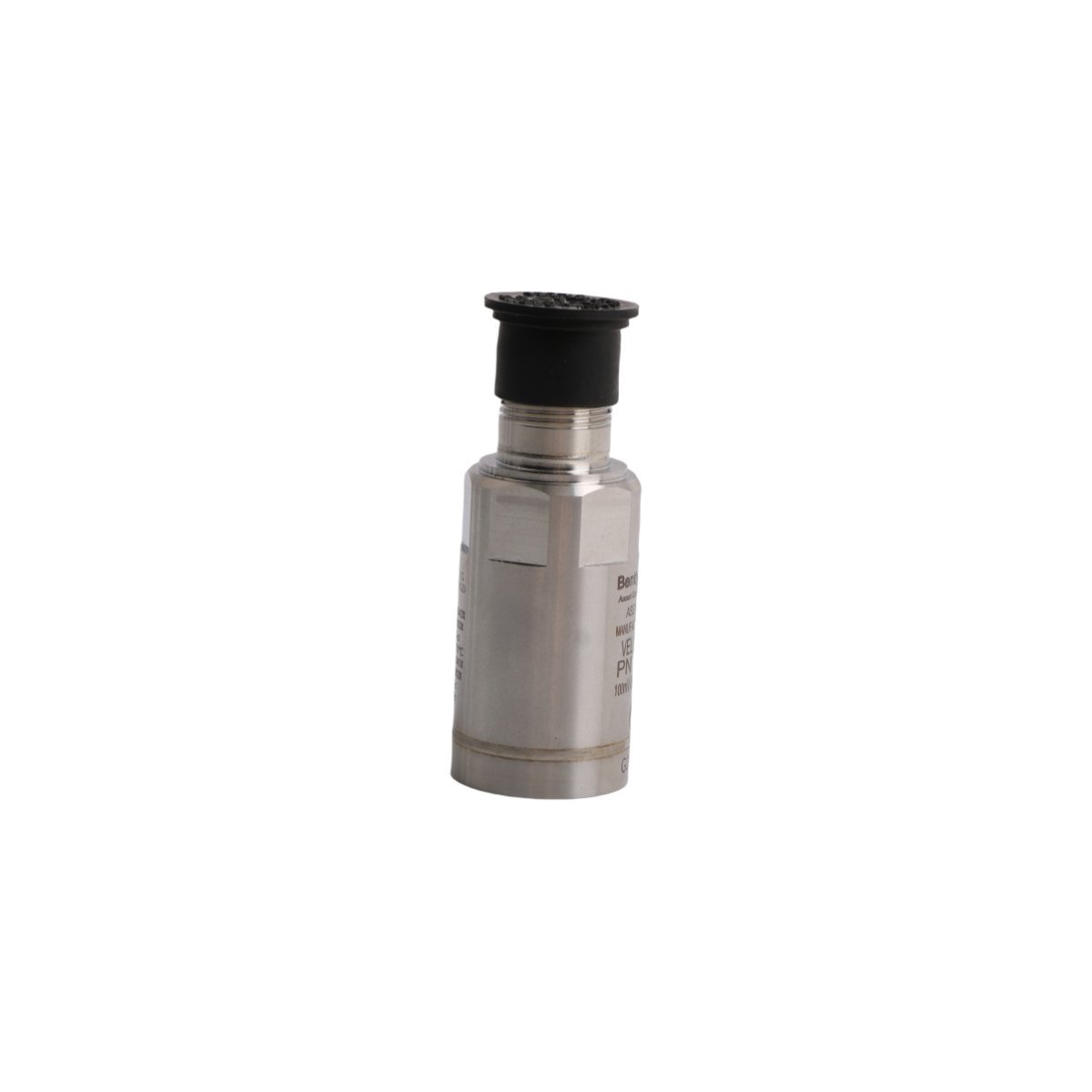

The Bently Nevada 330500-00-02 Velomitor Piezo-velocity Sensor is a high-reliability, industrial-grade vibration sensing solution engineered for continuous, real-time monitoring of rotating and reciprocating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in condition monitoring and predictive maintenance technologies, this sensor delivers precise velocity-based vibration measurements critical for early fault detection and asset health assessment. Unlike accelerometers or displacement probes, the 330500-00-02 utilizes a hermetically sealed piezoelectric ceramic element coupled with an integrated low-impedance voltage amplifier—enabling direct output of velocity-in-volts (V/in/s or V/mm/s) without external signal conditioning. Its rugged stainless steel housing, IP68-rated environmental protection, and broad operational temperature range (–65 °F to +250 °F / –54 °C to +121 °C) ensure consistent performance in demanding industrial settings—including offshore platforms, power generation facilities, petrochemical refineries, and heavy manufacturing plants. The sensor is supplied in new, factory-fresh condition, backed by a standard 24-month limited warranty from the date of shipment. Assembled in the United States, it complies with RoHS, CE, and ATEX directives (Category 3G, Zone 2), affirming its suitability for hazardous locations. With a compact cylindrical form factor (1.00 in diameter × 2.75 in length), low mass (5.2 oz / 147 g), and minimal mounting footprint, the 330500-00-02 integrates seamlessly into existing Bently Nevada 3500/3300 monitoring systems and third-party PLC/DCS architectures via standard 10–32 UNF stud or magnetic base mounting. Its intrinsic wide dynamic range (0.01 to 200 in/s peak), flat frequency response (4.5 Hz to 1,000 Hz ±5%), and negligible phase shift (<2° across operating band) make it ideal for detecting incipient bearing defects, gear mesh anomalies, imbalance, misalignment, and resonance conditions before catastrophic failure occurs.

Detailed Specifications

Key Features

• True Velocity Output: Delivers calibrated voltage proportional to vibration velocity (V/in/s), eliminating need for external integration hardware and reducing signal chain complexity.
• IEPE Compatibility: Integrates effortlessly with industry-standard IEPE-capable data acquisition systems, including Bently Nevada 3500/3300, SKF Microlog, Emerson DeltaV, and National Instruments platforms.
• Hermetic Sealing & Corrosion Resistance: Fully sealed piezoelectric element prevents moisture ingress, oil contamination, and particulate degradation—ensuring long-term stability and repeatability in harsh process environments.
• Wide Frequency Bandwidth: Optimized 4.5 Hz–1,000 Hz response captures both low-frequency structural resonances and high-frequency bearing defect signatures with exceptional fidelity.
• Hazardous Location Rated: Certified for safe operation in explosive atmospheres (Zone 2 / Class I Div 2), supporting compliance with OSHA, NFPA 70E, and API RP 500 requirements.
• Zero-Drift Design: Temperature-compensated electronics minimize thermal zero-shift (<0.5 mV/°C), ensuring measurement integrity across extreme ambient fluctuations.
• Plug-and-Play Installation: Pre-calibrated at factory; requires only constant-current excitation and standard BNC or 10–32 cabling—no field calibration needed.
• RoHS & REACH Compliant: Manufactured using environmentally responsible materials and processes aligned with global sustainability mandates.

Applications

• Turbomachinery Monitoring: Real-time velocity-based vibration surveillance of steam/gas turbines, centrifugal compressors, and turboexpanders for imbalance, blade pass, and casing resonance detection.
• Rotating Equipment Protection: Integration into emergency shutdown (ESD) and machinery protection systems (MPS) for pumps, motors, fans, and gearboxes per ISO 10816 and API 670 standards.
• Offshore & Subsea Asset Integrity: Deployment on platform topsides, subsea control modules, and floating production systems where corrosion resistance and IP68 sealing are mission-critical.
• Power Generation: Condition-based monitoring of generator sets, hydro turbine runners, and boiler feedwater pumps in fossil, nuclear, and renewable energy plants.
• Oil & Gas Downstream: Continuous surveillance of refinery pumps, agitators, and reciprocating compressors exposed to hydrocarbons, H₂S, and high-temperature process streams.
• Predictive Maintenance Programs: Foundation sensor for AI-driven analytics platforms performing spectral analysis, envelope demodulation, and trend-based failure forecasting.
• Structural Health Monitoring: Low-frequency velocity measurement for foundation vibration, piping fatigue assessment, and seismic response evaluation in critical infrastructure.
• OEM Integration: Embedded directly into original equipment manufacturer designs for industrial drives, HVAC chillers, and material handling systems requiring embedded diagnostics.
