Technical Overview

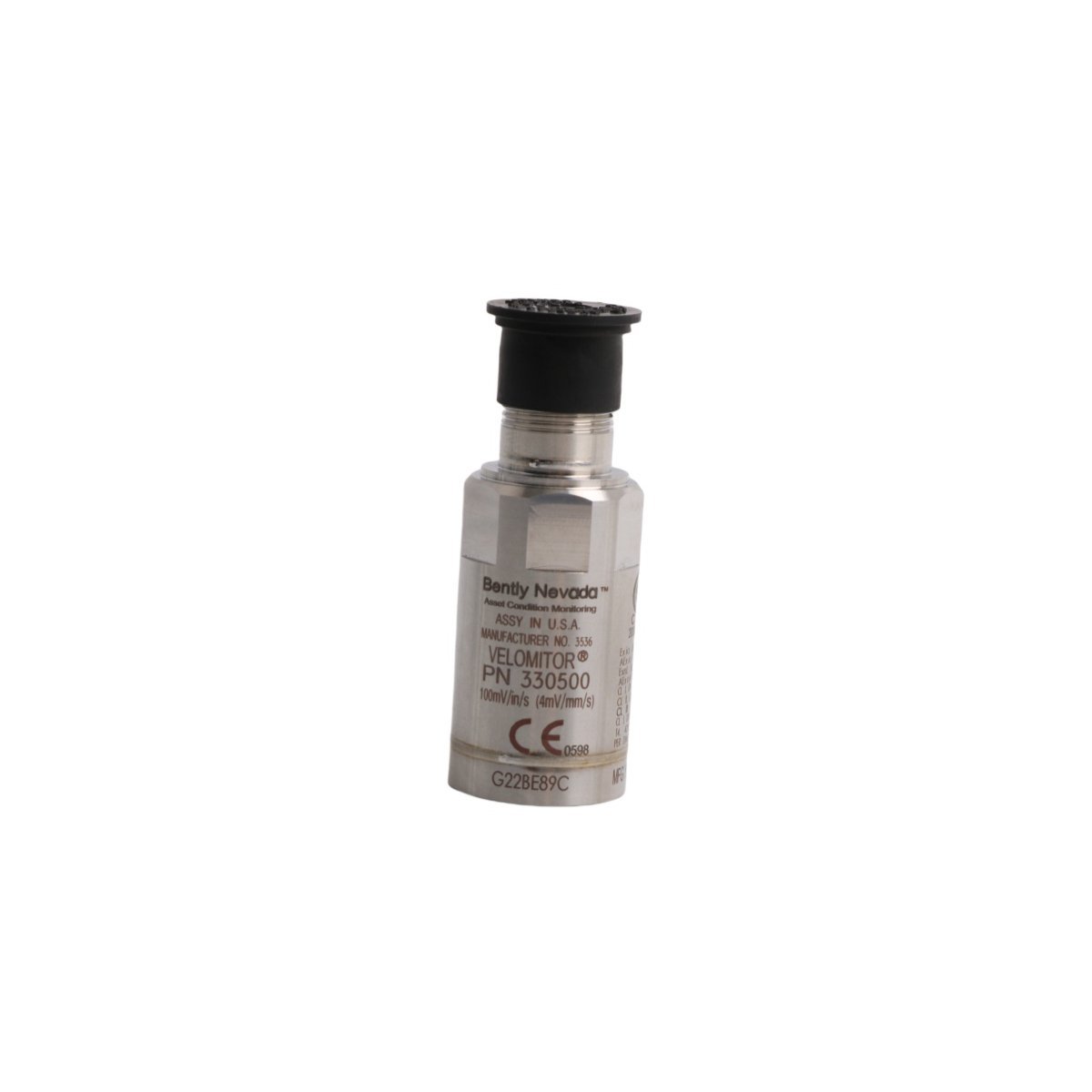

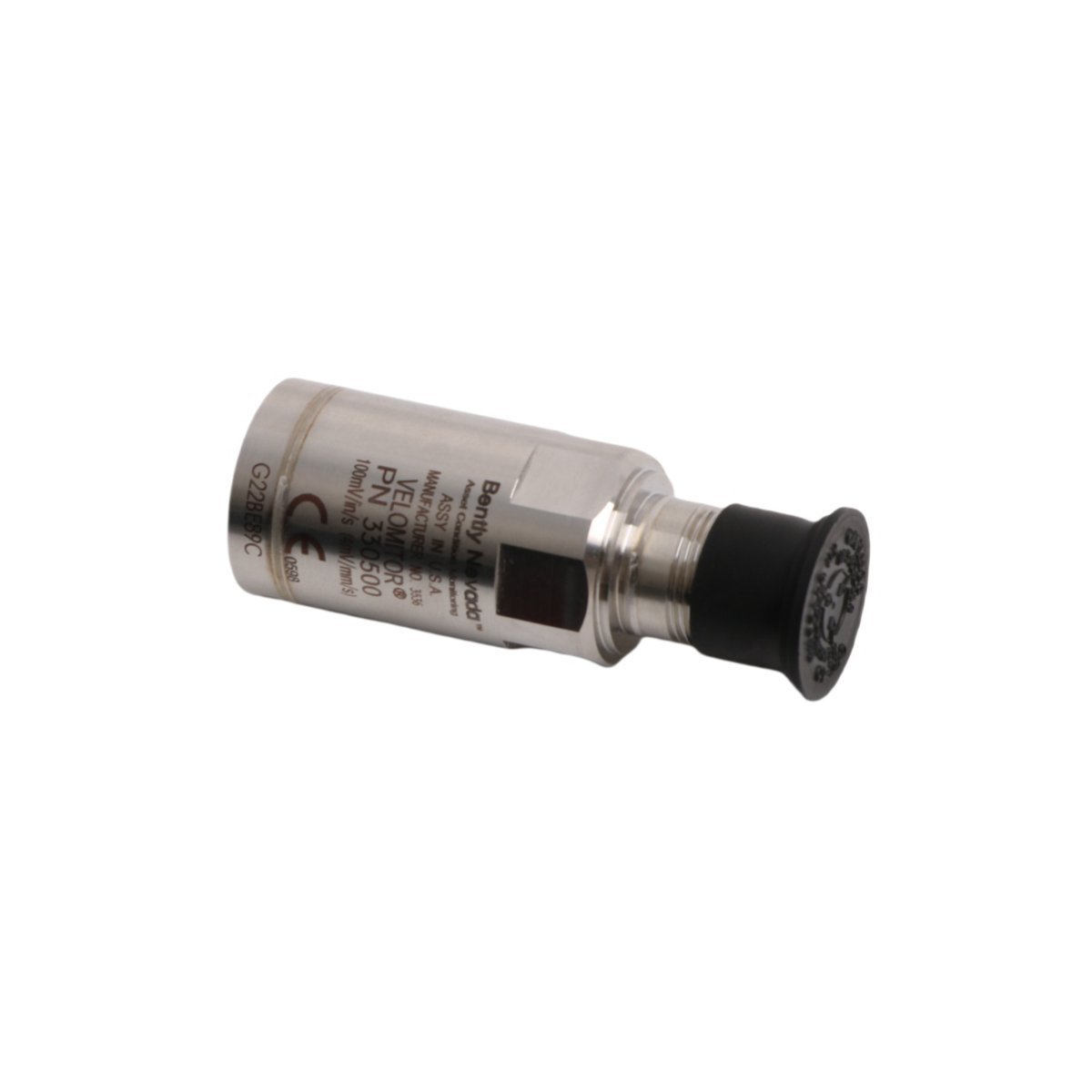

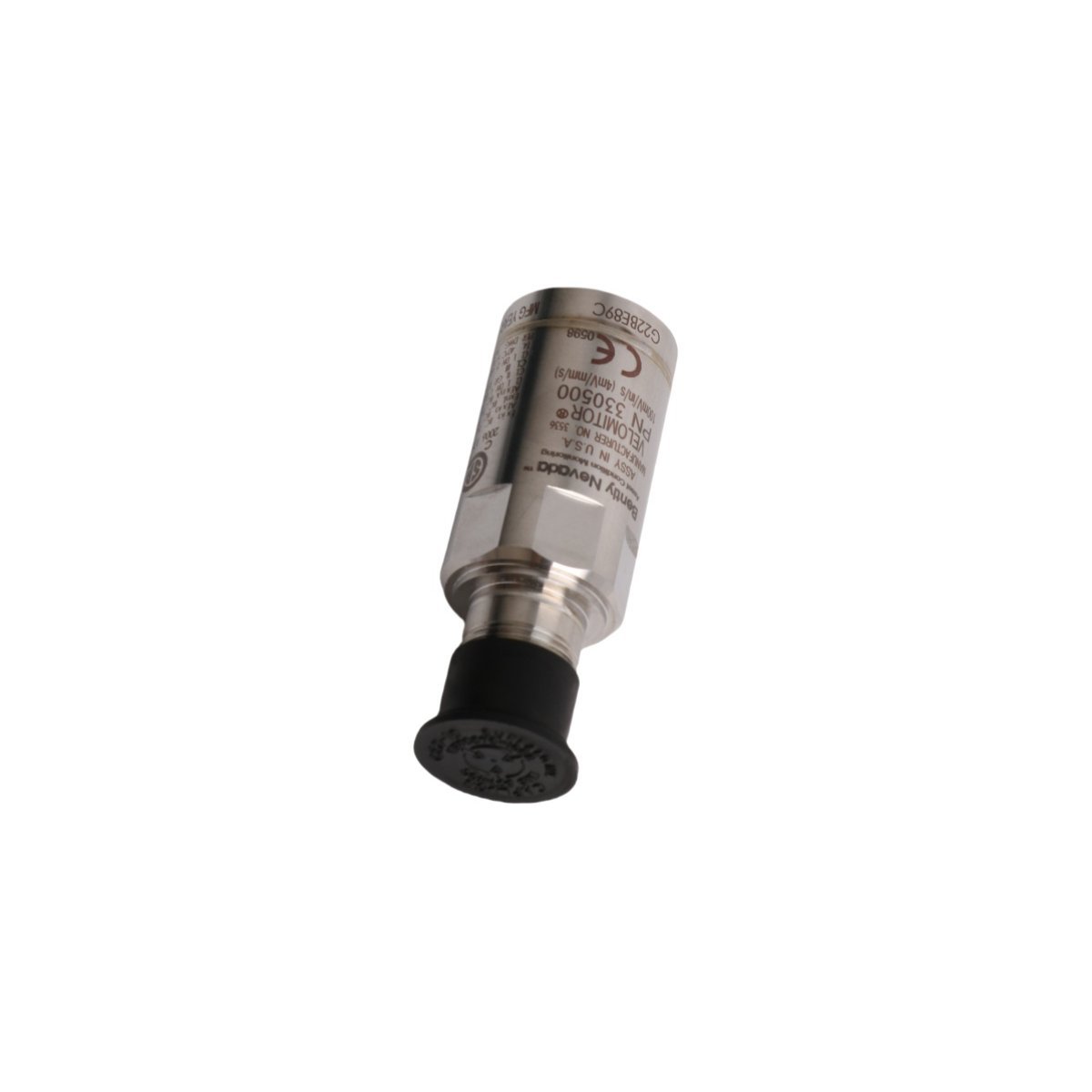

The Bently Nevada 330500-00-01 Velomitor Piezo-velocity Sensor is a high-reliability, industrial-grade vibration sensing solution engineered for continuous condition monitoring and predictive maintenance of rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand—a globally recognized leader in asset protection and machinery health management), this sensor delivers precise, low-noise velocity measurements across a broad frequency range without requiring external power or signal conditioning. As a self-generating piezoelectric velocity transducer, the 330500-00-01 converts mechanical vibration directly into an analog voltage output proportional to velocity (in mV/mm/s), eliminating dependency on external power supplies, charge amplifiers, or complex cabling infrastructure. Its rugged stainless steel housing, hermetically sealed construction, and integrated 10–32 UNF stud mount ensure exceptional durability in harsh environments—including exposure to oil mist, dust, moisture, and wide ambient temperature fluctuations (–65 °F to +250 °F / –54 °C to +121 °C). Designed for OEM integration and field retrofits alike, the sensor complies with IEEE Std 279–2020 and meets IEC 60068-2 environmental test standards. The 330500-00-01 is supplied new in original factory packaging, backed by a full 24-month limited warranty, and manufactured in the United States—ensuring strict adherence to ASME, ISO 9001:2015, and ITAR-compliant quality control protocols. With its optimized sensitivity, wide dynamic range, and proven long-term stability, this sensor serves as a cornerstone component in critical vibration monitoring systems deployed across power generation, oil & gas, petrochemical, pulp & paper, and water/wastewater infrastructure.

Detailed Specifications

Key Features

• True Self-Powered Operation: Utilizes robust piezoelectric ceramic elements to generate output voltage without external excitation—reducing system complexity, power consumption, and failure points.
• Wideband Frequency Response: Delivers accurate velocity measurements from sub-harmonic startup frequencies (2.5 Hz) through gearmesh and bearing defect ranges (up to 10 kHz), enabling comprehensive fault detection.
• Hermetic Stainless Steel Housing: Precision-machined 316 stainless steel body with glass-to-metal feedthroughs ensures long-term reliability in corrosive, high-vibration, and high-temperature industrial settings.
• Low-Impedance Output: Integrated electronics provide low-output impedance (<100 Ω), minimizing noise susceptibility and enabling transmission over extended cable runs (up to 1,000 ft with proper shielding).
• OEM-Ready Integration: Compact cylindrical form factor, standardized mounting thread, and industry-standard BNC/10–32 output simplify drop-in replacement and panel-mount deployment in legacy and next-generation monitoring systems.
• Traceable Calibration & Documentation: Each unit ships with NIST-traceable calibration certificate, serial-number-matched test data, and full compliance documentation for regulatory audits and QA/QC requirements.
• Global Certification Coverage: Certified for hazardous locations (ATEX/IECEx Zone 0/1), functional safety (SIL 2), and electromagnetic compatibility (EMC) per EN 61000-6-2/-4, ensuring universal deployability.
• Zero Drift Design: Advanced internal compensation eliminates thermal drift and baseline shift—critical for trending low-amplitude vibration changes over months or years.

Applications

• Rotating Equipment Monitoring: Continuous vibration surveillance of centrifugal pumps, compressors, steam and gas turbines, electric motors, and large fans in critical process plants.
• Predictive Maintenance Programs: Integration into Bently Nevada System 1®, Asset Monitor, or third-party platforms (e.g., Emerson DeltaV, Honeywell Experion, Siemens Desigo) for automated fault pattern recognition and remaining useful life estimation.
• OEM Machinery Health Systems: Embedded sensor solution for original equipment manufacturers building smart pumps, gearboxes, and motor-driven systems with built-in diagnostics.
• Power Generation Assets: Vibration monitoring of generator bearings, exciter shafts, and auxiliary systems in nuclear, combined-cycle, hydroelectric, and renewable energy facilities.
• Oil & Gas Downstream Infrastructure: Monitoring of refinery pumps, blowers, and compressor trains exposed to hydrocarbon vapors, high humidity, and thermal cycling.
• Municipal & Industrial Water Systems: Condition-based monitoring of wastewater lift station pumps, desalination RO booster units, and HVAC chillers in mission-critical infrastructure.
• Retrofit & Brownfield Upgrades: Direct replacement for aging velocity sensors in legacy Bently Nevada 3300, 3500, and 1900 systems—maintaining compatibility while enhancing signal integrity and longevity.
• Research & Development Labs: High-fidelity vibration data acquisition for modal analysis, structural dynamics testing, and tribology studies requiring phase-coherent, broadband velocity outputs.
