Description

Technical Overview

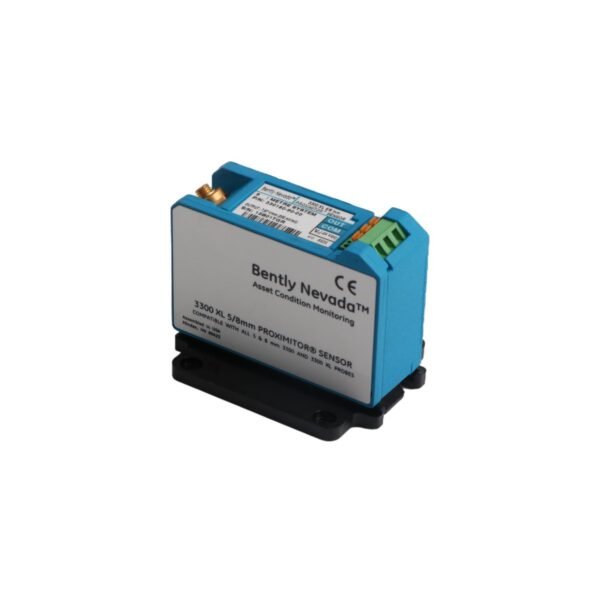

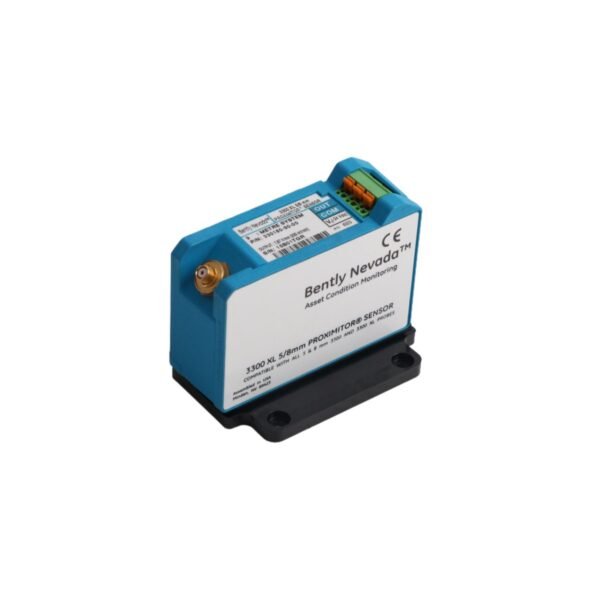

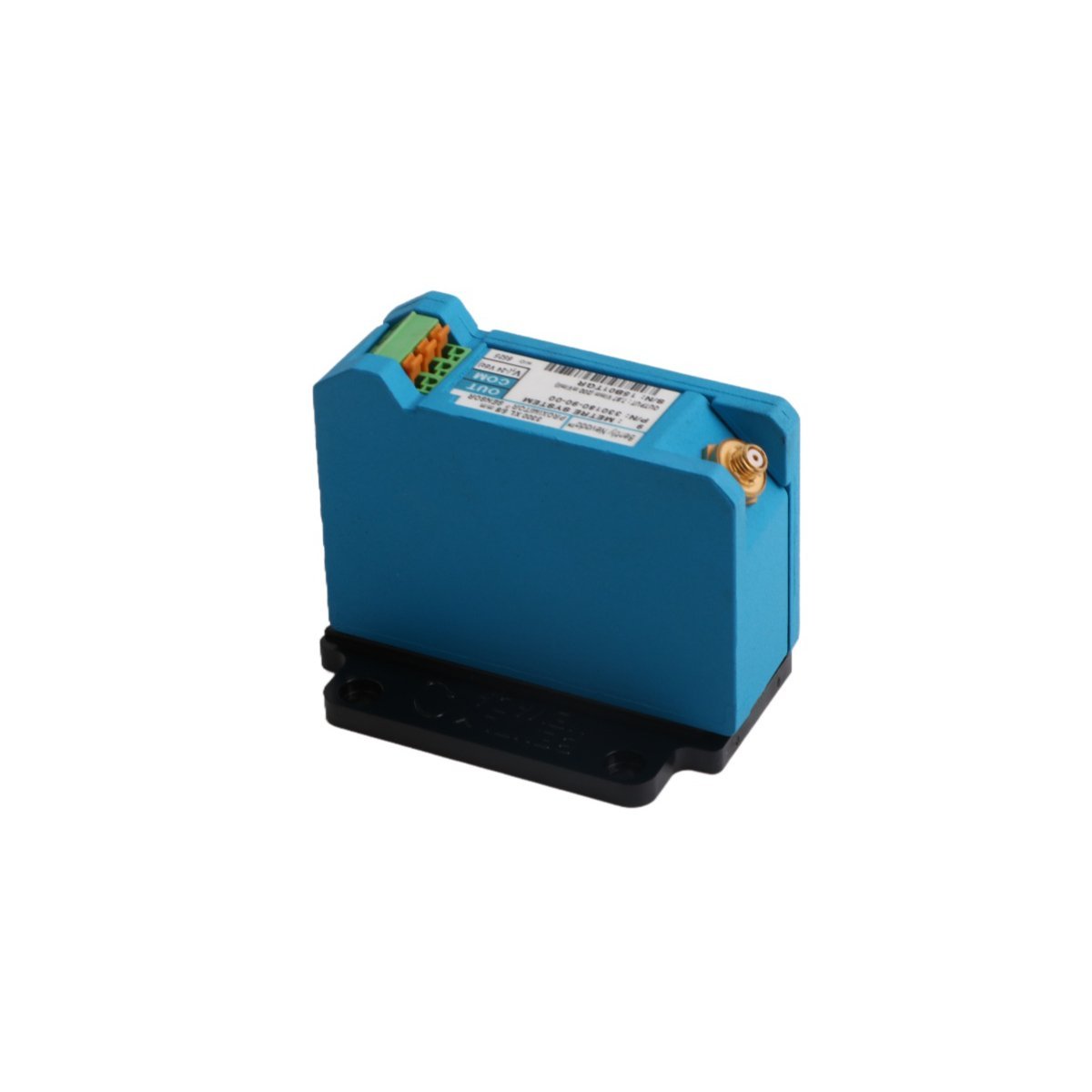

The Bently Nevada 330180-90-00 is a high-performance 3300 XL Proximitor Sensor, engineered for precision non-contact displacement and vibration monitoring in critical rotating machinery applications. Designed as part of the industry-standard 3300 XL series, this sensor delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity—making it ideal for use in turbomachinery, compressors, steam and gas turbines, and large electric motors operating in demanding industrial environments.

Featuring a robust stainless-steel housing and hermetically sealed construction, the 330180-90-00 ensures long-term reliability under extreme temperatures, high vibration, and corrosive atmospheres. Its integrated probe-to-cable design eliminates field termination points, reducing installation errors and enhancing signal integrity. Compatible with all 3300 XL monitoring systems—including the 3500/22M, 3500/42M, and 3500/50M rack-based platforms—the sensor enables seamless integration into existing Bently Nevada condition monitoring infrastructures.

Detailed Specifications

• Model Number: 330180-90-00
• Brand: Bently Nevada (Baker Hughes)
• Sensor Type: 3300 XL Proximitor Sensor (Non-contact eddy-current)
• Probe Diameter: 8 mm (0.315 in)
• Linear Range: 2.0 mm (0.080 in)
• Sensitivity: 4.0 V/mm (100 mV/mil)
• Output Signal: DC voltage proportional to target gap (–24 VDC to –16 VDC supply)
• Operating Temperature Range: –30°C to +120°C (probe); –40°C to +85°C (extension cable &前置器)
• Environmental Rating: IP67 (probe), NEMA 4X (connector)
• Cable Length: 5.0 meters (standard, integral)
• Compliance: ATEX II 2G Ex ia IIC T4 Ga, IECEx ia IIC T4 Ga, UL/cUL Class 1 Div 1 Groups A, B, C, D

Operational Capabilities

The 330180-90-00 excels in real-time shaft displacement monitoring—including radial vibration, axial position (thrust), and differential expansion—enabling predictive maintenance and early fault detection. Its high signal-to-noise ratio and low phase shift support accurate orbit analysis and cascade trending when paired with compatible Bently Nevada monitors and software (e.g., System 1™). The sensor maintains calibration stability over time and temperature, minimizing drift-related false alarms and reducing recalibration frequency. It supports dual-channel configurations for redundancy and is certified for use in SIL2-capable safety systems when integrated with approved logic solvers and wiring practices.

Technical FAQ

Q: Is the 330180-90-00 compatible with legacy 3300 series monitors?

A: Yes—the 330180-90-00 is fully backward-compatible with all 3300 series monitoring systems, including the original 3300, 3300 XL, and 3500 platforms. No firmware or hardware upgrades are required for basic operation, though advanced diagnostics may require updated system firmware.

Q: Can this sensor be used in hazardous areas?

A: Absolutely. The 330180-90-00 carries ATEX, IECEx, and UL/cUL certifications for use in Zone 1/Div 1 hazardous locations, provided it is installed with an intrinsically safe barrier or powered through a certified IS monitor (e.g., 3500/42M with IS option).

Q: What is the recommended target material for optimal performance?

A: For maximum sensitivity and linearity, use 4140 or 4340 steel (hardened to ≥25 HRC) or equivalent ferromagnetic alloys. Non-ferrous targets (e.g., aluminum, titanium) require recalibration and yield reduced range and sensitivity.
