Description

Technical Overview

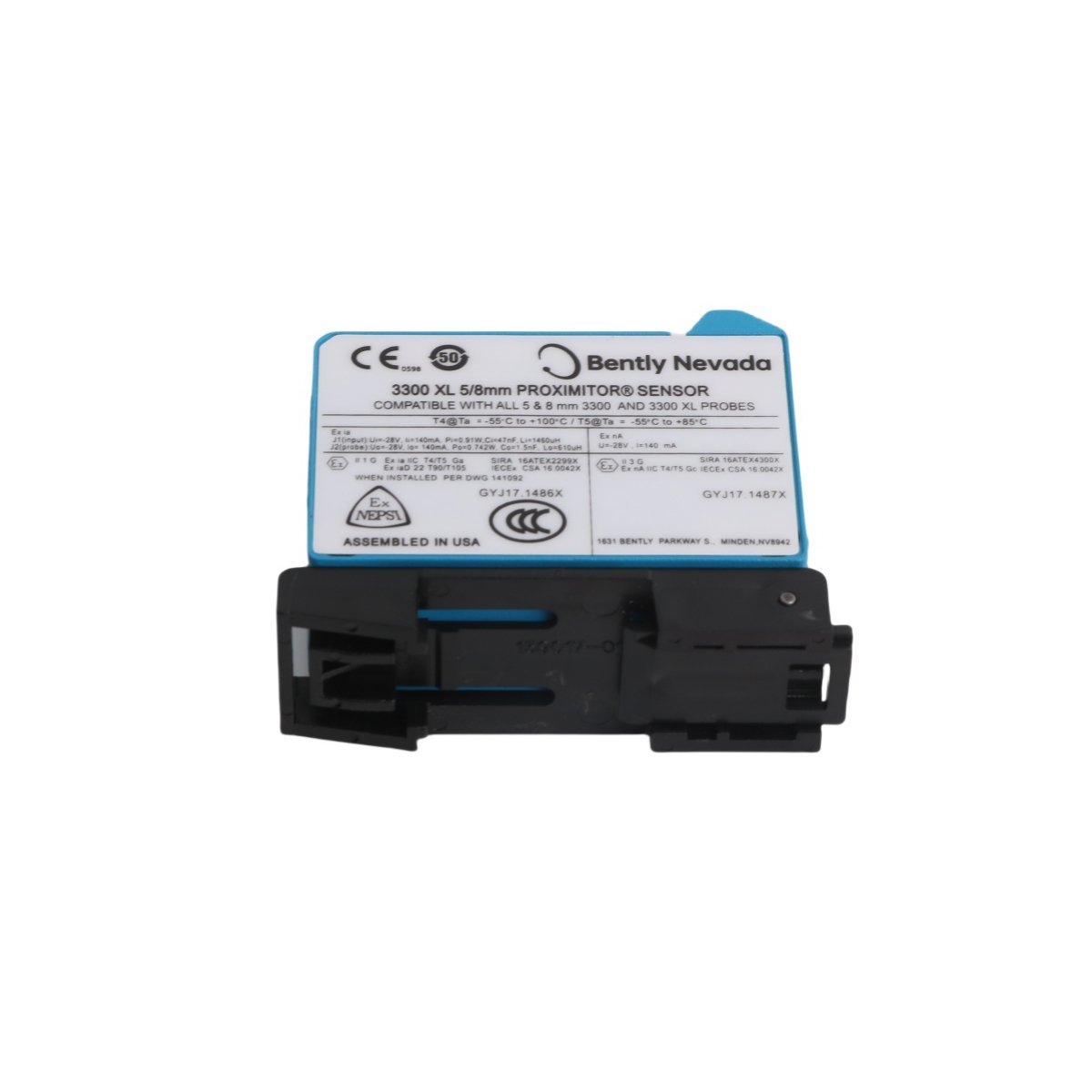

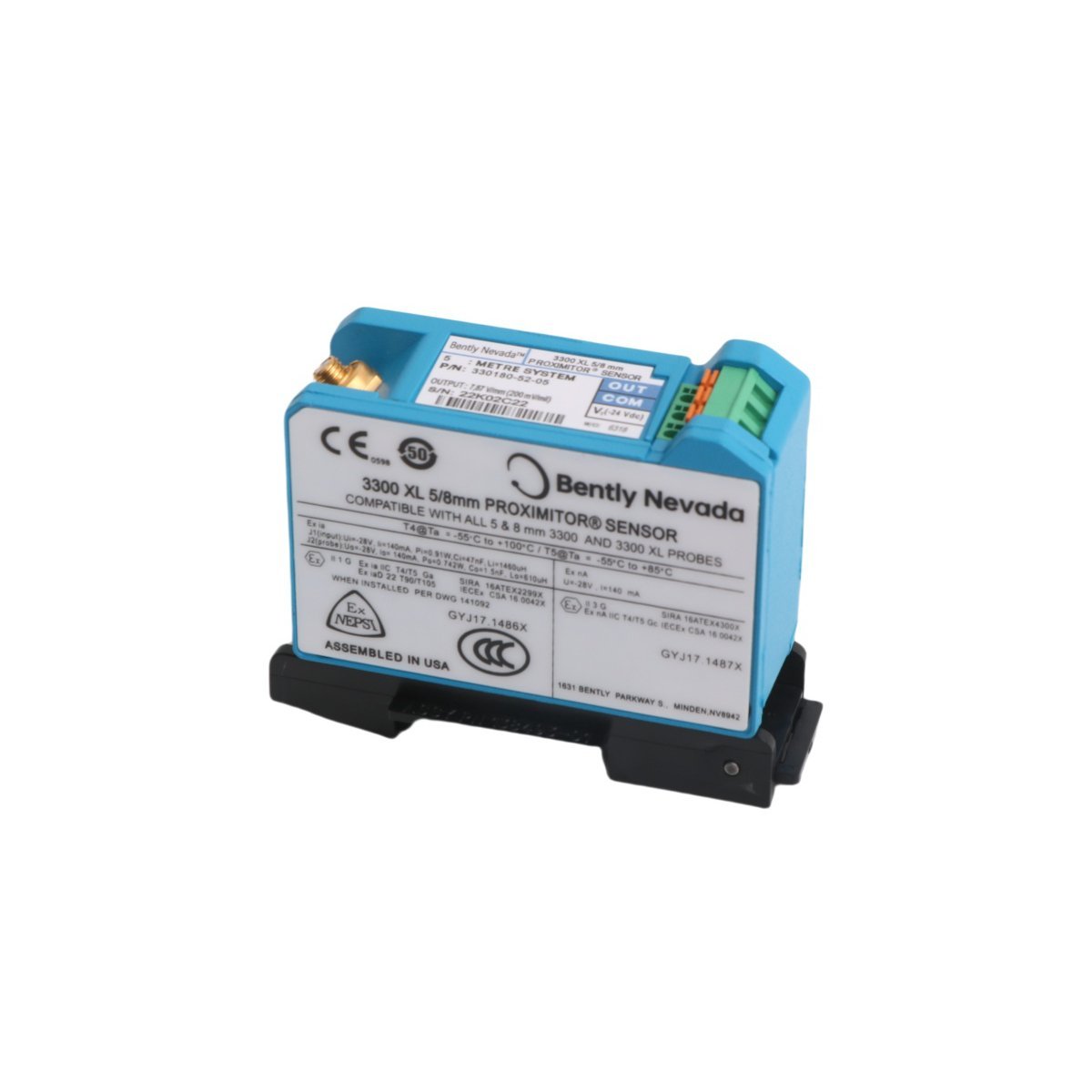

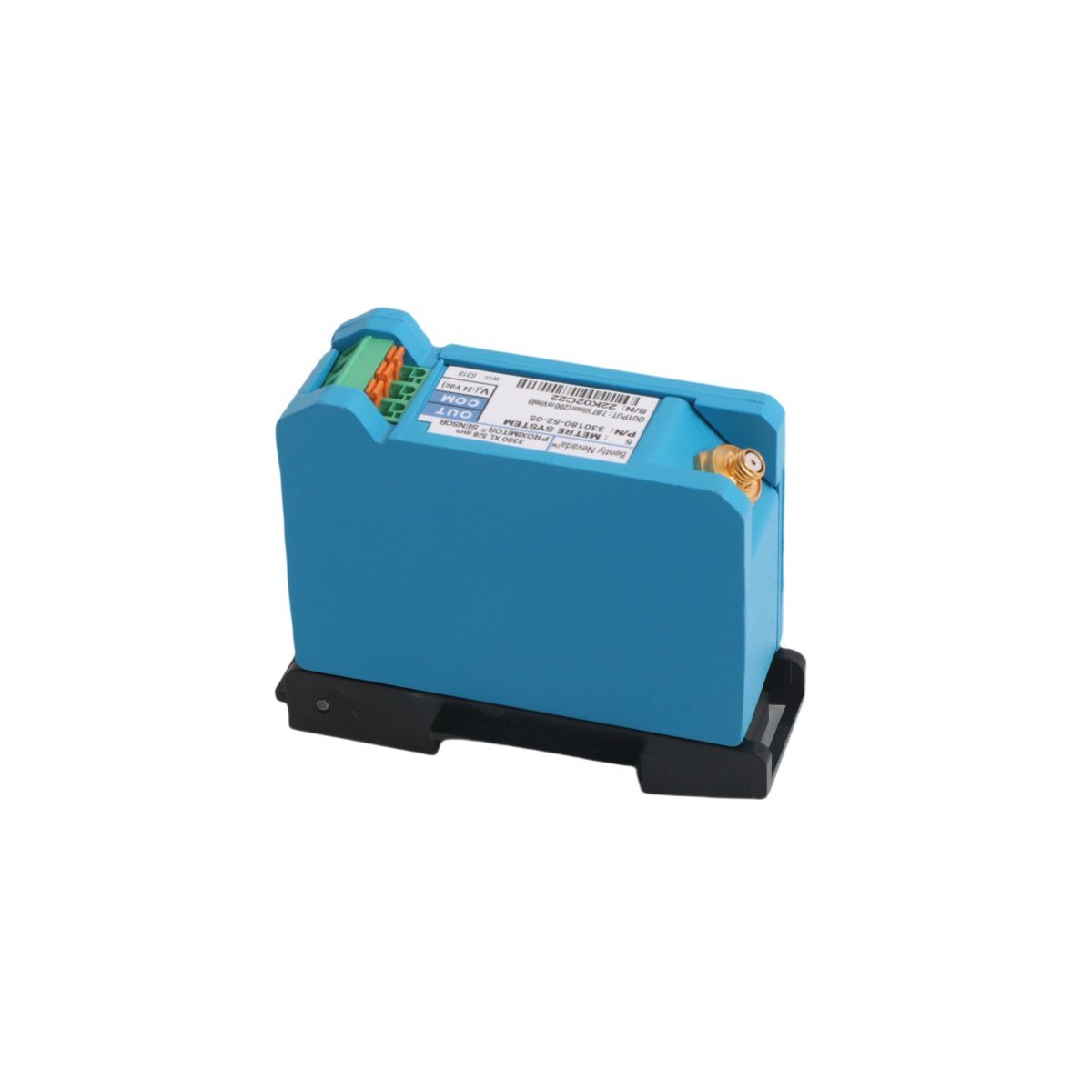

The Bently Nevada 330180-52-05 is a high-precision, industrial-grade 3300 XL Proximitor® sensor engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in condition monitoring and predictive maintenance solutions, this sensor forms the foundational sensing element in the industry-standard 3300 XL monitoring system architecture. Designed for extreme reliability in harsh industrial environments—including petrochemical refineries, power generation facilities, gas compression stations, and aerospace test stands—the 330180-52-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. Its robust construction features a stainless steel probe body with integrated coaxial cable termination, optimized for operation across a wide temperature range (–30 °C to +120 °C ambient) and high-vibration conditions. The sensor operates on the eddy-current principle, generating a high-frequency magnetic field that interacts with conductive target surfaces (e.g., shafts, rotors, or thrust collars) to produce a proportional DC voltage output. This analog signal is transmitted via low-noise, shielded coaxial cabling to compatible 3300 XL monitors (e.g., 3300/16, 3300/22, or 3500 series), enabling real-time analysis of shaft position, dynamic runout, gap voltage, and vibration amplitude (peak-to-peak, RMS, or zero-to-peak). As a factory-new, original equipment manufacturer (OEM) component, the 330180-52-05 ensures full compliance with API 670 (4th Edition), ISO 10816, and IEC 61000-6-2 standards—making it ideal for mission-critical applications where functional safety, SIL 2 compatibility, and regulatory traceability are mandatory.

Detailed Specifications

Key Features

• OEM-Backed Precision Calibration: Each unit is individually calibrated at the Bently Nevada factory using NIST-traceable standards, ensuring ±0.3 % linearity accuracy and documented calibration certificate (certification included).
• Enhanced Thermal Stability: Advanced coil winding and thermal compensation circuitry minimize drift across operational temperature extremes—critical for steam turbine and compressor monitoring where thermal growth must be distinguished from mechanical fault signatures.
• Ruggedized Stainless Steel Construction: Probe housing and tip utilize corrosion-resistant 316 stainless steel with hermetically sealed ceramic insulators, delivering >10-year service life in humid, saline, or chemically aggressive atmospheres.
• Optimized EMI/RFI Immunity: Integral double-shielded coaxial cable (copper braid + aluminum foil) and ferrite-loaded connectors suppress common-mode noise—validated per IEC 61000-4-3 (radiated RF) and IEC 61000-4-4 (electrical fast transients).
• Plug-and-Play System Integration: Fully compatible with all 3300 XL monitor modules and legacy 3300 systems; supports hot-swap capability and automatic sensor recognition via embedded EEPROM (if equipped with Smart Probe option).
• Regulatory & Safety Compliance: Certified to API RP 500, API RP 14C, and SIL 2 per IEC 61508:2010 (when used with certified safety monitors), supporting functional safety requirements for shutdown systems.
• Traceable Documentation & Support: Includes serial-number-matched calibration report, RoHS/REACH compliance documentation, and access to Baker Hughes technical support, firmware updates, and lifecycle management services.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, axial position (thrust), differential expansion, and casing relative movement in utility and industrial turbines per API 612 and ISO 10816-3.
• Centrifugal Compressors & Pumps: Detecting bearing wear, misalignment, rotor imbalance, and surge precursors in oil & gas, chemical processing, and LNG facilities compliant with API 617 and API 610.
• Aeroderivative Gas Turbines: High-bandwidth displacement sensing for aircraft-derived engines used in peaking power plants and marine propulsion systems.
• Large Electric Motors & Generators: Shaft orbit analysis, eccentricity detection, and air-gap monitoring in synchronous machines up to 500 MW capacity.
• Test Stands & R&D Facilities: Precision measurement of dynamic response, modal analysis, and transient behavior during prototype validation and qualification testing.
• Renewable Energy Systems: Condition monitoring of gearboxes and main shafts in multi-megawatt wind turbines—integrated into SCADA and CMS platforms via 4–20 mA or Modbus RTU gateways.
• Marine Propulsion & Auxiliary Machinery: Vibration and position monitoring aboard naval vessels, cruise liners, and offshore support vessels meeting MIL-STD-167 and DNV-GL Class Rules.
