330106-05-30-10-00 | Bently Nevada | Reverse Mount Probe

### Product Description

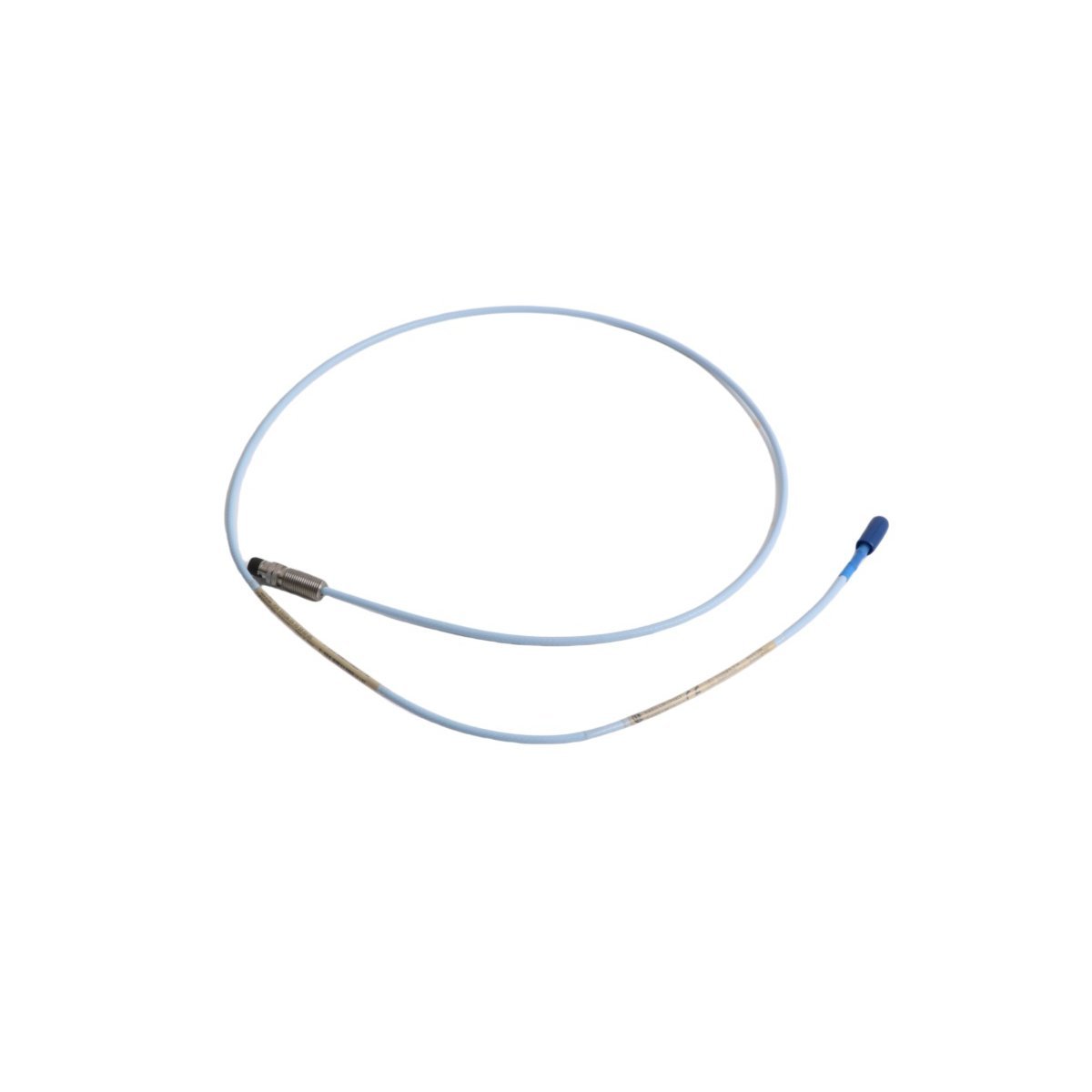

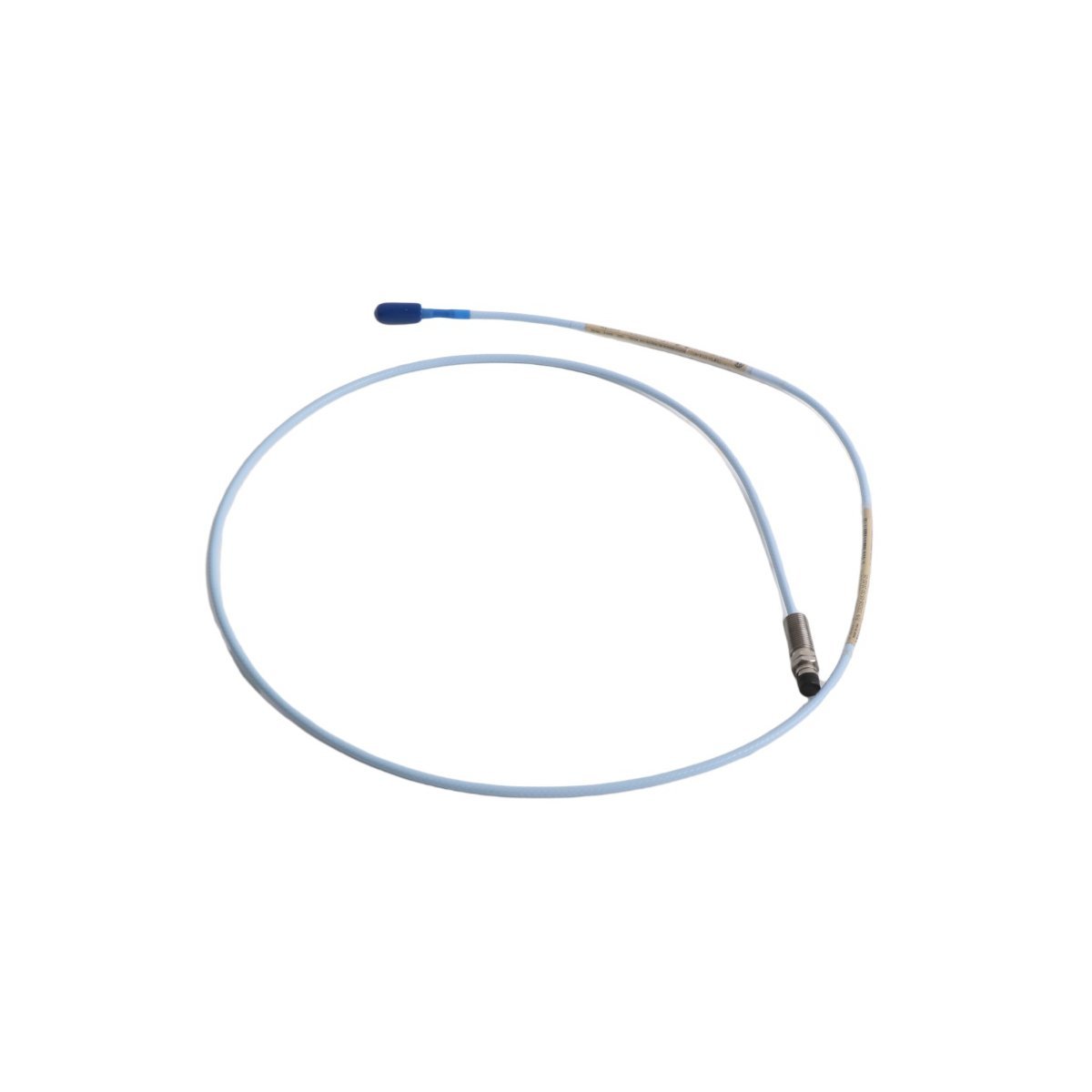

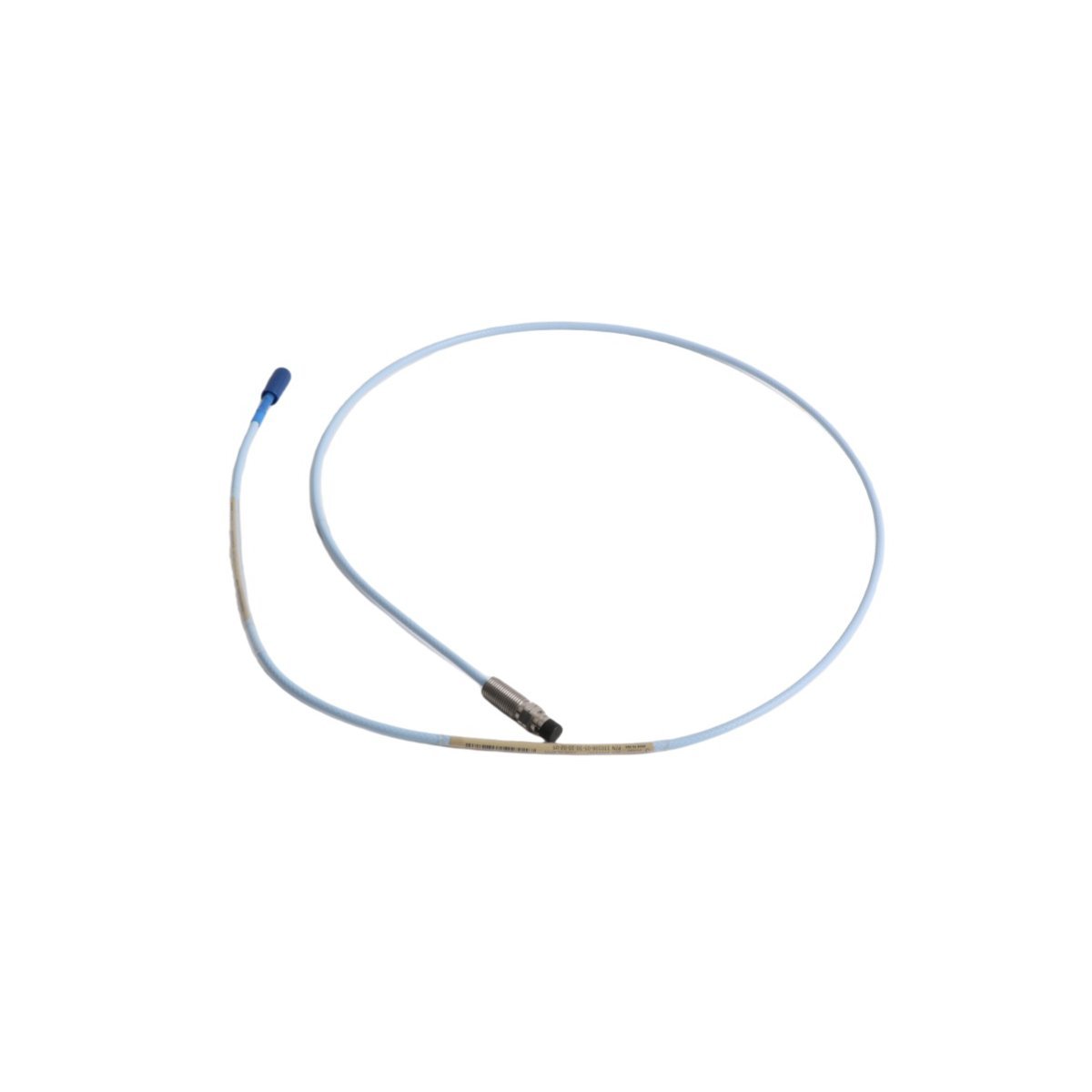

The 330106-05-30-10-00 is a reverse-mount eddy current proximity probe designed for integration with Bently Nevada 3300 XL monitoring systems.
Moreover, it measures shaft displacement and vibration in rotating machinery where space constraints require rear-mounted installation.
Therefore, it supports continuous condition monitoring in turbomachinery, compressors, and steam turbines under demanding industrial conditions.

### Technical Specifications

### Typical Applications
– Steam turbine shaft axial position and thrust bearing monitoring
– Gas compressor rotor vibration measurement in confined casings
– Centrifugal pump shaft displacement detection with rear-access mounting
– Turboexpander shaft runout and dynamic clearance assessment

### FAQ
What is the sensing range of this probe?
The nominal linear range is 5.0 mm (0.20 in) with a sensitivity of 8.0 V/mm.

Is this probe compatible with 3300 XL system components?
Yes, it is fully compatible with 3300 XL extension cables,前置器 (proximitor), and monitoring systems.

Does it require calibration before installation?
Factory-calibrated; field recalibration is not required unless damaged or modified.

Can it operate in high-temperature environments?
Rated for continuous operation up to +120 °C (248 °F) at the probe tip; cable rating differs.

What thread type does the probe body use?
M10 × 1.0 metric thread with reverse-mount configuration (threaded into machine housing from rear side).
