330106-05-30-05-00-00 | Bently Nevada | 3300 XL 8 mm Reverse Mount Probes
Description
330106-05-30-05-00-00 | Bently Nevada | 3300 XL 8 mm Reverse Mount Probes
### Product Description

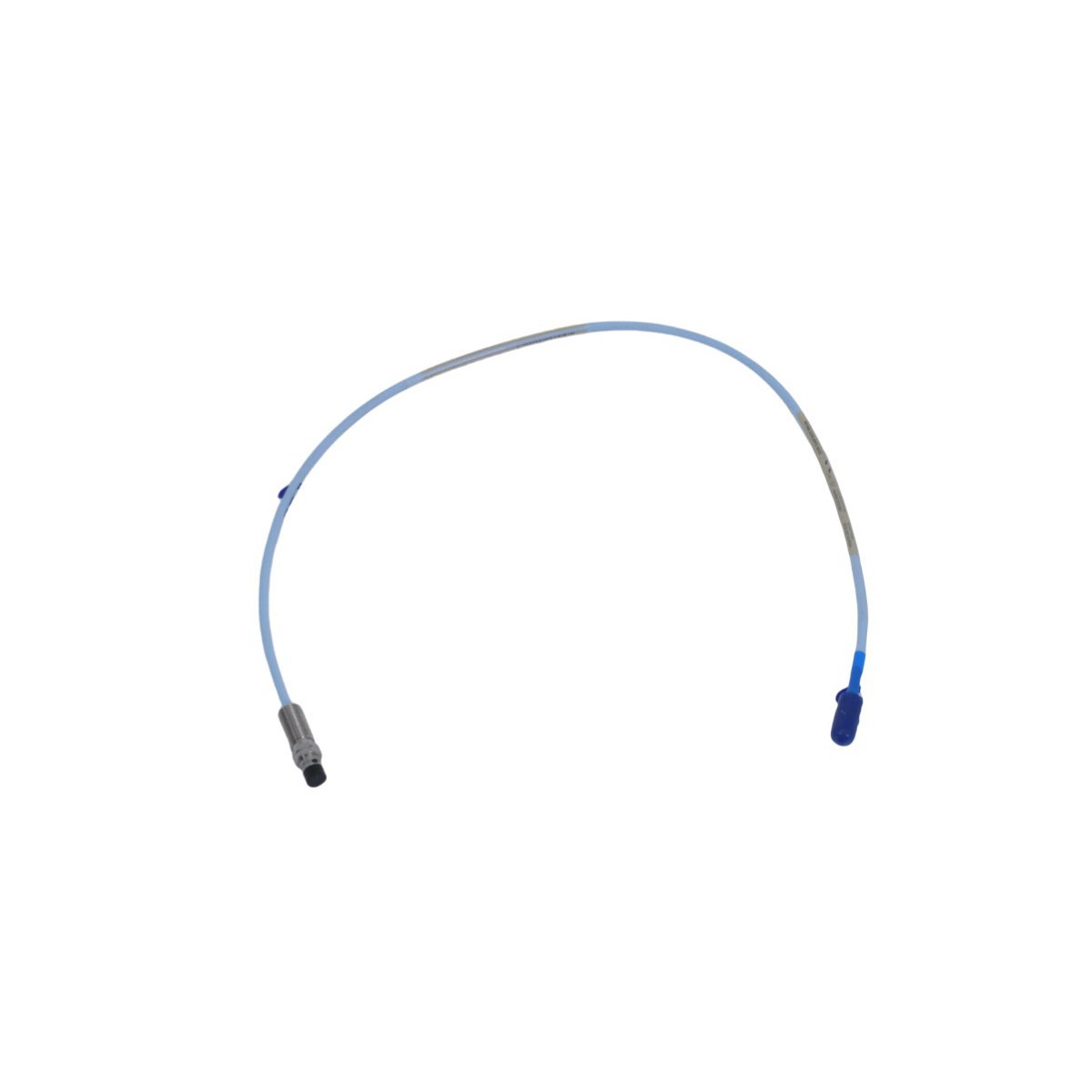

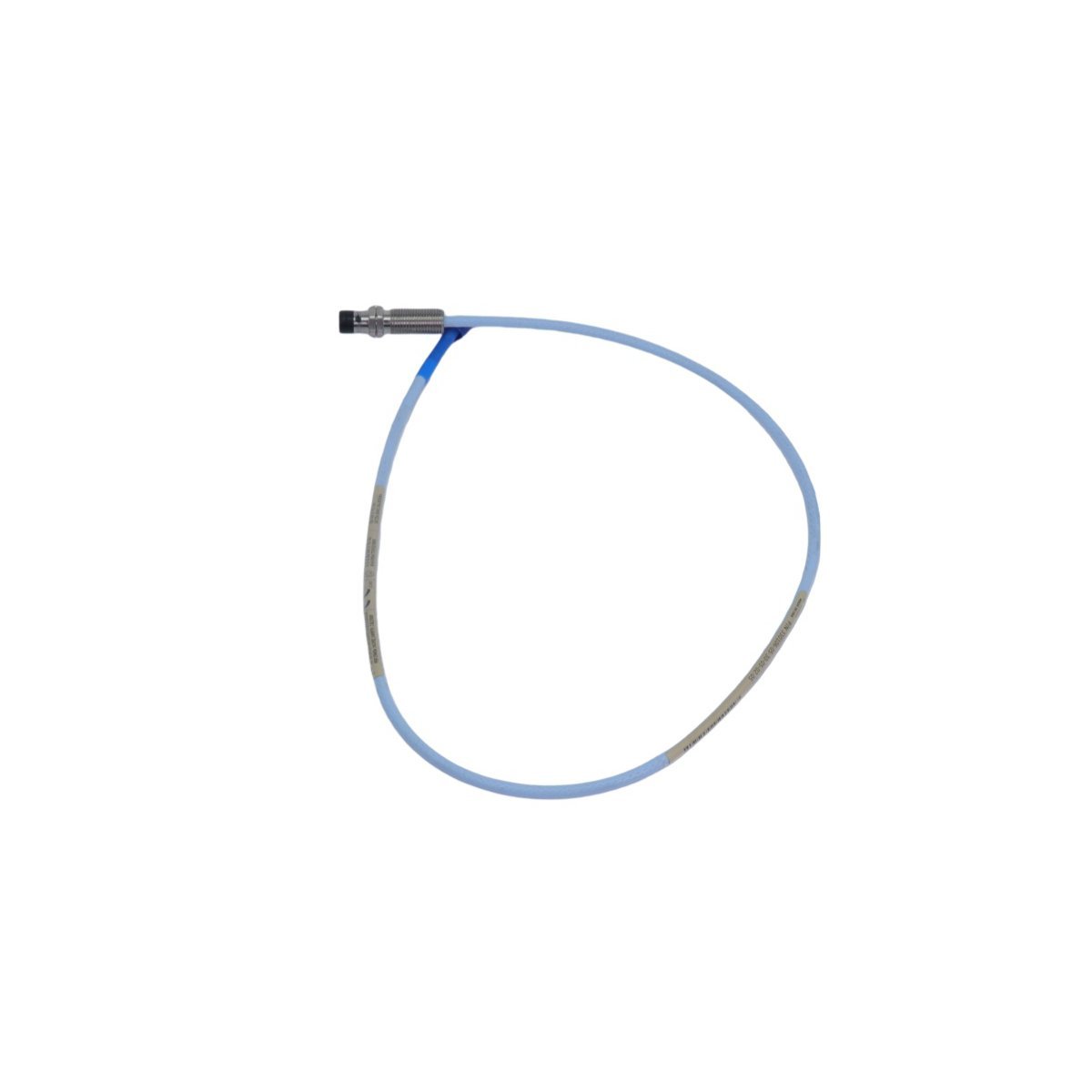

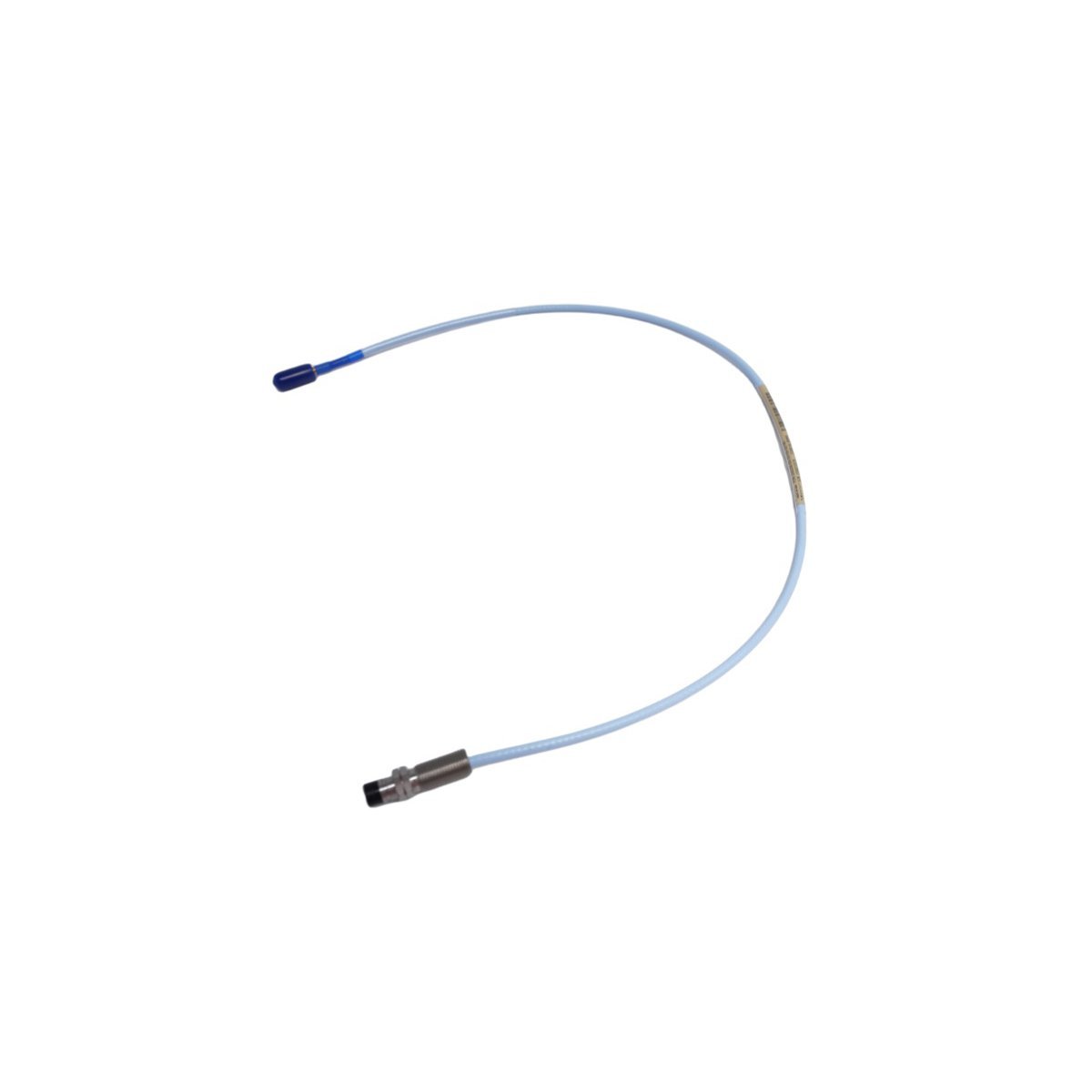

The 330106-05-30-05-00-00 is a reverse-mount eddy current proximity probe from the Bently Nevada 3300 XL series. It features an 8 mm diameter sensing tip and is designed for installation where the probe body mounts behind the target surface.
Moreover, it delivers high-stability displacement and vibration measurements for rotating machinery monitoring. Therefore, it is commonly used in turbine, compressor, and motor applications requiring precise shaft position and dynamic motion data. In addition, its reverse-mount configuration accommodates space-constrained or shielded mounting scenarios.
### Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Product Type | Eddy Current Proximity Probe |
| Product Number | 330106-05-30-05-00-00 |
| Country of Origin | United States |
| Weight | 0.12 kg (0.26 lb) |
| Dimensions | 8 mm diameter × 30 mm overall length (sensing tip to rear face) |
### Typical Applications
– Turbine shaft axial position and thrust bearing wear monitoring
– Centrifugal compressor shaft vibration analysis in oil & gas facilities
– Motor/generator rotor runout and dynamic clearance measurement
– Gearbox input/output shaft displacement in power generation plants
### FAQ
What is the sensing range of this probe?
The nominal sensing range is 2.0 mm with a linear output across ±1.0 mm.
Is this probe compatible with 3300/50 and 3300/16 monitors?
Yes, it is fully compatible with all 3300 series monitors that support standard 4–20 mA or voltage output probes.
Does it require a separate extension cable?
Yes, a matched 3300 XL extension cable must be used to maintain calibration integrity and signal fidelity.
Can it be used in hazardous areas?
No—this probe is not intrinsically safe or certified for Class I Div 1 or ATEX Zone 0/1 environments without additional barrier systems.
What is the temperature rating?
Operating temperature range is –30 °C to +120 °C (–22 °F to +248 °F) at the probe tip.
### SEO Title
Bently Nevada 330106-05-30-05-00-00 3300 XL 8 mm Reverse Mount Probe
### Meta Description
Bently Nevada 330106-05-30-05-00-00 3300 XL 8 mm reverse mount probe delivers precise shaft displacement data in confined spaces. Order certified replacement today.
Additional information
| Weight | 0.08 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 20.2 x 22 x 3cm |
