Technical Overview

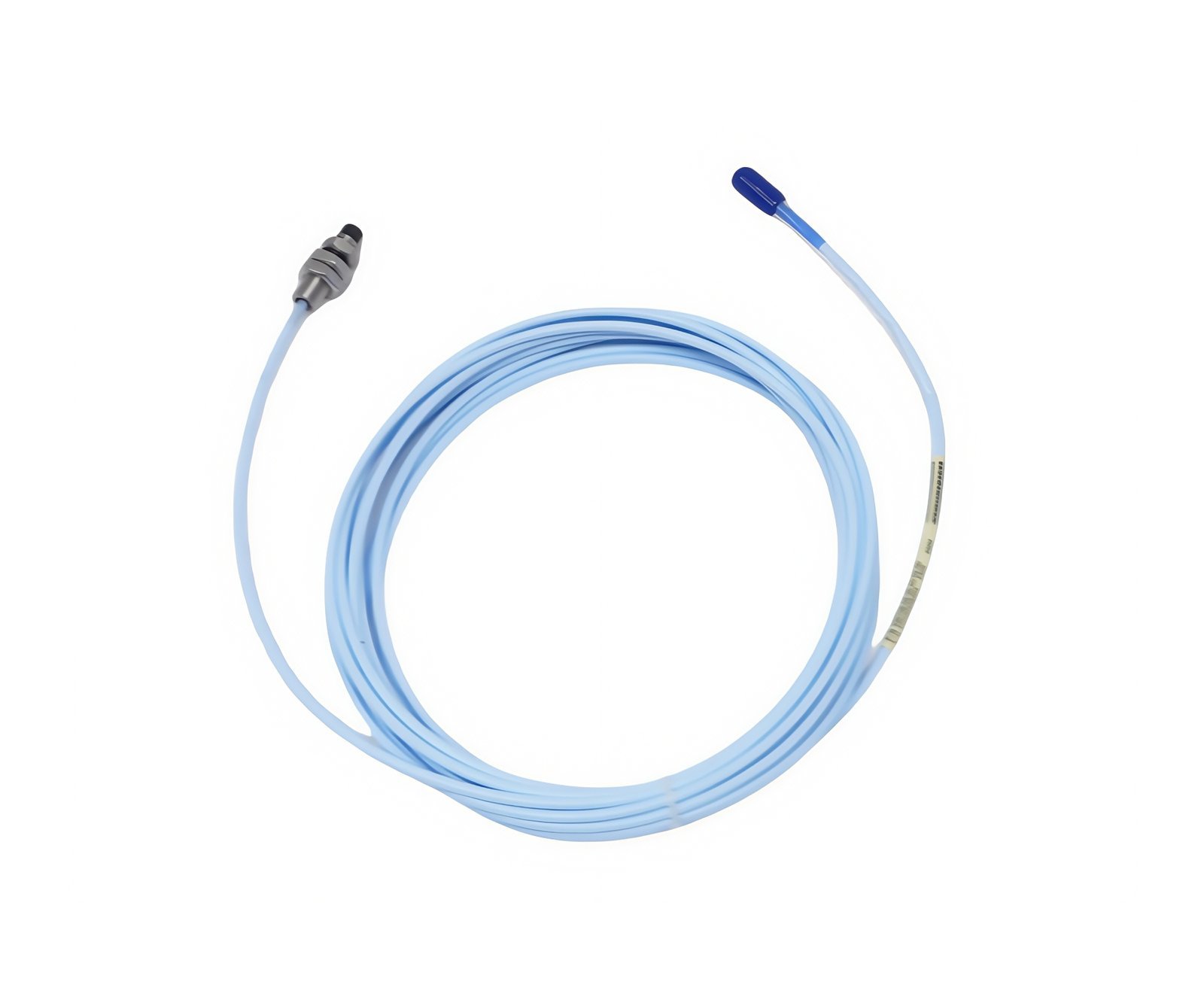

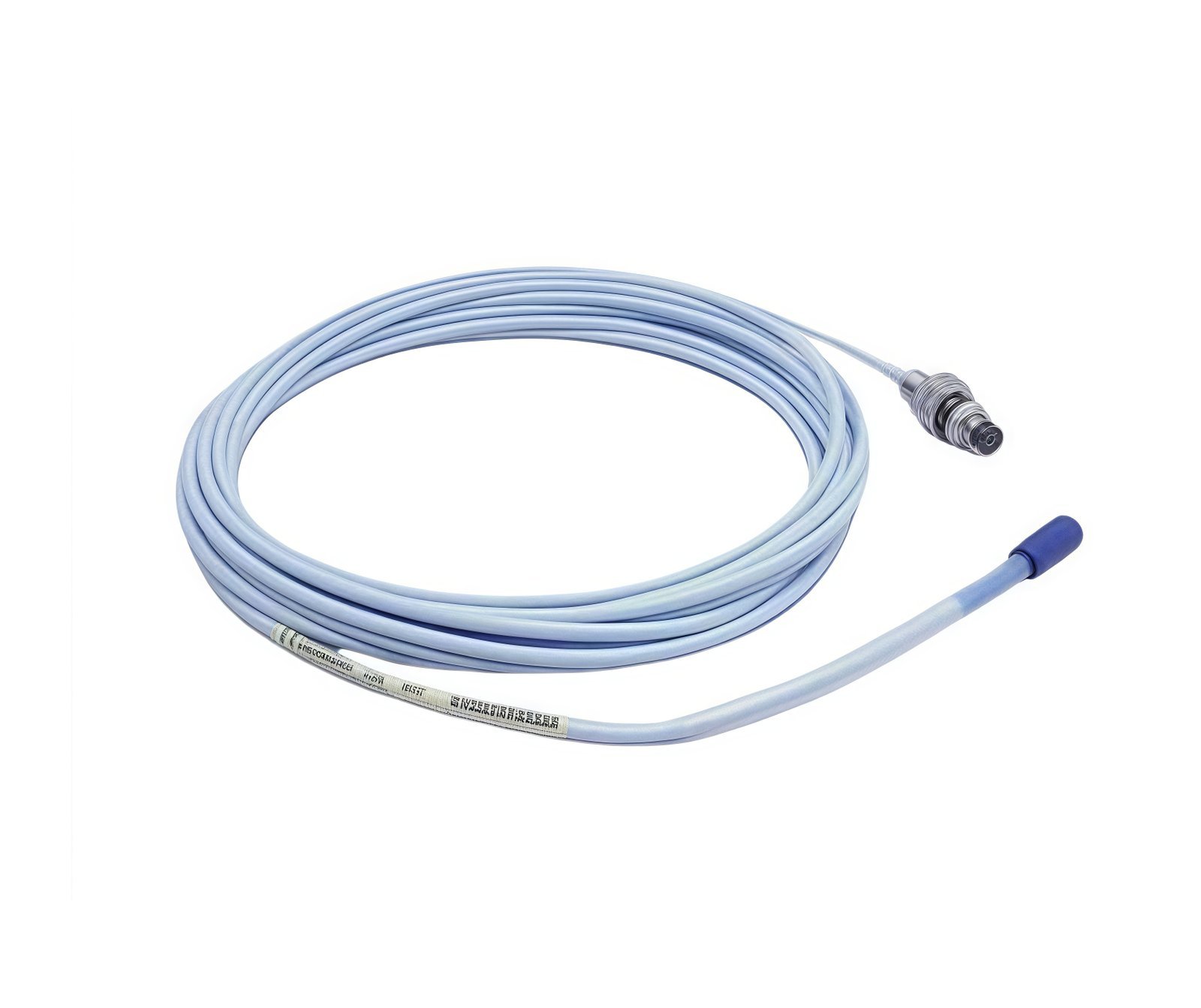

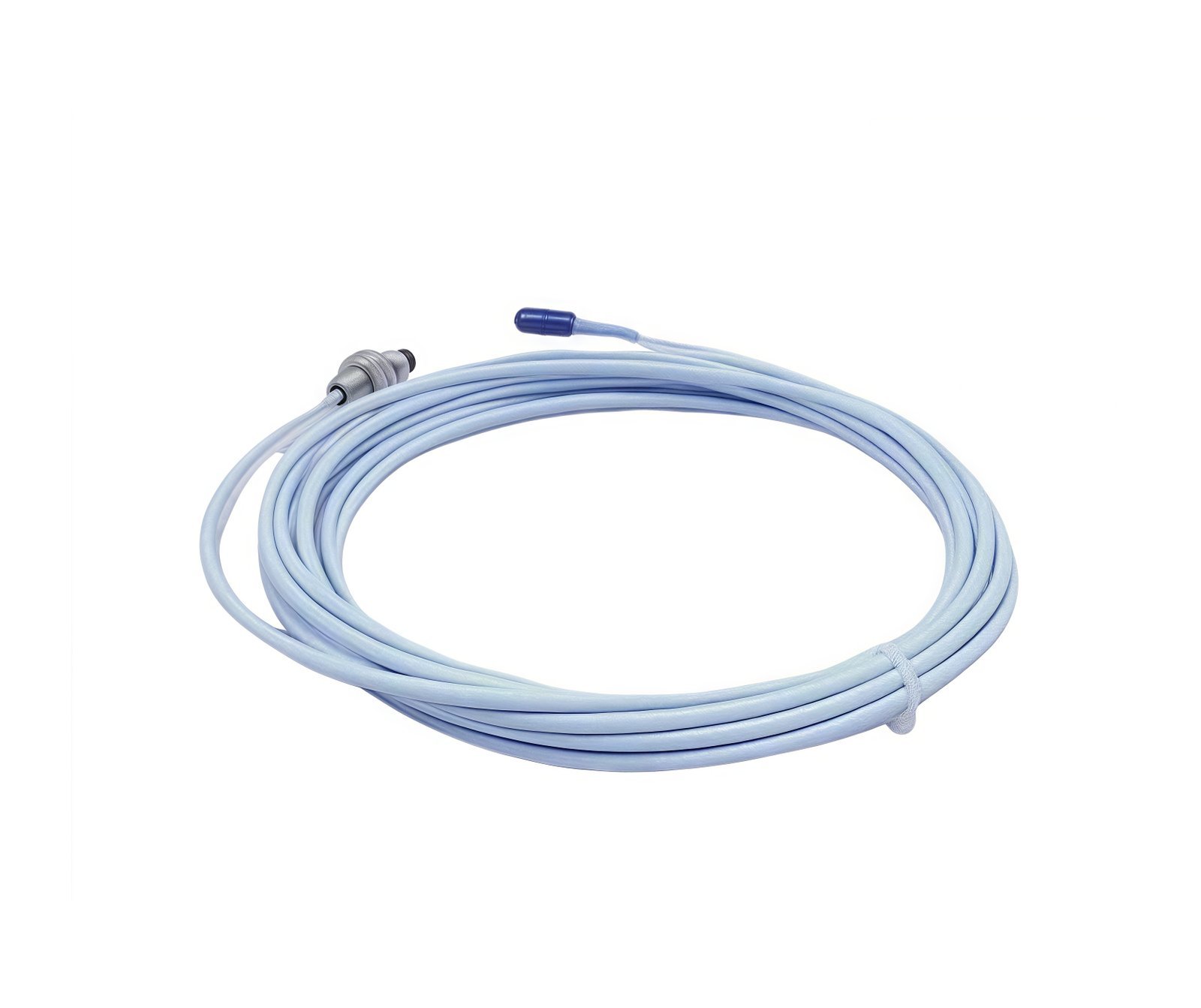

The Bently Nevada 330106-00-24-10-02-05 is a high-precision 3300 XL 8 mm proximity probe engineered for mission-critical machinery monitoring in industrial automation, power generation, oil & gas, and heavy manufacturing environments. As part of the industry-standard 3300 XL series, this probe delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity—ensuring reliable vibration and position measurements even under harsh operational conditions. Its robust stainless steel housing and integrated coaxial cable provide superior mechanical durability and signal integrity over extended service life.

Designed for seamless integration with Bently Nevada 3300 series monitoring systems—including the 3300 XL 8 mm Proximity Transducer system—the 330106-00-24-10-02-05 enables accurate non-contact measurement of shaft displacement, axial position, and vibration amplitude. The probe operates on the eddy-current principle, offering a linear range of ±2.0 mm (±0.079 in) and a sensitivity of 4.0 V/mm (100 mV/mil), optimized for use with conductive target materials such as 4140 steel. Its calibrated output ensures traceable accuracy compliant with API 670 (4th Edition) and ISO 10816 standards for machinery protection and condition monitoring.

Key Features

• Precision Engineering: Factory-calibrated 8 mm diameter probe with ±1% linearity error across full measuring range for repeatable, high-fidelity data acquisition.
• Ruggedized Construction: Hermetically sealed stainless steel body and integral 5-meter low-noise coaxial cable rated for continuous operation in temperatures from –30°C to +120°C.
• System Compatibility: Fully interoperable with Bently Nevada 3300 XL 8 mm proximitor transducers (e.g., 330180-00-00-10-02-05) and compatible with legacy 3300 rack-based monitoring systems.
• EMI/RFI Resistant Design: Integrated shielding and differential signaling minimize noise susceptibility in electrically noisy plant environments.
• Easy Installation & Maintenance: Standard ½–20 UNF threaded mounting and pre-aligned probe tip simplify field replacement without recalibration.

Specifications

• Part Number: 330106-00-24-10-02-05
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: 3300 XL 8 mm Proximity Probe
• Warranty: 24-month limited warranty against defects in materials and workmanship

Contact us for bulk pricing and availability
