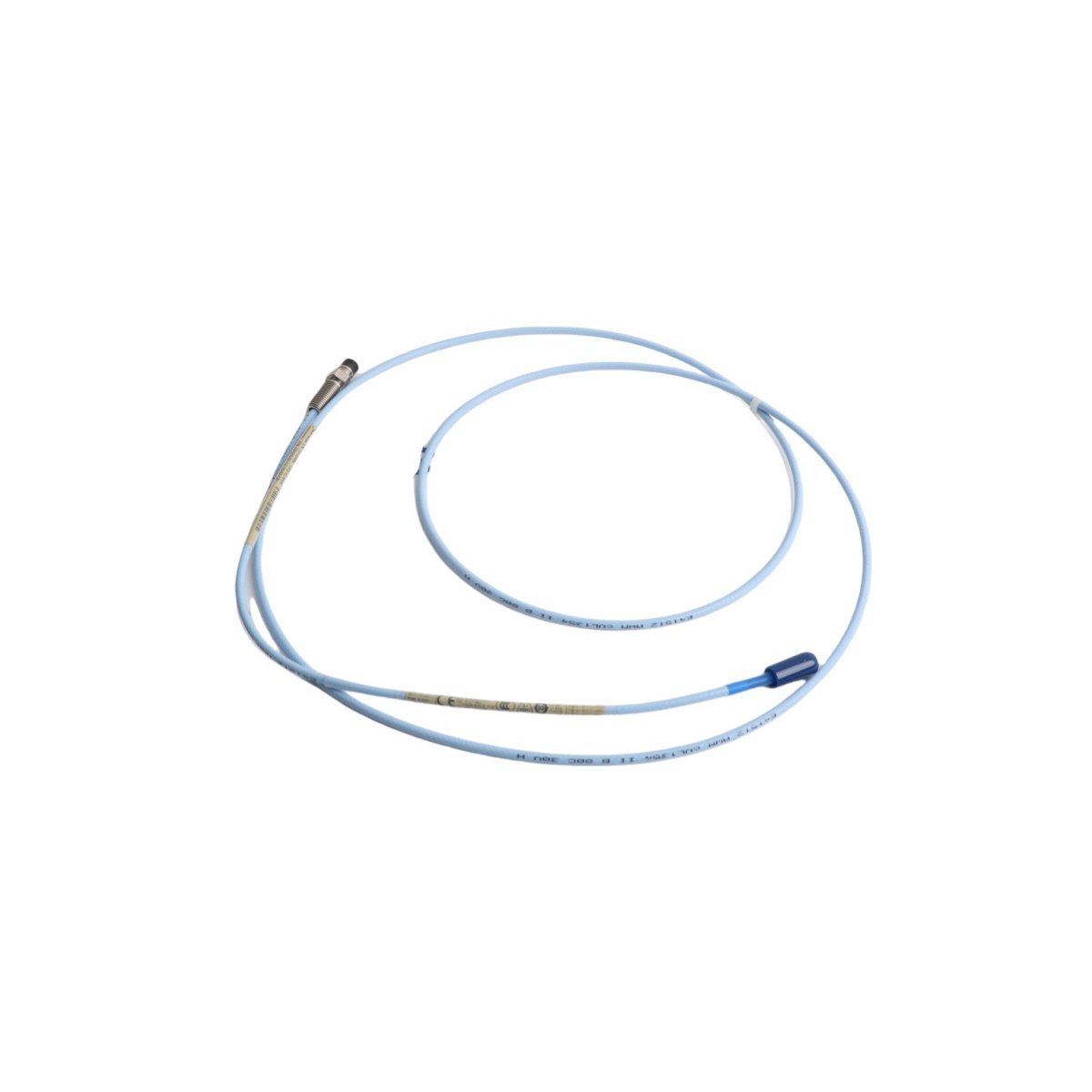

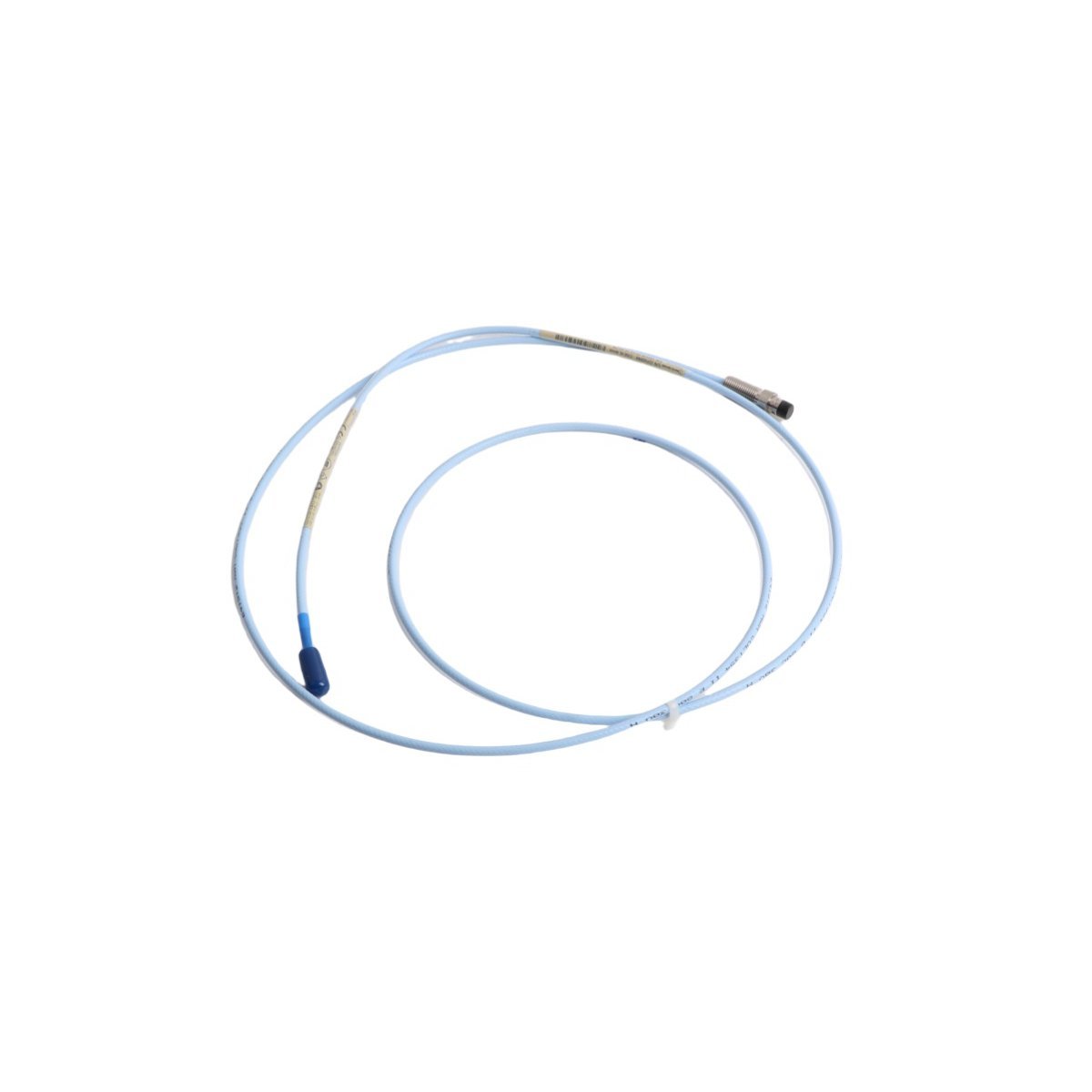

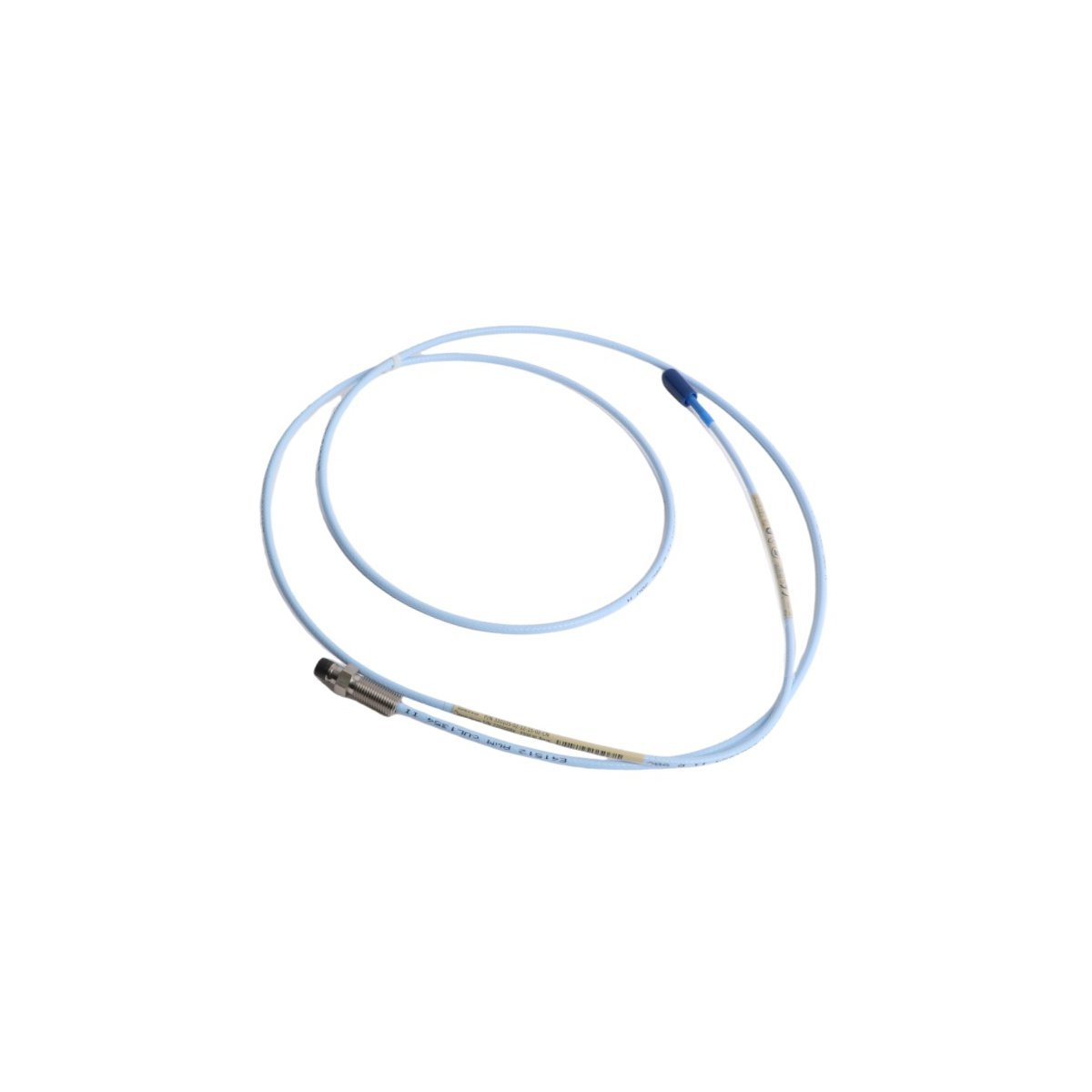

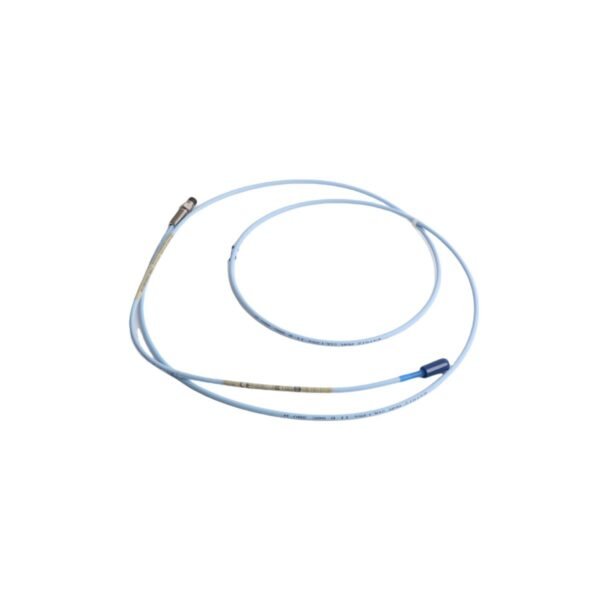

The Bently Nevada 330105-02-12-15-02-05 is a high-precision, reverse-mount eddy-current proximity probe engineered for mission-critical machinery protection and condition monitoring systems. Manufactured by Baker Hughes (under the Bently Nevada brand), this probe is part of the industry-standard 3300 XL family—renowned for exceptional stability, repeatability, and immunity to environmental interference. Designed specifically for reverse-mount configurations, it enables seamless integration into space-constrained or rear-accessible bearing housings where conventional front-mount probes are impractical. The probe operates on the principle of electromagnetic induction, generating a high-frequency magnetic field that interacts with conductive target surfaces (typically shafts made of 4140 steel or equivalent) to deliver highly linear displacement measurements with sub-micron resolution. Its robust construction features a stainless steel housing, PTFE-insulated coaxial cable, and hermetically sealed electronics, ensuring long-term reliability in harsh industrial environments—including those with extreme temperatures, vibration, oil mist, and electromagnetic noise. Each unit undergoes rigorous factory calibration per API 670 (4th Edition) and ISO 10816 standards, guaranteeing traceable performance across its full measurement range. As a genuine OEM component, the 330105-02-12-15-02-05 maintains full compatibility with Bently Nevada 3300/3500 series monitors, System 1™ software, and all associated extension cables and preamplifiers. This model is supplied new, unused, and in original factory packaging, backed by a comprehensive 24-month limited warranty covering material defects and workmanship—ensuring operational confidence for turbine, compressor, motor, and gearbox applications across power generation, oil & gas, chemical processing, and marine propulsion sectors.

Detailed Specifications

Key Features

• True Reverse-Mount Design: Enables installation in confined bearing housings where front access is unavailable—ideal for retrofitting legacy rotating equipment without mechanical modification.
• High-Fidelity Signal Integrity: Integrated low-noise amplifier and precision-wound coil deliver <0.5% linearity error over full range and <0.1% thermal drift (0–70 °C), minimizing false alarms and optimizing diagnostic accuracy.
• Robust Environmental Protection: IP67-rated housing with PTFE insulation resists corrosion, hydrocarbon exposure, steam cleaning, and high-vibration environments up to 100 g peak.
• OEM-Calibrated & Traceable: Supplied with NIST-traceable calibration certificate (as-built), including dynamic frequency response data and temperature compensation coefficients.
• Plug-and-Play Compatibility: Fully interoperable with 3300 XL preamplifiers (e.g., 330180-50-00), 3500 rack systems, and System 1™ Machinery Health Management software for real-time orbit analysis and trend-based diagnostics.
• Optimized Thermal Stability: Dual-material thermal expansion compensation ensures consistent gap voltage output across operating temperature gradients—critical for high-speed turbomachinery.
• Secure Mechanical Interface: Precision-ground M12 × 1.25 thread with integrated anti-rotation locknut prevents loosening under sustained vibration, eliminating signal drift due to probe movement.

Applications

• Steam and Gas Turbines: Axial position monitoring of thrust collars and differential expansion measurement in multi-bearing frames compliant with ANSI/API 612 and 617 standards.
• Centrifugal Compressors: Radial vibration and shaft position sensing in integrally geared compressors where reverse-mount configuration accommodates gearcase geometry and oil sump constraints.
• Large Electric Motors & Generators: Bearing housing-mounted axial displacement detection for sleeve bearings, supporting IEEE 841 and NEMA MG-1 compliance in critical drive trains.
• Petrochemical Process Pumps: Monitoring of high-energy, high-temperature API 610 pumps with limited front-end accessibility—enabling continuous health assessment without process interruption.
• Marine Propulsion Systems: Vibration and position monitoring aboard naval vessels and commercial ships where space, salt fog resistance, and shock survivability (MIL-STD-810G) are paramount.
• Power Generation Balance-of-Plant Equipment: Reliable operation on feedwater pumps, induced draft fans, and boiler circulating pumps subject to thermal cycling and particulate-laden atmospheres.
• Condition-Based Maintenance Programs: Integration into predictive maintenance frameworks using Bently Nevada System 1™ for automated alerting, spectral analysis, and remaining useful life estimation.
