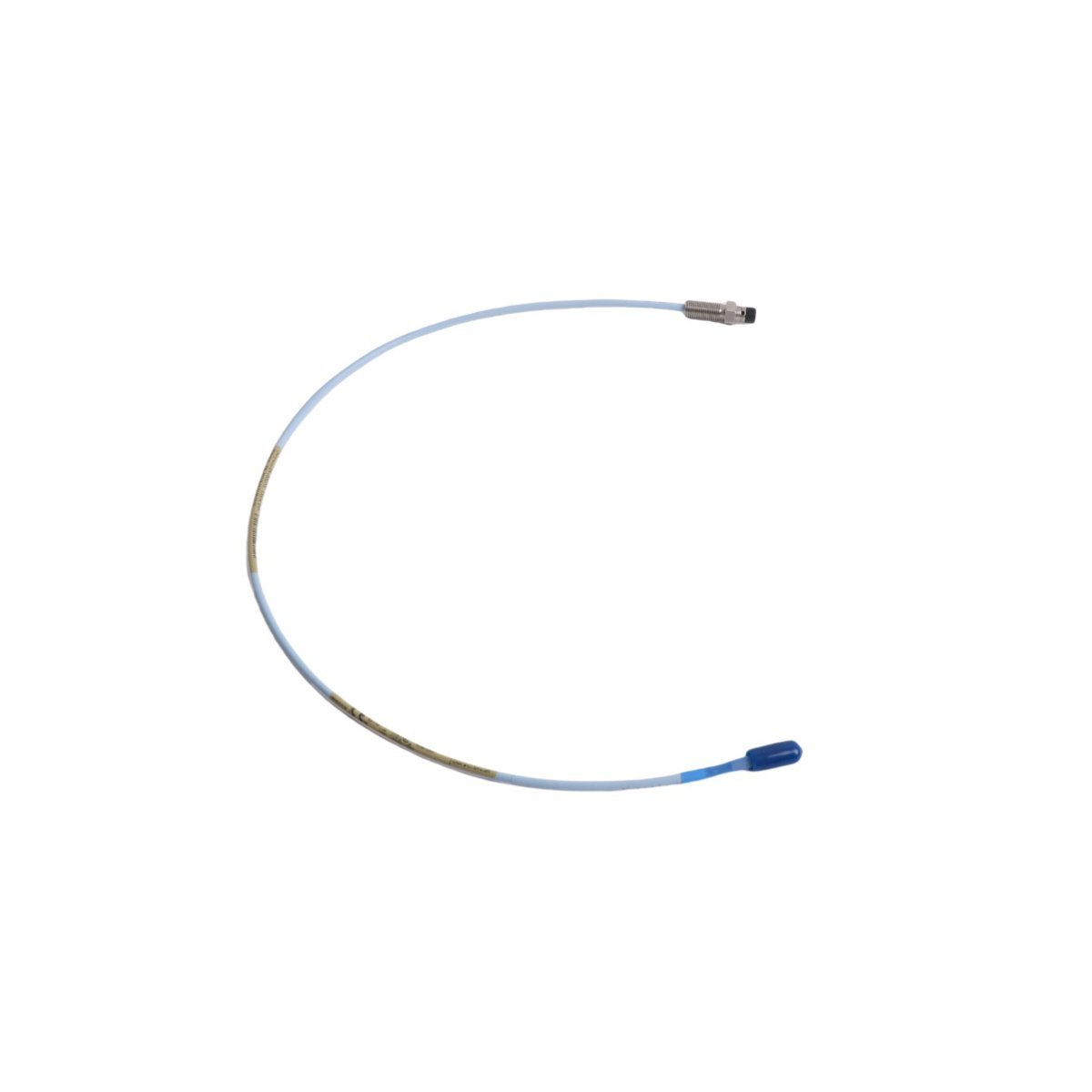

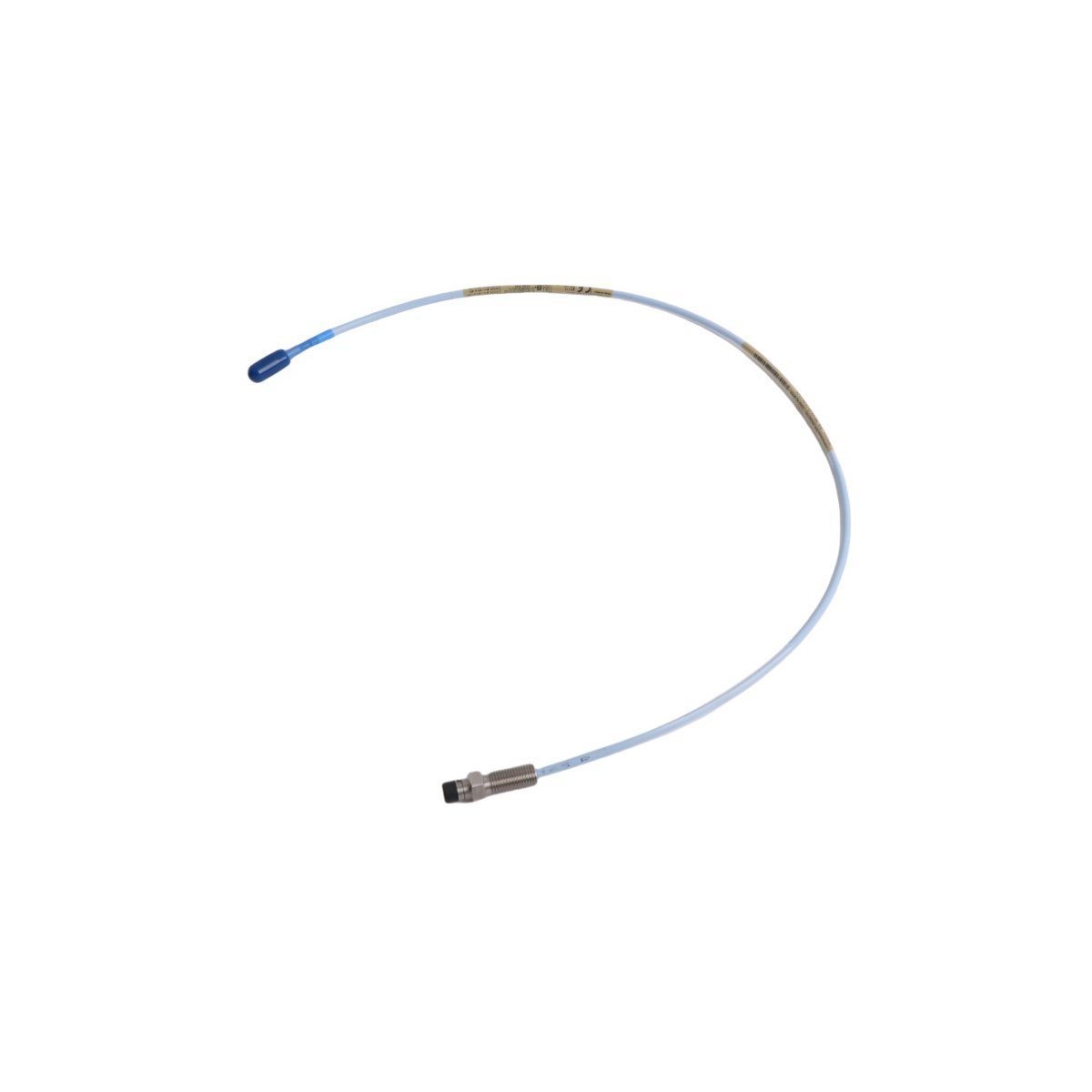

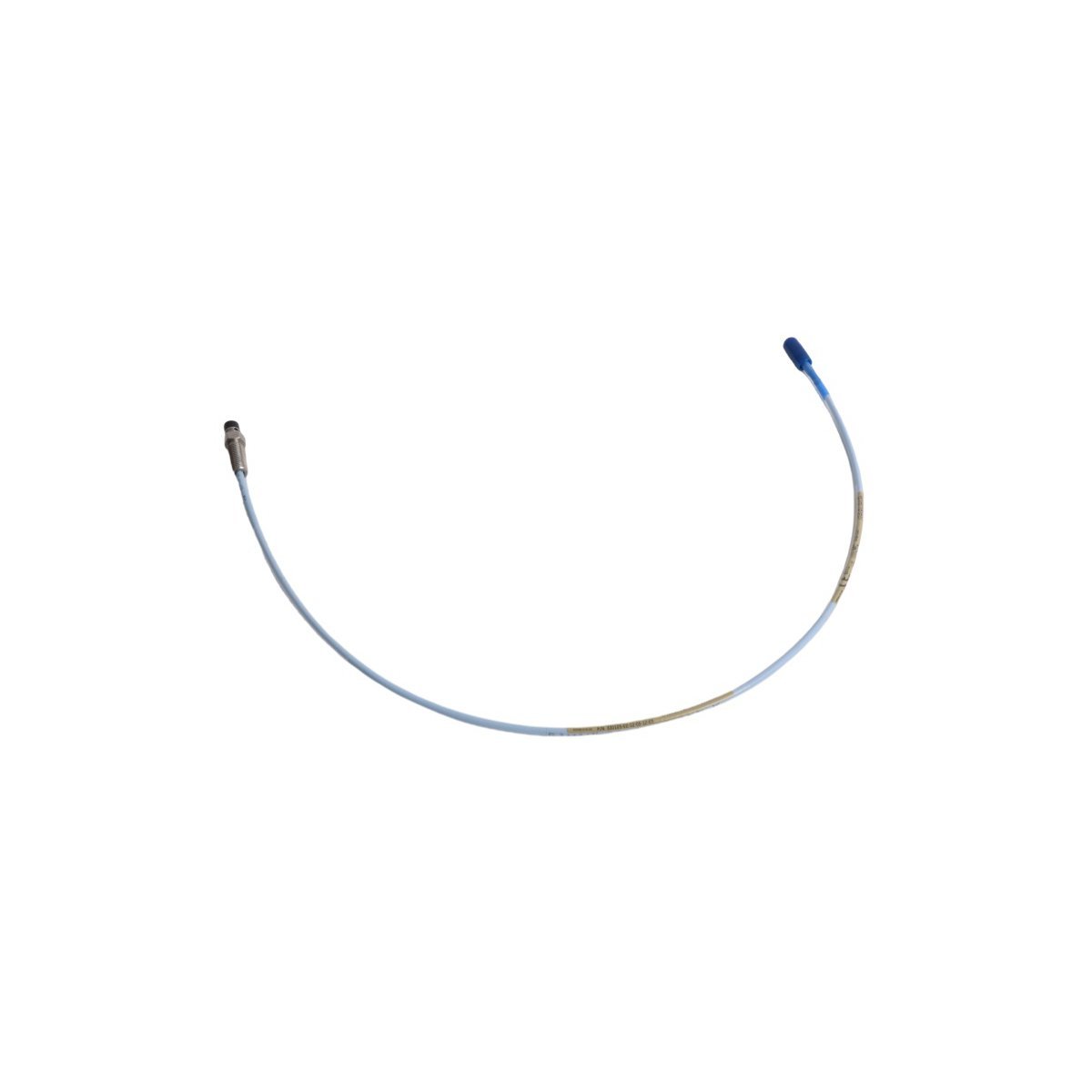

330105-02-12-02-05-00 | Bently Nevada | 3300 XL 8 mm Reverse Mount Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for shaft vibration and position monitoring in rotating machinery.
Moreover, it delivers high-resolution displacement measurements for critical machine protection and condition monitoring systems.
Therefore, it is installed in reverse-mount configurations where the probe body extends away from the target surface, enabling access in confined or rear-mounted sensor housings.

### Technical Specifications

### Typical Applications
– Turbine shaft axial position and thrust bearing wear monitoring
– Compressor shaft vibration measurement in gearbox-integrated housings
– Motor-generator rotor runout and gap verification in reverse-mount cavities
– Gearbox input/output shaft displacement sensing with rear-access constraints

### FAQ
What is the standard output sensitivity for this probe?
The probe is calibrated to 7.87 V/mm (200 mV/mil) when used with a 3300 XL 8 mm extension cable and monitor.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300 series monitors, including 3300/16, 3300/20, and 3300/25.

Does the probe require a separate extension cable?
Yes, it must be used with a compatible 3300 XL extension cable; no integral cable is included.

What is the maximum operating temperature range?
The probe operates continuously from –30 °C to +120 °C ambient.

Can it be used with non-ferrous targets?
No, it is calibrated for use with 4140 steel targets; performance varies significantly with other materials.
