Description

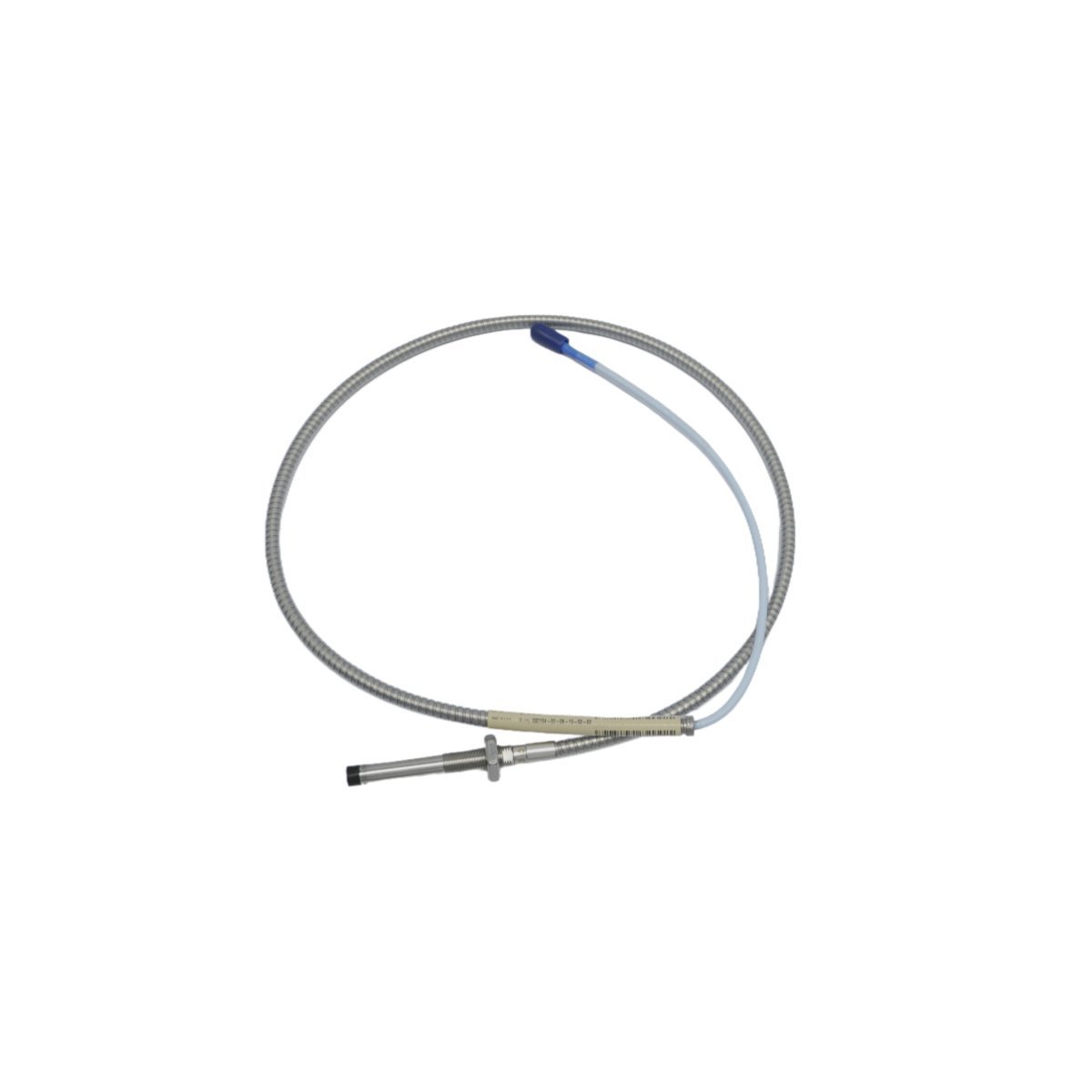

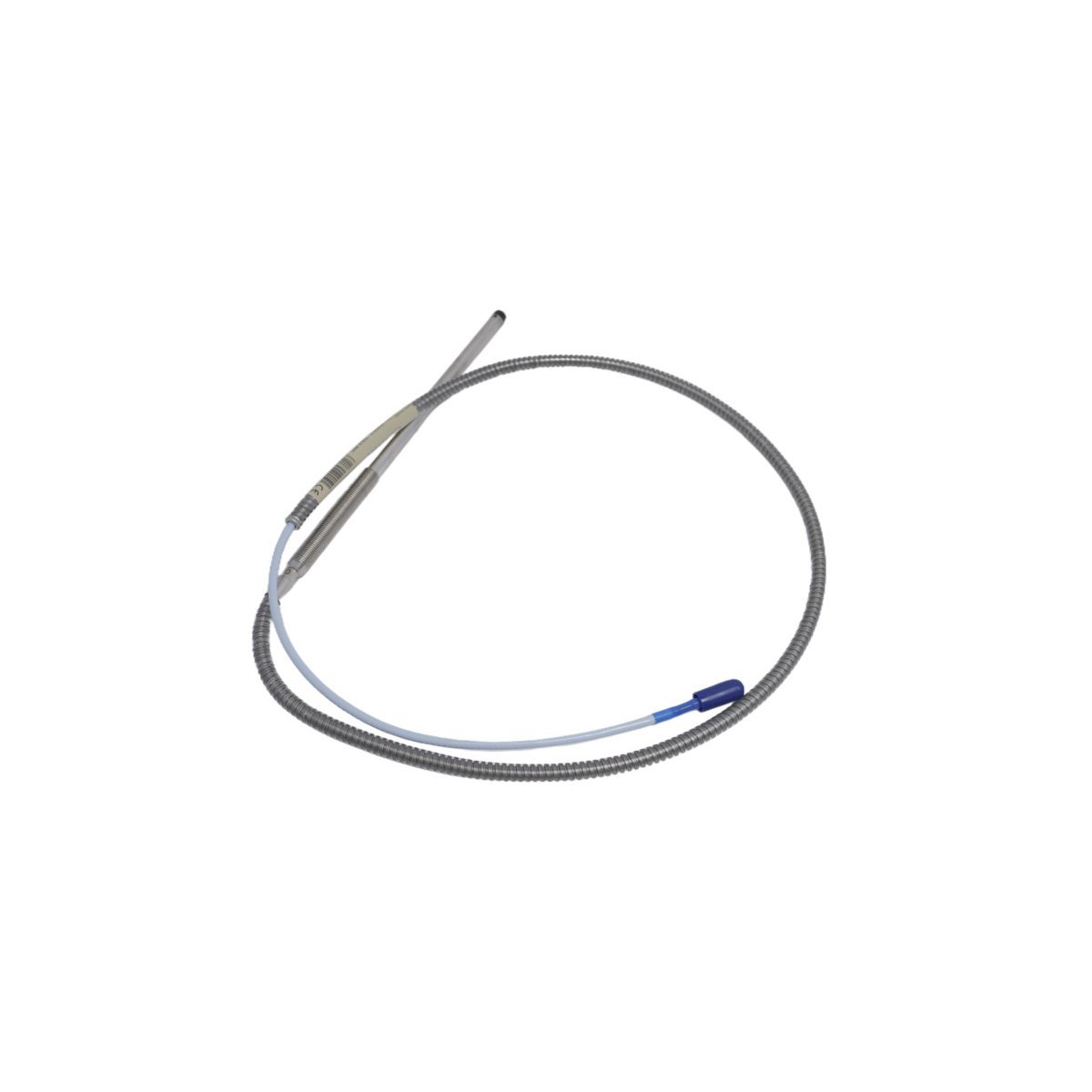

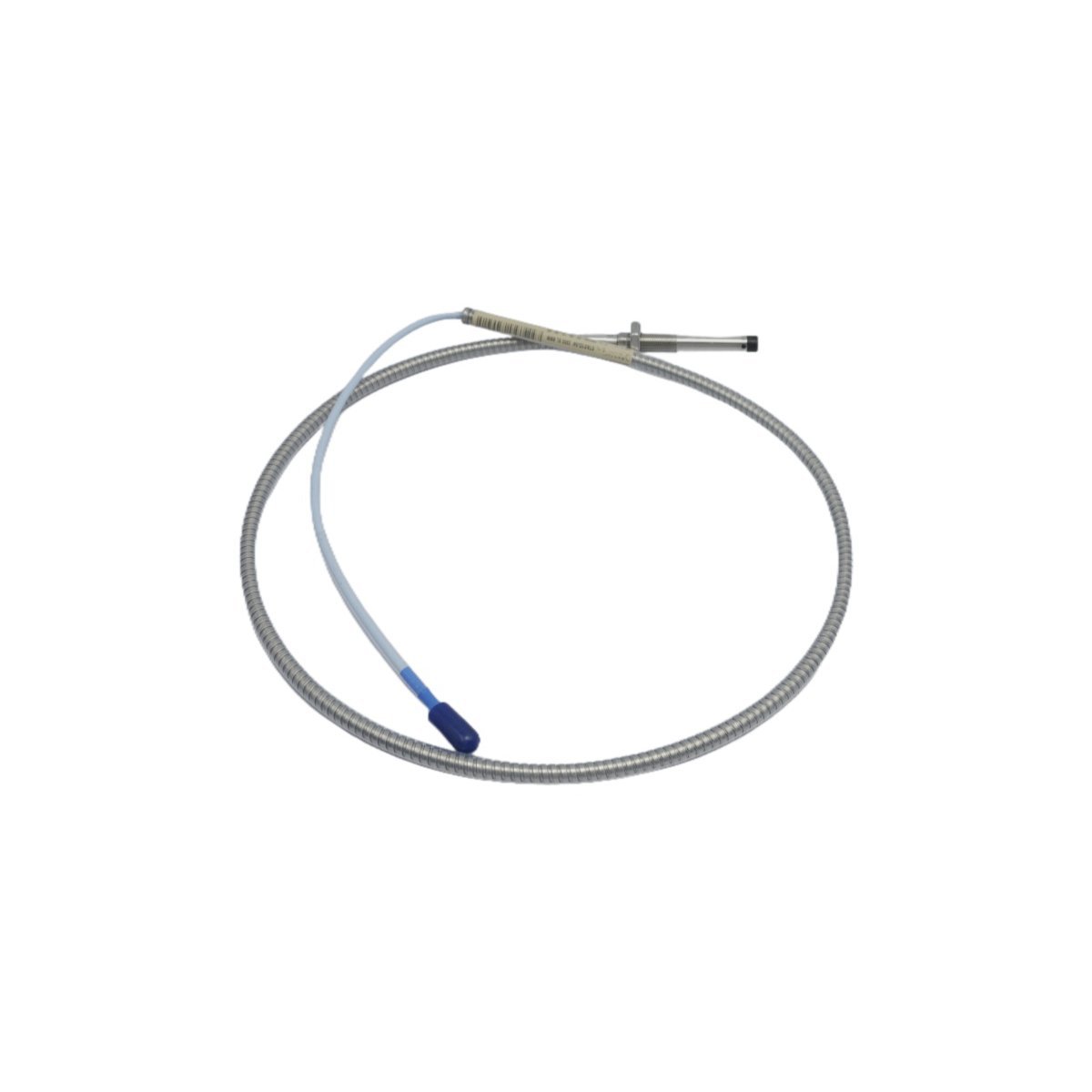

330104-16-21-05-01-05 | Bently Nevada | 8 mm Proximity Probes

### Product Description
This is a non-contact eddy-current proximity probe designed for shaft vibration and position monitoring in rotating machinery.
Moreover, it delivers high-resolution displacement measurements for condition monitoring and machine protection systems.
Therefore, it is commonly deployed in steam turbines, compressors, and large motors where precise dynamic motion sensing is required.

### Technical Specifications

### Typical Applications
– Steam turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and thrust bearing displacement measurement
– Large electric motor rotor position and runout verification
– Gearbox input/output shaft relative motion analysis

### FAQ
What is the standard operating temperature range?
–40 °C to +121 °C (–40 °F to +250 °F) for continuous operation.

Is this probe compatible with 3300 XL monitoring systems?
Yes, it is fully compatible with Bently Nevada 3300 XL and legacy 3300 series monitors.

Does the probe require calibration before installation?
No—factory-calibrated; zero-shift verification is recommended during installation per API 670.

What cable length options are available with this part number?
This part number includes a standard 5 m integrated coaxial cable with 10-32 UNF connector.

Can it be used in hazardous areas?
Not inherently—requires appropriate system-level certification (e.g., intrinsic safety barrier) for Class I Div 1 applications.
