Description

Technical Overview

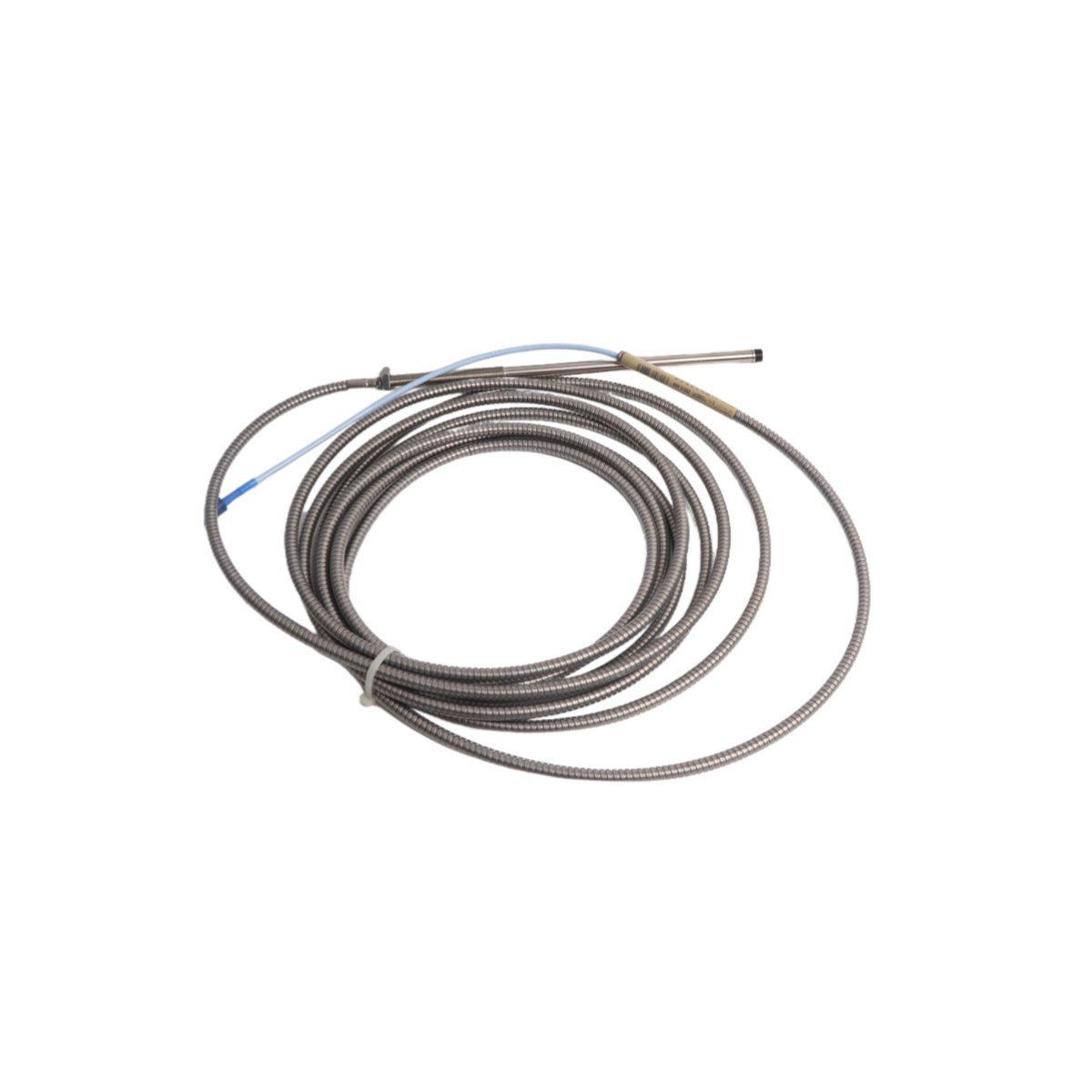

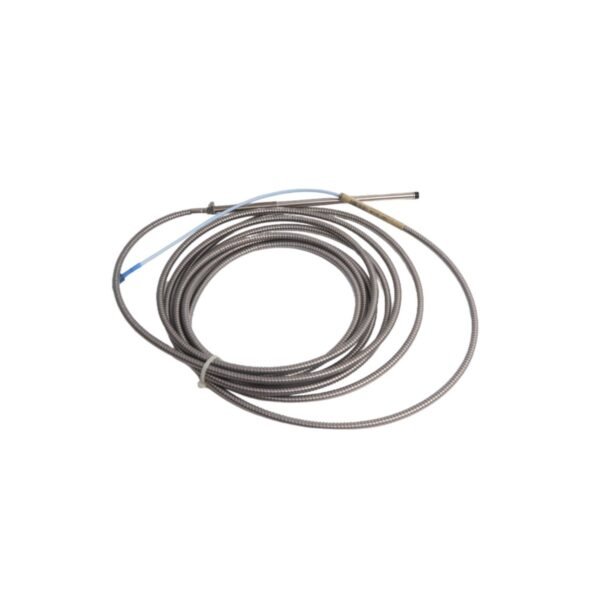

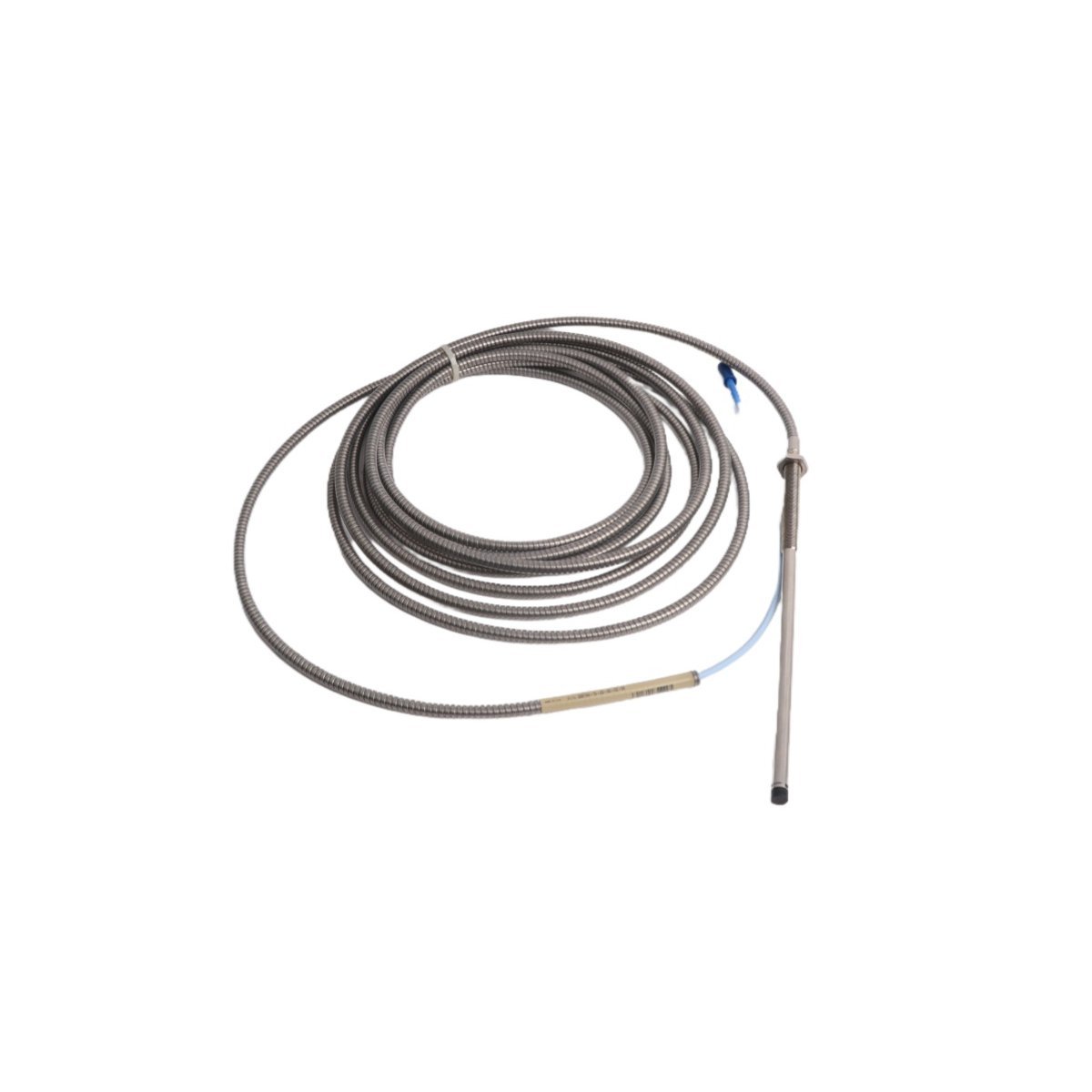

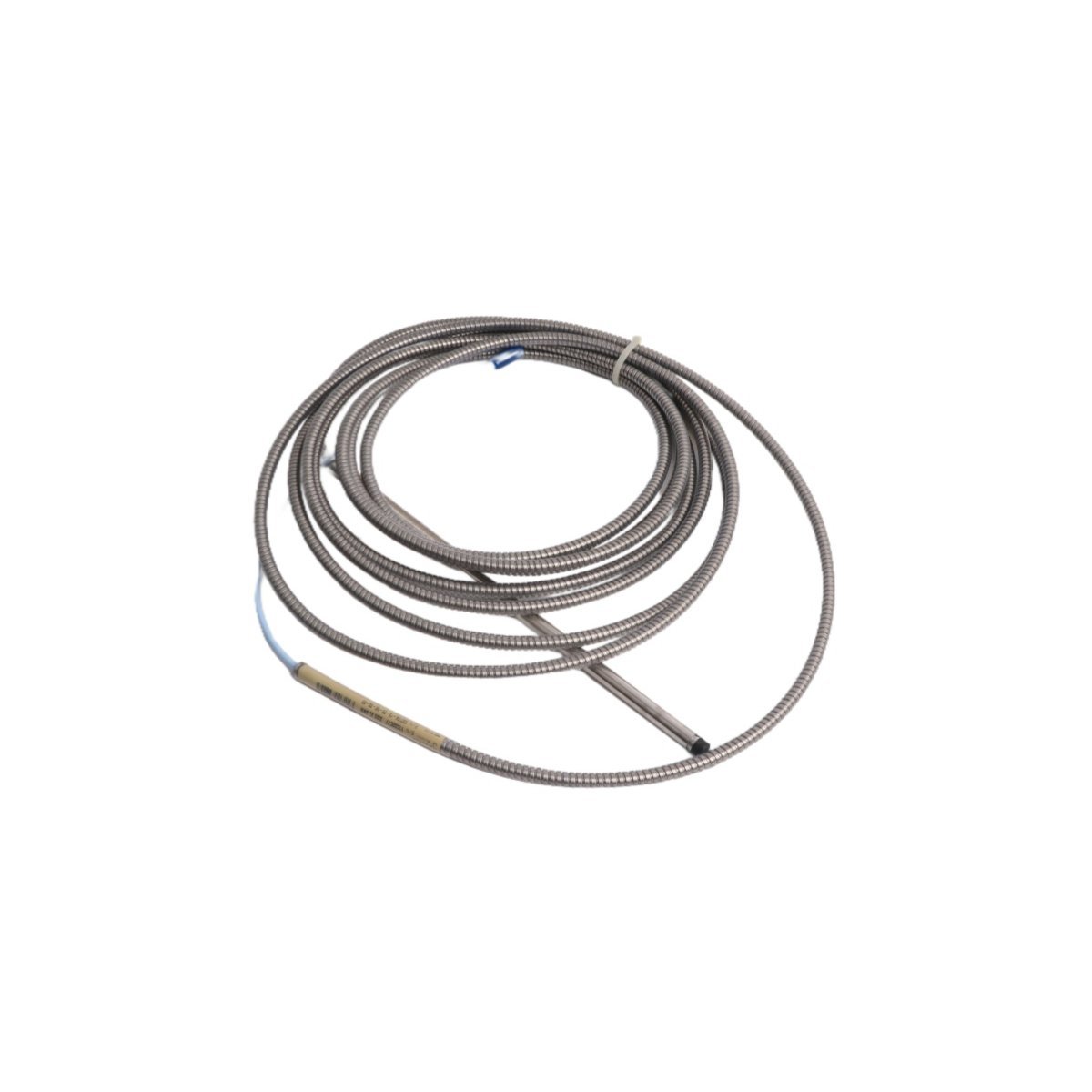

The Bently Nevada 330104-15-25-10-02-05 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and position monitoring of rotating machinery. Manufactured by Baker Hughes (under the Bently Nevada brand), this probe is part of the globally trusted 3300 XL 8 mm sensor family—renowned for exceptional stability, repeatability, and immunity to environmental interference. Designed for integration with the 3300 XL monitoring system architecture, the probe delivers linear, calibrated output in millivolts per mil (mV/mil) or volts per millimeter (V/mm), enabling accurate shaft displacement, eccentricity, runout, and axial position measurements critical for predictive maintenance and machinery health assessment. The probe features a robust stainless steel housing with an integral 8 mm diameter sensing tip, optimized for use with standard 3300 XL extension cables and proximitor transducers. Its hermetically sealed construction ensures long-term reliability in harsh industrial environments—including high humidity, oil mist, temperature fluctuations, and electromagnetic noise common in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Each unit undergoes rigorous factory calibration traceable to NIST standards and is supplied with full documentation, including calibration certificate, mechanical drawings, and installation guidelines. The 330104-15-25-10-02-05 is offered in new, factory-fresh condition—never refurbished or previously installed—with comprehensive technical support and global service network accessibility.

Detailed Specifications

Key Features

• NIST-Traceable Calibration: Each probe ships with individual calibration data verified against National Institute of Standards and Technology (NIST)-traceable reference standards, ensuring measurement integrity across global operations.
• Enhanced Signal Stability: Advanced coil winding techniques and temperature-compensated electronics minimize drift over time and reduce sensitivity to ambient thermal gradients—critical for long-term trending accuracy.
• Robust Mechanical Design: Hermetically sealed 316 stainless steel body resists corrosion from hydrocarbons, solvents, steam, and salt-laden atmospheres, extending service life in demanding upstream and marine applications.
• Optimized for 3300 XL Architecture: Fully interoperable with 3300 XL Proximitor transducers, rack systems, and Asset Management Software (AMS) Machinery Health Manager—enabling seamless integration into existing Bently Nevada monitoring ecosystems.
• Wide Dynamic Range & Low Noise Floor: Delivers signal-to-noise ratios exceeding 80 dB, supporting detection of sub-micron vibrations while maintaining linearity across the full 2.0 mm range.
• Plug-and-Play Installation: Pre-calibrated and pre-configured for immediate deployment—no field recalibration required when used with compatible 3300 XL components.
• Compliance & Certification: Certified to IEC 61000-4 (EMC immunity), ATEX/IECEx Zone 1 (for associated apparatus), and RoHS 2011/65/EU directives—ensuring safety and regulatory adherence worldwide.

Applications

• Turbomachinery Monitoring: Real-time shaft vibration, thrust position, and bearing clearance measurement on steam turbines, gas turbines, and centrifugal compressors in combined-cycle power plants and refineries.
• Rotating Equipment Protection: Integration into emergency shutdown (ESD) and turbine supervisory instrumentation (TSI) systems for overspeed, excessive vibration, and axial shift detection per API RP 670 standards.
• Predictive Maintenance Programs: Foundation sensor for condition-based monitoring (CBM) platforms—feeding data into digital twin models, spectral analysis tools, and AI-driven anomaly detection algorithms.
• Hydroelectric & Pump Systems: Monitoring of generator rotor eccentricity, wicket gate positioning, and pump shaft alignment under variable load conditions.
• Oil & Gas Downhole & Surface Equipment: Critical measurement on reciprocating compressors, LNG train drivers, and offshore platform pumps exposed to extreme pressure, temperature, and corrosive media.
• R&D and Test Benches: High-fidelity displacement sensing in laboratory environments for modal analysis, bearing dynamics research, and prototype validation per ISO 10816 and ISO 7919 specifications.
